Summary of Contents for Boss Audio Systems 810DBI

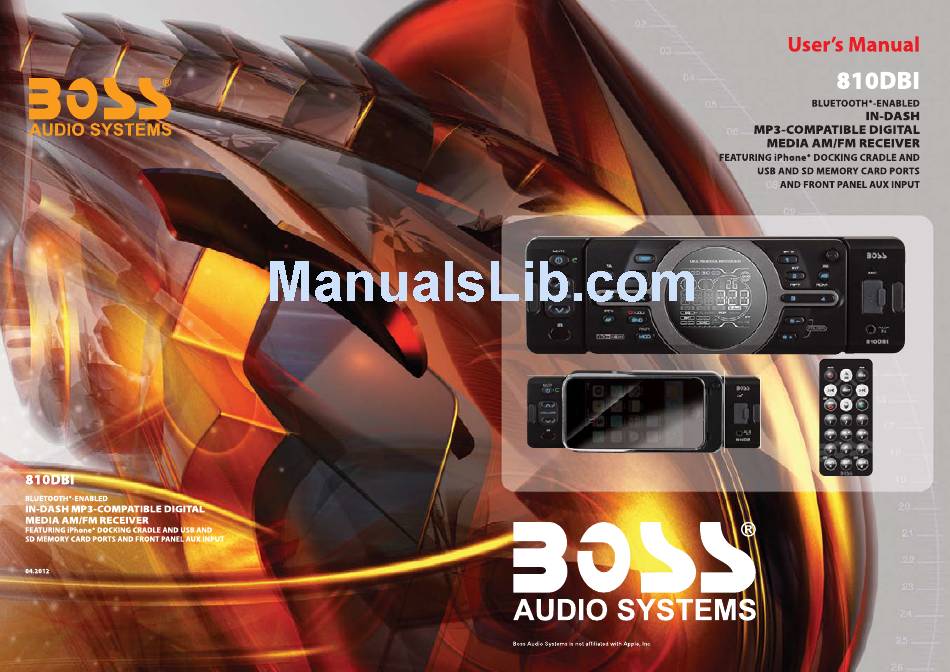

- Page 2 810DBI OWNER’S MANUAL Mobile Audio System PLL Synthesizer Stereo Radio Automatic Memory Storing Detachable Control Panel RBDS Operation Bluetooth Hands-free function & A2DP (Advanced Audio Distribution Profile) Stereo Audio Transmission Auxiliary Input Function USB Interface Memory Card Interface Working for iPhone...
-
Page 3: Installation
INSTALLATION (1) Metal Strap Notes: Be sure to use the strap to secure the Choose the mounting location where back of the unit of the place. The strap the unit will not interfere with the normal can be bent by hand to the desired driving function of the driver. - Page 4 INSTALLATION Side View showing Screw Holes marked T, N or S Screw Factory Radio Mounting Bracket Screw Dashboard or Console To fasten the unit to the factory radio mounting brackets. Align the screw holes on the bracket with the screw holes on the unit, and then tighten the screws (5x5mm) on each side.
-
Page 5: Using The Detachable Control Panel
USING THE DETACHABLE CONTROL PANEL Detach the Control panel Precautions when handling 1. Press the Release button, the front 1. Do not drop the control panel. panel will be folded down. 2. Do not put pressure on the display or control buttons when detaching or Release button re-installing the control panel. -
Page 6: Wiring Connection
WIRING CONNECTION Connector A 1. N.C 2. N.C 3. N.C 4. MEMORY +12V (YELLOW) 5. AUTO ANTENNA OUTPUT (BLUE) 6. N.C 7. +12V (TO IGNITION KEY) (RED) 8. GROUND (BLACK) Connector B 1. REAR RIGHT SPEAKER (+) (VIOLET) 2. REAR RIGHT SPEAKER (-) (VIOLET/BLACK) 3. - Page 7 OPERATION LOCATION OF KEYS When pressing the release button (1) to remove the detachable control panel: /MUTE/ (power/mute/ 14. 4 RDM button pick up phone) button 15. 5 FOLDER- button 2. VOLUME button 16. 6 FOLDER + button 3. VOLUME button 17.
-
Page 8: Basic Operation
OPERATION BASIC OPERATION when set PCLK ON, clock will appear with backlight on when power off. SWITCHING ON/OFF THE UNIT 6) TV OFF/ON When connections completed, press Use the volume buttons (2&3) button (1) to switch on the unit. When to set TV on or off. - Page 9 OPERATION (19) together to clear the power-down MUTE memory function. In USB/SD/Radio/Aux-in mode, press button (1) shortly to mute down the sound RADIO OPERATION instantly. Press it again to resume the SWITCHING TO RADIO MODE sound. Press MOD button (19) shortly to select When in iPhone tray mode, shortly radio mode, the radio mode appears in the pressing...
-
Page 10: Usb Play Operation
OPERATION to fast reverse or fast forward. The play STATION STORING starts from when you release the button. Press any one of the preset buttons (17) (1 to 6) to select a station, which had been PAUSING PLAYING Press button (11) to pause play. stored in the memory. -
Page 11: Memory Card Operation
OPERATION Searching From Current Directory “Searching track directly” => “Searching Press AS/PS button (7) four times. The Directory or File Name”=> “Navigation” unit searches file or directory from from root => “Navigation” from current current directory by the volume directory. buttons (2&3). - Page 12 Bluetooth.) TRANSFER CALL BETWEEN 2) “BOSS AUDIO” should appear in the MOBILE PHONE AND THE UNIT list on your mobile phone, please During the talking mode, you can press select “BOSS AUDIO” and then input button (1) for several seconds to transfer password “0000”.
-
Page 13: Iphone Operation
OPERATION BLUETOOTH AUDIO (A2DP FUNCITON) Note: The unit supports Bluetooth audio function. ■ You can use the Video output jack at the If your mobile phone can play stereo audio, back of the unit to view the video of your when the paring is ok, you can select an iPhone on an external monitor (not audio file and set to A2DP function on your... -
Page 14: Remote Control
REMOTE CONTROL FUNCTION KEYS & CONTROL 1. MODE/PAIR Press it shortly to change the mode among Radio, CD, USB, CARD, AUX and BT Audio. Press and hold it to enter the pair function for BT operation. /MUTE When the unit is not on, shortly press to turn on the unit. - Page 15 REMOTE CONTROL 8. PAU, 1 Press it to pause the playback, press it again will resume the playback. 9. DIR , 6 When playing MP3/WMA files, use it to select directory upward. 10. DIR , 5 When playing MP3/WMA files, use it to select directory downward. 11.
-
Page 16: Specification
SPECIFICATION GENERAL Power Supply Requirements : DC 12 Volts, Negative Ground Tone Controls Bass (at 100 Hz) : ±10 dB Treble (at 10 kHz) : ±10 dB Maximum Output Power : 4x8 0 watts Current Drain : 15 Ampere (max.) USB/MEMORY CARD PLAYER Signal to Noise Ratio : More than 55 dB... -
Page 17: Troubleshooting
The radio does The antenna cable is not Insert the antenna cable firmly. not Work. The connected. radio station The signals are too weak. Select a station manually. automatic selection does not work. BOSS AUDIO CAR STEREOS CAR AUDIO SYSTEMS...
