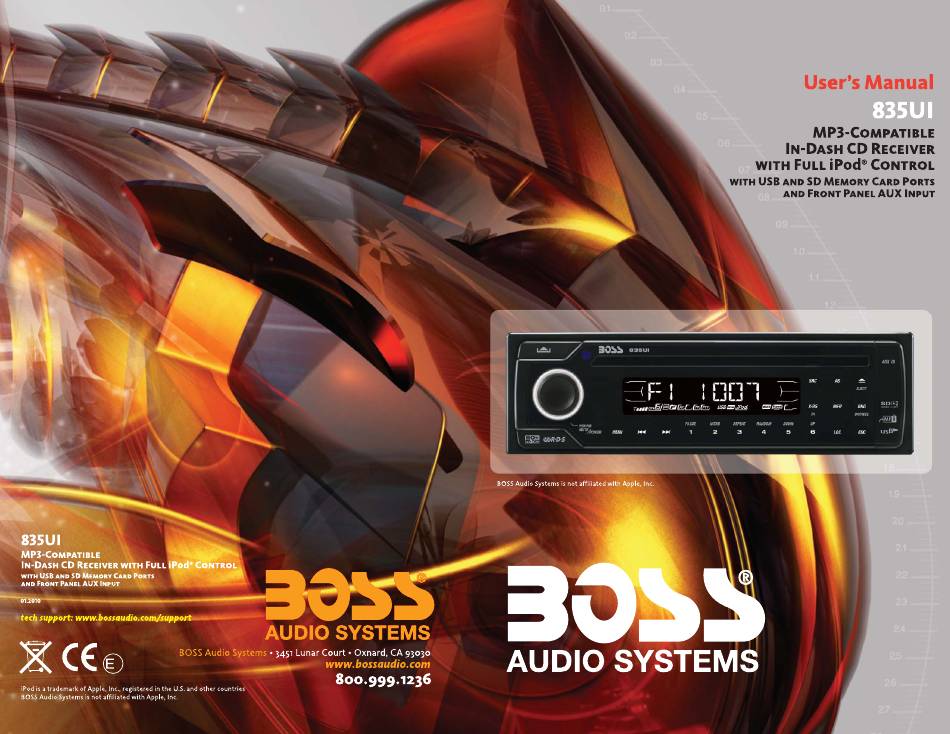

- Page 1 10 R - 02 0896...
-
Page 2: Buttons Location And Functions
1. BUTTONS LOCATION AND FUNCTIONS 1. Panel Release Button 1. Tecla para remover o painel frontal 2. Menu Button 2. Tecla de ajuste de menu 3. Tecla para ejetar o disco 3. CD Eject Button 4. Tecla Ligar/desligar & Tecla Mute 4. - Page 3 This radio is equipped with the most advanced "TOUCH SENSE PANEL", so that it is easy and convenient to use while driving. Here are some tips to show you how easy it is to use this touch sense panel: Tips Using a very light touch on the radio panel will activate that feature.
-
Page 4: Note Of Discs
2. NOTE OF DISCS MOISTURE CONDENSATION On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit. Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for about an hour until the moisture has evaporated. -
Page 5: Installation
3. INSTALLATION Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and system work properly. Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions. - Page 6 Removing the unit a. Frame b. Insert fingers into the groove in the front of frame and pull out to remove the frame. (When re-attaching the frame, point the side with a groove down wards and attach it.) c. Insert the levers supplied with the unit into the grooves at both sides of the unit as shown in figure until they click.
-
Page 7: Detachable Control Panel (D.c.p .)
4. DETACHABLE CONTROL PANEL (D.C.P .) Removing The Detachable Control Panel (D.C.P .). 1. Turn the power off 2. Press the D.C.P . release button 3. Remove the D.C.P . PANEL RELEASE BUTTON Attaching the DCP 1. Attach the panel at the right side first, with point B on the main unit touching point A on the D.C.P . - Page 8 5. WIRING DIAGRAM (BUILT-IN ISO) ANTENNA CABLE INPUT ANTENNENVERLÄNGERUNGSKABEL CÂBLE D'EXTENSION D' ANTENNE ENTRADA PARA CABO DE ANTENA CABLE DE ANTENA CAVO ANTENNA ESTENDIBILE REAR RCA-TO-RCA CABLES (not supplied) RCA-TO-RCA-KABEL (nicht geliefert) CABLES RCA-TO-RCA (non fournis.) CABOS RCA A RCA (não fornecidos) CABLES RCA A RCA (no incluidos) CAVO RCA A RCA ( non fornito) iPod...
-
Page 9: Basic Operations
6. BASIC OPERATIONS 2) PANEL RELEASE BUTTON (REL) Press this button to remove the control panel. 3) POWER ON/OFF BUTTON ( POWER/MUTE ) Press POWER/MUTE button or any other button on the front of the radio (except Open/Eject) to turn the unit on. And hold & press POWER /MUTE button again to turn the unit off. 3) MUTE BUTTON (POWER/MUTE) Short press the POWER/MUTE button momentarily to mute the audio volume, and "MUTE"... -
Page 10: System Menu Setting
7. SYSTEM MENU SETTING 1) MENU FUNCTION LIST (MENU) Hold& Press MENU button to access into the System Menu setting mode. Will appear in the display momentarily. Navigate the menu by pressing MENU momentarily to move to the next option. Once the desired option appears in the display, adjust that option by rotating the Encoder Volume Knob(press the volume up / down button ) within 5 seconds. -
Page 11: Adjust Audio Setting
8. ADJUST AUDIO SETTING Press MENU button to access the Audio Menu. Once the desired menu item appears on the display, adjust that option by rotate the Encoder Volume Knob. The following menu items can be adjusted as described above. BAS (Bass Level) User has 5 seconds to use the Encoder Volume Knob to adjust the desired Bass level range from -10 to +10. -
Page 12: Tuner Operation
9. TUNER OPERATION BAND BUTTON (BROWSE/BAND) Press BROWSE/BAND button to change between FM bands and AM(MW) 14) TUNING UP/DOWN BUTTON ( Manual Tuning Hold & press the Up Tuning or Down Tuning button to move the radio frequency number up or down one step. -
Page 13: Rds Operation
10. RDS OPERATION RDS functions The unit is equipped with the following RDS function: - AF Alternative Frequencies - CT Clock Time - PI Program identifications - PS Program service name - PTY Program Type - TA Traffic Announcement - TP Traffic program 1. -
Page 14: Cd/Mp3/Wma Operation
11. CD /MP3/WMA OPERATION INSERT AND EJECT CD Insert a CD label-side up with the unit turned on, and the disc will begin to play. Press the Eject button to stop CD play and eject the CD. The unit does not have to be turned on to eject the CD. CD-DA OPERATION PAUSE BUTTON ( Press the PAUSE button to suspend disc play. - Page 15 MP3/WMA written in the formats other than the above may not be successfully played and their file names or folder names may not be properly displayed. MP3/WMA Encoder and CD Writer Settings Use the following settings when compressing audio data in MP3 data with the MP3 encoder. Transfer bit rate : 32- 320 kbps Sampling frequency : 32,44.1,48 kHz(WMA) 16,22.05,24,32,44.1, 48kHz (MP3) When using a CD writer to record MP3/WMA up to the maximum disc capacity, disable additional...
- Page 16 Files Playing Order When selected for play, Folder Search, File Search or Folder Select, files and folders are accessed in the order in which they were written by the PC writer. Because of this, the order in which they are expected to be played may not match the order in which they are actually played.
- Page 17 File/Folder Repeat play : Press M3 button more than 3 seconds during playing MP3/WMA disc for “repeat play” all files of the current folder. And keep on repeat playing the current folder until “repeat play” is disabled. To disable current folder “repeat play”, long press M3 button more than 3 seconds Press M3 button less than 3 seconds to “repeat play”...
- Page 18 1 . USB OPERATION The unit can support USB Host Function. It can playback MP3 and WMA Audio format which are stored into USB Memory Stick or USB interface Music Player. Please read below before you start the operation of USB HOST Function. Inserting and Removing USB Drive Warning: Always remove the USB stick before detach...
-
Page 19: Memory Card Operation
13. MEMORY CARD OPERATION The unit can support playback MP3 and WMA Audio format which are stored into SD Card. Please read below before you start the operation of Memory Card. Inserting and Removing a SD card on the main unit Face Click Insert the Memory Card... -
Page 20: Ipod Operation
14. iPod OPERATION This unit is equipped with iPod Ready function which allow end user to have direct control of the iPod on the front panel control button and display iPod song information on the unit's LCD display. Please read below for more details operation. iPod Compatibility Chart This unit is support following iPod software version iPod 1G... - Page 21 iPod information Display on the Head Unit LCD This unit can display the Song, Artist, Album name and Elapsed time on the LCD display, these information can be displayed by pressing the INFO button repeatedly while a iPod Song file is playing.
-
Page 22: Remote Function
15. REMOTE FUNCTION OPERATIONS: TUNER SYSTEM CD/MP3/WMA iPod Long Long Long Short Short Short Long Short Press Press Press Press Press Press Press Press Power Mute System Audio Menu Menu Mode Enter Audio Volume Up Volume Down Fast Track/File Fast File Seek Up Tune Up... -
Page 23: Specifications
16. SPECIFICATIONS CD Player CD PLAYER Sistema: Sistema áudio CD Compact disc audio system System Tipo de disco: Compact disc Usable disc Frequência de Amostragem: 44.1KHz 44.1KHz Sampling frequency Conversor D/A: 1bit 1bit No of quantization bits Resposta de frequencia 5-20,000Hz 5-20,000Hz Frequency... -
Page 24: Troubleshooting
17. TROUBLE SHOOTING Before going through the check list, check wiring connection. If any of the problems persist after check list has been made, consult your nearest service dealer. Symptom Cause Solution The car ignition is not on. No power If the power supply is properly connected to the car accessory terminal, switch the ignition key to “ACC”...
