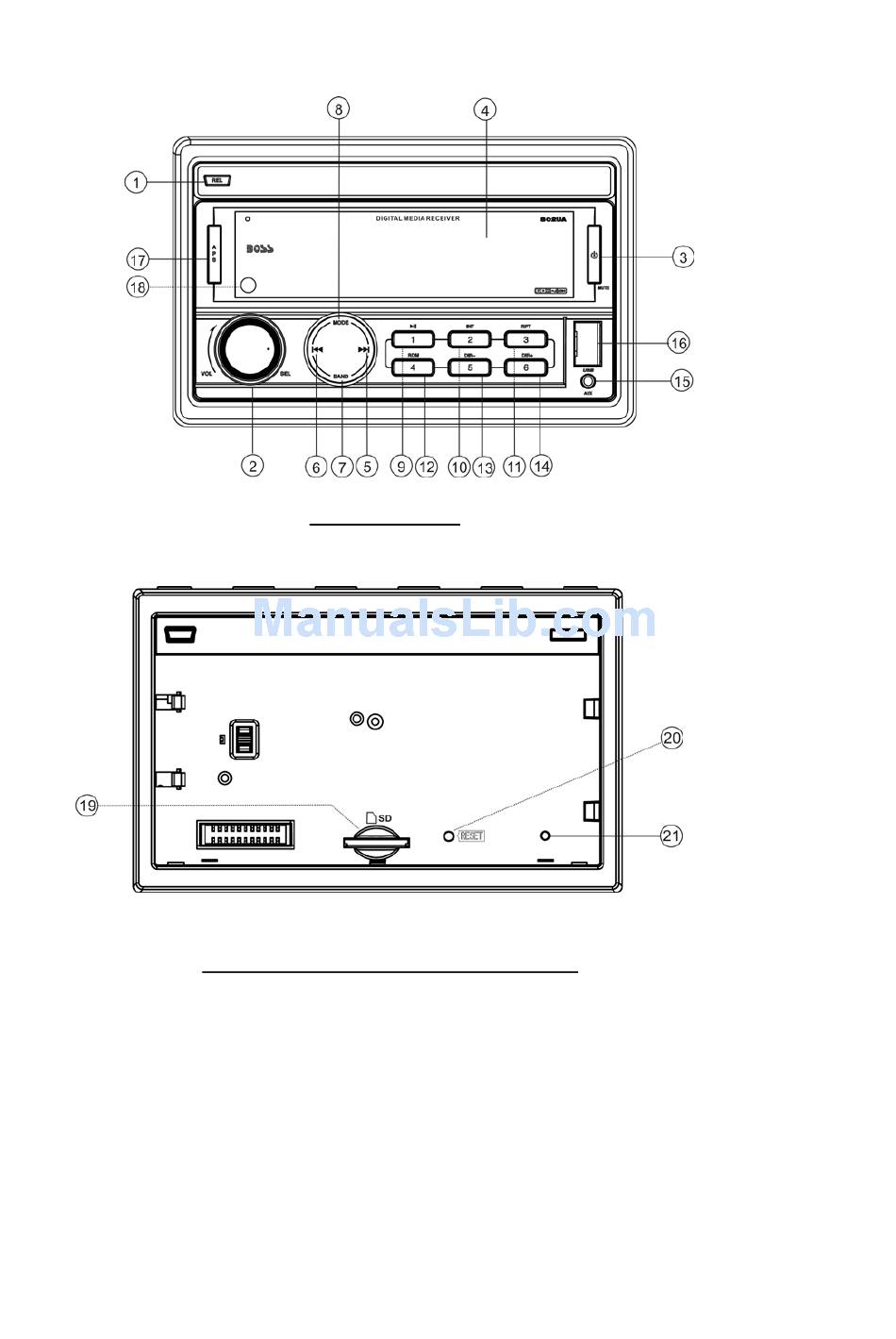

DESCRIPTION OF CONTROLS ON THE FRONT CONTROL PANEL
Front Cabinet after removing Front Control Panel
1. RELEASE button
2. SEL & VOL knob
3. POWER & MUTE button
4. LCD
5&6. >>| And |<< buttons
7. BAND button
8. MODE button
Front Control Panel
9. 1/TOP/>|| button
10. 2/INT button
11. 3/RPT button
12. 4/RDM button
13. 5 DIR- button
14. 6 DIR+ button
15. AUX IN jack
16. USB socket
17. APS button
18.IR Remote Sensor
19.Card slot
20.RESET
21. FLASHING LED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 802UA and is the answer not in the manual?

Questions and answers

Summary of Contents for Boss Audio Systems 802UA

  • Page 1 DESCRIPTION OF CONTROLS ON THE FRONT CONTROL PANEL Front Control Panel Front Cabinet after removing Front Control Panel 1. RELEASE button 9. 1/TOP/>|| button 16. USB socket 2. SEL & VOL knob 10. 2/INT button 17. APS button 3. POWER & MUTE button 11.
  • Page 2: Description Of Buttons On Remote Control

    DESCRIPTION OF BUTTONS ON REMOTE CONTROL REMOTE CONTROL 1. Power On/Off 2. Mute Button 3. Loudness Button 4. Level/MENU UP Button 5. SEL/MENU Button 6. Level/MENU Down Button 7. MO/ST Button 8. A.P Button 9. Band Button 10. Mode Button 11.
  • Page 3 Common operation: 1. To turn the unit on/off . When the unit is power Off, it may be switched On by pressing any button except RELEASE button. When the unit is switched On, press and hold POWER button for more than 1 second, to switch the power off.
  • Page 4 6. ID3 FUNCTION In USB/CARD mode, during playback, if you press CLK button on remote control then the information of the songs title, artist, etc will display on the LCD. As long as the current playing music contains relevant ID3 tag information. Press again to cancel the ID3 function.
  • Page 5 current station in the preset memory bank of the number button for the current band. In this way the unit can store 30 preset stations. 2) Press one of the 6 number buttons briefly to turn on the preset station stored in the preset memory bank of the number button for the current band.
  • Page 6: Installation Method

    Press RPT button twice to play the tracks in the Album repeatedly, and the LCD will display RPT DIR. Press RPT button thrice to cancel RPT function, and the LCD will display OFF. 8. To play tracks in random During playback, press RDM button briefly to play all tracks in random. Press it again to cancel RDM function.
  • Page 7: Wires Connection

    WIRES CONNECTION ISO SOCKET SKETCH CONNECTOR A CONNECTOR B 1. VIOLET R.R SP(+) 2. VIOLET BLACK R.R SP(-) 3. GREY F.R SP(+) 4. MEMORY +12V 4. GREY BLACK F.R SP(-) 5. AUTO ANTENNA B+ 5. WHITE F.L SP(+) 6. WHITE BLACK F.L SP(-) 7.
  • Page 8: Specification

    SPECIFICATION GENERAL Supply Voltage DC 12V. Negative Ground Current Consumption Max.10A Power Output 4 x 60 W Number of channels 2 STEREO channels. X 3.93” X 4.13” Unit Dimensions (L X W X H): 7” FM SECTION Frequency range 87.5Mhz - 107.9Mhz (U.S.A.) 87.5 Mhz - 108Mhz (Europe)
