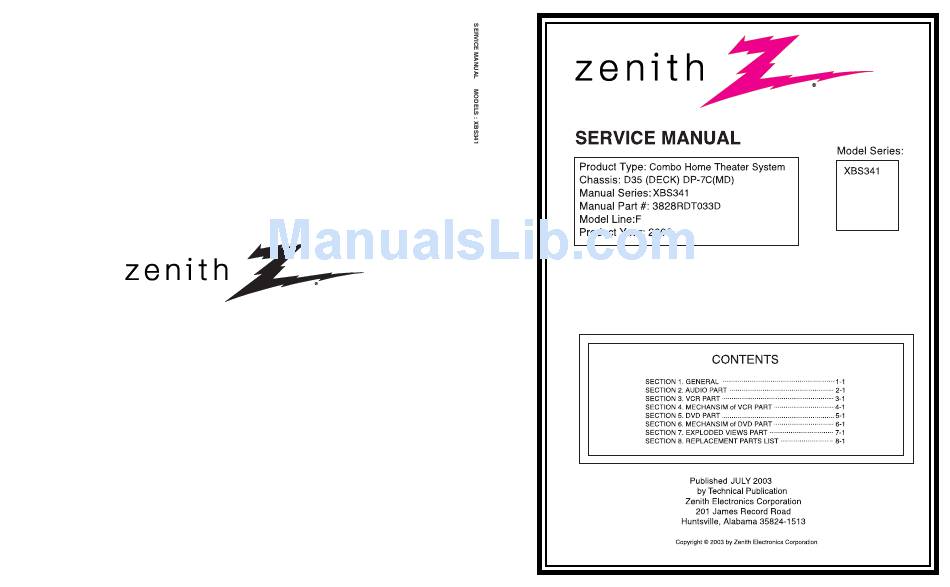

Zenith XBS341 Series Service Manual

Zenith conbo home theater system
Hide thumbs Also See for XBS341 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Zenith XBS341 Series

Summary of Contents for Zenith XBS341 Series

  • Page 2: Table Of Contents

    CONTENTS SECTION 1. GENERAL • PRODUCT SAFETY SERVICING GUIDELINES FOR VIDEO PRECAUTIONS ......1-2 • SERVICING PRECAUTIONS......................1-5 • ESD PRECAUTIONS ........................1-6 • SPECIFICATIONS ........................1-7 SECTION 2. AUDIO PART • AMP ELECTRICAL TROUBLESHOOTING GUDIE ..............2-1 • BLOCK DIAGRAM......................... 2-2 •...

  • Page 3: Section 1. General

    SECTION 1. GENERAL PART PRODUCT SAFETY SERVICING GUIDELINES FOR VIDEO PRODUCTS CAUTION : DO NOT ATTEMPT TO MODIFY THIS PRODUCT IN ANY WAY, SUBJECT : X-RADIATION NEVER PERFORM CUSTOMIZED INSTALLATIONS WITHOUT MANUFAC- 1. BE SURE PROCEDURES AND INSTRUCTIONS TO ALL SERVICE PER- TURER S APPROVAL.
  • Page 4 NOTES REGARDING HANDLING OF THE PICK-UP 1. Notes for transport and storage 1) The pick-up should always be left in its conductive bag until immediately prior to use. 2) The pick-up should never be subjected to external pressure or impact. Storage in conductive bag Drop impact 2.
  • Page 5 NOTES REGARDING COMPACT DISC PLAYER REPAIRS 1. Preparations 1) Compact disc players incorporate a great many ICs as well as the pick-up (laser diode). These components are sensitive to, and easily affected by, static electricity. If such static electricity is high voltage, components can be damaged, and for that reason components should be handled with care.

  • Page 6: Servicing Precautions

    SERVICING PRECAUTIONS CAUTION : Before servicing the COMBI HOME THEATER Electrostatically Sensitive (ES) Devices SYSTEM covered by this service data and its supplements Some semiconductor (solid state) devices can be damaged and addends, read and follow the SAFETY PRECAUTIONS. easily by static electricity. Such components commonly are NOTE : if unforeseen circumstances create conflict between called Electrostatically Sensitive (ES) Devices.

  • Page 7: Esd Precautions

    ESD PRECAUTIONS Electrostatically Sensitive Devices (ESD) Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive Devices (ESD). Examples of typical ESD devices are integrated circuits and some field-effect transistors and semiconductor chip components. The following techniques should be used to help reduce the incidence of component damage caused by static electricity.

  • Page 8: Specifications

    SPECIFICATIONS General Power requirements AC 120V, 60 Hz Power consumption 130W Dimensions (approx.) 430 X 90 X 350 mm (16.9 x 3.5 x 13.8 inches) (w x h x d) Weight (approx.) 8 kg (17.6 lbs) Operating temperature 5°C to 40°C (41°F to 104°F) Operating humidity 5 % to 90 % Signal system...
  • Page 9 Speakers Satellite (LHS-C6235T) Type 1 Way 1 Speaker Impedance 4‰ Frequency Response 130 - 20,000 Hz Sound Pressure Level 83 dB/W (1m) Rated Input Power Max Input Power Net Dimensions (W x H x D) 88 x 100 x 95 mm Net Weight 0.54 kg Passive Subwoofer (LHS-C6235W)

  • Page 10: Section 2. Audio Part

    SECTION 2. AUDIO PART - 2-1 -...

  • Page 11: Section 3. Vcr Part

    SECTION 3. VCR PART ELECTRICAL ADJUSTMENT PROCEDURES 1. Servo Adjustment 1) PG Adjustment Test Equipment a) OSCILLOSCOPE b) NTSC MODEL : NTSC SP TEST TAPE Adjustment And Specification MODE MEASUREMENT POINT ADJUSTMENT POINT SPECIFICATION V.Out PLAY R/C TRK JIG KEY 6.5 –...

  • Page 12: Vcr Electrical Troubleshooting

    VCR ELECTRICAL TROULBESHOOTING - 3-2 -...
  • Page 13 - 3-3 -...
  • Page 14 2. SYSTEM/KEY CIRCUIT (1) AUTO STOP Auto Stop Does the SW25 waveform Check the Drum Motor appear at the IC501 signal. Pin105? Do T/UP Reel Pulses Do the T-UP Reel Pulses Does 5.2V appear at the appear at the Q514 appear at the IC501 Pin49? RS501? Base terminal ?
  • Page 15 3. SERVO CIRCUIT (1) Unstable Video in PB MODE Unstable Video in PB Mode. Does the Noise level of the screen change periodically? Do the CTL pulses appear Is adjusting the height of at the IC501 Pin8? the CTL Head accurate? Does the CFG waveform Readjust the height of the appear at the IC501...
  • Page 16 (3) When the Capstan Motor doesn t run, When the Capstan Motor doesn t run, Refer to SMPS(CAPSTAN/12Volt) Does 12VA appear at the PMC01? Trouble Shooting . Does 2.8V appear at the PMC01? Check the PMC01 and the Capstan Does the PWM signal appear at the IC501 Pin108? Motor Ass y.
  • Page 17 (4) KEY doesn t working KEY doesn t working. Is 5V applied to the IC501 Refer to SMPS 5.3VA Pin36? Trouble Shooting . Does LED or FLD change Replace the defective when a function button is switches. pressed? - 3-7 -...
  • Page 18 4. Y/C CIRCUIT (1) No Video in EE Mode, No Video in EE Mode Does the Video signal Check the 24Pin of Tuner. appear at the IC301 Pin48? Is 5V applied to the IC301 Check the 5.2VT, 5.3VA Pins18, 24, 42, 55, 72, 91? Line.
  • Page 19 (2) When the Y(Luminance) signal doesn t appear on the screen in PB Mode, Is 5.2VT, 5.3VA applied to the Check the line of the 5.2VT, 5.3VA Line. (Power Circuit) IC301 Pins24, 42, 55, 72, 91? Is the I C Bus siganl applied Refer to SYSTEM I C BUS to the IC301 Pins68, 69 ?
  • Page 20 (3) When the C(Color) signal doesn t appear on the screen in PB Mode, Is 5.2VT/5.3VA applied to the Check the line of the 5.2VT/ 5.3VA Line. (Power Circuit) IC301 Pins24, 42, 55, 72, 91. Is the Color Rotary signal Check the Color Rotary applied to the IC301 Circuit.
  • Page 21 (4) When the Video signal doesn t appear on the screen in REC Mode, Is the EE signal normal? Check EE Mode. Is 5.2VT/5.3VA applied to the Check the line of the 5.2VT/ IC301 Pins24,42,55,72,91? 5.3VA Line.(Power Circuit) Does PB Mdoe operate Check PB Mode.
  • Page 22 5. Hi-Fi CIRCUIT (A) No Sound(EE Mode) No Sound. Check the TU Audio of IC801 Check the IC751 Pins30, 31. Pins1, 3. Check the DVD Audio of IC801 Check the DVD MODULE. Pins4, 5. (P8D01 Pins3, 5). Check the AV1 Audio of IC801 Check the Scart1 Jack.
  • Page 23 (B) Hi-Fi Playback PB mode No Sound. Check the Vcc of IC801 Check Power 5.2V, 12VT. (Pins34, 40) Check the Hi-Fi Selection switch. Check IC501 Pin25 (A.H/SW) (IC801 Pin41) and the Tape quality. Is the RF Envelope at IC801 Pin44 over 2Vp-p? Check IC801 Pin42(Data), Check the parts of -COM (IC501 Pins59, 60)
  • Page 24 Hi-Fi REC. It is impossible to record Hi-Fi Audio signal. Check Vcc of IC801.(Pins34, 40) Check Power 5V, 12VT. Check IC801 Pin42(Data), Pin43(CLOCK). Check ports of -COM. Check Audio input signal of IC801 Do Audio signals appear at IC801 Pins2, 3(TU.A.), 4, 5(DVD.A.), Pins16, 17? 6, 7(AVI.A.), 8, 9(AV2.A.), 10, 11(AV3.A.).
  • Page 25 6. Tuner/IF CIRCUIT (A) No Picture on the TV screen No picture on the TV screen Does the Video signal at Is +33V applied to TU701 Check 33V line. the TU701 Pin24. Pin16? Is +5V applied to TU701 Check 5V line. Pin13? Does the Clock signal Check the lIC Clock Signal...
  • Page 26 (B) No Sound No Sound. Check the Vcc of IC751 Pins1, 11, 19, Check 5.2V Line. 22, 33. Check the Tuner SiF signal at IC751 Check the Tuner SIF of TU701 Pin22. Pin2. Check the oscillator of IC751 Pins5, 6. Replace X751 Check the IIC Clock and Data at IC751 Check the Audio of IC751 Pins30, 31.

  • Page 27: Section 4. Mechansim Of Vcr Part

    SECTION 4. MECHANSIM OF VCR PART...

  • Page 28: Deck Mechanism Parts Locations

    DECK MECHANISM PARTS LOCATIONS T op View Procedure Fig- Part Fixing Type Starting 1 Drum Assembly 3 Screw 2 Plate Top 2 Hook 3 Holder Assembly CST Chassis Hole 4 Opener Door Chassis Hole 5 Bracket Assembly 3 Hook L/D Motor 2,3,4 6 Gear Assembly Rack F/L 1 Hook, Chassis Hole A-2...
  • Page 29 DECK MECHANISM DISASSEMBLY Stator (S2) (S2) (S3) Drum Motor (S3) Rotor Drum Sub Assembly (Fig. A-1-1) Drum FPC Carbon Brush (S1) (S1) (S1) Holder FPC Fig. A-1 (Fig. B-1) 1. Drum Assembly (Fig. A-1-1) 1) Unplug the Drum FPC Connector. 2) Remove three Screws(S1) on bottom side and separate the Drum assembly.
  • Page 30 DECK MECHANISM DISASSEMBLY (Fig. A-2-1) Plate Top (B’) (Fig. A-2-2) Holder Assembly CST (Fig. A-2-6) Arm Assembly F/L (C1) (Fig. A-2-7) Lever Assembly S/W (H8) Bracket Assembly L/D Motor Spring Lever S/W (Fig. A-2-4) (C’) (E’) Opener Door (Fig. A-2-3) (H6) Chassis Gear Assembly Rack F/L...
  • Page 31 DECK MECHANISM DISASSEMBLY 2. Plate Top (Fig. A-2-1) 2) Unhook three Hooks(H3, H4, H5) on bottom side of the Chassis, lift up the Bracket Assembly L/M and disassem- 1) Pull the (B) portion of the Plate Top back in direction of ble the Bracket Assembly L/D Motor.
  • Page 32 DECK MECHANISM DISASSEMBLY Arm Assembly Cleaner (Fig. A-3-1) (S4) Base Assembly A/C Head (Fig. A-3-3) Head F/E (Fig. A-3-2) Chassis Fig. A-3 9. Arm Assembly Cleaner (Fig. A-3-1) 11. Base Assembly A/C Head (Fig. A-3-3) 1) Breakaway the (A) portion as Fig. A-3-1 from the 1) Remove the Screw(S4) and lift the Base Assembly A/C embossing of the Chassis, turn the Arm assembly Head up.
  • Page 33 DECK MECHANISM DISASSEMBLY Arm Assembly Tension (Fig. A-4-3) (H11) Spring TB Brake Assembly T (Fig. A-4-1) Spring Tension Reel S Reel T (Fig. A-4-4) (Fig. A-4-4) Spring RS Brake Assembly RS (Fig. A-4-2) (H12) (H9) (H10) Base Tension Chassis Fig. A-4 12.
  • Page 34 DECK MECHANISM DISASSEMBLY Opener Lid (Fig. A-5-2) Assembly Pinch (Fig. A-5-3) Base Assembly P4 Lever T/up (H13) (Fig. A-5-1) (Fig. A-5-4) (H13) Arm T/up (Fig. A-5-5) Chassis Fig. A-5 16. Base Assembly P4 (Fig. A-5-1) NOTE 1) Breakaway the (A) portion of the Base Assembly P4 from When reassembling, confirm the (C) portion of the Arm the embossing of the Chassis.
  • Page 35 DECK MECHANISM DISASSEMBLY Belt Capstan (Fig. A-6-1) Motor Capstan (Fig. A-6-2) Washer(W1) Clutch Assembly D35 (Fig. A-6-4) (L1) (L1) Brake Assembly Capstan (Fig. A-6-5) Lever F/R (Fig. A-6-3) (L2) Chassis (S5) Fig. A-6 20. Belt Capstan (Fig. A-6-1)/ 22. Clutch Assembly D35 (Fig. A-6-4) Motor Capstan (Fig.
  • Page 36 DECK MECHANISM DISASSEMBLY (H14) Gear Cam Hole(B) Gear Cam (Fig. A-7-2) Gear Drive Hole(A) Gear Sector Washer (W2) (Fig. A-7-3) Plate Slider Gear Drive (Fig. A-7-4) (Fig. A-7-1) Lever Tension (Fig. A-7-5) Lever spring (L3) (Fig. A-7-6) Gear Drive Hole(C) Base Loading (H15) (H16)
  • Page 37 DECK MECHANISM DISASSEMBLY Gear Assembly P2 Hole Gear Assembly P3 Hole Gear Assembly P3 (Fig. A-8-2) Gear Sector Hole(A) Lever Spring Boss Gear Assembly P2 Plate Slider Hole(B) (Fig. A-8-1) Chassis Base Assembly P3 (Fig. A-8-4) Base Assembly P2 (Fig. A-8-3) Fig.
  • Page 38 DECK MECHANISM DISASSEMBLY (S7) Base Tension Base Loading (Fig. A-9-2) Arm Assembly Idler (Fig. A-9-1) (Fig. A-9-3) Chassis Fig. A-9 31. Base Loading (Fig. A-9-1) 33. Arm Assembly Idler (Fig. A-9-3) 1) Remove the Screw(S7). 1) Make narrower the two parts, (B) and (C), as Fig. A-9-3. 2) Lift the Base Loading up.
  • Page 39 - 4-12 -...

  • Page 40: Top View(Without Tray Disc)

    DECK MECHANISM ADJUSTMENT 1. Mechanism Alignment Position Check Purpose:To determine if the Mechanism is in the correct position, when a Tape is ejected. Test Conditions (Mechanism Test Equipment/ Fixture Check Point Condition) Mechanism and Mode Switch Position Blank tape Eject Mode (with Cassette ejected) 1) Turn the Power S/W on and eject the Cassette by press- 4) Remove the Screw which fixes the Deck Mechanism and ing the Eject Button.
  • Page 41 - 4-14 -...

  • Page 42: Guide Roller Height Adjustment

    DECK MECHANISM ADJUSTMENT 4.Guide Roller Height Adjustment Purpose: To regulate the height of the tape so that the bottom of the tape runs along the tape guide line on the Lower Drum. 4-1. Preliminary Adjustment Test Equipment/ Fixture Test Conditions (Mechanism Condition) Adjustment Point Post Height Adjusting Driver Play or Review Mode...
  • Page 43 DECK MECHANISM ADJUSTMENT 5. Audio/Control (A/C) Head Adjustment Purpose: To insure that the tape passes accurately over the Audio and Control Tracks in exact alignment of the both Record and Playback Modes. 5-1. Preliminary Adjustment (Height and Tilt Adjustment) Perform the Preliminary Adjustment, when there is no Audio Output Signal with the Alignment Tape. Test Equipment/ Fixture Test Conditions (Mechanism Condition) Adjustment Point...
  • Page 44 DECK MECHANISM ADJUSTMENT 5-2. Confirm that the tape passes smoothly (2) If folding or curling is observed at the top of it then slowly turn the Tilt Adjustment Screw(C) in the between the Take-up Guide and Pinch counterclockwise direction. Roller(using a mirror or the naked eye). 1) After completing Step 5-1.(Preliminary Adjustment), check NOTE: that the tape passes around the Take-up Guide and Pinch...
  • Page 45 DECK MECHANISM ADJUSTMENT 7. Adjustment after Replacing Drum Assembly (Video Heads) Purpose: To correct for shift in the Roller Guide and X value after replacing the Drum. Test Conditions Test Equipment/ Fixture Connection Point Adjustment Points (Mechanism Condition) CH-1: PB RF Envelope Guide Roller Precise Oscilloscope Play the Blank Tape...

  • Page 46: Check Before Starting Repairs

    MAINTENANCE/INSPECTION PROCEDURE 1. Check before starting repairs The following faults can be remedied by cleaning and oil- ing. Check the needed lubrication and the conditions of cleanliness in the unit. Check with the customer to find out how often the unit is used, and then determine that the unit is ready for inspec- tion and maintenance.

  • Page 47: Required Maintenance

    MAINTENANCE/INSPECTION PROCEDURE 2. Required Maintenance 4. Supplies Required for Inspection and Maintence The recording density of a VCR(VCP) is much higher than that of an audio tape recorder. VCR(VCP) components must (1) Grease : Kanto G-311G (Blue) or equivalent be very precise, at tolerances of 1/1000mm, to ensure com- (2) Isopropyl Alcohol or equivalent patibility with the other VCRs.
  • Page 48 MAINTENANCE/INSPECTION PROCEDURE 5-2) Greasing (2) Periodic greasing Grease specified locations every 5,000 hours. (1) Greasing guidelines 1) Loading Path Inside & Top side 6) Plate Slider Guide Sections Apply grease, with a cleaning patch. Do not use exces- 2) Base Assembly P2,P3 stopper 7) Plate Slider Guide Sections sive grease.
  • Page 49 MAINTENANCE/INSPECTION PROCEDURE Lever, F/R, Base, Tension GEAR AY, P2 & P3 Boss Lever, F/R Base, Tension Clutch (G-754. Yellow) Arm Tension Guide Hole - 4-22 -...

  • Page 50: Deck Mechanism

    MECHANISM TROUBLESHOOTING GUIDE 1.Deck Mechanism Auto REW doesn’t work. Is the output of END sensor of supply side "H"? H : more than 3.5V L : less than 0.7V~1V Is the Vcc. voltage of End Check the syscon power. sensor 5V? Replace the End sensor.
  • Page 51 - 4-24 -...
  • Page 52 MECHANISM TROUBLESHOOTING GUIDE In PB mode Tape Presence not sensed. Is the Pinch Roller attached Check Alignment positions to the Capstan Motor Shaft? (page 4-13). Does the T/Up Reel turn? Is the Belt ok? Replace the Belt. Check the Clutch and Idler Does the Capstan Motor turn? Assembly.

  • Page 53: Front Loading Mechanism

    MECHANISM TROUBLESHOOTING GUIDE 2. Front Loading Mechanism Cassette cannot be inserted. Does the Lever Assembly Is the Lever Assembly Switch Replace or add the Lever Switch work? Spring damaged or omitted? Assembly Switch Spring. Does the CST IN Switch work Replace the CST IN Switch.
  • Page 54 MECHANISM TROUBLESHOOTING GUIDE Cassette does not load. Does the cassette insert? Does the Opener Lid work? Does the Gear Assembly Rack F/L Replace the Opener Lid. work? Replace the Gear Rack F/L. Does the Opener Door work? Check the opener Door assembled Does the Arm Assembly F/L work? correctly.

  • Page 55: Exploded Views

    EXPLODED VIEWS 1. Front Loading Mechanism Section - 4-28 -...
  • Page 56 EXPLODED VIEWS 2. Moving Mechanism Section(1) OPTIONAL PART - 4-29 -...
  • Page 57 EXPLODED VIEWS 3. Moving Mechanism Section(2) OPTIONAL PART - 4-30 -...

  • Page 58: Section 5. Dvd Part

    SECTION 5. DVD PART DVD ELECTRICAL TROUBLESHOOTING 1. Test & debug flow - 5-1 -...
  • Page 59 - 5-2 -...
  • Page 60 - 5-3 -...
  • Page 61 - 5-4 -...
  • Page 62 - 5-5 -...
  • Page 63 - 5-6 -...

  • Page 64: Details And Waveforms On System Test And Debugging

    DETAILS AND WAVEFORMS ON SYSTEM TEST AND DEBUGGING 1. SYSTEM 27MHz CLOCK,RESET,FLASH R/W SIGNAL 1) MT1379 main clock is at 27MHz(X501) 2) MT1336 reset is high active - 5-7 -...
  • Page 65 3) RS232 waveform during procedure(Downloading) 4) Flash R/W enable signal during download(Downloading) - 5-8 -...

  • Page 66: Sdram Clock

    2. SDRAM CLOCK 1) MT1379 main clock is at 27MHz(X501) 3. TRAY OPEN/CLOSE SIGNAL 1) Tray open/close waveform - 5-9 -...
  • Page 67 2) Tray close waveform 3) Tray open waveform - 5-10 -...
  • Page 68 4. SLED CONTROL RELATED SIGNAL (NO DISC CONDITION) 5. LENS CONTROL RELATED SIGNAL(NO DISC CONDITION) - 5-11 -...
  • Page 69 6. LASER POWER CONTROL RELATED SIGNAL (NO DISC CONDITION) 7. DISC TYPE JUDGEMENT WAVEFORM - 5-12 -...
  • Page 70 - 5-13 -...
  • Page 71 8. FOCUS ON WAVEFORM - 5-14 -...
  • Page 72 9. SPINDLE CONTROL WAVEFORM (NO DISC CONDITION) - 5-15 -...
  • Page 73 10. TRACKING CONTROL RELATED SIGNAL(System checking) - 5-16 -...
  • Page 74 11. RF WAVEFORM 12. MT1379 AUDIO OPTICAL AND COAXIAL OUTPUT (ASPDIF) - 5-17 -...
  • Page 75 13. MT1379 VIDEO OUTPUT WAVEFORM 1) Full colorbar signal(CVBS) 2) Y - 5-18 -...
  • Page 76 3) C 14. AUDIO OUTPUT FORM AUDIO DAC 1) Audio related Signal - 5-19 -...
  • Page 77 MEMO - 5-20 -...
  • Page 78 SPEAKER I Satellite speaker • MODEL: LHS-C6235T A800 RUN DATE : 02.JUNE.2003 LOCA.NO PART NO DESCRIPTION SPECIFICATION REMARKS 3701RM0042A NET ASSEMBLY SPK LHS-D6230T L.SILVER 6400FTTC02A SPEAKER,FULLRANGE F30C-D366 TOPTONE FULL-RANGE(H 3110RMP009A CASE REAR LH-6230TE MOLD STANDARD 6871RU4116B PWB(PCB) ASSEMBLY,SUBSET(AUDIO FE-3620TE 2P NEW TERMINAL 150M 6871RU9271A PWB(PCB) ASSEMBLY,SUBSET(AUDIO LHS-D6230T FRONT WIRE(5M) R CH...
  • Page 79 I Passive(Sub) Woofer • MODEL: LHS-C6235W RUN DATE : 02.JUNE.2003 LOCA.NO PART NO DESCRIPTION SPECIFICATION REMARKS 3720RMF045A PANEL,FRONT FRONT LH-6230WE STANDARD 3701RM0043A NET ASSEMBLY SPK LHS-D6230W SILVER STANDARD 3091RMW050A CABINET ASSEMBLY ASSY LH-6230WE ALL PB 9T 6400WTTJ03A SPEAKER,WOOFER F65C-D365 TOPTONE WOOFER LHS-6 6871RU9271F PWB(PCB) ASSEMBLY,SUBSET(AUDIO LHS-D6230W SUB WOOFER 2.5M, OR...
  • Page 80 BLOCK DIAGRAM...
  • Page 81 AUDIO SHEMATIC DIAGRAMS • U-COM SCHEMATIC DIAGRAM...
  • Page 82 • FUNCTION & POWER SCHEMATIC DIAGRAM...
  • Page 83 • MAIN AMP SCHEMATIC DIAGRAM...
  • Page 84 WIRING DIAGRAM 2-10 2-11...
  • Page 85 AUDIO VOLTAGE SHEET (IC&TR) [FRONT] [MAIN] LOC. PART PIN NUM. STOP DVD PLAY LOC. PART PIN NUM. STOP DVD PLAY LOC. PART PIN NUM. STOP DVD PLAY LOC. PART PIN NUM. STOP DVD PLAY IC501 LC87F57C IC707 KIA7805 11.9 11.9 IC703 KIA7812 18.4...
  • Page 86 PRINTED CIRCUIT DIAGRAM • MAINAMP & FRONT P.C. BOARD (SOLDER SIDE) 2-14 2-15...
  • Page 87 • MAINAMP & FRONT P.C. BOARD (COMPONENT SIDE) 2-16 2-17...
  • Page 88 • FUNCTION & POWER P.C. BOARD (SOLDER SIDE) 2-18 2-19...
  • Page 89 • FUNCTION & POWER P.C. BOARD (COMPONENT SIDE) 2-20 2-21...
  • Page 90 VCR SHEMATIC DIAGRAMS • SYSTEM SCHEMATIC DIAGRAM 3-17 3-18...
  • Page 91 • A(AUDIO)/V(VIDEO) SCHEMATIC DIAGRAM 3-19 3-20...
  • Page 92 • POWER SCHEMATIC DIAGRAM NOTE: Warning NOTE: Parts that are shaded are critical With respect Shaded(I) parts are critical for safety.Replace only to risk of fire or electrical shock. with specified part number. 2. Voltages are DC-measured with a digital voltmefer during Play mode.
  • Page 93 • HIFI/TUNER SCHEMATIC DIAGRAM 3-23 3-24...
  • Page 94 • A/V JACK, SCART SCHEMATIC DIAGRAM 3-25 3-26...
  • Page 95 VCR VOLTAGE SHEET (IC&TR) IC501 IC301 IC801 IC302 IC501 IC301 IC801 IC302 MODE MODE STOP PLAY STOP PLAY STOP PLAY STOP PLAY STOP PLAY STOP PLAY STOP PLAY STOP PLAY PIN NO. PIN NO. 2.17 1.78 2.78 2.96 0.23 4.85 4.85 2.17 2.53...
  • Page 96 PRINTED CIRCUIT DIAGRAMS • TUNER P.C BOARD 3-29 3-30...
  • Page 97 • VCR P.C BOARD 3-31 3-32...
  • Page 98 • VCR P.C BOARD 3-33 3-34...

  • Page 99: Dvd Part Schematic Diagrams

    DVD PART SCHEMATIC DIAGRAMS • MPEG SCHEMATIC DIAGRAM 5-21 5-22...
  • Page 100 • SERVO SCHEMATIC DIAGRAM 5-23 5-24...
  • Page 101 • AUDIO SCHEMATIC DIAGRAM 5-25 5-26...
  • Page 102 • INTERFACE SCHEMATIC DIAGRAM 5-27 5-28...

  • Page 103: Voltage Sheet (Ic&Tr)

    VOLTAGE SHEET (IC&TR) 5-29 5-30...

  • Page 104: Printed Circuit Diagram

    PRINTED CIRCUIT DIAGRAM • DVD P.C. BOARD(SOLDER SIDE) 5-31 5-32...
  • Page 105 • DVD P.C. BOARD (COMPONENT SIDE) 5-33 5-34...
  • Page 106 EXPLODED VIEWS 1. Deck Mechanism Exploded View 024A 024B 024A 011A 015A 015B 015C...
  • Page 107 MEMO MEMO...

  • Page 108: Section 7. Exploded Views Part

    SECTION 7. EXPLODED VIEWS • CABINET AND MAIN FRAME NOTE) Refer to “SECTION 7 REPLACEMENT PARTS LIST” in order to look for the part number of each part. A42B AUDIO TUNER...
  • Page 109 MEMO MEMO...
  • Page 110 SECTION 6 MECHANISM OF DVD PART CONTENTS 5. Frame Assembly Up/Down ....6-4 DECK MECHANISM PARTS 6. Belt Loading........6-4 LOCATIONS 7. Gear Pulley........6-4 8. Gear Loading ........6-4 • Top View ..........6-1 9. Guide Up/Down.........6-4 • Top View(without Tray Disc) ....6-1 • Bottom View..........6-1 10.

  • Page 111: Bottom View

    DECK MECHANISM PARTS LOCATION • Top View (With Tray) Procedure Disass Fig- Parts Fixing Type embly Starting No. Holder 2 Screws, Clamp 2 Locking Tabs Clamp Assembly Disc 1, 2 Plate Clamp 1, 2, 3 Magnet Clamp 1, 2, 3, 4 Clamp Upper Tray Disc 1, 6...

  • Page 112: Deck Mechanism Disassembly

    DECK MECHANISM DISASSEMBLY 1. Holder Clamp (Fig. 6-1) 2. Tray Disc (Fig. 6-2) 1) Release 2 Screws(S1). 1) Insert and push a Driver in the emergency eject 2) Unhook 2 Locking Tabs(L1). hole(A) at the right side, or put the Driver on the 3) Lift up the Holder Clamp and then separate it from the Lever(B) of the Gear Emergency and pull the Lever(B) Base Main.

  • Page 113: Base Assembly Sled

    DECK MECHANISM DISASSEMBLY 3. Base Assembly Sled (Fig. 6-3) 1) Release the Scerw(S3) 1) Release 4 Screw(S2). 4. Rubber Rear (Fig. 6-3) 2) Disconnect the FFC Connector(C1) 3-1. Gear Assembly Feed 3-2. Gear Middle 3-3. Gear Assembly Rack...

  • Page 114: Frame Assembly Up/Down

    DECK MECHANISM DISASSEMBLY 5. Frame Assembly Up/Down (Fig. 6-4) 8. Gear Loading (Fig. 6-4) 9. Guide Up/Down (Fig. 6-4) Note 1) Move the Guide Up/Down in direction of arrow(A) as Put the Base Main face down(Bottom Side) Fig.(A) 1) Release the Screw(S4) 2) Push the Locking Tab(L5) down and then lift up the 2) Unlock the Locking Tab(L3) in direction of arrow and Guide Up/Down to separate it from the Base Main.

  • Page 116: Section 8. Replacement Parts List

    SECTION 8. REPLACEMENT PARTS LIST NOTE: Warning Parts that are shaded are critical With respect to risk of fire or electrical shock. Cabinet & Main Frame Sectio RUN DATE : 02.JUNE.2003 S AL LOCA.NO. PART NO DESCRIPTION SPECIFICATION REMARKS ASSEMBLY SECTION 6721RF0378A DECK ASSEMBLY,VIDEO DECK/MECHA DP-7C(RECEIVER) DI...
  • Page 117 Electrical Section RUN DATE : 02.JUNE.2003 S AL LOCA.NO PART NO DESCRIPTION SPECIFICATION REMARKS DVD MODULE & PROGRAM PWB ASSEMBLY ( A41) 6885R-7435A SUB PWB(PCB) ASSEMBLY LH-C6235M NA1ULDG CAPACITOR C201 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L H 0.1UF 50V Z Y5V(F) 1508 R/TP C202 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L H...
  • Page 118 RUN DATE : 02.JUNE.2003 S AL LOCA.NO PART NO DESCRIPTION SPECIFICATION REMARKS C407 0CE4764F638 CAPACITOR,ELECTROLYTIC 47M SRA/SS 16V M FM5 TP(5) C408 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L H 0.1UF 50V Z Y5V(F) 1508 R/TP C409 0CE1074F638 CAPACITOR,ELECTROLYTIC 100U SRA 16V M FM5 TP(5) C410 0CE2264F638 CAPACITOR,ELECTROLYTIC...
  • Page 119 RUN DATE : 02.JUNE.2003 S AL LOCA.NO PART NO DESCRIPTION SPECIFICATION REMARKS C503 0CH1103K562 CAPACITOR,FIXED CERAMIC(Temp 0.01UF 50V 10% X7R(X) 1608 R/T C504 0CH1103K562 CAPACITOR,FIXED CERAMIC(Temp 0.01UF 50V 10% X7R(X) 1608 R/T C505 0CH1103K562 CAPACITOR,FIXED CERAMIC(Temp 0.01UF 50V 10% X7R(X) 1608 R/T C506 0CH4101K412 CHIP CAPA CERAMIC M/L T.C F/...
  • Page 120 RUN DATE : 02.JUNE.2003 S AL LOCA.NO PART NO DESCRIPTION SPECIFICATION REMARKS C592 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L H 0.1UF 50V Z Y5V(F) 1508 R/TP C597 0CH4470K412 CAPA,CHIP CERAMIC M/L T.C F/ 47P 50V J COG 1.6X0.8 R/TP C5A1 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) C5A2 0CH1104K942 CAPACITOR,CHIP[CERAMIC M/L H...
  • Page 121 RUN DATE : 02.JUNE.2003 S AL LOCA.NO PART NO DESCRIPTION SPECIFICATION REMARKS R201 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D R202 0RH1003C622 RESISTOR,METAL GLAZED(CHIP) 100K OHM 1 / 16 W 1608 5.00% D R203 0RH1002C622 RESISTOR,METAL GLAZED(CHIP) 10K OHM 1 / 16 W 1608 5.00% D R204...
  • Page 122 RUN DATE : 02.JUNE.2003 S AL LOCA.NO PART NO DESCRIPTION SPECIFICATION REMARKS R425 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D R426 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D R427 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D R428...
  • Page 123 RUN DATE : 02.JUNE.2003 S AL LOCA.NO PART NO DESCRIPTION SPECIFICATION REMARKS R492 0RH1001C622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 16 W 1608 5.00% D R501 0RH8201C622 RESISTOR,METAL GLAZED(CHIP) 8.2K OHM 1 / 16 W 1608 5.00% D R502 0RJ7503C677 RESISTOR,METAL GLAZED(CHIP) 750K OHM 1/16 W 5% 1608 R/TP R503...
  • Page 124 RUN DATE : 02.JUNE.2003 S AL LOCA.NO PART NO DESCRIPTION SPECIFICATION REMARKS R607 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D R608 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D R609 0RH0000C622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 16 W 1608 5.00% D R610...
  • Page 125 RUN DATE : 02.JUNE.2003 S AL LOCA.NO PART NO DESCRIPTION SPECIFICATION REMARKS C403 0CE1056K618 CAPACITOR,ELECTROLYTIC 1.0M SMS 50V M FL TP(5) C404 0CE1056K618 CAPACITOR,ELECTROLYTIC 1.0M SMS 50V M FL TP(5) C407 0CQ1041N409 CAPACITOR POLYESTER(MYLAR) 0.1U 100V J POLY TP C408 0CQ1041N409 CAPACITOR POLYESTER(MYLAR) 0.1U 100V J POLY TP...
  • Page 126 RUN DATE : 02.JUNE.2003 S AL LOCA.NO PART NO DESCRIPTION SPECIFICATION REMARKS IC503 0IKE703100A IC,KEC KIA7031P 3P 3.1V RESET(TAPING) IC601 0IPRPNE001A IC,PERIPHERALS UPD16315GB-3BS NEC 44 QFP BK F IC701 0IKE790900A IC,LINEAR KIA7909PI KEC 3P BK REGULATOR IC707 0IPMGKE012A IC,POWER MANAGEMENT KIA7805API-CU KEC 3P TO-220(CU FILTER BC601...
  • Page 127 RUN DATE : 02.JUNE.2003 S AL LOCA.NO PART NO DESCRIPTION SPECIFICATION REMARKS R319 0RD0102F608 RESISTOR,FIXED CARBON FILM 10 OHM 1/6 W 5% TA26 R320 0RD0102F608 RESISTOR,FIXED CARBON FILM 10 OHM 1/6 W 5% TA26 R324 0RD1001F608 RESISTOR,FIXED CARBON FILM 1K OHM 1/6 W 5% TA26 R325 0RD1002F608 RESISTOR,FIXED CARBON FILM...
  • Page 128 RUN DATE : 02.JUNE.2003 S AL LOCA.NO PART NO DESCRIPTION SPECIFICATION REMARKS R635 0RD1201F608 RESISTOR,FIXED CARBON FILM 1.2K OHM 1/6 W 5% TA26 R636 0RD8200F608 RESISTOR,FIXED CARBON FILM 820 OHM 1/6 W 5% TA26 R637 0RD6800F608 RESISTOR,FIXED CARBON FILM 680 OHM 1/6 W 5% TA26 R640 0RD1000F608 RESISTOR,FIXED CARBON FILM...
  • Page 129 RUN DATE : 02.JUNE.2003 S AL LOCA.NO PART NO DESCRIPTION SPECIFICATION REMARKS C314 0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/ 0.01U 50V K B 2.0X1.25 R/TP C315 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) C316 0CH1222K516 CHIP CAPA CERAMIC M/L H.D F/ 2200P 50V K B 2.0X1.25 R/TP C317 0CH1821K516...
  • Page 130 RUN DATE : 02.JUNE.2003 S AL LOCA.NO PART NO DESCRIPTION SPECIFICATION REMARKS C552 0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/ 0.01U 50V K B 2.0X1.25 R/TP C561 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) C566 0CH4102K416 CAPACITOR,FIXED CERAMIC(High 1000PF 50V 5% NP0 2012 R/TP C567 0CH4102K416 CAPACITOR,FIXED CERAMIC(High...
  • Page 131 RUN DATE : 02.JUNE.2003 S AL LOCA.NO PART NO DESCRIPTION SPECIFICATION REMARKS C832 0CH1103K516 CHIP CAPA CERAMIC M/L H.D F/ 0.01U 50V K B 2.0X1.25 R/TP C833 0CE2264F638 CAPACITOR,ELECTROLYTIC 22M SRA 16V M FM5 TP(5) C834 0CH1472K516 CAPA,CHIP CERAMIC M/L H.D F/ 4700P 50V K B 2.0*1.25 R/TP C836 0CH1103K516...
  • Page 132 RUN DATE : 02.JUNE.2003 S AL LOCA.NO PART NO DESCRIPTION SPECIFICATION REMARKS IC301 0IJR223400D IC,JRC NJM2234L SIP8 ST S/W IC(3INPUT IC301 0ILNRSA012A IC,LINEAR LA71206M-MPB SANYO 80PIN QFP T IC501 0IMCRMI060A IC,MICRO CONTROLLER M37762MCA-1N1GP MITSUBISHI 100 IC503 0ICS241600B IC,CATALYST CAT24W16P 8P DIP ST 16K SERIAL IC504 0IKE703100A IC,KEC...
  • Page 133 RUN DATE : 02.JUNE.2003 S AL LOCA.NO PART NO DESCRIPTION SPECIFICATION REMARKS R342 0RH4700D622 RESISTOR,METAL GLAZED(CHIP) 470 OHM 1 / 10 W 2012 5.00% D R344 0RH1000D622 RESISTOR,METAL GLAZED(CHIP) 100 OHM 1 / 10 W 2012 5.00% D R345 0RH0000D622 RESISTOR,METAL GLAZED(CHIP) 0 OHM 1 / 10 W 2012 5.00% D R346...
  • Page 134 RUN DATE : 02.JUNE.2003 S AL LOCA.NO PART NO DESCRIPTION SPECIFICATION REMARKS R587 0RH1801D622 RESISTOR,METAL GLAZED(CHIP) 1.8K OHM 1 / 10 W 2012 5.00% D R588 0RH2701D622 RESISTOR,METAL GLAZED(CHIP) 2.7K OHM 1 / 10 W 2012 5.00% D R589 0RH1501D622 RESISTOR,METAL GLAZED(CHIP) 1.5K OHM 1 / 10 W 2012 5.00% D R591...
  • Page 135 RUN DATE : 02.JUNE.2003 S AL LOCA.NO PART NO DESCRIPTION SPECIFICATION REMARKS MS501 6600JB8005B SWITCH,MODE NON 5V 1MA VERTICAL -G TRANSISTOR Q161 0TR320509AB TRANSISTOR KTC3205-TP-Y (KTC2236A)KEC Q162 0TR320509AB TRANSISTOR KTC3205-TP-Y (KTC2236A)KEC Q163 0TR126809BA TRANSISTOR,BIPOLARS KTA1268-BL TP KEC Q166 0TR320509AB TRANSISTOR KTC3205-TP-Y (KTC2236A)KEC Q167 0TR928009AD...
  • Page 136 RUN DATE : 02.JUNE.2003 S AL LOCA.NO PART NO DESCRIPTION SPECIFICATION REMARKS C117 0CH1104K946 CAPACITOR,FIXED CERAMIC(TEMP 0.1UF 2012 50V 80%,-20% Y5V(F) C118 0CE1064F638 CAPACITOR,ELECTROLYTIC 10M SRA 16V M FM5 TP(5) C119 0CE1066K618 CAPACITOR,ELECTROLYTIC 10M SMS 50V M FM5 TP(5) C120 0CE1066K618 CAPACITOR,ELECTROLYTIC 10M SMS 50V M FM5 TP(5)
  • Page 137 RUN DATE : 02.JUNE.2003 S AL LOCA.NO PART NO DESCRIPTION SPECIFICATION REMARKS R139 0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D R140 0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D R141 0RH1001D622 RESISTOR,METAL GLAZED(CHIP) 1K OHM 1 / 10 W 2012 5.00% D R142...
