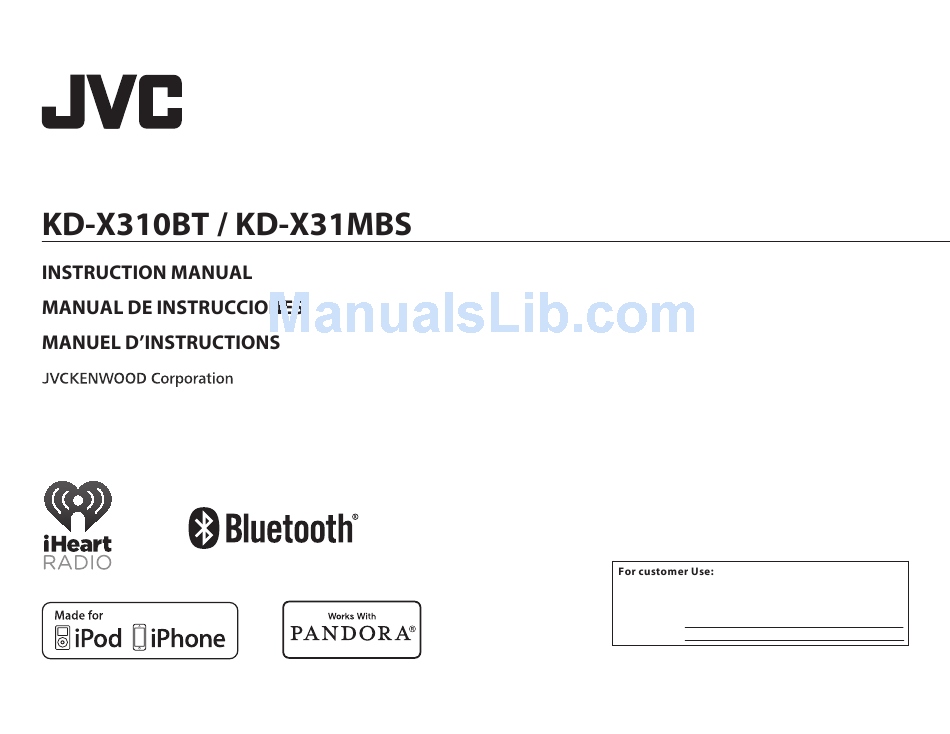

DIGITAL MEDIA RECEIVER
RECEPTOR DE MEDIOS DIGITALES
RÉCEPTEUR MULTIMÉDIA NUMÉRIQUE
Please read all instructions carefully before
operation to obtain the best possible performance
from the unit.
Por favor lea detenidamente este manual para
comprender a fondo todas las instrucciones y
obtener un máximo disfrute de esta unidad.
Veuillez lires les instructions attentivement avant
d'utiliser l'appareil afin d'obtenir les meilleures
performances possibles de l'appareil.
Enter below the Model No. and Serial No. which are
located on the top or bottom of the cabinet. Retain this
information for future reference.
Model No.
Serial No.
ENGLISH
ESPAÑOL
FRANÇAIS
GET0986-001A [J]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KD-X310BT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JVC KD-X310BT

Summary of Contents for JVC KD-X310BT

  • Page 1 ENGLISH ESPAÑOL FRANÇAIS DIGITAL MEDIA RECEIVER Please read all instructions carefully before operation to obtain the best possible performance from the unit. RECEPTOR DE MEDIOS DIGITALES Por favor lea detenidamente este manual para comprender a fondo todas las instrucciones y RÉCEPTEUR MULTIMÉDIA NUMÉRIQUE obtener un máximo disfrute de esta unidad.
  • Page 2 Información acerca de la eliminación de equipos eléctricos y electrónicos al final de FCC WARNING la vida útil (aplicable a los países que hayan adoptado sistemas independientes de This equipment may generate or use radio frequency energy. Changes or modifications recogida de residuos) to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual.
  • Page 3 Para cumplimiento de la COFETEL: CAUTION “La operación de este equipo está sujeta a las siguientes dos condiciones: This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda to OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules.
  • Page 4 BEFORE USE Do not operate any function that takes your attention away from safe driving. BASICS Volume setting: GETTING STARTED • Adjust the volume so that you can hear sounds outside the car to prevent accidents. USB / iPod • Lower the volume before playing digital sources to avoid damaging the speakers by the sudden increase of the output level.

  • Page 5: Faceplate And Remote Control

    (For KD-X310BT) Remote sensor (Do not expose to bright sunlight.) Volume knob Display window (turn/press) Pull out the insulation sheet when using for the first time. Detach How to replace the battery button Your preset adjustments will also be erased.

  • Page 6: Cancel Demonstration

    Turn the volume knob to select [12 HOUR] or [24 HOUR], then press the For details on how to update the firmware, see: knob. <http://www.jvc.net/cs/car/>. Press MENU to exit. * Not displayed when the corresponding source is selected. Press and hold MENU.

  • Page 7: Start Playback

    USB input terminal Press 4 B repeatedly to make a selection. Repeat play * • JVC Playlist Creator (JPC) / JVC Music Control (JMC) file ( 21): TRACK RPT, RPT OFF • MP3/WMA/WAV/FLAC file: TRACK RPT, FOLDER RPT, RPT OFF • iPod: ONE RPT, ALL RPT, RPT OFF (Accessory of the iPod/iPhone)* Press 3 A repeatedly to make a selection.
  • Page 8 For iPod: Applicable only when [HEAD MODE] is selected. ( 5) When a smartphone (Mass Storage Class) is connected to the USB input Press MENU . terminal, you can select its internal memory or external memory (such as an Turn the volume knob to make a selection, then press the knob. SD card) to playback the stored songs.

  • Page 9: Radio

    Available only for FM source. Press and hold G PTY. Turn the volume knob to select a PTY code, then press the knob to start searching. If there is a station broadcasting a program of the same PTY code as you have selected, that station is tuned in. “ST”...
  • Page 10 Default: XX RADIO Turns on the radio at a specific time regardless of the current source. Connect a portable audio player (commercially available). TIMER ONCE/ DAILY/ WEEKLY/ OFF: Select how often the timer will be turned on. 3.5 mm (1/8") stereo mini plug with “L” shaped connector FM/ AM: Select the FM or AM band.
  • Page 11 Preparation: Install the latest version of the Pandora application onto your device Press MENU. (iPhone/ iPod touch), then create an account and log in to Pandora. Turn the volume knob to select [NEW STATION], then press the knob. • Select [ON] for [PANDORA] in [SRC SELECT]. ( 4) Turn the volume knob to select [FROM TRACK] or [FROM ARTIST], then press the knob.
  • Page 12 Preparation: Install the latest version of iHeart Link for JVC application onto your Pause or resume playback Press the volume knob (or press device (iPhone/ iPod touch), then create an account and log in to on RM-RK52). iHeartRadio. Press 2   / 1  (or press J / K on •...
  • Page 13 (for KD-X31MBS) Preparation: Connect the optional SiriusXM Vehicle Tuner (commercially You can store up to 18 channels. available). Press and hold one of the number buttons (1 to 6). Antenna (or) Press and hold the volume knob until “PRESET MODE” flashes. Turn the volume knob to select a preset number, then press the knob.

  • Page 14: Smart Favorites

    Default: XX There are two types of lock functions available: User preset channels 1 to 6 are initially assigned as the Smart Favorites • SiriusXM-defined: When [MATURE CH] is set to [ON] channels. SiriusXM Vehicle Tuner automatically buffers the broadcast •...

  • Page 15: Connect Microphone

    Connect the device to the unit manually. Refer to the instruction manual of the Bluetooth device for more information. Press B /SOURCE to turn on the unit. Secure using cord Search and select “JVC UNIT” on the Bluetooth device. clamps (not supplied) “BT PAIRING” flashes on the display. if necessary.

  • Page 16: Bluetooth Compatibility Check Mode

    “PIN IS 0000” scrolls on the display. Reject an Press and hold or the volume knob. Search and select “JVC UNIT” on the Bluetooth device within incoming call On RM-RK52: Press and hold J / K / H / I . 3 minutes.
  • Page 17 While talking on the phone..Press to enter Bluetooth mode. Press and hold MENU. Turn the volume knob to make a selection (see the following table), Turn the volume knob to make a selection (see the following table), then press the knob. then press the knob.
  • Page 18 VOICE Speak the name of the contact you want to call or the voice command to control the phone functions. (  Use Voice Recognition) Press and hold The connected phone (which has been paired the earliest) is SETTINGS Default: XX activated.
  • Page 19 To erase a contact from the preset memory, select [DIAL NUMBER] in APPLICATION Shows the connected phone name using the JVC Smart Music Control * step and store a blank number. app. “ ” appears in front of the device name.
  • Page 20 INITIALIZE YES: Initializes all the Bluetooth settings (including stored pairing, phonebook, and etc.). ; NO: Cancels. INFORMATION MY BT NAME: Displays the unit name (JVC UNIT). ; Press B /SOURCE to select BT AUDIO. Playback MY ADDRESS: Shows address of this unit. Operate the Bluetooth audio player to start playback.

  • Page 21: Audio Settings

    Press and hold MENU. AUDIO Turn the volume knob to make a selection (see the following table), BASS BOOST +01 / +02: Selects your preferred bass boost level. ; OFF: Cancels. then press the knob. Repeat step until the desired item is selected. LOUD 01 / 02: Boosts low or high frequencies to produce a well-balanced sound Press MENU to exit.
  • Page 22 ONCE: Scrolls the display information once. ; AUTO: Repeats scrolling at iPhone. 5-second intervals. ; OFF: Cancels. • If some operations are not performed correctly or as intended, visit: The illumination control wire connection is required. ( 27) <http://www.jvc.net/cs/car/>. Some characters or symbols will not be shown correctly (or will be blanked).
  • Page 23 Track Artist* Day/Clock (back to the • When you play audio file with song data added using the JVC Playlist Creator or JVC Music beginning) Control, you can search for audio file by Genres, Artists, Albums, Playlists, and Songs. If unavailable, station name appears.
  • Page 24 Sound cannot be heard. • Adjust the volume to the optimum level. “ADD ERROR” New station creation is unsuccessful. • Check the cords and connections. “SEARCH ERR” “MISWIRING CHK WIRING THEN Check to be sure the terminals of the speaker wires are “CHK DEVICE”...
  • Page 25 “UPDATE APP” Make sure you have installed the latest version of the iHeart – ENTER TO CONTINUE” continue. Link for JVC application on your device. “WRONG CODE” Make sure you have entered the correct pass code. ( 12) “PLS LOGIN” You haven’t log in. Log in again.
  • Page 26 The connected Bluetooth • Check whether the connected Bluetooth audio “BT DEVICE NOT FOUND” The unit failed to search for the registered audio player cannot be player supports Audio/Video Remote Control Profile appears. Bluetooth devices during [AUTO CNNCT]. Turn on controlled.
  • Page 27 FM Frequency Range 87.9 MHz to 107.9 MHz (200 kHz step) Frequency Response (±3 dB) 20 Hz — 20 kHz 87.5 MHz to 108.0 MHz (50 kHz step) Input Maximum Voltage 1 200 mV Channel Space Selection 50 kHz/200 kHz Input Impedance 30 kΩ Usable Sensitivity 8.2 dBf (0.71 μV/75 Ω) Version Bluetooth Ver.2.1+EDR (S/N = 26 dB) Frequency Range 2.402 GHz — 2.480 GHz Quieting Sensitivity 17.2 dBf (2.0 μV/75 Ω) Output Power...
  • Page 28 • The unit can only be used with a 12 V DC power supply, negative ground. • Disconnect the battery’s negative terminal before wiring and mounting. • Do not connect Battery wire (yellow) and Ignition wire (red) to the car chassis or Ground wire (black) to prevent a short circuit. •...

  • Page 29: Wiring Connection

    Signal cord KD-X310BT KD-X31MBS (not supplied) Front output JVC Amplifier Faceplate Rear/subwoofer output Rear/subwoofer output Fuse (10 A) Vehicle dashboard Antenna terminal Microphone input Trim plate jack ( 13) (For KD-X31MBS) To the optional SiriusXM Factory wiring Vehicle Tuner (commercially available) ( 11)
  • Page 30 • Android is trademark of Google Inc. • The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JVC KENWOOD Corporation is under license. Other trademarks and trade names are those of their respective owners.
