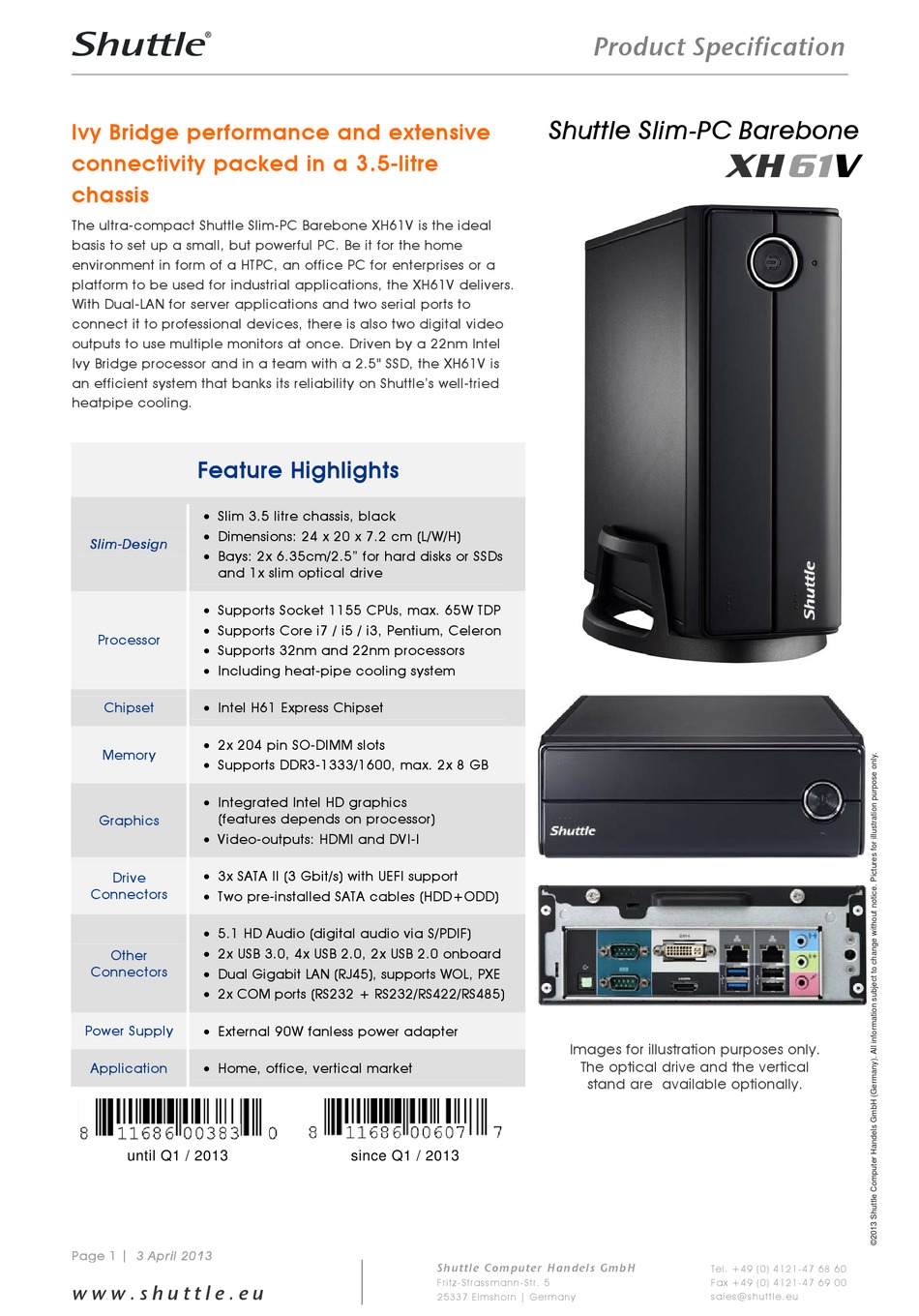

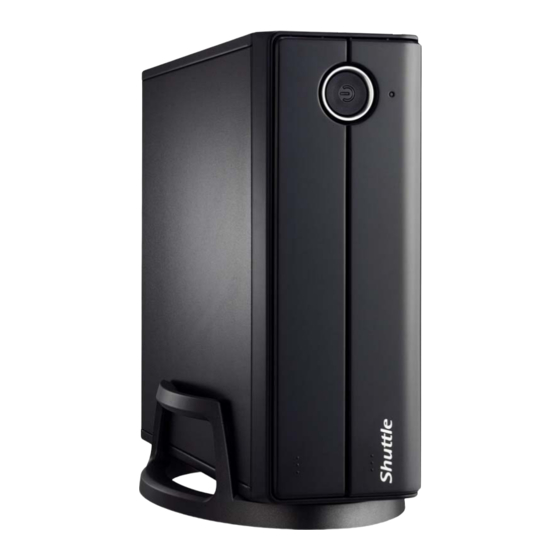

Ivy Bridge performance and extensive
connectivity packed in a 3.5-litre
chassis
The ultra-compact Shuttle Slim-PC Barebone XH61V is the ideal
basis to set up a small, but powerful PC. Be it for the home
environment in form of a HTPC, an office PC for enterprises or a
platform to be used for industrial applications, the XH61V delivers.
With Dual-LAN for server applications and two serial ports to
connect it to professional devices, there is also two digital video
outputs to use multiple monitors at once. Driven by a 22nm Intel
Ivy Bridge processor and in a team with a 2.5" SSD, the XH61V is
an efficient system that banks its reliability on Shuttle's well-tried
heatpipe cooling.

Feature Highlights

 Slim 3.5 litre chassis, black
 Dimensions: 24 x 20 x 7.2 cm (L/W/H)
Slim-Design
 Bays: 2x 6.35cm/2.5" for hard disks or SSDs
and 1x slim optical drive
 Supports Socket 1155 CPUs, max. 65W TDP
 Supports Core i7 / i5 / i3, Pentium, Celeron
Processor
 Supports 32nm and 22nm processors
 Including heat-pipe cooling system
Chipset
 Intel H61 Express Chipset
 2x 204 pin SO-DIMM slots
Memory
 Supports DDR3-1333/1600, max. 2x 8 GB
 Integrated Intel HD graphics
(features depends on processor)
Graphics
 Video-outputs: HDMI and DVI-I
 3x SATA II (3 Gbit/s) with UEFI support
Drive
Connectors
 Two pre-installed SATA cables (HDD+ODD)
 5.1 HD Audio (digital audio via S/PDIF)
 2x USB 3.0, 4x USB 2.0, 2x USB 2.0 onboard
Other
Connectors
 Dual Gigabit LAN (RJ45), supports WOL, PXE
 2x COM ports (RS232 + RS232/RS422/RS485)
 External 90W fanless power adapter
Power Supply
Application
 Home, office, vertical market
until Q1 / 2013
Page 1 | 3 April 2013
w w w . s h u t t l e . e u
since Q1 / 2013
Shu t tl e Computer Han dels GmbH
Fritz- Strassmann-S t r. 5
25337 Elmshorn | Germany

Product Specification

Shuttle Slim-PC Barebone
XH
Images for illustration purposes only.
The optical drive and the vertical
stand are available optionally.
Tel. +49 (0) 4121-47 68 60
Fax +49 (0) 4121-47 69 00
s a l e s @ s h u t t l e . e u
61V

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Slim-PC Barebone XH61V and is the answer not in the manual?

Questions and answers

Related Manuals for Shuttle Slim-PC Barebone XH61V

Summary of Contents for Shuttle Slim-PC Barebone XH61V

  • Page 1: Product Specification

    3.5-litre chassis The ultra-compact Shuttle Slim-PC Barebone XH61V is the ideal basis to set up a small, but powerful PC. Be it for the home environment in form of a HTPC, an office PC for enterprises or a platform to be used for industrial applications, the XH61V delivers.
  • Page 2 3.5 litres. What does Barebone mean? The Shuttle Slim-PC Barebone XH61V consists of a stylish case with pre- installed mainboard, cooling system and external power adapter. Despite its small form factor it offers outstanding connectivity, functionality and performance.

  • Page 3: Video Outputs

    (Test system: 2x 4 GB RAM, 120 GB SSD, Slim-DVD, Windows 7 Pro) 2x USB 3.0 The Shuttle Slim-PC Barebone XH61V sports two USB 3.0 ports besides four USB 2.0 ports. USB 3.0 achieves a maximum data rate of up to 5.0Gbps (640MBytes/sec) which is ten times faster than USB 2.0.

  • Page 4: Kensington Lock

    Product Specification Two serial ports Many PCs do not have these legacy ports any longer, since they have been superseded and replaced by USB for most consumer appli- cations, but they are still commonly used for applications such as industrial automation systems, scientific analysis, POS systems and other industrial applications.
  • Page 5 Product Specification Connectivity / Applications The XH61V's great connectivity makes it well-suited for a wide field of applications and external devices. Office Display Point-of-Sales Dual Network (POS) PC Speakers 2x RJ45 Audio DVI-I RS232 RS422/485 USB 2.0 S/PDIF HDMI Peripherals USB 3.0 Automation USB Hard Disk...
  • Page 6 Product Specification Shuttle 3.5-litre Slim-PC Barebones Comparison with predecessor models XG41 XH61 XH61V Barebone model Availability June 2011 Dec. 2011 June 2012 UPC bar code 811686003472 811686003588 811686003830 Steel, black Steel, black Steel, black Chassis 3.5L (24.2 x 20 x 7.3 cm) 3.5L (24.2 x 20 x 7.3 cm)
  • Page 7 Product Specification Shuttle Slim-PC Barebone XH61V Specifications Nettop PC, slim X-type chassis, black Dimensions: 24 x 200 x 72 mm (LWH) = 3.5 litres, Weight: 2.2 kg net, 3.5 kg gross Chassis Front doors for optical drive and front panel connectors...
  • Page 8 Product Specification XH61V features two Mini PCI Express expansion slots: Mini-PCIe 1) half size, supports PCIe 2.0 and USB 2.0, e.g. for WLAN cards [5] slots 2) full size, supports PCIe 2.0, SATA 3G and USB 2.0 e.g. for Mini SATA (mSATA) flash memory cards [6] The features of the integrated graphics function [3] depends on the used processor type.
  • Page 9 Product Specification DVI-I connector (supports VGA with optional adapter) HDMI 1.4 connector [1] (supports DVI-D with optional adapter) 2x USB 3.0, 2x USB 2.0 2x GigaBit LAN (RJ45) Back Panel 2x RS232 serial ports (5V/12V, 1x switchable to RS422 / RS485) Connectors Audio Line-in, Audio Line-out, Audio Mic-in S/PDIF output (optical)
  • Page 10 Product Specification Shuttle Slim-PC Barebone XH61V – Front and Back Panel Front Panel Power Button Power LED Bay for optical Slim DVD drive (the optical drive is not included) Front door for DVD drive Front door for I/O connectors Two bays for 2.5“ hard disk drives or SSDs 2x USB 2.0 ports...
  • Page 11 Product Specification Shuttle Slim-PC Barebone XH61V – Mainboard Backpanel connectors Clear CMOS jumper CMOS battery COM port voltage jumper 19VDC power connector Audio header (front) USB 2.0 header (front) LPC interface header Intel H61 chipset Mini PCIe slot (half size)
  • Page 12 Product Specification Shuttle Slim-PC Barebone XH61V – Required Components The following components need to be added to make it a fully-configured Mini-PC: 2.5” SATA-hard disk and/or Solid State Disk (SSD) (two drives supported, One or two DDR3-1333/1600 (SO-DIMM) max. height: 9.5mm and 12.7mm) Memory modules max.
  • Page 13 Intel HD graphics HD 3000/2000 supports 12/6 Execution Units (Shader-Quads) and DirectX 10.1. Certain processor models do not include integrated graphics. Please refer to the support list for detailed processor support information at global.shuttle.com. Page 13 | 3 April 2013 Shu t tl e Computer Han dels GmbH Tel.
  • Page 14 Intel HD graphics HD 4000/2500 features 16/6 Execution Units (Shader-Quads) and supports DirectX 11/OpenGL 3.1. Certain processor models do not include integrated graphics. Please refer to the support list for detailed processor support information at global.shuttle.com. Page 14 | 3 April 2013 Shu t tl e Computer Han dels GmbH Tel.
