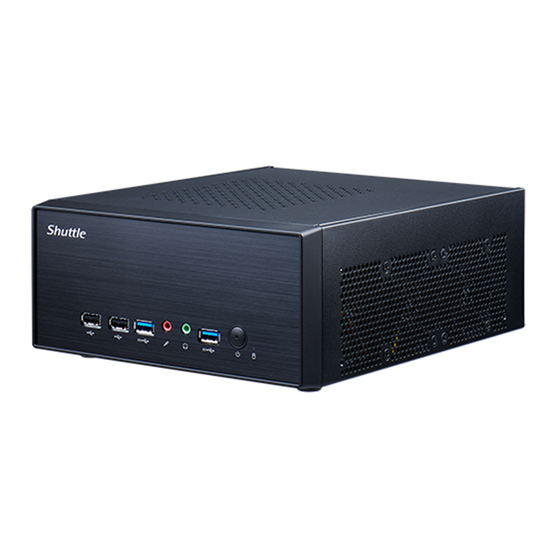

- Page 1 User Manual For the : XH610G/XH610G2...
- Page 2 2. This device must withstand any background interference including those that may cause undesired operation. Trademarks Shuttle is a registered trademark of Shuttle Inc. Intel and Pentium are registered trademarks of Intel Corporation. PS/2 is a registered trademark of IBM Corporation.
- Page 3 Read the following precautions before setting up a Shuttle XPC. CAUTION Incorrectly replacing the battery may damage this computer. Replace only with the same or equivalent as recommended by Shuttle. Disposal of used batteries according to the manufacturer's instructions. Installation Notices Do not place this device underneath heavy loads or in an unstable position.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Driver and Software Installation............1 Motherboard Driver DVD ............1 User Manuals................2 Appendix...................3 Starting BIOS..................3 BIOS Setup Menu................3 Main Setup ..................5 Advanced ..................6 TPM Configuration............7 Power Management Configuration ........8 CPU Configuration............10 SATA Configuration ............12 Onboard Device Configuration ........13 Hardware Health Configuration ........16 Product Information ............17 Security .................. -
Page 5: Driver And Software Installation
Insert the attached DVD into your DVD-ROM drive. The DVD AutoRun screen should appear. If the AutoRun screen does not appear, double click on Autorun icon in My Computer to bring up Shuttle Mainboard Software Setup screen. Navigation Bar Description : Auto Install Driver ... -
Page 6: User Manuals
User Manuals Install Adobe Reader 9.5 Motherboard Manual XH610G Quick Guide XH610G2 Quick Guide... -
Page 7: Appendix
Appendix Starting BIOS AMIBIOS has been integrated into many motherboards for over a decade. In the past, people often referred to the AMIBIOS setup menu as BIOS, BIOS setup, or CMOS setup. American Megatrends refers to this setup as BIOS. Specifically, it is the name of the AMIBIOS BIOS setup utility. - Page 8 AMIBIOS8 has default text messages built into it. The motherboard man- ufacture retains the option to include, leave out, or change any of these text messages. They can also add their own text messages. Because of this, many screen shots in this manual are different from your BIOS setup screen.
-
Page 9: Main Setup
Main Setup When you first enter the BIOS Setup Utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. There are two Main Setup options. They are described in this section. The Main BIOS Setup screen is shown below. -
Page 10: Advanced
Advanced Select the Advanced tab from the BIOS setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as CPU Configuration, to go to the sub menu for that item. You can display an Advanced BIOS Setup option by highlighting it using the <Arrow>... -
Page 11: Tpm Configuration
TPM Configuration Security Device Support This item allows user to enable/disable firmware TPM funciton. The choice: Enabled, Disabled. -
Page 12: Power Management Configuration
Power Management Configuration Wake Up by USB (S3) This item allows you to enable or disable system wake up by USB (S3). The choice: Enabled , Disabled. EuP Function This item allows you to enable or disable system EuP function in S4/S5. ... - Page 13 PowerOn by RTC Alarm When enabled, System will wake on the hr::min::sec specified. The choice: Enabled , Disabled. Wake Up by LAN This item allows you to enable or disable system wake on by LAN. The choice: Enabled , Disabled.
-
Page 14: Cpu Configuration
CPU Configuration You can use this screen to select options for the CPU Configuration Settings. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option. A description of the selected item appears on the right side of the screen. - Page 15 Active Performance-cores This item allows you to determine how many P-cores to be enabled. Active Efficient-cores This item allows you to enable E-cores in each processor package. Intel(R) V. T. When enable, a VMM can utilize the additional hardware capabilities provided by vanderpool Technology.
-
Page 16: Sata Configuration
SATA Configuration SATA Mode Selection This item allows you to set the SATA Mode. The choice: AHCI. -
Page 17: Onboard Device Configuration
Onboard Device Configuration High Definition Audio This item allows you to enable or disable system High Definition Audio. The choice: Enabled , Disabled. CNVi Function This item allows you to Enabled/Disabled CNVi function. The choice: Enabled , Disabled. M.2 Device Select This item allows you to select which kind of device type for M.2 slot. - Page 18 Onboard LAN Boot ROM This item allows you to enable or disable Onboard LAN Boot ROM. The choice: Enabled , Disabled. PCIeX16,X1 Speed This item allows user to select PCIe Speed. The choice: Auto, Gen1, Gen2, Gen3, Gen4(PCIex16) and Gen5(PCIex16). Initiate Graphic Adapter Select which graphics controller to use as the primary boot device.
- Page 19 Serial Port Configuration Option are in its sub-menu. Press<Enter>to enter the sub-menu of detailed options. Serial Port 1 This item allows you to enable or disable Serial Port. The choice: Enabled, Disabled.
-
Page 20: Hardware Health Configuration
Hardware Health Configuration FAN1 Speed Control This item allows you to set CPU Fan Speed. The choice: Smart Fan Mode, Ultra-Low Speed, Low Speed, Mid Speed, Full Speed. -
Page 21: Product Information
Product Information Insert Serial Number This item allows you to insert Serial Number. Insert UUID This item allows you to insert UUID. -
Page 22: Security
Security Select the Security tab from the BIOS setup screen to enter the Security BIOS Setup screen. You can display an Security BIOS Setup option by highlighting it using the <Arrow> keys. All Security BIOS Setup options are described in this section. The Security Setup screen is shown below. - Page 23 Change Supervisor Password Select Change Supervisor Password from the Security Setup menu and press <Enter>. Enter New Password: Type the password and press <Enter>. The screen does not display the characters entered. Retype the password as prompted and press <Enter>. If the password confirmation is incorrect, an error message appears.
-
Page 24: Boot
Boot Select the Boot tab from the BIOS setup screen to enter the Boot BIOS Setup screen. You can select any of the items in the left frame of the screen, such as Boot Settings Configuration, to go to the sub menu for that item. You can display an Boot BIOS Setup option by highlighting it using the <Arrow>... - Page 25 Fast Boot Function This item allows you to enable or disable Fast Boot Function. The choice: Enabled , Disabled. Boot Device Priority (Boot Option #1/2/3/..) Specifies the boot sequence from the available devices. A device enclosed in parenthesis has been disabled in the corresponding type menu.
-
Page 26: Save & Exit
Save & Exit Select the Exit tab from the BIOS setup screen to enter the Exit BIOS Setup screen. You can display an Exit BIOS Setup option by highlighting it using the <Arrow> keys. All Exit BIOS Setup options are described in this section. The Exit BIOS Setup screen is shown below. - Page 27 Exit Without Saving Changes Select "Exit without Saving Changes" from the Exit menu and press <Enter>. Select Ok to discard changes and Exit. Load Defaults Settings BIOS automatically sets all BIOS Setup options to a complete set of default set- tings when you Select this option.
- Page 28 产品中有害物质的名称及含量 产品名称：XH610G/XH610G2 有害物质 部件名称 及 型号 六价铬 多溴联苯 多溴二苯醚 铅(Pb) 汞(Hg) 镉(Cd) (Cr(VI)) (PBB) (PBDE) 电路板组件 电源供应器 塑胶外壳 硬盘 金属件 风扇 *：电路板组件包括印刷电路板及其构成的零部件，如电阻、电容、集成电路、连接器等 本表格依据 SJ/T 11364 的规定编制 O：表示该有害物质在该部件所以均质材料中的含量均在 GB/T 26572 规定的限量要求下。 X：表示该有害物质至少在该部件的某一均质材料中的含量超过 GB/T 26572 规定的限量要求。 上表中打 "X" 的部件中, 应功能需要, 部分有害物质含量超出 GB/T 26572 规定的限量要求, 但符合欧盟...
