Honeywell Color Camera User Manual

Honeywell user guide color camera.
Hide thumbs


Advertisement

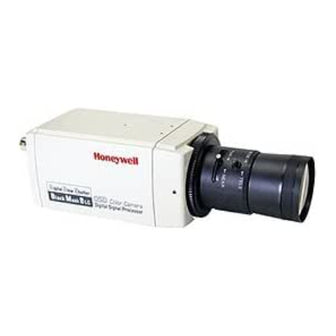

HCC484TP

Color Camera

Remote Control

User Guide

Document D002529 – 04/06 – Rev 1.00

Advertisement

   Related Manuals for Honeywell Color Camera

   Summary of Contents for Honeywell Color Camera

  • Page 1: Color Camera

    HCC484TP Color Camera Remote Control User Guide Document D002529 – 04/06 – Rev 1.00...

  • Page 2

    Revisions Issue Date Revisions 1.00 04/06 New document. Rev 1.00 D002529 04/06...

  • Page 3: Remote Control Connections

    Remote Control Operation To use the optional remote control for your HCC484TP camera, you must first download the program from the Honeywell website and connect the camera to your PC. Use the following procedure to connect to your PC: Connect the RS485 converter (such as the Honeywell Converter: AAC 232/485) to the 4P cable from the camera to the COM port on your PC (see the figure above).

  • Page 4

    Remote Control of OSD from PC Unpack the zip file into an appropriate folder. Double-click the Setup.exe file to launch the Setup Program. Ensure that the COM port you connected the RS485 converter to is selected. See the figure below. Click OK to initialize Communication (this can take up to 20 seconds).

  • Page 5

    In the BMB and BLC Control boxes: • Select the Black Mask Mode (Light Gray, Dark Gray, Black, or Off) • Select the BLC Mode (Low, Middle, High, Off) Rev 1.00 HCC484TP Color Camera Remote Control User Guide D002529 04/06...

  • Page 6: Osd Menu Control

    Remote Control of OSD from PC Sync System Control In the Sync System Control box you can select: • Internal • Linelock with Phase Adjust • Auto (Int for 12 VDC, Linelock for 24 VAC) OSD Menu Control Click on the button icons to access the OSD. OSD can be set to ON or OFF. The OSD menu can be controlled to: •...

  • Page 7

    Set the Camera ID and Title Position • Set the Camera Status Checking (Off or check every 5 seconds) • Flicker— Set Flickerless to on • Initial— Restore Factory Default Rev 1.00 HCC484TP Color Camera Remote Control User Guide D002529 04/06...

  • Page 8

    ℡ +34.91.102.5900 © 2006 Honeywell International Inc. All rights reserved. No part of this publication may be reproduced by any means without written permission from Honeywell Video Systems. The information in this publication is believed to be accurate in all respects. However, Honeywell Video Systems cannot assume responsibility for any consequences resulting from the use thereof.
