LG GCE-8240B Owner's Manual

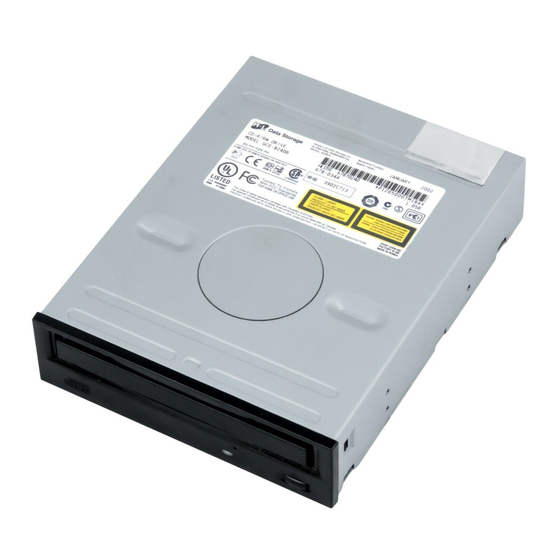

Lggce-8240b - cd-r/rw drive.
Hide thumbs

Advertisement

Questo manuale include il tagliando di
garanzia. (pagina n. I-15)
GCE-8240B
BZ03

Advertisement

   Also See for LG GCE-8240B

   Related Manuals for LG GCE-8240B

   Summary of Contents for LG GCE-8240B

  • Page 1

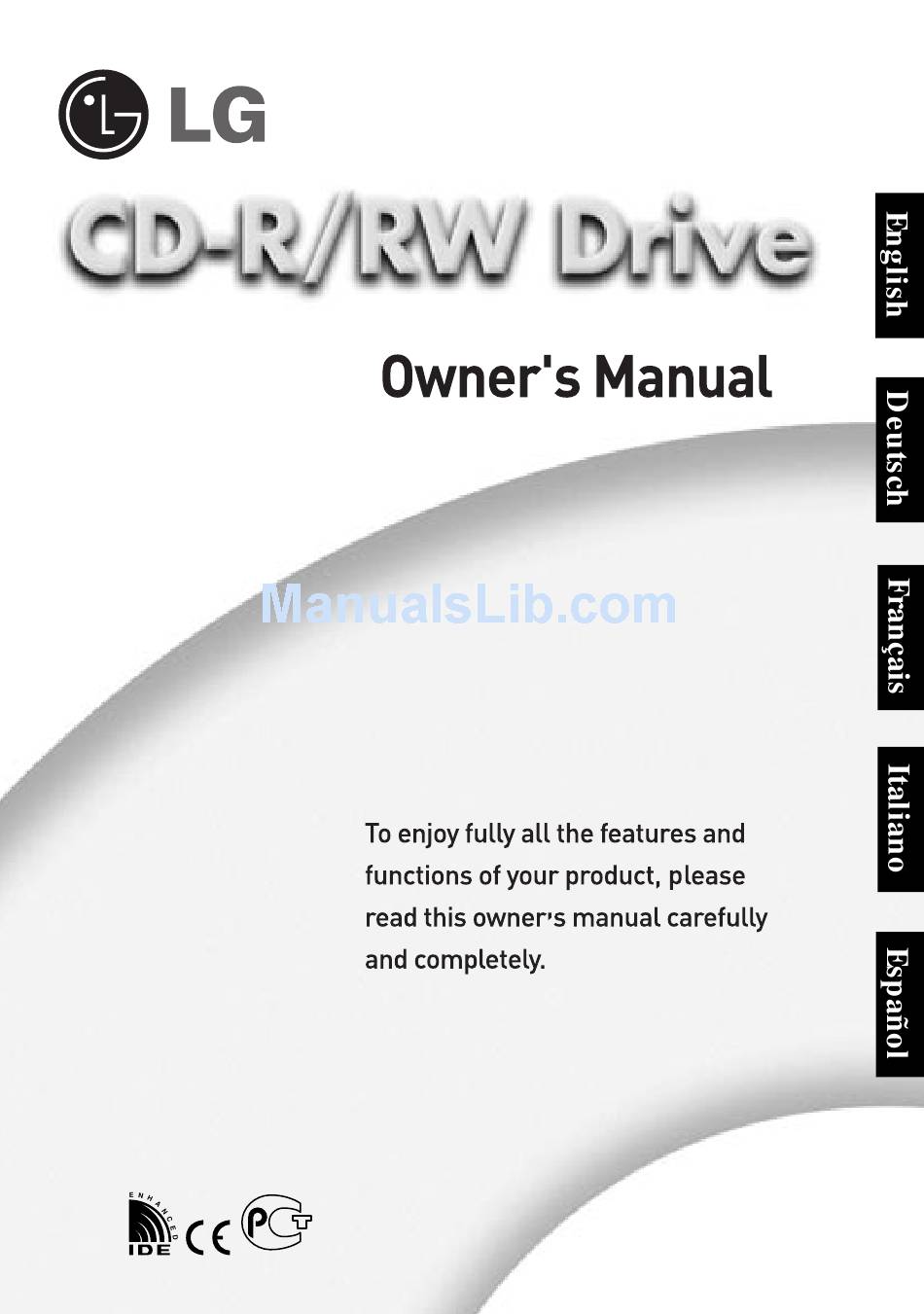

    Questo manuale include il tagliando di garanzia. (pagina n. I-15) GCE-8240B BZ03...

  • Page 2

    CAUTION : The laser used in the CD-R/RW drive can damage your eyes. Do not attempt to open the cover. To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel. Use of controls or performance of procedures other than those specified here in may result in hazardous radiation exposure.

  • Page 3

    This product is manufactured to comply with the radio interference requirements of EEC DIRECTIVE 89/336/EEC, 93/68/EEC and 73/23/EEC. CAUTION - INVISIBLE LASER RADIATION WHEN OPEN AVOID EXPOSURE TO BEAM. VARNING-OSYNLIG LASERSTRÄLNING NÄR DENNA DEL ÄR ÖPPNAD STRÄLEN ÄR FARLIG. CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT...

  • Page 4: Table Of Contents

    DirectCD v2.5b(s) Contents Introduction Features ........2 Important Precautions .

  • Page 5: Introduction

    DirectCD v2.5b(s) Introduction Features Thank you for purchasing this • Enhanced-IDE (ATAPI) interface. CD-R/RW Drive. • Power tray loading and ejection of disc.(The disc can also be ejected manually.) • The recorded CD-RW media can be played in a DVD player or a multiread CD-ROM Player, maintaining future compatibility •...

  • Page 6: Important Precautions

    DirectCD v2.5b(s) Important Precautions Follow these precautions when handling the drive or discs. Precautions • Please take notice that the manufacturer of this equipment does not offer any warranty against data loss due to inappropriate installation or handling, or direct or indirect damages. •...

  • Page 7: System Environment

    Software Required OS Windows 95/98/2000/ME/XP, Windows NT Workstation Ver.4.0 or later CD-R, CD-RW discs CD-R : LG, Ricoh, Mitsubishi Chemical, Verbatim, Taiyo Yuden, Fugi Film, Kodak, or Imation discs are recommended. CD-RW : Ricoh, Mitsubishi chemical, Verbatim, Imation, Sony discs are recommended.

  • Page 8: Location And Function Of Controls

    DirectCD v2.5b(s) Location and Function of Controls Front Panel 1. Headphone jack 6. Drive activity indicators Two colored LEDs are used to indicate 2. Volume control the operation of CD-R/RW Drive. 3. Emergency Eject Hole (1) Read 4. Stop/Eject button The orange color is displayed when the 5.

  • Page 9: Installation

    DirectCD v2.5b(s) Installation Installing the Drive Before Before installing the drive, please note the following points. Installation You will need the following: • A screw driver of a suitable size to fit the securing screws for the drive unit. • The manual for the computer, so you can find the mounting posi- tions for the IDE controller cable.

  • Page 10

    DirectCD v2.5b(s) Connecting Connect the power cable from the computer’s power supply to the socket on the drive unit, fitting the connector firmly into the power in connector. the Power If there is no spare power cable available in the computer, you will have Connector to purchase a splitter cable of a suitable type.

  • Page 11

    DirectCD v2.5b(s) Jumper Before installation, set the jumper on the jumper connector on the rear panel. Setup The drive can be connected as the Master or Slave on an EIDE (ATAPI) interface. When several (up to four) EIDE devices are con- nected, each must be set in a unique way.

  • Page 12

    DirectCD v2.5b(s) The CD-R/RW drive connects to the motherboard of the host com- puter using an IDE interface cable. You may connect the CD-R/RW Connection Drive as a Slave or Master device, depending on your computer. To Install as To install the drive as a Master, the jumper can be left as supplied from the factory.

  • Page 13

    DirectCD v2.5b(s) To Install as To install the drive as a Slave, change the jumper setting on the rear panel to SL. a Slave Drive Master drive (Booting hard disk) Slave drive (CD-R/RW drive) (Jumper set to SLave) - OR - Master drive (Booting hard disk) Master drive...

  • Page 14: Device Drivers

    DirectCD v2.5b(s) Device Drivers When using Windows 95/98/2000/ME/XP or Window NT Workstation Ver. 4.0, no special device driver is required. Your system, upon Power On and bootup after installing and connecting the new CD-RW drive, will recognize and load native software drivers automatically.

  • Page 15: Operation

    DirectCD v2.5b(s) Operation How to Use the Discs When using CD-ROM discs, CD-R discs or CD-RW discs, don’t attach any stickers or labels to the discs. Using discs with them attached not only causes read and write errors, but data on the disc may be lost due to damage to the disc itself.

  • Page 16: Appendix

    DirectCD v2.5b(s) Appendix Troubleshooting Before Before calling for service, check this list. Requesting • The drive doesn’t have power. • Is the power supply cable from the host computer plugged in? Service • Is the Power Connector to the drive securely attached? •...

  • Page 17: Specifications

    DirectCD v2.5b(s) Specifications Host Interface : E-IDE/ATAPI Data buffer memory : 8 Mbytes Disc diameters : 12cm/8cm, standard size CD’s Supported discs : CD-Digital Audio & CD-Extra , CD-Plus, CD-ROM, CD-ROM XA Ready, CD-I FMV, CD -TEXT, CD Bridge, CD-R, CD-RW, Video CD, Photo-CD(Single & Multi-Session). Mounting direction : Horizontal/Vertical Read/Write Speed :...

  • Page 18: Warranty

    2. The dealer (or his service agent) who sold the product will be reimbursed for any labour provided in the repair of this LG equipment, for a period of 24 months from the original date of purchase. These claims must be made in accordance with the published scale of service charges and relevant claims procedure.

  • Page 19

    D-47877 Willich, Germany warped or poor quality CD-ROMs, as this may cause damage to your drive. LG Electronics U. K. Ltd. 2. Check the clear plastic on the center of the disc, LG House, 264 Bath Road, cracks here are the main cause of disc crush.
