FIRST EDITION 06-2011

Real clarity

with

HD-SDI

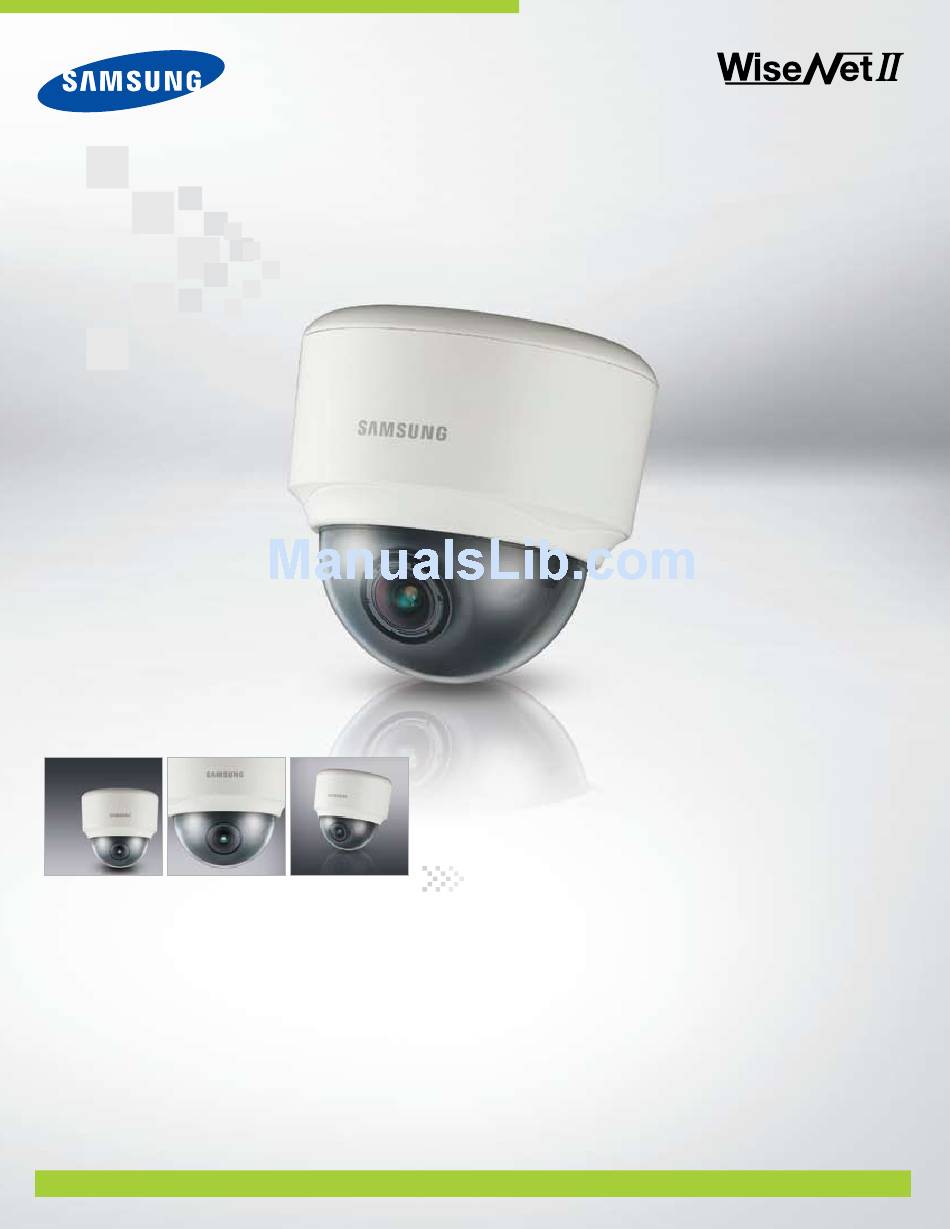

Full HD HD-SDI Camera

SCD-6080

The SCD-6080 is Samsung Techwin's HD-SDI megapixel digital

camera, using HD-SDI technology this camera transfers HD

Megapixel images without signal interruption or video delay; it is

ideal for use in high-security surveillance applications for

example; casinos, banking and hotels. The SCD-6080 can transfer

full HD (1920 x 1080) resolution videos max. 100m distance at

30fps real-time. In addition, this true day/night camera has a 2.8x

motorized varifocal lens provides flexibility for installation, SSDR

and SSNRIII.

Full HD (1,920×1,080, 30fps) mega resolution, HD(1280 × 720, 60fps)

•

Min. Illumination 1 Lux @F1.2 (Color), 0.1 Lux (B/W)

•

2.8x varifocal lens(3 ~ 8.5mm)

•

True Day & Night (ICR), MD

SSNRIII (3D+2D), RS-485, dual Power

•

www.samsungsecurity.com

Page 1 Megapixel images without signal interruption or video delay; it is ideal for use in high-security surveillance applications for example; casinos, banking and hotels. The SCD-6080 can transfer full HD (1920 x 1080) resolution videos max. 100m distance at 30fps real-time. In addition, this true day/night camera has a 2.8x motorized varifocal lens provides flexibility for installation, SSDR and SSNRIII.
Page 2: Specifications
(MD) Output 1, External D/N In 1 Communication RS-485 Protocol RS-485 : SAMSUNG-T, SAMSUNG-E, Pelco-D, Pelco-P, BOSCH, Honeywell, VICON, PANASONIC, GE, AD eNViRoNMeNTAL operating Temperature / Humidity 0°C ~ +50°C (+14°F ~ +122°F) / Less than 90% RH eLeCTRiCAL input Voltage/Current Dual (24V AC±10% &...
