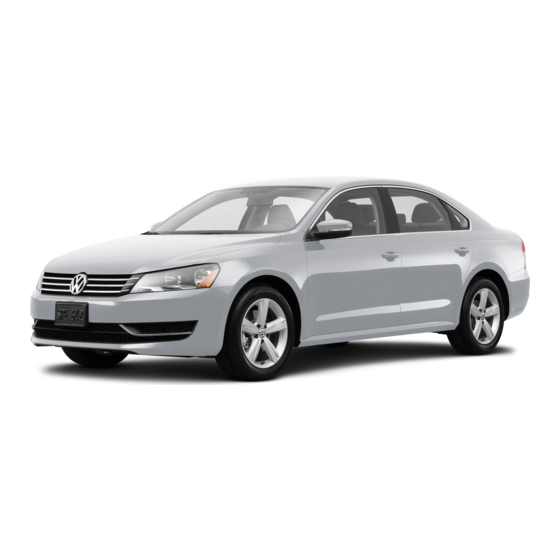

Volkswagen 2014 Passat Technical Specifications

2014 Passat
Technical Specifications
Passat 1.8T
ENGINE
1.8L inline four cylinder, 16V,
turbocharged/intercooled, DI
Type
Bore 3.25 in
Stroke 3.31 in
Displacement 110 cu in
Compression Ratio 9.6:1
Horsepower (SAE) @ rpm 170 @ 4800
Maximum torque, lb-ft @ rpm 184 lb-ft @ 1500
Fuel Requirement Regular unleaded
ENGINE DESIGN
Arrangement Front mounted, transverse
Cylinder block Cast iron
Crankshaft Cast iron, five main bearings
Cylinder head Aluminum alloy, crossflow
Valvetrain Double overhead camshaft, chain driven
with automatic tensioner, four valves per
cylinder, maintenance-free hydraulic
lifters, variable intake timing
DRIVETRAIN
Driven wheels Front-wheel drive
Transmission Gear Ratios:1 1st
2nd
3rd
4th
5th
6th
Reverse
Final
CAPACITIES
Fuel Tank
18.5 gal
STEERING
Type Rack and pinion: electric power assist
Turns (lock to lock) 3.01
Turning Circle (curb to curb) 36.4 ft
Ratio 16.4:1
INTERIOR VOLUME - SAE
EPA Class Sedan
Seating Capacity Five
Passenger Volume 102.0 cu ft
Cargo Volume 15.9 cu ft
Front
Volume 53.5 cu ft
Headroom (in/mm) 38.3/972
Shoulder room (in/mm) 56.9/1445
Legroom (in/mm) 42.4/1077
BODY, CHASSIS AND SUSPENSION
Type Unitary construction, two solid mounted
subframes
Body Material Steel stampings
Front Suspension Strut-type with lower control arms, coil
springs, telescopic dampers, anti-roll
bar
Multilink with coil springs, telescopic
Rear Suspension
dampers, anti-roll bar
Brakes Power assisted, dual circuit, 12.3 x 1.0-
in vented front discs and 10.7 x 0.4-in
solid rear discs
Anti-Lock Braking System Standard, all four wheels, three-channel
with electronic brake pressure
Stability Control Standard Electronic Stability Control
Parking Brake Mechanical
Wheels/Tires 16-inch x 6.5J steel wheels
16-inch x 6.5J aluminum-alloy wheels
215/60 R16 95T, all-season tires
17-inch x 7J aluminum-alloy wheels
215/55 R17 94H, all season tires
18-in x 8J aluminum-alloy wheels
235/45 R18 94H, all-season tires
Drag Coefficient 0.29
Passat TDI
2.0L inline four cylinder, 16V,
turbocharged/intercooled, DI
82.5 mm 3.19 in
84.1 mm 3.76 in
1797 cc 120 cu in
16.5:1
(125 kW @ 4800) 140 hp @ 4000
(250 Nm @ 1500) 236 lb-ft @ 1750
Diesel
Front mounted, transverse
Cast iron
Forged steel, five main bearings
Aluminum alloy, crossflow
Double overhead camshaft, spur belt
driven, four valves per cylinder,
maintenance-free hydraulic lifters
Front-wheel drive
Manual Automatic
3.78 4.04 1st
2.12 2.37 2nd
1.27 1.56 3rd
0.86 1.16 4th
0.66 0.85 5th
0.67 6th
3.80 3.19 Reverse
3.65 3.87 Final I
Final II
70 L 18.5 gal
Rack and pinion: electric power assist
3.01
11.1 m 36.4ft
16.4:1
Sedan
Five
102.0 cu ft
15.9 cu ft
Rear Front
48.8 cu ft 53.5 cu ft
37.8/960 38.3/972
57.0/1448 56.9/1445
39.1/992 42.4/1077
Unitary construction, two solid mounted
subframes
Steel stampings
Strut-type with lower control arms, coil
springs, telescopic dampers, anti-roll bar
Multilink with coil springs, telescopic
dampers, anti-roll bar
Power assisted, dual circuit, 12.3 x 1.0-in
vented front discs and 10.7 x 0.4-in solid
rear discs
Standard, all four wheels, three-channel
with electronic brake pressure distribution
Standard Electronic Stability Control (ESC)
Mechanical
17-inch x 7J aluminum-alloy wheels
215/55 R17 94H, all-season tires
18-inch x 8J aluminum-alloy wheels
235/45 R18 94H, all-season tires
0.29
Passat V6
3.6L VR6 (10.6 deg V), 24V, FSI
81.0 mm 3.5 in
95.5 mm 3.80 in
1968 cc 219 cu in
11.4:1
(103 kW @ 4000) 280 hp @ 6200
(320 Nm @ 1750) 258 lb-ft @ 2500
Premium fuel (91 octane)
Front mounted, transverse
Cast iron
Cast iron, seven main bearings
Aluminum alloy, crossflow
Double overhead camshaft, chain driven
with automatic tensioner, four valves per
cylinder, maintenance-free hydraulic
lifters, variable intake and exhaust
timing
Front-wheel drive
Manual Automatic
3.77 3.46 1st
1.96 2.05 2nd
1.26 1.30 3rd
0.87 0.90 4th
0.86 0.91 5th
0.72 0.76 6th
4.56 3.99 Reverse
3.68 4.12 Final I
2.92 3.04 Final II
70 L 18.5 gal
Rack and pinion: electric power assist
3.01
11.1 m 36.4ft
16.4:1
Sedan
Five
102.0 cu ft
15.9 cu ft
Rear Front
48.8 cu ft 53.5 cu ft
37.8/960 38.3/972
57.0/1448 56.9/1445
39.1/992 42.4/1077
Unitary construction, two solid mounted
subframes
Steel stampings
Strut-type with lower control arms, coil
springs, telescopic dampers, anti-roll bar
Multilink with coil springs, telescopic
dampers, anti-roll bar
Power assisted, dual circuit, 12.3 x 1.0-in
vented front discs and 10.7 x 0.4-in solid
rear discs
Standard, all four wheels, three-channel
with electronic brake pressure distribution
Standard Electronic Stability Control (ESC)
Mechanical
18-inch x 8J aluminum-alloy wheels
235/45 R18 94H, all-season tires
0.31
89.0 mm
96.4 mm
3597 cc
(206 kW @ 6200)
(350 Nm @ 2500 )
Automatic
2.92
1.79
1.19
0.83
0.86
0.69
3.26
4.77
3.44
70 L
11.1 m
Rear
48.8 cu ft
37.8/960
57.0/1448
39.1/992
