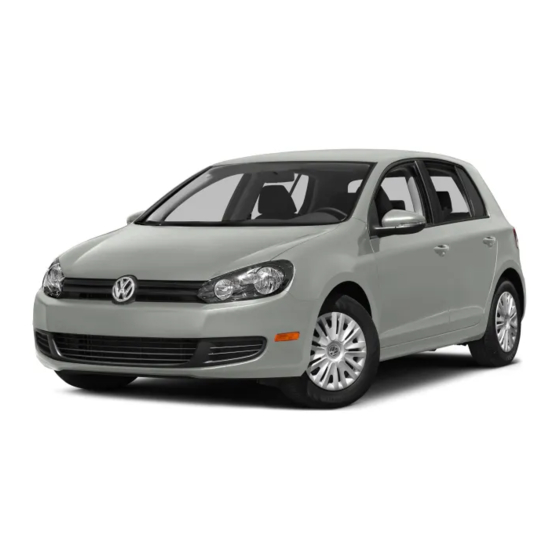

Volkswagen 2014 Golf Technical Specifications

2014 Golf
Technical Specifications
Golf 2.5L
ENGINE
2.5L, inline five cylinder, 20 V, MPFI
Type
Bore 3.25 in
Stroke 3.65 in
Displacement 151 cu in
Compression Ratio 9.5:1
Horsepower (SAE) @ rpm 170 @ 5700
Maximum torque, lb-ft @ rpm 177 lb-ft @ 4250
Fuel Requirement Regular unleaded
ENGINE DESIGN
Arrangement Front mounted, transverse
Cylinder block Cast iron
Crankshaft Cast iron, six main bearings
Cylinder head Aluminum alloy, crossflow
Double overhead camshaft, chain driven
Valvetrain
with automatic tensioner, four valves per
cylinder, maintenance-free hydraulic lifters,
variable intake timing
DRIVETRAIN
Driven wheels Front-wheel drive
Transmission Gear Ratios:1 1st
2nd
3rd
4th
5th
6th
Reverse
Final I
CAPACITIES
Fuel Tank 14.5 gal
STEERING
Rack and pinion: electric power assist
Type
Turns (lock to lock) 3.01
Turning Circle (curb to curb) 35.8 ft
Ratio 16.4 : 1
INTERIOR VOLUME - SAE
EPA Class Compact
Seating Capacity Five
Passenger Volume 92.9 cu ft
Cargo Volume 15.2 cu ft
Front
Volume 51.2 cu ft
Headroom (in/mm) 39.3/998
Shoulder room (in/mm) 54.7/1390
Legroom (in/mm) 41.2/1046
BODY, CHASSIS AND SUSPENSION
Type Unitary construction
Body Material Steel stampings
Strut-type with lower control arms, coil
Front Suspension
springs, telescopic dampers, anti-roll bar
Multilink with coil springs, telescopic
Rear Suspension
dampers, anti-roll bar
Brakes Power assisted, dual circuit, 11.3 x 1.0-in
vented front discs and 10.7 x 0.4-in solid
rear discs
Anti-Lock Braking System Standard, all four wheels, three-channel
with electronic brake pressure
distribution
Standard Electronic Stability Control
Stability Control
(ESC)
Parking Brake Mechanical
15-in x 6J steel wheels
Wheels/tires
195/65 R15 H all-season tires
Drag Coefficient 0.32
Golf TDI
2.0L, inline four cylinder, 16V,
turbocharged and intercooled, DI
82.5 mm 3.19 in
92.8 mm 3.76 in
2480 cc 120 cu in
16.5:1
(125kW @ 5700) 140 @ 4000
(240Nm @ 4250) 236 lb-ft @ 1750
Diesel
Front mounted, transverse
Cast iron
Forged steel, five main bearings
Aluminum alloy, crossflow
Double overhead camshaft, spur belt
driven, four valves per cylinder,
maintenance-free hydraulic lifters
Front-wheel drive
Automatic Manual
4.04 1st 3.77
2.37 2nd 1.96
1.56 3rd 1.26
1.16 4th 0.87
0.85 5th 0.86
0.67 6th 0.72
3.19 Reverse 4.55
3.87 Final I 3.45
Final II 2.76
55 L 14.5 gal
Rack and pinion, electric power assist
3.01
10.9 m 35.8 ft
16.4 : 1
Compact
Five
92.9 cu ft
15.2 cu ft
Rear Front
41.7 cu ft 51.2 cu ft
38.5/979 39.3/998
52.8/1341 54.7/1390
35.5/901 41.2/1046
Unitary construction
Steel stampings
Strut-type with lower control arms, coil
springs, telescopic dampers, anti-roll bar
Multilink with coil springs, telescopic
dampers, anti-roll bar
Power assisted, dual circuit, 11.3 x 1.0-in
vented front discs and 10.7 x 0.4-in solid
rear discs
Standard, all four wheels, three-channel
with electronic brake pressure
distribution
Standard Electronic Stability Control
(ESC)
Mechanical
17-in x 7.5J aluminum-alloy wheels
225/45 R17 H all-season tires
0.32
81.0 mm
95.5 mm
1968 cc
(103 kW @ 4000)
(320Nm @ 1750)
Automatic
3.46
2.05
1.30
0.90
0.91
0.76
3.99
4.12
3.04
55 L
10.9 m
Rear
41.7 cu ft
38.5/979
52.8/1341
35.5/901
