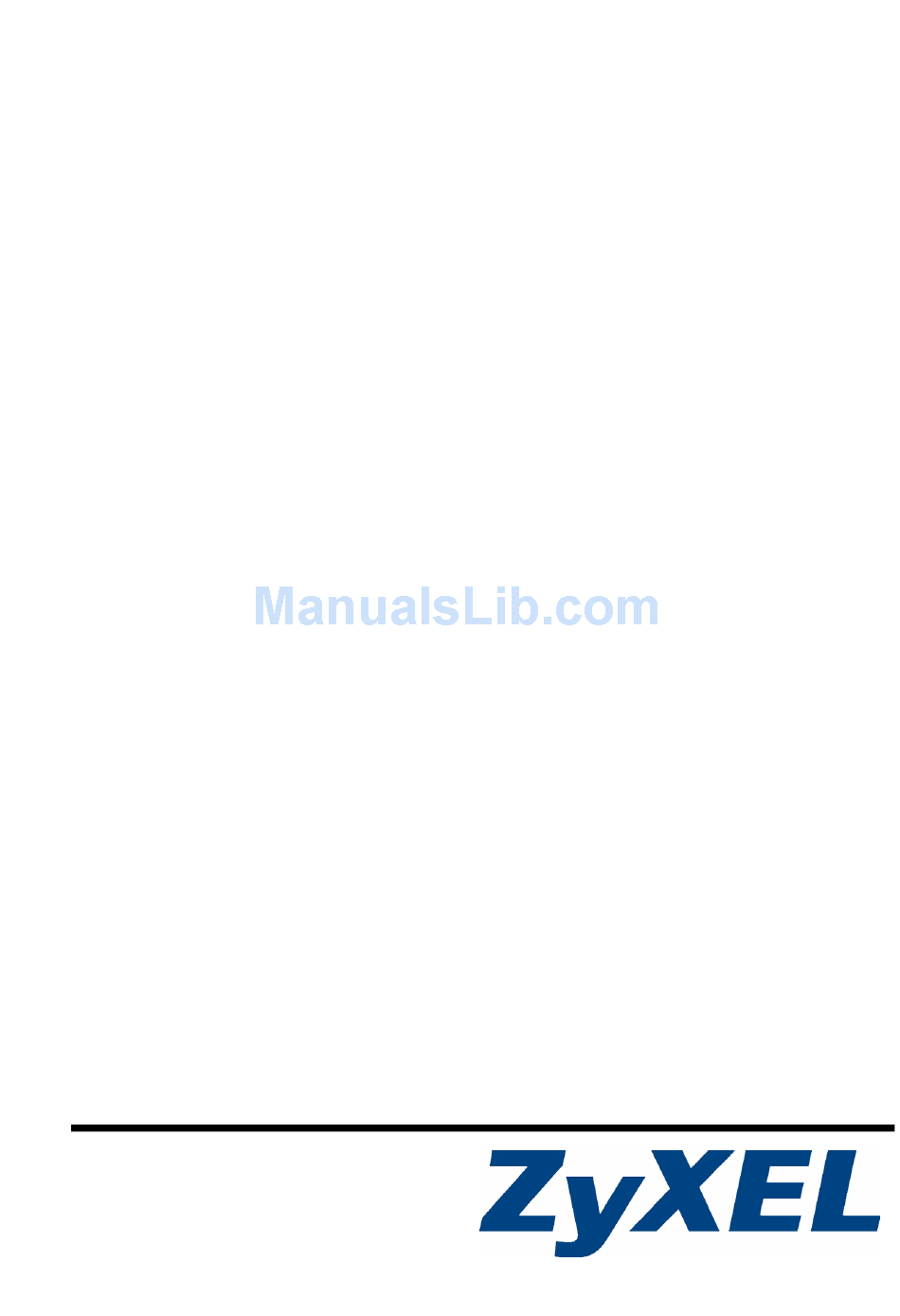

STB-1003
IP Set-Top Box

Quick Start Guide

Version 1.00
01/2008
Edition 1
Copyright © 2007. All rights reserved.

Advertisement

loading

Related Manuals for ZyXEL Communications STB-1003

Summary of Contents for ZyXEL Communications STB-1003

  • Page 1: Quick Start Guide

    STB-1003 IP Set-Top Box Quick Start Guide Version 1.00 01/2008 Edition 1 Copyright © 2007. All rights reserved.
  • Page 2 STB-1003 Quick Start Guide Overview The STB-1003 is a set-top box that connects your television to the Internet. Use the STB- 1003 to watch Internet television (IPTV) or Video on Demand (VOD) on your regular TV. A: Your STB-1003. B: Your Internet access device (such as a broadband router or modem).
  • Page 3 STB-1003 Quick Start Guide 1 Make Hardware Connections Take the following steps to set up your STB-1003’s hardware connections. Use either the cables that came with your STB-1003, or those that came with your TV or Internet access device. Internet 1 Connect your TV to the STB-1003’s audiovisual ports using either the included cables...
  • Page 4 2 Press the ON/OFF button on the rear of the STB-1003. light on the front of the STB-1003 lights up. It stays red while the STB-1003 is starting up, then turns green once the STB-1003 is ready (this may take a little while).

  • Page 5: Use The Remote Control

    1003’s connections. Make sure that the power is on and the Internet access device is working. If this does not help, restart the STB-1003 (switch it off, then on using the hardware switch on the rear panel). If the problem persists, contact your vendor.

  • Page 6: Remote Control Quick Reference

    4 Use the Menu System: TV and Video The STB-1003’s menu system allows you to select the TV channels and Video on Demand (VOD) services you want to watch from your service provider. Use the remote control to navigate the menu system.
  • Page 7 STB-1003 Quick Start Guide When the STB-1003 is ready to use, the Home menu displays. Use the HOME key on the remote control to return to this menu at any time. 1 Select the Live TV or VOD option (use the navigator’s keys, and the OK key).
  • Page 8 STB-1003 Quick Start Guide For VOD, the VOD menu appears. 2 For Live TV, highlight the channel you want to watch using the navigator’s keys. The small screen on the bottom right shows the current program. For VOD, highlight the video you want to watch.
  • Page 9 STB-1003 Quick Start Guide 5 Remote Control Button Reference The following figure shows the front of the STB-1003’s remote control, and identifies its buttons. The following table describes the remote control’s button functions. BUTTON FUNCTION On / Standby Turns the STB-1003 on, or puts it in standby mode (use the ON/OFF switch on the STB- 1003’s rear panel to turn it off).
  • Page 10 STB-1003 Quick Start Guide BUTTON FUNCTION Volume + / - Turns the sound from the STB-1003 up or down (you may also need to alter your TV’s volume). Mute Turns the sound on or off. Replay / Channel When you are watching pre-recorded video, Return use this to replay the last few seconds.

  • Page 11: Entering Numbers, Letters And Symbols

    STB-1003 Quick Start Guide 5.1 Entering Numbers, Letters and Symbols Use the alphanumeric keypad ( ) to enter numbers, letters and symbols. • Numeric Mode: To enter numbers, just press the keypad keys normally. • Alphanumeric Mode: To enter letters and symbols as well as numbers, press the KEYB (keyboard) key.
