Tripp Lite SmartRack SRW9U Quick Manual

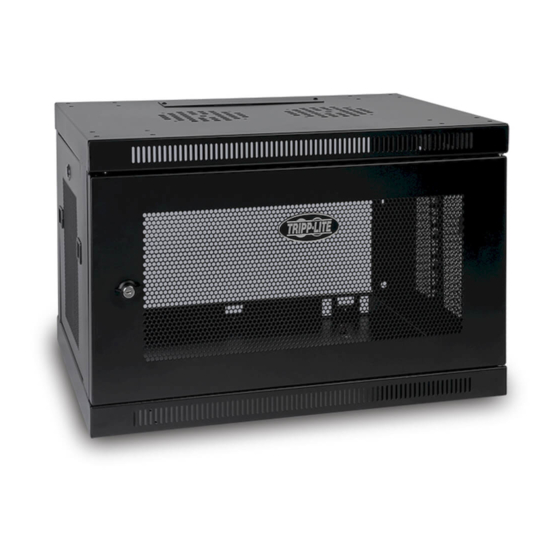

SmartRack 9U Wall-Mount Rack Enclosure Cabinet
MODEL NUMBER: SRW9U
Description
The SRW9U 9U Wall-Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment
access, and cable management in IT network applications with limited floor space. Ventilated front door and side
panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting
holes accommodate up to 9U of standard 19" rackmount equipment. Supports up to 200 lbs of equipment. A
sturdy wall-mount bracket allows the cabinet to quickly be hung on the wall.
Features
9U wall-mounted enclosure
Adjustable mounting depths up to 17" by 2 front vertical rackmount rails
Ventilated front door and side panels for increased airflow
Locking, reversible front door
Locking, removable side panels
Fully assembled for quick installation
Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance

Specifications

PHYSICAL
Installed whole system maximum
rack depth (inches)
Installed whole system maximum
rack depth (cm)
Installed whole system minimum
rack depth (inches)
Rack Height
16.5
41.9
3
9U
1 / 3
Highlights
Designed for IT and education
environments where equipment
needs to be secure and out of the
way
9U with adjustable front vertical
rackmount rails
Locking, reversible front door and
locking, removable side panels
Fully assembled for quick
installation
Meets all enclosure requirements
towards PCI DSS (Payment Card
Industry Data Security Standard)
Compliance
Applications
IT network environments with limited
floor space and classrooms where
equipment needs to be secure and out
of the way of students.
Package Includes
SRW9U Wallmount Rack
Enclosure
(18) M6 screws
(18) M6 cage nuts
(18) M6 washers
(2) Keys
Owner's Manual
