Tripp Lite U339-000 Quick Manual

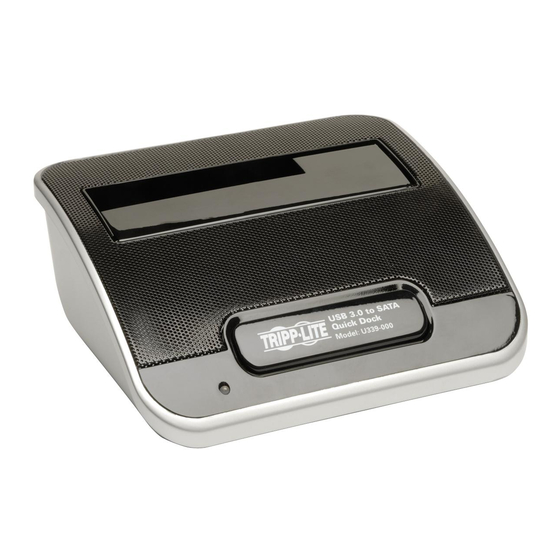

USB 3.0 SuperSpeed to SATA External Hard Drive
Docking Station for 2.5in or 3.5in HDD
MODEL NUMBER: U339-000
Description
Tripp Lite's USB 3.0 SATA Hard Drive Dock gives you a quick and easy way to set up an external hard drive
storage system. Plug the docking station into an available USB 3.0 port on your computer, then insert a 2.5" or
3.5" SATA drive for an instant external storage device. Transfer data at SuperSpeed USB 3.0 rates up to 5
Gbps ( provided computer is USB3.0 capable ). Far easier than installing the hard drive internally or in a caddy,
the USB3.0/SATA Dock is easy to use, convenient and practical. Backward compatible to older USB 2.0 and 1.1
computers ( 480mbps and 12mbps transfer speeds respectively ). Includes 100-240V AC Adapter, and 4-ft. USB
3.0 cable. ( No disk drives are included with this unit ) Compatible with Windows and Mac.
Features
Instant SATA external storage for 2.5" and 3.5" SATA drives
Plug-n-Play (no software or configuring needed)
USB 3.0 SuperSpeed transfer rates up to 5 Gbps
Heavy-weighted base for stability
Compatible with Windows and Mac

Specifications

OVERVIEW
Model Type
PHYSICAL
Unit Dimensions (HWD/in)
Unit Dimensions (HWD/cm)
Hubs
5.1" x 3.5" x 2.7"
12.95 x 8.89 x 6.86
1 / 2
Highlights
Plug in 2.5" or 3.5" SATA drives
for instant external storage
Plug and Play - no tools, software
or configuration required
Connect via USB 3.0 computer
port
Super Speed USB 3.0 - Up to 5
Gbps transfer speeds
Compatible with Windows and
Mac
Applications
Formatting hard drives, File
transfers, or External Storage
System Requirements
2.5" or 3.5" SATA hard drive
Computer with an available USB
port. USB 3.0 port is required to
achieve maximum speeds.
Compatible with Windows and
Mac
Package Includes
U339-000 USB 3.0 SATA Hard
Drive Dock
USB 3.0 Device Cable
Universal AC Adapter (100-240
VAC, 50/60Hz; Output: 12V,2A)
Owners Manual
