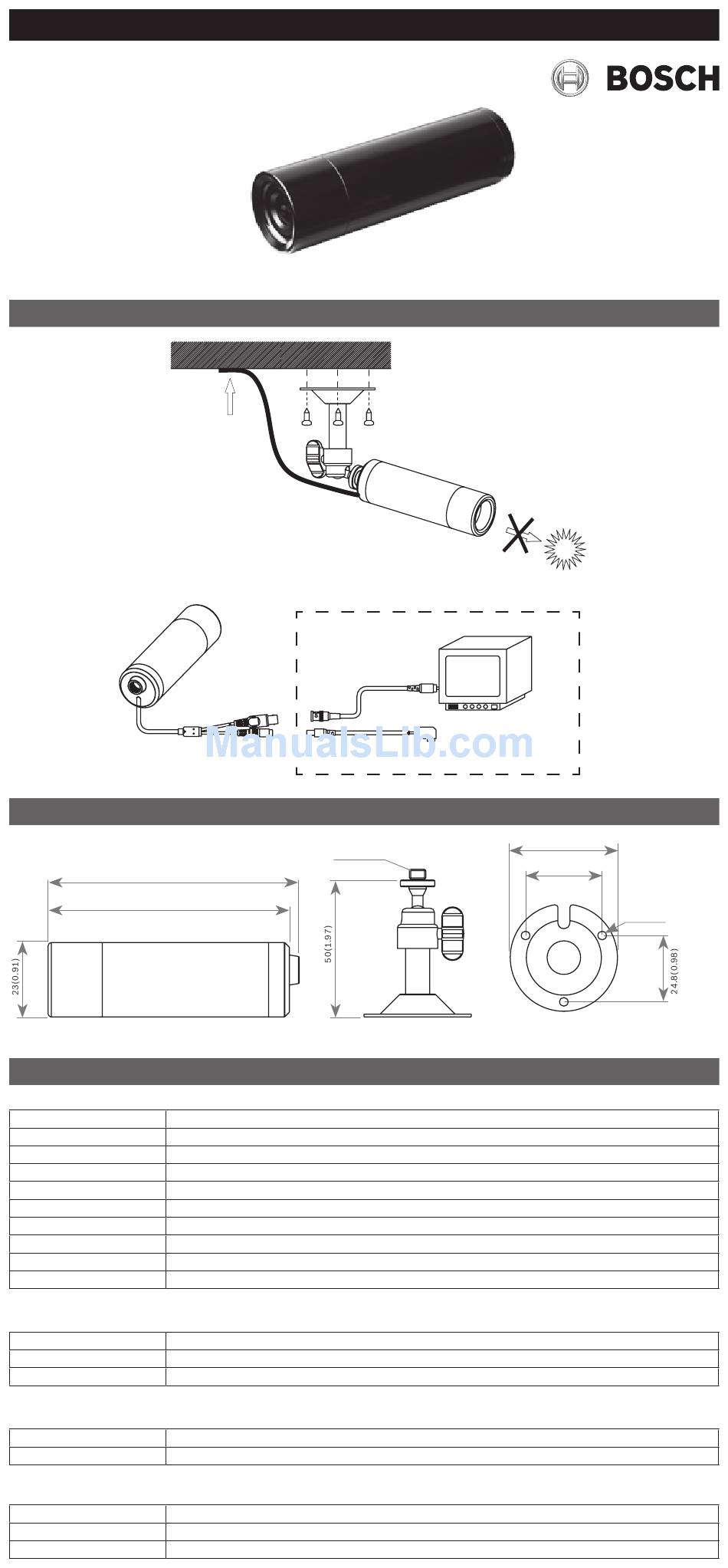

Bosch VTC-206 Series Operation Manual

V TC-2 0 6 Ser ies - Op er ation Manual
In sta l la t ion

MOUNTING POSITION

In wet or moist applications, seal
camera connections to ensure
protection against water ingress

CONNECTION

Di me n s io ns
Te ch n ic a l S pe c ifi c at io ns
Video
CCD Camera
Effective pixels (HxV)
Color Resolution
Electronics shutter
Output Signal
Output connection
S/N Ratio
Gamma
Minimum Illumination
Lens

Mechanical

Housing
Construction
Weight

Electrical

Power
Power Supply

Environmental

Operational Temp.
Storage Temp.
Environment
BNC Female
12 VDC
78.8(3.10)
75.8(2.98)
1/3-inch Super HAD CCD II
976 x 582 (PAL) / 976 x 494 (NTSC)
600 TVL (min.)
1/50 to 1/120,000 s (PAL) 1/60 to 1/120,000 s (NTSC)
1 VPP composite video, 75 ohm
BNC connector
Greater than 50 dB
0.45
0.1 lx at F2.0 / 30IRE
3.6 mm fi xed
Compact, water resistant
Robust aluminum
68 g (2.4 oz) approximately
12 VDC, 83 mA max.
Not included
-10 °C to +50 °C (+14 °F to +122 °F)
-20 °C to +60 °C (-4 °F to +140 °F)
IP67 certifi ed
Not supplied
Video IN(75 Ohm)
12 VDC Power Supply Class2
1/4"-20 UNC
Never face the camera towards bright (sun)light
MONITOR
Ф40(1.57)
28.6(1.13)
3-Ф3.2(0.13)
mm(in)
