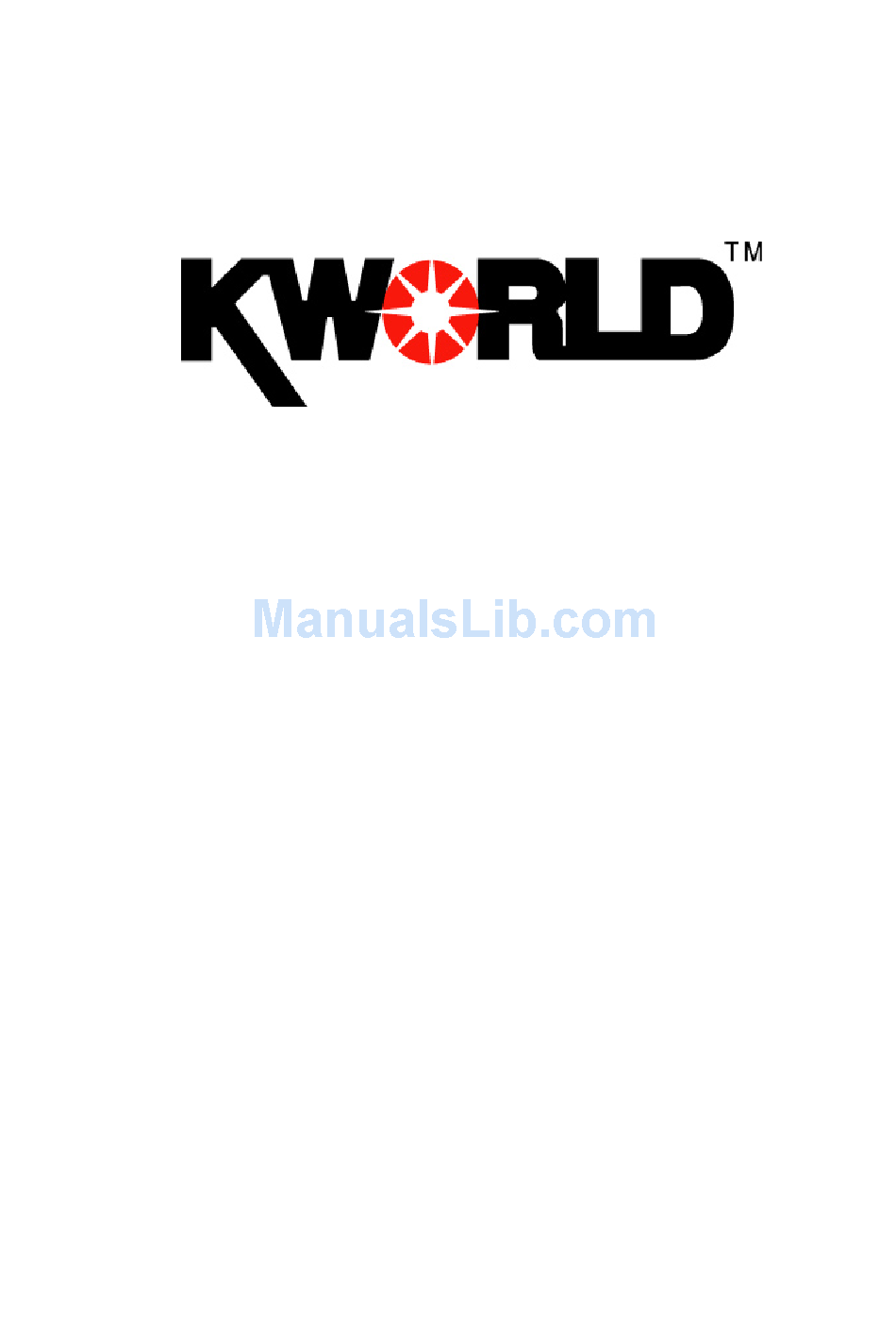

  • Page 1 TVBOX 1440 USER’S MANUAL Ver 1.0...

  • Page 2: Table Of Contents

    4.3 Operations for PIP function at PC mode ..................12 5. Operations for game function....................... 12 6. Troubleshooting ........................... 13 Thank you for buying KWorld’s TV BOX 1440 . For better use of the product, please read this User’s Manual carefully before use.
  • Page 3 The right to interpret all contents of this User’s Guide belongs to the company The manual is subject to change without notice. This User’s Manual is not authorized to any party and no reproduction or copy, in part or whole, of the manual in any way is permitted. KWorld Website: www.kworld.com.tw...

  • Page 4: Instruction

    LCD monitor. Connecting this product with an LCD monitor, you can easily get a fashionable and healthy LCD TV. The TV BOX 1440 has PIP (Picture In Picture) function at PC mode, which allows you to enjoy wonderful TV programs while operating PC, so neither work nor entertainment is held up.

  • Page 5: Packaged Contents

    Channel number ordering function allows you to arrange the order of programs as your favorites. Broadband (200MHz) PC/TV changeover switch. Composite video output TV program. (OSD can not support in this function ) 1.2 Packaged contents TV BOX 1440 1 PC User’s Manual 1 PC Remote control...

  • Page 6: Technical Specifications

    1.3 Technical specifications Power input: DC 5V, 800mA TV System Input: 75Ω IEC or type-F TV System Support: NTSC/PAL/SECAM (Depend on the model) Video Input: Composite video input (RCA) S Video input (4PIN) YPbPr input (RCA) VGA input Video Output: D-SUB output Composite video output (OSD is not support in this mode) Audio input &...

  • Page 7: Hardware &Installation Instructions

    2. Hardware &installation instructions 2.1 Diagram of remote control and buttons description 7. Video button 1. Power / Standby 12.Nicam 5. Timing button 2. Mute 6. Display button 3. 0-9 Channel 4. Return button 18. Factory Default 16. Aspect Ratio button 19.

  • Page 8: Product Picture And Panel Description

    set is over. 6. Display button: If this button is clicked, the number of the program you are watching will be displayed. 7. Video button: Clicking this button continuously, you can change over the mode among TV/ Video/ S video/ YPbPr circularly. 8.

  • Page 9: Product Picture And Description

    3.1 Product picture and description “ ”: Power/Standby changeover button, i.e. PC/TV changeover button. CH+/CH-: Program + and program - button. VOL+/VOL-: Volume + and volume - button. LED indicator: Lighting up high for TV or PIP mode. Lighting up low and flashing for standby mode. Flashing for command receiving mode.
  • Page 10 MONITOR: Connected with monitor. VGA: The 15-pin connector end on the attached VGA cable is connected to the output of video card in PC and the other end on the cable to the VGA port. 3.3 Connection illustration...

  • Page 11: Menu Display And Description

    4. Menu display and description 4.1 Menu display and description Menu I: Picture Contrast, brightness, Chroma, hue can be adjusted from 0 to 100 respectively. (Note: Hue option can be displayed only if the video input is NTSC system signal.) There are two states, ON and OFF, for noise reduction.
  • Page 12 Menu III: Display setup Adjusting Output mode, you can change over the resolution and refresh rate of output picture. Aspect Ratio, used for the changeover of picture aspect ratio. There are two options, 4:3 and 16:9. Menu IV: Auxiliary Calendar, used to display year/month/day and week. You can use “P+”/“P-” and “VOL+”/”VOL-”...
  • Page 13 Menu V: TV Tuning Channel Number, used for the display of present channel number. Channel Skip, used to delete the channel with no signal or poor signal. Channel Swap, used to arrange the order of TV programs as per your liking. Region: Select your TV system region.

  • Page 14: Program Searching

    Menu VII: Timing Timer OFF: used to set the time for shutdown. It shall be changed to “on”. Timer ON: used to set the time for startup. It shall be changed to “on”. Valid time: used to set the valid time of your setting as once or every day. Startup Mode: used to set the mode for each startup, which can be set as video, S-video or TV.

  • Page 15: Operations For Pip Function At Pc Mode

    You can use CH. Swap option in TV Tuning menu to conduct ordering for TV programs. For example, CCTV-8 and CCTV-12 are now located in channel 8 and channel 12 respectively and you want to arrange them in channel 1 and channel 2 respectively, you can conduct the following operations: select CCTV-8, enter into TV Tuning menu, select CH swap option, change the channel number from 8 to 1, and then click Menu button.

  • Page 16: Troubleshooting

    6. Troubleshooting 6.1 TV part Failure Cause and action 1.No power connection, or defective connection No picture, no sound of plug. Receiver is at standby mode. 2.Setup your TV system and scan TV channel. Speaker for multimedia is not connected Picture displayed without properly.
