FingerTec H2i User Manual

Simple fingerprint door access & time attendance system
Hide thumbs Also See for H2i:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual

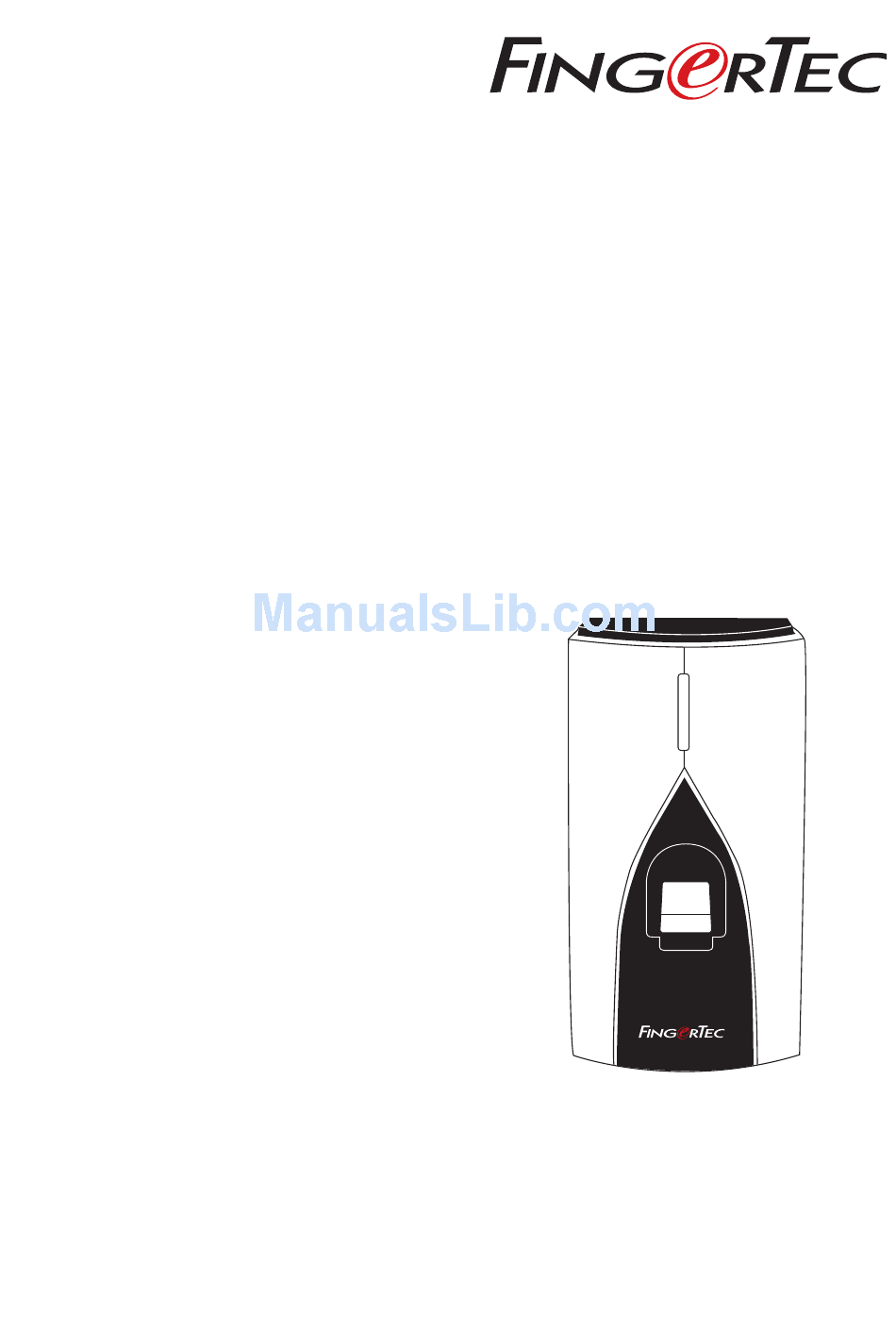

H2i
s u p p o r t @ f i n g e r t e c . c o m
H2i
Simple Fingerprint Door Access &
Time Attendance System
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H2i and is the answer not in the manual?

Questions and answers

Related Manuals for FingerTec H2i

Summary of Contents for FingerTec H2i

  • Page 1 s u p p o r t @ f i n g e r t e c . c o m Simple Fingerprint Door Access & Time Attendance System User Guide...
  • Page 2 Included Printed Materials Activating H2i Registering H2i CHAPTER 2 • BASICS Introduction to H2i H2i Overview Security Features Restarting and Resetting H2i CHAPTER 3 • CONNECTION – SYNCING 8-18 Installation Mount on Well Communication Description of Available Connections Ingress Online Activation...

  • Page 3: Getting Started

    1 • GETTING STARTED Viewing the User Guide in the Internet The User Guide is available in the package when you purchase FingerTec H2i. The user guide is also published online at fingertec.com and user.fingertec.com. Choose the language you prefer to view the User Guide.

  • Page 4: Included Printed Materials

    Connect all the cables correctly at their specific points and turn on the power sup- ply. The H2i terminal does not have an on/off button. Registering H2i Make sure that you register your H2i’s warranty with us at www.fingertec.com/ ver2/english/e_main.html#...
  • Page 5 FingerTec H2i is a simple master terminal, functioning as a time attendance and door access device and it can be used as a time attendance recorder as well. The H2i has a simple and sleek design as it comes without a keypad or any form of a display screen.

  • Page 6: Security Features

    (USB port) of the H2i to insert a specific user ID number during enrollment or deletion. You can also use the key- pad to input commands to reset settings of the H2i back to its default factory set- tings. Refer to page 19 for details.
  • Page 7 The system will return to verification mode. Remarks: All settings of the H2i will be reset to the default settings. The IP address will be reset to 192.168.1.1, and the terminal ID will be reset to 1 after the process. The administrator card information will be deleted from the memory and you will need to reenroll it.

  • Page 8: Connection - Syncing Terminals

    3 • CONNECTION – SYNCING TERMINALS Installations FingerTec terminals offer several connections for power and communications. In- stallations of FingerTec time attendance terminals are simple than installation for door access functions. Mount On Wall Back Plate s u p p o r t @ f i n g e r t e c . c o m 4 feet / 1.2 meter...
  • Page 9 Communications Connection points for power and communication are available on top of the termi- nals. Refer to the following diagrams for the terminals you require. POWER SUPPLYPORT WIEGAND INPUT CONNECTION PORT +12V +12V DC12V Power Supply IWD1 IWD0 RS485 CONNECTION PORT 1.
  • Page 10 FOR NC (NORMALLY CLOSE) DOOR LOCK SYSTEM POWER SUPPLY PORT +12V DC12V Power Supply ACCESS CONNECTION PORT Optional to use 485- with Diode 485+ EM lock (NC) Door Release lock button system Emergency Door COM1 break glass sensor (NC) Key switch (NC) FOR NO (NORMALLY OPEN)DOOR LOCK SYSTEM POWER SUPPLY PORT...

  • Page 11: Power Supply Port

    Descriptions of Available Connections USB PORT Linking with USB flash disk for remote data transfer. FRONT TCP/IP PORT Connect with a CAT 5 cable for LAN connection, one end to terminal’s port and another end to the computer’s TCP/IP Port. JOINT 1 PIN JOINT 2 PIN TCP/IP for Single Connection...
  • Page 12 Ingress Online Activation Ingress is a genuine software by FingerTec. Every FingerTec access control model comes bundled with a unique license key. To start using the terminal with Ingress, you must connect the terminal to Ingress and perform online activation. Ingress reads the serial number of your terminal and sends it for verification at the Fin- gerTec server via Internet.
  • Page 13 At the Devices Tab, user can either choose to add device Add Device (to individu- ally add) or Scan Device add multiple terminals at one go. For single terminal, after filling in the relevant informa- tion, click Add and Continue to proceed by adding another terminal or to add only...
  • Page 14 Once the device has been added, a pop up window will appear indicating that the device has been successfully added. Click to proceed. CONTENTS...

  • Page 15: How To Change Ip Address

    HOW TO CHANGE IP ADDRESS Terminal does not have a keypad thus to change the IP address users can do it via Ingress software. Steps to change IP address via Ingress are as below. Go to Doors tab and click on Door.
  • Page 16 Once done, a popup window will appear indicating the update is successful. Click to proceed. The Ingress software has to be synced with all relevant devices in order for the changes to take effect. A small window will appear at the bottom left corner of the screen once any changes are made.
  • Page 17 The H2i comes with a USB extension. This extension is intended for security purpose, for without it, no USB flash disk can be inserted into the terminal to access its data. To carry out any of the above operations, you must first plug the USB extension into the port in the terminal and then insert the USB flash disk into the other end of the extension.

  • Page 18: Managing User

    4 • MANAGING USER Administrator and Administrator Card Enrollment of an Administrator Card is required before any other operations could take place in a terminal. Once an Administrator Card is available, an administrator can perform these 3 major functions. 1. Unlock a terminal for enrollment or/and deletion of users with fingerprints or cards 2.

  • Page 19: Fingerprint Only

    with other fingerprint if you want to enroll more fingerprint for the same user > Wave the administra- “ tor card at the induction area to end process > System returns to verification mode” It is recommended to enroll 2 fingerprints for each user but the system allows you to enroll up to 10 fingerprints for a user.
  • Page 20 Operations with USB Numeric Keyboard H2i terminal is packaged with a USB Numeric keyboard to manage users. Plug one end of the USB numeric keyboard to the USB extension and another end into the H2i for activation. The following commands can be programmed into the terminal via the USB key- board: 1.

  • Page 21: Enrolling Users

    Assign a password when you are using the keyboard for the first time. This is impor- tant to avoid unauthorized access into the terminal via keyboard. Plug keyboard to H2i > The LED of keyboard lit up > The Green LED of H2i blinks > Wave administrator card to the card induction area>...
  • Page 22 Confi guring IP address, Subnet Mask and Gateway by using USB numeric keypad In case you are going to install multiple H2i in an environment, setting up IP ad- dress to every H2i becomes troublesome. Now you may consider using the USB numeric keypad to ease the job.

  • Page 23: Other Resources

    FingerTec Worldwide Sdn Bhd. Every precaution has been made to supply complete and accurate information. Information in this document is subject to change without prior notice.
  • Page 24 © 2013 FingerTec Worldwide Sdn. Bhd. All rights reserved. • 072013...
