Installation Guide
DL-30B
Digital Lock with Voice Guide Feature
© 2017 Timetec Computing Sdn Bhd. All rights reserved.• 092017
Before Installation (Diagram)
Door Preparation
1. Check the door thickness and prepare the corresponding mounting
hardware package.
Note: The standard lock includes 2 mounting hardware packages only, which are used for the door
thickness of 30-38mm and 39-46mm separately.
2. Check door opening direction.
Left inward
Right inward
D
F
F
D
Left outward
Right outward
Note: Please refer to the above picture to adjust the direction of strike plate F and latch D.
F
D
F
D
N
Advertisement
Table of Contents
Related Manuals for FingerTec DL-30B
Summary of Contents for FingerTec DL-30B

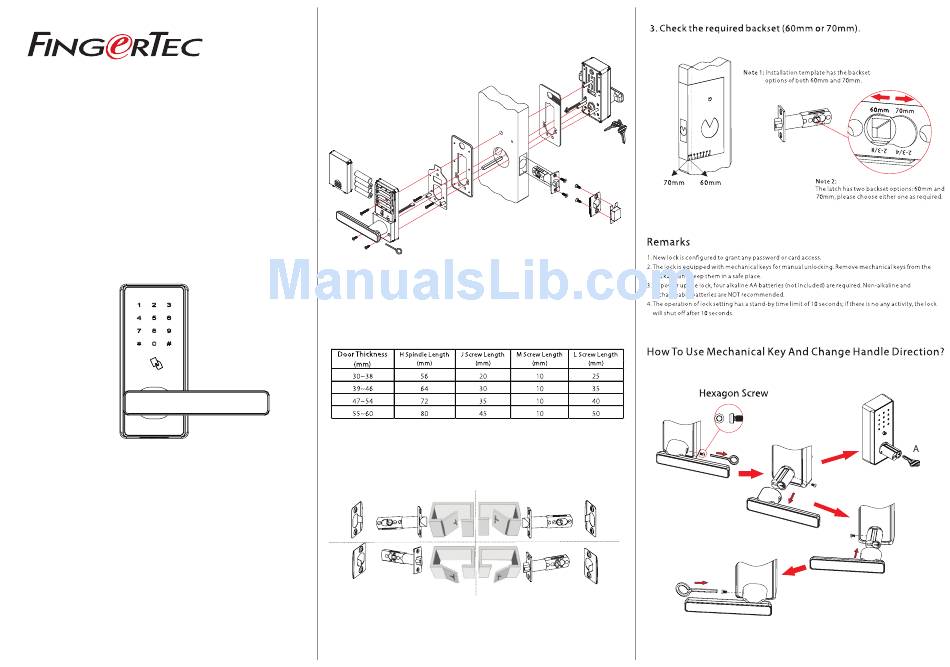

- Page 1 1. Check the door thickness and prepare the corresponding mounting hardware package. Note: The standard lock includes 2 mounting hardware packages only, which are used for the door thickness of 30-38mm and 39-46mm separately. DL-30B 2. Check door opening direction. Digital Lock with Voice Guide Feature Left inward...
