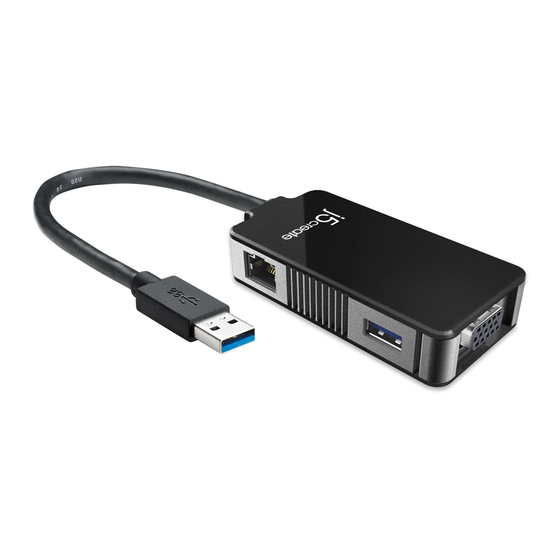

- Page 1 USB 3.0 MULTI-ADAPTER VGA & Gigabit Ethernet JUA370 User Manual JUA370...
-
Page 2: Table Of Contents
Table of Contents INTRODUCTIONS ..........................3 System Requirements ........................ 3 Specifications..........................4 Package Contents ........................5 GETTING STARTED ..........................6 INSTALLATION FOR WINDOWS ....................... 6 Device Driver Installation ......................6 Verify Device Driver Installation ....................9 Uninstalling the Device Driver ....................9 INSTALLATION FOR MAC ...................... -
Page 3: Introductions
USB computer peripheral, VGA monitor or gigabit LAN through USB port. With j5create multi-adapters, there is no need to open up your computer to add an expensive graphics card, you simply load the drivers, plug in the adapter to the USB port, then plug in the VGA monitor cable into the adapter and you are ready. -
Page 4: Specifications
Specifications Interface Host Interface USB 3.0 Male Type-A connector Video Interface VGA-DB 15 pin Female connector Ethernet Port RJ-45 Female connector (Gigabit Ethernet) USB Port USB 3.0 Female connector Power Power Mode Bus-powered Functions Video Playback: 1080P Display Display resolution: 2048 x 1152 @ 32bit Display Modes: Primary, Extended, Mirror Display Rotation: 0°, 90°, 180°, 270°... -
Page 5: Package Contents
1400 x 1050 16,32 bits 1280 x 1024 16,32 bits 1280 x 960 16,32 bits 1152 x 864 16,32 bits 1024 x 768 16,32 bits 800 x 600 16,32 bits Package Contents USB 3.0 Multi-Adapter JUA370 Quick Installation Guide Driver CD... -
Page 6: Getting Started
Run the setup program as an administrator to avoid errors in installation Connect the VGA Cable for the display to the VGA port on the JUA370 first before connecting the USB cable to the computer Un-install the previous driver first before installing the latest driver ... - Page 7 USB 3.0 MULTI-ADAPTER USER MANUAL drive, and manually run the setup CD. Double Click on Setup.exe to start. ※ Make sure the USB cable is unplugged from your PC or Notebook before executing the installation program. 1. The installation page will be launched. To 2.
- Page 8 Windows 7: You can modify the corresponding position of each extend display via display settings. Go to START → Control Panel → Appearance and Personalization → Adjust screen resolution ※ or Right click on the desktop and go to Screen Resolution When the Screen Resolution window pops up, you can identify each monitor’s number by clicking Identify.
-
Page 9: Verify Device Driver Installation
USB 3.0 MULTI-ADAPTER USER MANUAL Verify Device Driver Installation Follow the steps below to verify the driver installation status of the USB 3.0 Multi-Adapter Windows 7: Right Click My Computer Manager Device Manager click + sign of Network adapter & Sound, video and game control &... -
Page 10: Installation For Mac
3. When the driver is completely uninstalled, select “Yes, I want to restart my computer now.” Click Finishto restart. INSTALLATION FOR MAC Device Driver Installation Installing the device driver enables your computer’s operating system to recognize the USB3.0 Multi-Adapter. Be sure that you are referring to the appropriate installation procedure before you begin installing. - Page 11 USB 3.0 MULTI-ADAPTER USER MANUAL 3. Click Continue to proceed 4. Type in your password and click OK Installation is processing…This will take a few moments 5. Installation is completed, click Close 6. After the Lan driver installation has finished, choose the OS version you are using and press Install Driver to start the installation...
- Page 12 7. Click Continue to proceed 8. Type in your password and click OK 9. Click Continue Installation 10. Installation is processing…This will take a 11. Click Restart to complete the software few moments installation...
-
Page 13: Verify Device Driver Installation
USB 3.0 MULTI-ADAPTER USER MANUAL Verify Device Driver Installation Follow the steps below to verify the driver installation status of the USB 3.0 Display Adapter 2. The picture shows the installation process for the 1. GO , select About This Mac and USB 3.0 Multi-Adapter select More Info …... -
Page 14: Uninstalling The Device Driver
Uninstalling the Device Driver 1. Unplug the USB Cable of USB 3.0 MULTI-ADAPTER from the USB port 2. To un-installation, please press the Uninstall Driver icon 3. Click Open to proceed 4. Click Uninstall and restart to proceed 5. Type in your password to allow un- 6. -
Page 15: Functions Instructions: Windows 7
USB 3.0 MULTI-ADAPTER USER MANUAL FUNCTIONS INSTRUCTIONS: WINDOWS 7 Display Resolution Fast access to Display Resolution settings The resolution list will show when you move the cursor over Display Resolution. Select your desired resolution. Default resolution: 1024 x 768 x 32 bit Display Orientation The Orientation allows you to turn the display on the device that is connected... - Page 16 Mirror mode-Duplicate This feature allows the same contents of the on-board screen to be displayed on the screen connected to the USB 3.0 MULTI-ADAPTER You can select Duplicate these displays and click Apply Note: The resolution for the secondary and primary displays must be the same when using Mirror Mode (This may be lower than the preferred resolution for the display).
- Page 17 USB 3.0 MULTI-ADAPTER USER MANUAL Super Utility A super utility provides more options. You can find the icon on the lower right side of the task bar. Identify Monitors When Identify Monitors is selected, a serial number will be shown in the upper right corner of the display device.
-
Page 18: Functions: Windows Xp
※ Setting Hotkeys For example: To move the window to Display02 and automatically enlarge it to a full screen, follow the steps below: Choose Move Active Window to Display02, check Move Window and Full Screen and click Apply . Display Setting Fast access to the system Display Settings Display Location &... - Page 19 USB 3.0 MULTI-ADAPTER USER MANUAL If there is no display device attached to the USB 3.0 MULTI-ADAPTER it will show up as Unknown Monitor. In some cases, the attached display device does not support EDID, in this case the ID will also show up as Unknown Monitor.
- Page 20 Display Rotation The Display Rotation option allows you to rotate your display. There are 4 options available: 0 degrees/ 90 degrees/180 degrees/ 270 degrees under the Extended or Primary display mode. Display Mode Extended (Default Mode) This default display mode allows the attached USB 3.0 MULTI-ADAPTER enabled display device to work as an “Extended”...
- Page 21 USB 3.0 MULTI-ADAPTER USER MANUAL Primary Mode When Primary is selected, the display device When Off is selected it will disable the display connected to the USB 3.0 MULTI- will become the main display. The display of ADAPTER. the internal graphics card will automatically switch to be the extended display and act as an extension.
- Page 22 Multi-Display Control Panel When Multi-Display Control Panel is selected, the Multi-Display Control Panel window will pop-up to allow you to modify the Hotkeys. ※ Using Hotkeys Default setting is Ctrl + Display No. Click the window you want to move on task bar to activate it and then press the Hotkey.
-
Page 23: Functions: Mac
USB 3.0 MULTI-ADAPTER USER MANUAL FUNCTIONS: MAC Display Resolution From System Preferences click on the Display , and then System Go to tab. You should see the screen below. Preferences On this screen, you can adjust the resolution, display mode and color range. Display Mode Click on the Arrangement tab and uncheck Mirror Displays to turn the... - Page 24 TIP: For quick access to the USB Display Device click Show Display in Menu Bar. You will see the display icon appear and you can double-click it for quick access at any time. Space Windows Arrangement Click Show Spaces in Menu Bar. You should see the space number on the You can arrange the windows on your menu bar, you can choose any space...
- Page 25 Apple’s computer user manual. TROUBLE SHOOTING If you have any questions about the use of the JUA370 USB3.0 Multi-Adapter, please follow the instructions below. If any further assistance is needed, please visit our website or call j5create’s support hotline.
- Page 26 Video/Media players have different decoding capabilities under different display modes. For better performance while watching DVDs or certain video formats on the attached USB graphics display, it is recommended that you use the following license free software: Media Player Classic: http://sourceforge.net/projects/guliverkli/ Others Some graphic cards, i.e.
-
Page 27: Technical Support
Name, address, and telephone number j5create does not warrant that the operation of the product will be uninterrupted or error-free. j5create is not responsible for damage arising from failure to follow instructions relating to the product’s use. This warranty does not apply to:(a) consumable parts, unless damage has occurred due to a defect in materials or workmanship;... - Page 28 ; (g) damage caused by service (including upgrades and expansions) performed by anyone who is not a representative of j5create or a j5create Authorized Service Provider; (h) a product or part that has been modified to alter functionality or capability without the written permission of j5create; or (i) if any j5create serial number on the product has been removed or defaced.
