  • Page 1 USB 3.0 HDMI Display Adapter User Manual JUA350 Manual...

  • Page 2: Table Of Contents

    INSTALLATION FOR WINDOWS XP ................... 17 INSTALLATION FOR MAC ....................26 FUNCTIONS INSTRUCTIONS: WINDOWS 8, 7 ..............34 FUNCTIONS INSTRUCTIONS: WINDOWS XP ..............40 FUNCTIONS INSTRUTIONS: MAC ..................46 TROUBLE SHOOTING ......................... 50 TECHNICAL SUPPORT ....................... 52 REGULATORY COMPLIANCE....................53 WARRANTY OF j5create ......................54...

  • Page 3: Introduction

    USB port. There is no need to open up the computer to add an expensive video card. With the (JUA350) you simply load the drivers, plug in the adapter to the USB port, then plug in the HDMI monitor cable into the adapter and you are ready.
  • Page 4 USB DISPLAY ADAPTER USER MANUAL  Supports Display Modes: Primary, Extended, Mirror  Display Rotation: 0°, 90°, 180°, 270°  Audio imbedded 8kHz~48kHz  Aluminum enclosure that is non-toxic and recyclable  Easy driver install Usage Editor: • Efficient editing of documentation on one screen and researching reference materials on the other Presentation: •...

  • Page 5: Physical Specifications

    Video Playback is not recommend due to USB 2.0 bandwidth limitations causing limited video performance. Note: To ensure that your device is equipped with the most current driver, please visit our website at www.j5create.com and install the latest driver for this model. Physical Specifications Model: JUA 350 Interface Host Interface USB 3.0 Female Type-A Connector...

  • Page 6: Resolutions And Color Depth

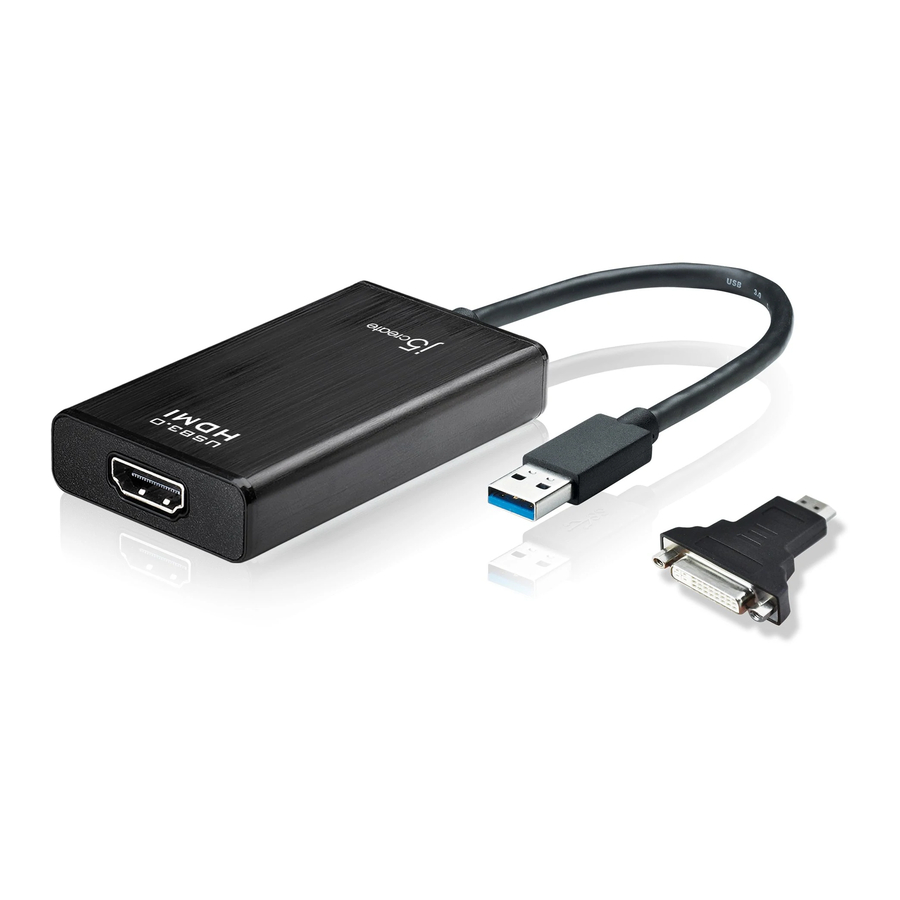

    1280 x 960 16,32 bits 1152 x 864 16,32 bits 1024 x 768 16,32 bits 800 x 600 16,32 bits Package Contents  USB 3.0 Display Adapter(JUA350)  HDMI to DVI Convertor  Quick Installation Guide  Driver CD with E-Manual...

  • Page 7: Installation For Windows 8,7

    USB DISPLAY ADAPTER USER MANUAL GETTING STARTED –Notes for Before Installation Install driver completely before inserting the USB 3.0 Display Adapter USB  Cable into your computer Run the setup program as an administrator to avoid errors in installation  Uninstall the previous driver first before updating the latest driver ...
  • Page 8 USB DISPLAY ADAPTER USER MANUAL 2. After pressing the installation option, the InstallShield Wizard will launch, click Next> to continue 3. Read the license agreement and check “I accept the terms of the license agreement.” Click Next > to accept it and continue.
  • Page 9 USB DISPLAY ADAPTER USER MANUAL 4. Driver installation proceeding….. 5. When Install Shield Wizard is complete, select “Yes, I want to restart my computer now.” Click Finish to restart.
  • Page 10 USB DISPLAY ADAPTER USER MANUAL 6. After rebooting connect the external display device (monitor/ projector) to the HDMI connector or the DVI connector of USB Display Adapter and turn on the display device. 7. Connect the USB 3.0 Display Adapter into an available USB port of a PC or Notebook, After Inserting the USB 3.0 Display Adapter into an USB port, the “Installing device driver software”...
  • Page 11 USB DISPLAY ADAPTER USER MANUAL A. Connect all external display devices (monitor/ projector) to the HDMI /DVI connector of USB 3.0 Display Adapters and switch power on. B. Connect the USB 3.0 Display Adapter into an available USB port of a PC or Notebook.
  • Page 12 USB DISPLAY ADAPTER USER MANUAL When the ‘Screen Resolution’ window appears, each monitor’s number can be identified by clicking “Identify.” Drag the monitor to the location you want. Setup The Sound Microsoft’s audio system restricts the audio function to one output at a time; therefore, when using the USB HDMI multi-display adapter only one output will receive audio.
  • Page 13 USB DISPLAY ADAPTER USER MANUAL The speaker options , for single and Multi- USB 3.0 HDMI Display Adapters, are shown below. Single USB 3.0 HDMI Display Adapter Multi-USB 3.0 HDMI Display Adapter Note: 1. The speakers are numbered according to the number if USB ports detected by your computer system.
  • Page 14 USB DISPLAY ADAPTER USER MANUAL Select the Speaker you want and then click “Set Default” Verify Device Driver Installation The following procedure helps you to verify the driver installation status of the USB 3.0 Display Adapter. Right-click “My Computer”  “Manager”  “Device Manager” click “+” sign of “Sound, video and game controllers”...
  • Page 15 USB DISPLAY ADAPTER USER MANUAL The picture below shows the installation process for a Multiple USB 3.0 Display Adapter Device Driver Un-installation ※ Unplug the USB 3.0 Display Adapter before un-installing the driver. 1. Click “Start”→ Control Panel → Programs and Feature→ Uninstall or Change a Program Select j5 HDMI DISPLAY ADAPTER ...
  • Page 16 USB DISPLAY ADAPTER USER MANUAL 3. Driver un-installation proceeding…. 4. When the driver uninstall is completed select “Yes, I want to restart my computer now.” Click Finish to restart.

  • Page 17: Installation For Windows Xp

    USB DISPLAY ADAPTER USER MANUAL INSTALLATION FOR WINDOWS XP Device Driver Installation This section illustrates the procedure for device driver installation for Windows XP. To start, insert the Driver CD into your computer’s CD-ROM drive. The setup program should be launched automatically. If Autorun does not begin, go to “Computer”, Click on your optical drive, and manually run the setup CD by double-clicking on “Setup.exe”...
  • Page 18 USB DISPLAY ADAPTER USER MANUAL 3. Read the license agreement and check “I accept the terms of the license agreement.” Click Next > to accept it and continue. 4. Driver installation proceeding….. 5. When Install Shield Wizard is complete, select “Yes, I want to restart my computer now.”...
  • Page 19 USB DISPLAY ADAPTER USER MANUAL 6. After your computer is rebooted, connect the external display device (monitor/ projector) to the HDMI/DVI connector of USB 3.0 Display Adapters and turn it on. 7. Connect the USB 3.0 Display Adapter into an available USB port of a PC or Notebook, After Inserting the USB 3.0 Display Adapter into an USB port, the “Installing device driver software”...
  • Page 20 USB DISPLAY ADAPTER USER MANUAL A. Connect all external display devices (monitor/ projector) to the HDMI/DVI connector of USB 3.0 Display Adapters and switch power on. B. Connect the USB 3.0 Display Adapter into available USB port of PC or Notebook.
  • Page 21 USB DISPLAY ADAPTER USER MANUAL Note: If your internal graphics card is Dual Display Ports….. 1. When using one USB 3.0 Display Adapter The display device which connected to the 2 HDMI port will be numbered 3 monitor, the display device which connected to the USB 3.0 Display Adapter will be numbered 2 monitor.
  • Page 22 USB DISPLAY ADAPTER USER MANUAL 2. The speaker options, for single and Multi- USB 3.0 HDMI Display Adapters, are shown below. Single USB 3.0 HDMI Display Adapter Multi-USB 3.0 HDMI Display Adapters Note: 1. The speakers are numbered according to the number if USB ports detected by your computer system.
  • Page 23 USB DISPLAY ADAPTER USER MANUAL Verify Device Driver Installation The following procedure helps you to verify the driver installation status of USB 3.0 Display Adapter Right-click “My Computer”  “Manager”  “Device Manager” click “+” sign of “Display Adapter” & “Sound ,video, and game controller” “Universal Serial Bus controllers”...
  • Page 24 USB DISPLAY ADAPTER USER MANUAL The picture below shows the installation process for a Multiple USB 3.0 Display Adapter...
  • Page 25 USB DISPLAY ADAPTER USER MANUAL Device Driver Un-installation ※Unplug the USB 3.0 Display Adapter before un-installing the driver 1. Click “Start”→ Control Panel → Programs and Feature→ Uninstall or change a program Select j5 DISPLAY ADAPTER... Click Uninstall 2. Confirm windows will pop out, Click to continue. 3.

  • Page 26: Installation For Mac

    USB DISPLAY ADAPTER USER MANUAL 4. When the driver uninstall is completed select “Yes, I want to restart my computer now.” Click Finish to restart. INSTALLATION FOR MAC Device Driver Installation Installing the device driver enables your computer’s operating system to recognize the USB 3.0 Display Adapter.
  • Page 27 USB DISPLAY ADAPTER USER MANUAL 3. Click “Continue” to proceed 4. Click “Continue” to proceed 5. Type in your password and click “OK” 6. Click “Continue Installation”...
  • Page 28 USB DISPLAY ADAPTER USER MANUAL 7. Installation is processing…This will take a few moments 8. Click “Restart” to complete the software installation 9. Connect the external display device (monitor/projector) to the HDMI/DVI connector of USB 3.0 Display Adapter and turn on the display device...
  • Page 29 USB DISPLAY ADAPTER USER MANUAL 10. Plug the USB 3.0 Display Adapter into the USB port of your Mac Desktop or Mac Notebook. The screen will turn on automatically, and be in “Mirror Mode” To change your screen preferences choose the “System Preference”->“Displays”-> “Arrangement”...
  • Page 30 USB DISPLAY ADAPTER USER MANUAL 3. The speaker“Output” options , for single and Multi- USB 3.0 HDMI Display Adapters, are shown below. You can select a device for sound output by clicking it. • Single USB 3.0 HDMI Display Adapter •...
  • Page 31 USB DISPLAY ADAPTER USER MANUAL The picture below shows the installation process for a Single USB 3.0 Display Adapter The picture below shows the installation process for Multiple USB 3.0 Display Adapter...
  • Page 32 USB DISPLAY ADAPTER USER MANUAL Device Driver Un-installation 1. Unplug the USB 3.0 Display Adapter from the USB port 2. To un-installation , please press the “Uninstall Driver” icon 3. Click “Open” to proceed 4. Click “Uninstall and restart” to proceed...
  • Page 33 USB DISPLAY ADAPTER USER MANUAL 5. Type in your password to allow un-installation and click “OK” to proceed 6. Restart your system...

  • Page 34: Functions Instructions: Windows 8, 7

    USB DISPLAY ADAPTER USER MANUAL FUNCTIONS INSTRUCTIONS: WINDOWS 8, 7 This section describes the many functions provided by the USB 3.0 Display Adapter. ‘Display device’ here means any number of things such as CRT,LCD monitor, TV display, or projector. Display ID Smart Display Device ID Detection Window 7 OS supports VESA defined DDC/EDID.

  • Page 35: Display Orientation/Mode

    USB DISPLAY ADAPTER USER MANUAL Display Orientation The Orientation allows you to turn the display device, which is connected to USB 3.0 Display Adapter Display Mode Extended mode (Default) This feature allows the display device attached to the USB 3.0 Display Adapter to work as an “extended”...
  • Page 36 USB DISPLAY ADAPTER USER MANUAL Mirror mode-Duplicate This feature allows the same contents of the on-board screen to be displayed to the screen of the USB 3.0 Display Adapter You can select “Duplicate these displays” and click “Apply” Note: The resolution for the secondary and primary displays must be the same when using Mirror Mode (This may be lower than the preferred resolution for the display).
  • Page 37 USB DISPLAY ADAPTER USER MANUAL Primary mode When you want to switch the enabled monitor as main display and extend view to on- board screen. Please choose the “Number” of the main display you want it to be and check on “Make this my main display”.
  • Page 38 USB DISPLAY ADAPTER USER MANUAL Super Utility A super utility provides more options, you can find the icon on the lower right task bar Identify Monitors When “Identify Monitors” is selected, a serial number will be shown at the upper right corner of the display devices.
  • Page 39 USB DISPLAY ADAPTER USER MANUAL ※Using Hotkeys Default setting is Ctrl + Display No. Click the window you want to move at the task bar to become active, and then press Hotkey ※Setting Hotkeys For example: Move window to Display03, and automatically enlarge it to full screen. Choose “Move Active Window to Display03”, check “Move Window and Full screen”, and click Apply Display Setting...

  • Page 40: Functions Instructions: Windows Xp

    USB DISPLAY ADAPTER USER MANUAL FUNCTIONS INSTRUCTIONS: WINDOWS XP You can choose all the functions simply and directly only by clicking on this icon ( seen on the lower right toolbar. Display ID Smart Display Device ID Detection The USB 3.0 Display Adapter supports VESA defined DDC/EDID. The utility should show the display device ID whenever it is attached to the USB 3.0 Display Adapter.
  • Page 41 USB DISPLAY ADAPTER USER MANUAL Display Resolution Default Resolution: 1024 x 768x 32 bit The resolution list will show up when you move the cursor over Display Resolution. Select the resolution you want. Display Rotation The Display Rotation allows you to turn the display device, which is connected to USB 3.0 Display Adapter.
  • Page 42 USB DISPLAY ADAPTER USER MANUAL Display Mode Extended (Default Mode) A default display mode allows the attached USB 3.0 Display Adapter enabled display device to work as “Extended” display of the on-board screen. This extended working space feature improves work efficiency. Mirror Mode When Mirror selected, the screen of display device, which is connected to...
  • Page 43 USB DISPLAY ADAPTER USER MANUAL Primary Mode When Primary is selected, the display device, which is connected to USB 3.0 Display Adapter, will become the main display, the display of the internal graphics card will automatically switch to be the extended display and act as an extension desktop.
  • Page 44 USB DISPLAY ADAPTER USER MANUAL Identify Monitor When Identify Monitors is selected, a serial number will be shown at the upper right corner of attached display device. You can use the Hotkey function to find out the serial number of each display. Multi-Display Control Panel When Multi-Display Control Panel is selected, the Multi-Display Control Panel...
  • Page 45 USB DISPLAY ADAPTER USER MANUAL ※ Using Hotkey Default setting is Ctrl + Display No. Click the window you want to move on task bar to become active, and then press Hotkey. ※ Setting Hotkey For example: Move window to Display03, and automatically enlarge it to full screen.

  • Page 46: Functions Instrutions: Mac

    USB DISPLAY ADAPTER USER MANUAL FUNCTIONS INSTRUTIONS: MAC Display Resolution Go to , and then “System Preferences From “System Preferences” click on the “Display” tab. You should see this screen.  On this screen, you can adjust the resolution, display mode and color range. Display Mode Click on the “Arrangement”...
  • Page 47 USB DISPLAY ADAPTER USER MANUAL  You can move the menu bar to any display to assign any display to Primary.  If you cannot see the Display window to adjust your secondary monitor resolution, click on the “Gather Windows” button. TIP: To simplify using the USB 3.0 Display Adapter, click “show display in menu bar.”...
  • Page 48 USB DISPLAY ADAPTER USER MANUAL  Space Click “Show Spaces in menu bar.” You should see the space number on the menu bar that you can choose any space on the list at any time. F8: you will see the Space Layout with a single keystroke. You can draw any window to other space.
  • Page 49 USB DISPLAY ADAPTER USER MANUAL  Exposé View different windows with a single keystroke.  F9 : view all open windows  F10: view windows of the current application only  F11: show desktop *For more windows arrangement functions, please see Apple’s computer user manual.

  • Page 50: Trouble Shooting

    USB DISPLAY ADAPTER USER MANUAL TROUBLE SHOOTING If you have any questions about using this device, follow the instructions below. If any further assistance is needed, please visit our website or call j5 create support hotline. Known Issues - The print screen function in the extend display currently is not supported under MAC OS.
  • Page 51 Safe Mode. - To verify the driver version that you installed, please click “Control Panel” → “Add or Remove Programs” to check the program: USB Display Device (j5create) 9.xx.xxxx.0159 (the number means the driver version). - Some limitation exists in different media player on file format support. We enclose...

  • Page 52: Technical Support

    2. Online Support Please visit the j5 create website (www.j5create.com) to find the latest software for your device. If you are still experiencing the same issue, you can submit a description of your problem via email service@j5create.com...

  • Page 53: Regulatory Compliance

    USB DISPLAY ADAPTER USER MANUAL REGULATORY COMPLIANCE This equipment has been tested and found to comply with FCC Part 15 Subpart B § 15.109/15.107 Class Operation is subject to the following two conditions: • This device may not cause harmful interference •...

  • Page 54: Warranty Of J5Create

    Authorized Service Provider; (h) a product or part that has been modified to alter functionality or capability without the written permission of j5 create;...
