When You Are Ready To Set Up Your
Shelter
–Select a level area clear of rocks,
branches and other hard or sharp objects.
–Do not set up your shelter under trees.
–For easier set up, two or more people
are recommended.
1
Pole Assembly
–For easier setup, do not extend poles
completely.
–Go to the end of pole with the
spring clip and assemble all but the last
shock corded section. The pole should
curve down plus one section. (illus. 2)
–Insert the end with the spring clip into
one of the hub ports until it clicks into
position. (illus. 1, 2)
–Repeat for each of the four remaining
poles. (illus. 2)
–Assemble and connect one pole at a
time to the hub.
13'x13' SHADE HAVEN
Instructions apply to Part Number 9391A133

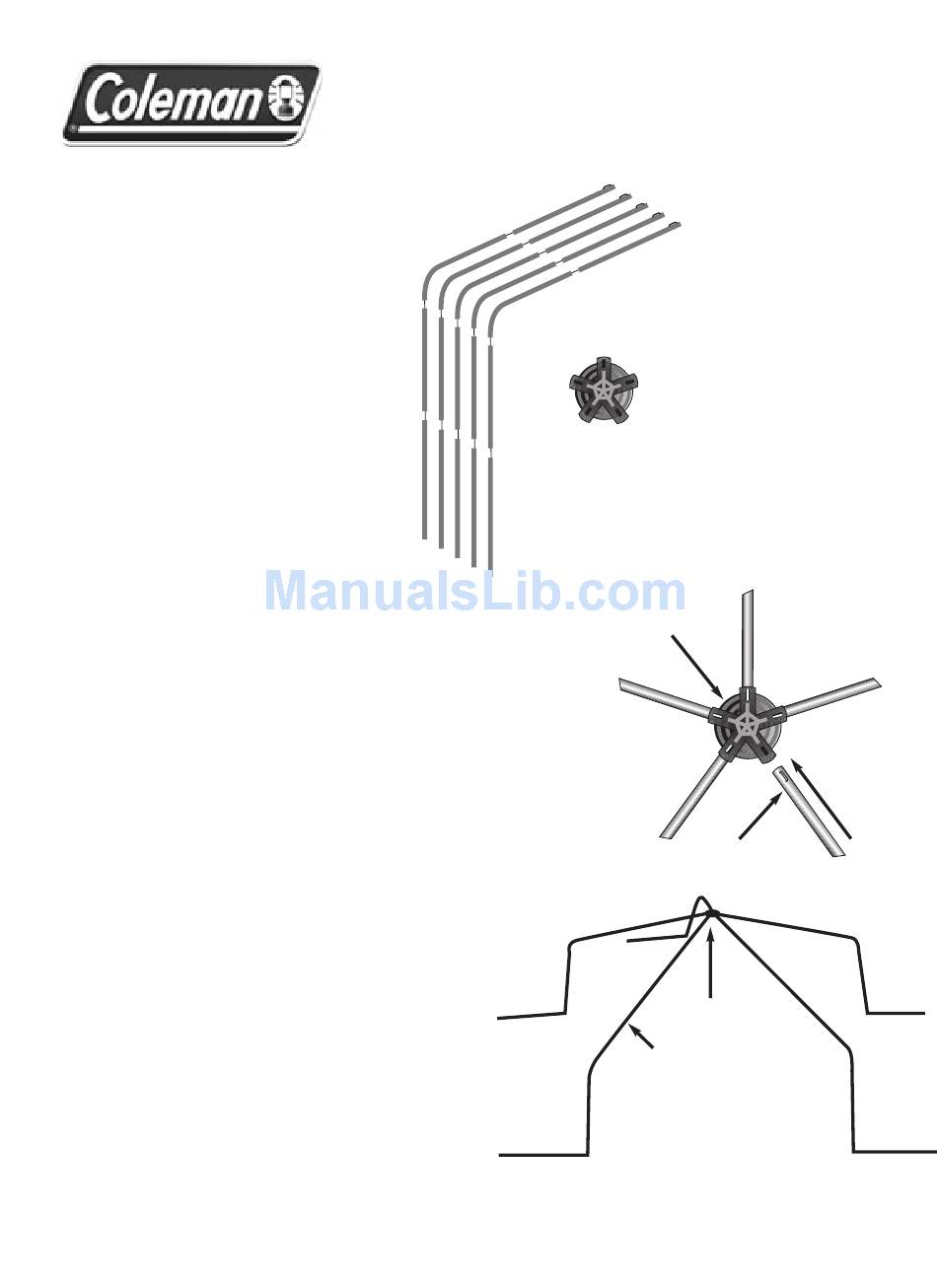

POLE ASSEMBLY PARTS
Poles Part No. 9191-313
Hub Part No. 9191-330
Hub
Illus. 1
Poles inserted
into hub
Spring Clip
Hub
Pole
Illus. 2
Partially assembled
frame locked into hub
