Coleman Echo Lake 6p Fast Pitch Setup Instructions

before you begin
• Read all instructions before set up.
• Select a level site clear of rocks, branches, and other
hard or sharp objects, to install your tent.
WARNING: Keep clear of overhead power lines.
• Do not set up your tent under trees because of
potential lightning strikes or falling tree limbs in
inclement weather.
• NoTIce: Secure product with all ground stakes,
guylines and velcro straps for optimal performance
and to prevent property damage or personal injury.
• For best results in windy conditions, position narrow
end of tent into the wind.
• Enlist the help of at least one other person to assist
you when it is time to assemble the tent.

How to Store

1. All poles and stakes must be placed in the storage
bag to prevent damage to the fabric items placed in
the carry case.
2. Make sure tent is clean and dry before placing in
carry case.
3. Remove rainfly, spread out on floor of tent, then unzip
door & vents before taking tent down for storage.
4. Neatly fold tent to width of pole storage bag, then
place pole storage bag on tent, roll tightly, and place
in carry case.
5. Store in a clean, dry area.

How to get repair kit number

Diameter
6.0 mm
5010000544
Pole Repair Kit

Parts List

A
. Centre Roof Pole ......................x 1
B
. Centre Leg Pole .......................x 2
C
. Side Roof Pole ..........................x 2
D
. Side Leg Pole ...........................x 4
E
. Closet Pole ...........................x 2 / 1
TENT SETUP INSTRUCTIONS
(The product may look different from yours. It is for illustration purpose only.)
6.9/7.0 mm
6.3 mm
5010000542
5010000543
A
C
B
D
NOTE: If tent has 1 closet, there will be 1 closet pole included.
And all roof poles are pre-attached on the inner tent.
Front view of
complete tent

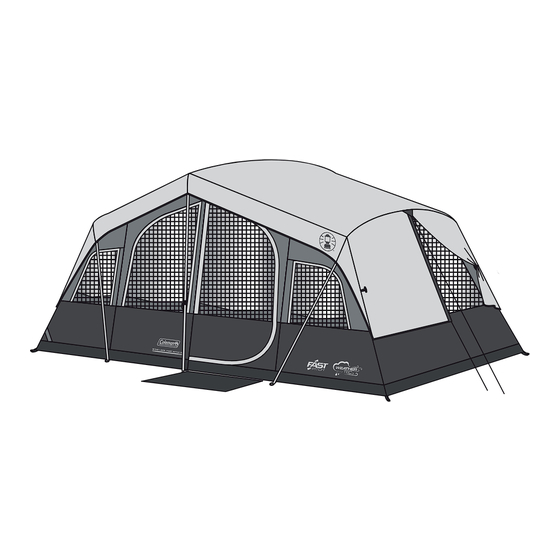

Fast Pitch Cabin with Closets

Things you Should Know

• Under certain conditions (cold weather, high humidity, etc.) condensation
will form on the inside of your tent. Condensation is caused by water vapor
from your breath, perspiration, or any wet clothing inside the tent. It is NOT
LEAKAGE through the tent fabric. It can be minimized by removing wet
clothing from your tent and by providing good ventilation through the tent.
• Tree limbs, tree sap, bird droppings, or moisture steadily dripping off tree
limbs can cause damage to the tent fabric and its coating resulting in leaks
or loss of flame-resistant properties.
• Never store tent, even for a short period of time, without drying it thoroughly
and brushing off caked dirt. Do not pack stakes or poles inside your tent. Use
a separate storage bag.
• Stakes should be removed by pulling on the stake itself. NEVER PULL ON THE
TENT TO REMOVE STAKES AS THIS COULD RESULT IN PROPERTY DAMAGE OR
PERSONAL INJURY.
• Tent poles should not be left telescoped together during storage.
• Do not leave your tent set-up for weeks at a time. Be aware that exposure to
ultraviolet rays from the sun can seriously damage material and/or cause it
to become discolored.
WARNING: KeeP ALL FLAme ANd HeAT SouRceS
AWAy FRom THIS TeNT FAbRIc.
This tent meets the flammability requirements of CPAI-84. The fabric may
burn if left in continuous contact with any flame source. The application of any
foreign substance to the tent fabric may render the flame-resistant properties
ineffective. (For u.S.A. only)
This tent is made of flame-resistant fabric. It is not fireproof. The fabric will
burn if left in continuous contact with a flame source. The application of any
foreign substance to the tent fabric may render the flame-resistant properties
ineffective. (For canada only)
Note: To get the repair kit number, you can compare the end of the pole with the circles on below table, or
measure diameter of the pole end.
7.9 mm 8.5 mm
5010000541
5010000569
C
E
D
9.5 mm 11.0 mm
5010000540 5010000539
A
B
D
Tent without rainfly
E E
Rear view of complete tent
12.7 mm
5010000538
C
