When You Are Ready
To Set Up Your Tent
– Select a level campsite clear of
rocks, branches and other hard
or sharp objects.
– Do not set up your tent under trees.
– For best results in windy conditions,
position the end of tent into the wind.

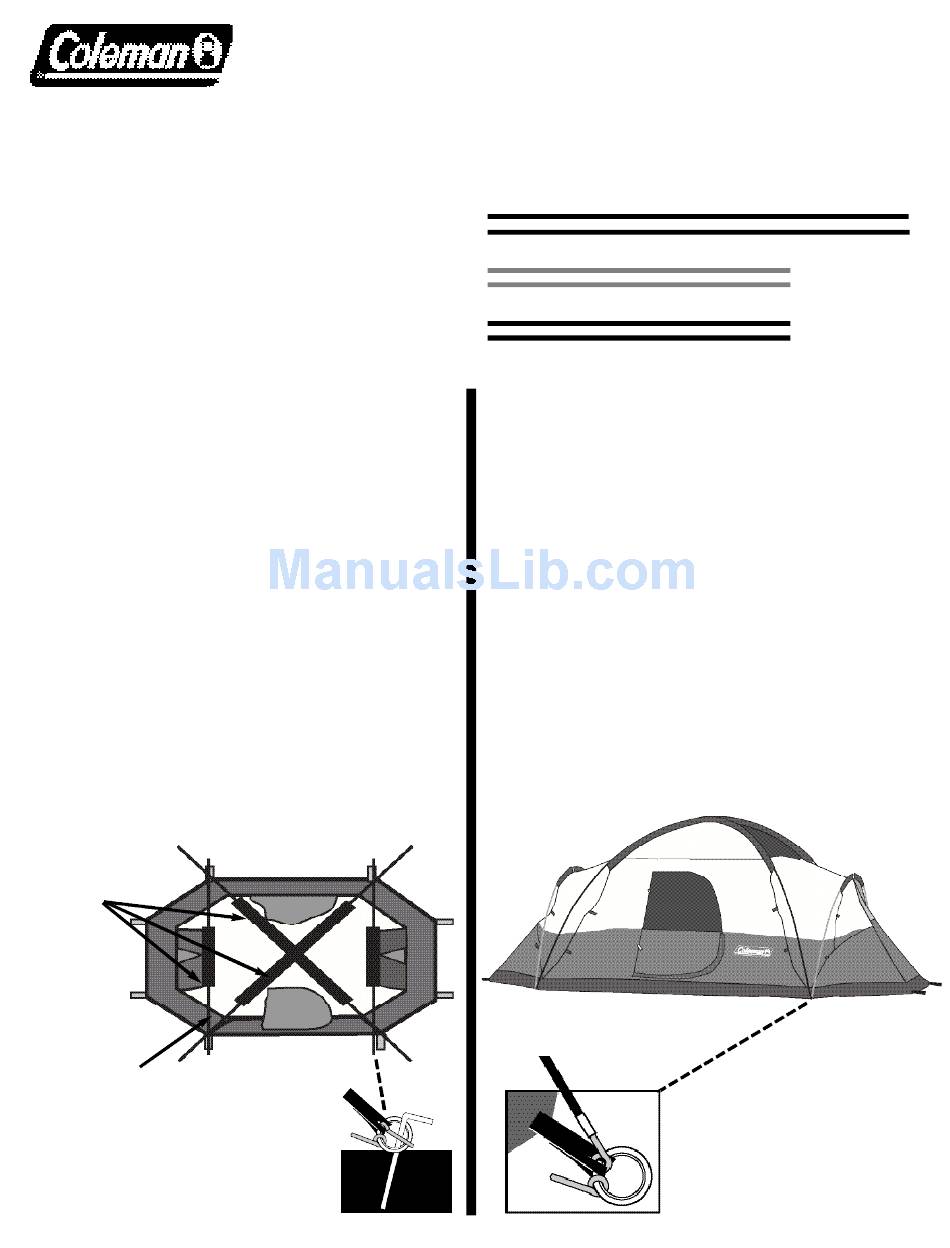

Layout & Positioning
1
of Tent, Pole Assembly
– Layout and position tent with door
facing desired direction. (illus. 1)
– Unzip door.
– Stake down tent corners only, using the
stake loops. Keep the floor taut.
(illus. 2)(Intermediate loops will be
staked later.)
– Assemble frame poles by interlocking
shock-corded poles. (four poles)
– Insert the poles into pole sleeves.The
longer black poles should cross forming
an "X" in the middle of tent. The shorter
side grey poles insert into sleeves
running front to back. (illus. 1)
A s s e m b l e d
p o l e s
i n s e r t e d
through
pole
s l e e v e s
Side poles
(Grey)

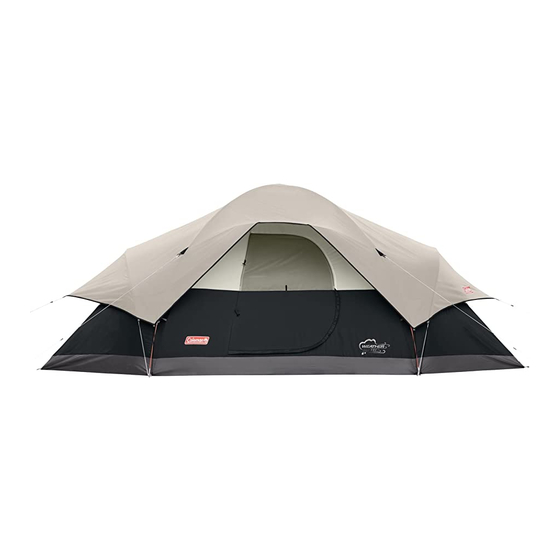

C U YA H O G A
I n s t ructions apply to Part Number 9234-181
(2) Main Tent Poles
(Black)
(2) Side Poles
(2) Rainfly Poles
illus. 1
illus. 2
Tent stake
through ring
on stake loop
POLE ASSEMBLY PARTS
Part No. 9234-3251
Part No. 9234-3261
(Grey)
Part No. 9234-3271
2
Connect Frame to Tent
– Insert one pin into the end of the main
tent pole at the tent corner. (illus. 3,
illus. 4)
– Go to opposite end of pole and
gradually apply pressure to the pole
forming an arch until you are able to
insert the pin into the pole end.
– Repeat for second pole.
– Insert pin into the end of side pole, go to
opposite end of pole and apply pressure
until you arch the pole and can insert
the pin into the pole. (illus. 3, illus. 4)
– Repeat for other side pole.
18'x11'
illus. 3
Insert pin into pole end
Rainfly Part No.
9234-3281
illus. 4
Tent frame
set-up
