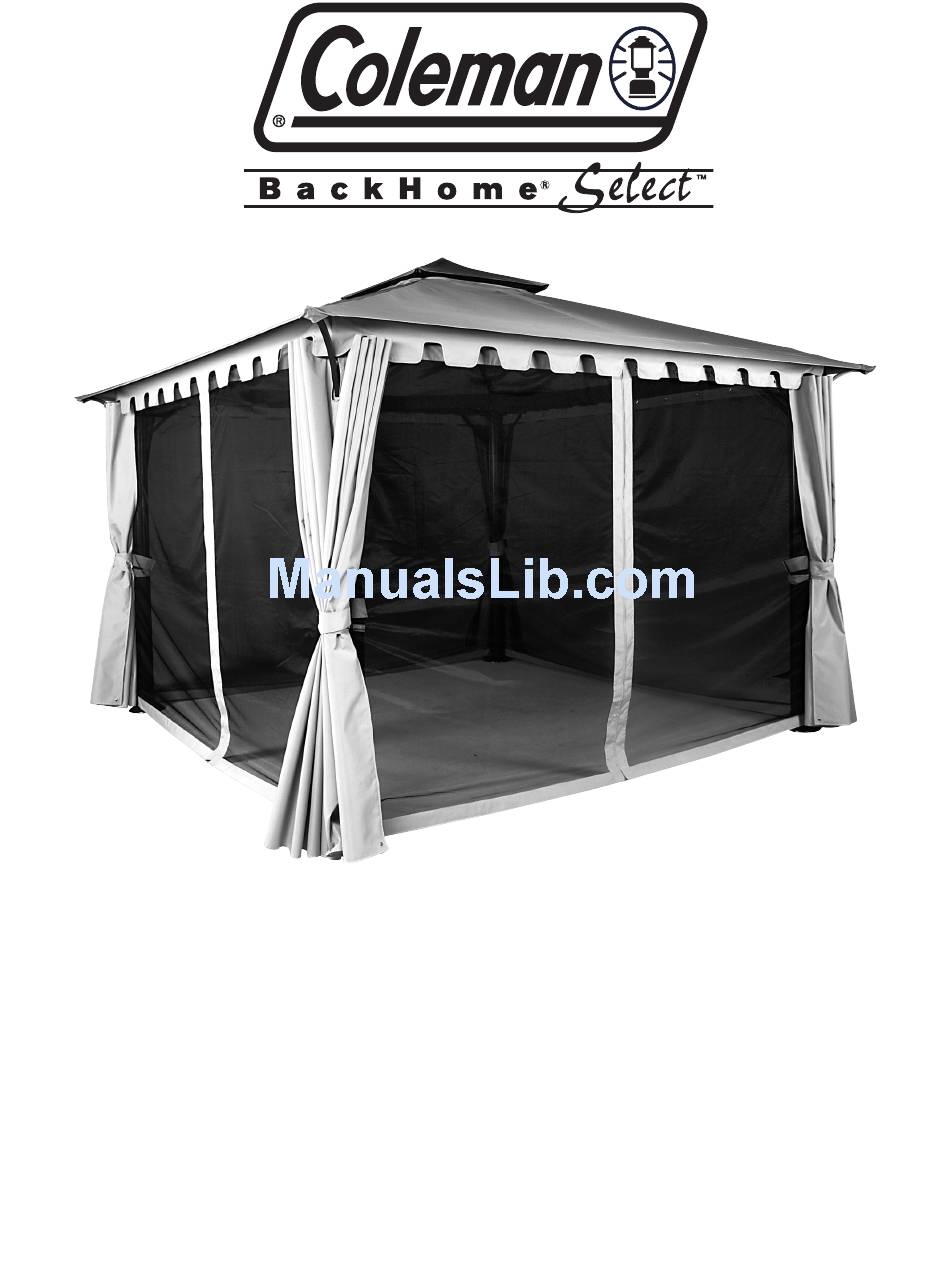

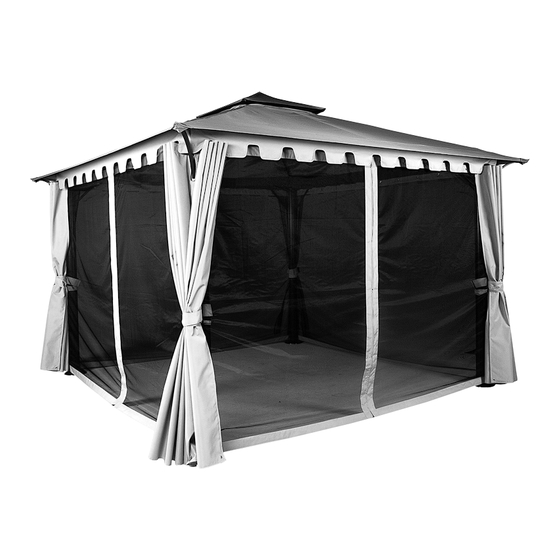

- Page 1 BackHome Pavilion ® 11 ’ 3 ” x 11 ’ 3 ” Instructions apply to Part Number 9392-136 Things you should know: Read all instructions before set-up. Pavilion can be staked down or bolted down. Initial frame set-up may be done upright or upside down.
-
Page 2: Parts List
Parts List Dual Track w/out End Cap Dual Track w/out End Cap Part: A1 (Qty.: 2) Part: A2 (Qty.: 2) Part No.: 9392-2501 Part No.: 9392-2511 Dual Track w/ End Cap Dual Track w/ End Cap Part: B2 (Qty.: 2) Part: B1 (Qty.: 2) Part No.: 9392-2531 Part No.: 9392-2521... - Page 3 Decorative Plates Mounting Plates Part: L (Qty.: 4) Part: M (Qty.: 4) Part No.: 9392-2631 Part No.: 9392-2641 Canopy – (Qty.: 1) Part No.: 9392-2651 Roof Vent Cover (Qty.: 1) Part No.: 9392-2681 Note: Extra fastener are included for your convenience. Phillips Head Machine Screws –...
-
Page 4: Set Up Instructions
Set Up Instructions illus. 1 Sort Dual Track Pieces: Layout so that the tracks are all going the the same direction. A1 (male) matches to A2 (without end cap) and B1 to B2 (with end cap). illus. 2 Add track hooks. Insert 12 hooks per track per frame side (24 hooks each side). - Page 5 Long Hex illus. 4 Cap Screw Dual Track side with hooks End cap Attach the Dual Track sections to the Columns with the Long Hex Cap Screws (16) by lining up the pre-drilled holes and hand tightening the screws. There are screw holes on two sides of the column, make sure that one set of screw holes is facing out and one set is pointing up.
- Page 6 Dual Track Corner Brace – Small (D) Attach the Small corner brace to the Phillips Head Machine illus. 6 Screws – Large column with 2 Phillips Head Machine Screws – Small. From the outside of the frame insert 4 Phillips Head Machine Screws – Large through the Dual Track and Small Corner Brace and secure with 4 Acorn Nuts.
- Page 7 Tool tighten all the Long Hex Head Cap Screws connecting the Dual Tracks and the Columns. Tool tighten all bolts and nuts. illus. 9 Completed frame upside down. (illus. 9) Flip frame upright. Requires 2 to 4 people Note: Frame can be assembled in upright position from the beginning if preferred.Simply follow the same directions, but note that the illustrations to this point are upside down.
- Page 8 Roof Vent Cover Drape the Roof Vent Cover over the Hub positioning the peak over the center on the Hub. Lift the corner of the Roof Vent Cover and pull over the short end of the Corner Roof Pole to illus.12 insert the pole into the underside corner pocket.
- Page 9 Lift the roof assembly up into position over the frame. Requires two or more people. illus.16 illus.17 The Corner Brackets (J) on the roof assembly will fit over and around the corner of the frame assembly. (illus. 16 & 17) illus.
- Page 10 Decorative Plate (L) and Mounting Plate (M) Lift the Column leg slightly and insert it through Decorative Plate opening. Lift the Column leg slightly and insert the Mounting Plate. Four vertical tabs will go into the Column. (illus. 21) Repeat for all Columns and Decorative Plates. illus.
- Page 11 Screen Walls Begin with the Screen Walls. Each wall wraps around a corner (illus. 25 & 26). Secure the Screen Wall section with hook & loop fastener around the Planter Hook frame located at each corner. Starting from the corner, attach the inside Track Hooks to the Screen Wall.
-
Page 12: Year Limited Warranty
Proof of purchase is required to obtain warranty performance. Coleman dealers, service center, or retail stores selling Coleman products do not have the right to alter, modify or in any way change the terms and conditions of this warranty.
