XDMA6355
INSTALLATION/OWNER'S MANUAL
CD Receiver with Detachable Face
READY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XDMA6355 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dual XDMA6355

Summary of Contents for Dual XDMA6355

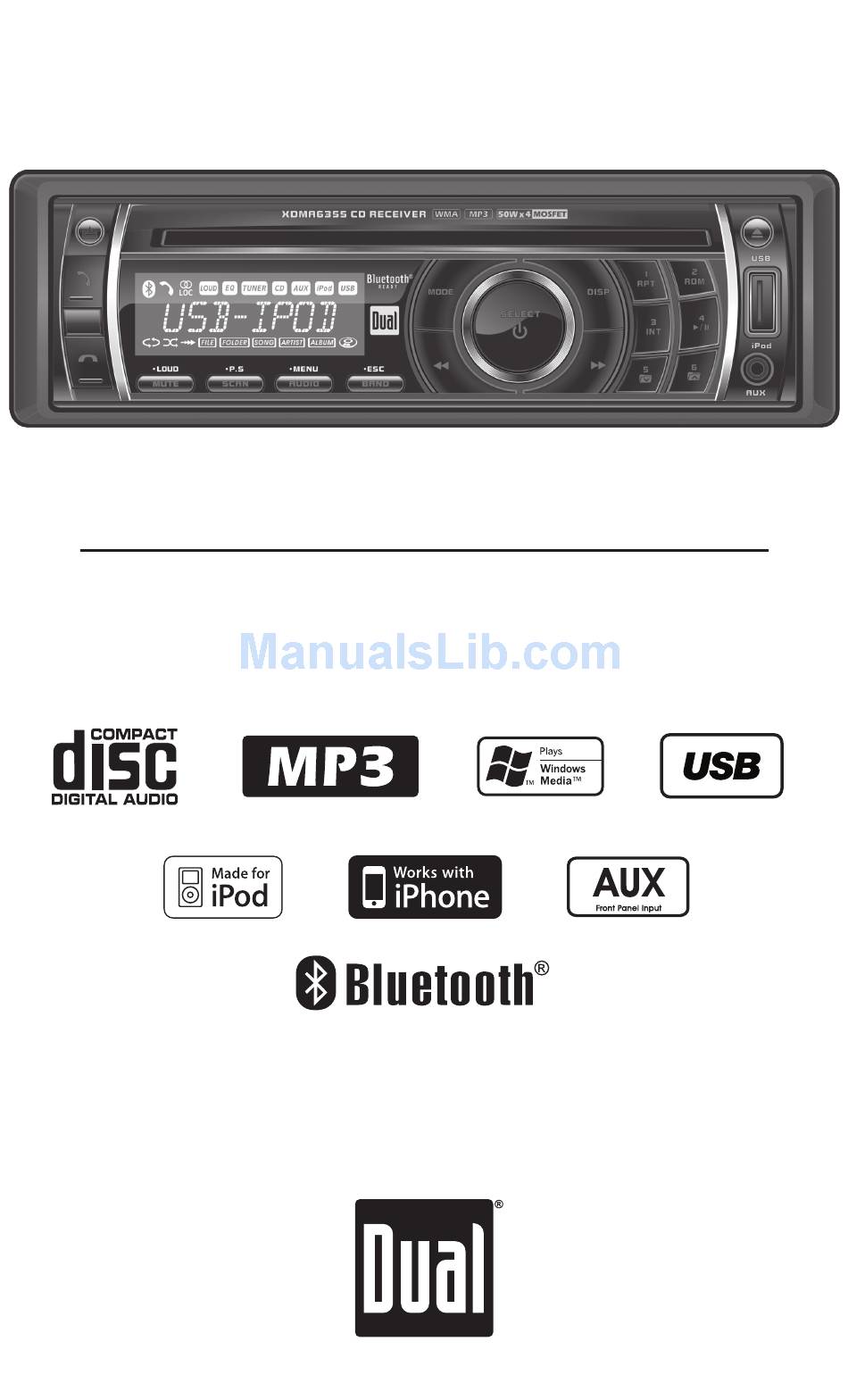

  • Page 1 XDMA6355 INSTALLATION/OWNER'S MANUAL CD Receiver with Detachable Face READY...

  • Page 2: Getting Started

    XDMA6355 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.

  • Page 3: Wiring Diagram

    L-CH R-CH Antenna Connector FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The XDMA6355 uses one 10 amp ATM fuse located beside the wiring connector.

  • Page 4: Control Locations - Receiver

    Eject USB Port The XDMA6355 allows playback of your favorite MP3 and WMA files recorded on CD-R and CD-RW discs. Its powerful on-board DSP processor decodes the compressed audio while maintaining near-CD sound quality. An internal SRAM buffer provides ESP...

  • Page 5: Control Locations - Remote

    Volume Down Scan / PS / Key # Preset 3 / Intro Preset 2 / Random Preset 6 / Folder Up Preset 5 / Folder Down XDMA6355 OPERATION Key 9 Mute / End Call Key 0 / Display Talk Key 8...

  • Page 6: General Operation

    XDMA6355 OPERATION General Operation Faceplate Removal Semi-Permanent  Faceplate Installation Power On/Off   Mode Auxiliary Input Steering Wheel Interface  Input  Volume Mute Reset Display Set the Clock Press RELEASE and pull away from the left side to remove. To re-install, insert right side of faceplate first then push left side to secure.

  • Page 7: Setup Menu

    DEMO OFF Demonstration  Mode DEMO ON XDMA6355 OPERATION Press and hold AUDIO/MENU for more than 3 seconds to access the setup menu, then press AUDIO/MENU to cycle through menu options. When desired option appears in the display, rotate the volume knob left/right to adjust or activate the desired function.
  • Page 8 XDMA6355 OPERATION General Operation Escape Press ESC to exit any menu adjustment mode. Audio Press AUDIO/MENU momentarily to select between Bass, Treble, Balance, Fader, EQ, Subwoofer* and Source Volume Level. BASS TREBLE BALANCE FADER SUBWOOFER* SOURCE LEVEL Bass Press AUDIO/MENU until BASS appears, then rotate the volume knob left/right to adjust (-6 minimum / +6...
  • Page 9 Press PS for more than two seconds to scan presets 1-6 on Preset Scan the current band, pausing for five seconds at each. Press PS again to cancel. XDMA6355 OPERATION AM/FM Tuner Operation or TUNE  for more than one second to or TUNE ...

  • Page 10: Cd Player Operation

    XDMA6355 OPERATION  CD Player Operation Insert CD Eject CD Track Select Fast Forward and  Reverse Pause Repeat Random Intro CD-R/CD-RW  Compatibility With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Press EJECT to eject the CD. The unit will change to previous mode of operation (AM/FM, AUX, USB, operation of iPod or Bluetooth).
  • Page 11 Artist Icon  Folder Icon  File Icon  Character Support XDMA6355 OPERATION When an MP3/WMA encoded disc is first inserted, “CD READ” will appear in the display. Depending on the number of files and folders, this may take several seconds. Press DISP to select between file name (default), folder, song title, artist, track number or clock &...
  • Page 12 XDMA6355 OPERATION  CD Player Operation - MP3/WMA Files Folder/File Search Mode Press SELECT to enter the folder/file search mode. The head unit will read the CD, and a list of folders and files from the CD will be displayed. The search will always begin from the current directory.
  • Page 13 • FOLDER - Plays first 10 seconds of each track in folder. Note: Folder repeat, random and intro options only function on MP3/WMA discs recorded with more than one folder. XDMA6355 OPERATION to select the previous folder. to select the next folder.
  • Page 14 XDMA6355 OPERATION  CD Player Operation - MP3/WMA Files Media Compatibility Playback Order Compatible Recording  Formats The following types of discs/files are compatible: • CD-ROM (ISO), CD-R, CD-RW • CD-DA • MP3 data • WMA data The following types of discs/files are not compatible: • WMA files that are protected by DRM (Digital Rights Management).
  • Page 15 Information Sampling Frequency Rates Transfer Bit rates MP3 Tag Display Recommended Settings XDMA6355 OPERATION An internal buffer provides ESP (Electronic Skip Protection) to virtually eliminate skipping. When playing a disc recorded with regular audio files (CD-DA or .WAV) and MP3/WMA files, the unit will play the MP3/WMA files only.
  • Page 16 Step 2 Step 3 Play MP3/WMA files from most mass storage devices by connecting them to the XDMA6355's USB port. When a USB device is first connected, “READING” will appear in the display and playback will begin momentarily. Depending on the number of files and folders, it may take several seconds for the device to begin playing.
  • Page 17     Folder Access  Repeat Random   Intro XDMA6355 OPERATION When a file is accessed, the clock and elapsed time will be displayed. Press DISP momentarily to select file name (default), song title, artist, track number or clock & elapsed time. FILE NAME...
  • Page 18 XDMA6355 OPERATION USB Operation - MP3/WMA Files Character Support Maximum character display information • Track name – 32 character maximum • Directory name – 32 character maximum • *Song title – 30 character maximum • *Artist name – 30 character maximum *Song title and artist name will only be displayed if included with the MP3/WMA file.
  • Page 19 Additional MP3/WMA  Information Sampling Frequency Rates Transfer Bit rates MP3 Tag Display XDMA6355 OPERATION Only MP3 files with filename extension (.mp3) can be played. Only WMA files with filename extension (.wma) can be played. Do not attempt to play non-MP3/WMA files with the MP3/WMA extension. 8kHz ~ 48kHz...

  • Page 20: Operation Of Ipod

    The XDMA6355 features a direct USB control system for iPod. To play music from an iPod device, connect the USB cable (included with your iPod device) to the XDMA6355 USB port. Once connected, READING will appear in the display. Playback will begin automatically. If a song is playing on the iPod device before it is connected, it will continue to play.
  • Page 21 • iPod nano (3rd generation) • iPod nano (2nd generation) • iPod with video • iPod nano (1st generation) XDMA6355 OPERATION Operation of iPod to skip to the beginning of the next song. to return to the beginning of the current song. again skips to the beginning of the previous / II to temporarily stop playback.

  • Page 22: Bluetooth Operation

    Overview Connecting a Bluetooth device requires first connecting the Dual BTM60 Bluetooth interface module (sold separately). When connected to a Dual Bluetooth ready head unit, the BTM60 supports the HFP (hands-free profile), A2DP (advanced audio distribution profile) and AVRCP (audio video remote control profile).
  • Page 23 Hold Ending a Phone Call If the phone call was received, the head unit will return to previous mode when call is ended. XDMA6355 OPERATION Bluetooth Description once. "Enter Number" will be shown, then an "_" will to begin dialing. on the head unit to receive a call. The phone icon in the for 3 or more seconds to end a call.

  • Page 24: Bluetooth Setup Menu

    XDMA6355 OPERATION Bluetooth  Operation ® Function To enter last number dialing mode, press time. The head unit will display "REDIAL MENU." Press SELECT to cycle through the received, dialed or missed call Redial Menu categories. Rotate the volume knob to cycle through the last 5 calls in the selected category.
  • Page 25 Bluetooth Streaming Audio Operation When the BTM60 Bluetooth interface module (sold separately) is connected, the XDMA6355 supports A2DP wireless streaming audio from your Bluetooth mobile device directly to your head unit. You can also control your music from the front panel of the head unit using AVRCP (audio video remote control profile).

  • Page 26: Limited One Year Warranty

    This warranty gives you specific legal rights. You may also have other rights which vary from state to state. Dual Electronics Corp. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase.

  • Page 27: Troubleshooting - General

    INVALID appears  on display Unit will not accept  a disc NO SUPPORT appears  An invalid ID3 tag version is present on display XDMA6355 OPERATION Troubleshooting - General Cause voltage Red wire not connected or incorrect voltage Black wire not connected Fuse blown Speaker wires not connected Yellow or red wire touching chassis...

  • Page 28: Specifications

    XDMA6355 OPERATION Specifications CD Player FM Tuner AM Tuner General Power Output: 18 Watts RMS x 4 channels at 4 ohms and < 1% THD+N Signal to Noise Ratio: 80dBA (reference: 1 watt into 4 ohms) Frequency response: 10Hz-20kHz Channel separation @ 1kHz: D/A converter: 1 Bit...

  • Page 29: Fcc Compliance

    Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. XDMA6355 OPERATION FCC Compliance...
  • Page 30 XDMA6355 OPERATION Notes...
  • Page 31 XDMA6355 OPERATION Notes...
  • Page 32 Dual Electronics Corp. Toll Free: 1-866-382-5476 www.dualav.com ©2010 Dual Electronics Corp. All rights reserved. Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and or other countries. iPod is a trademark of Apple Inc., registered in the U.S. and other countries.
