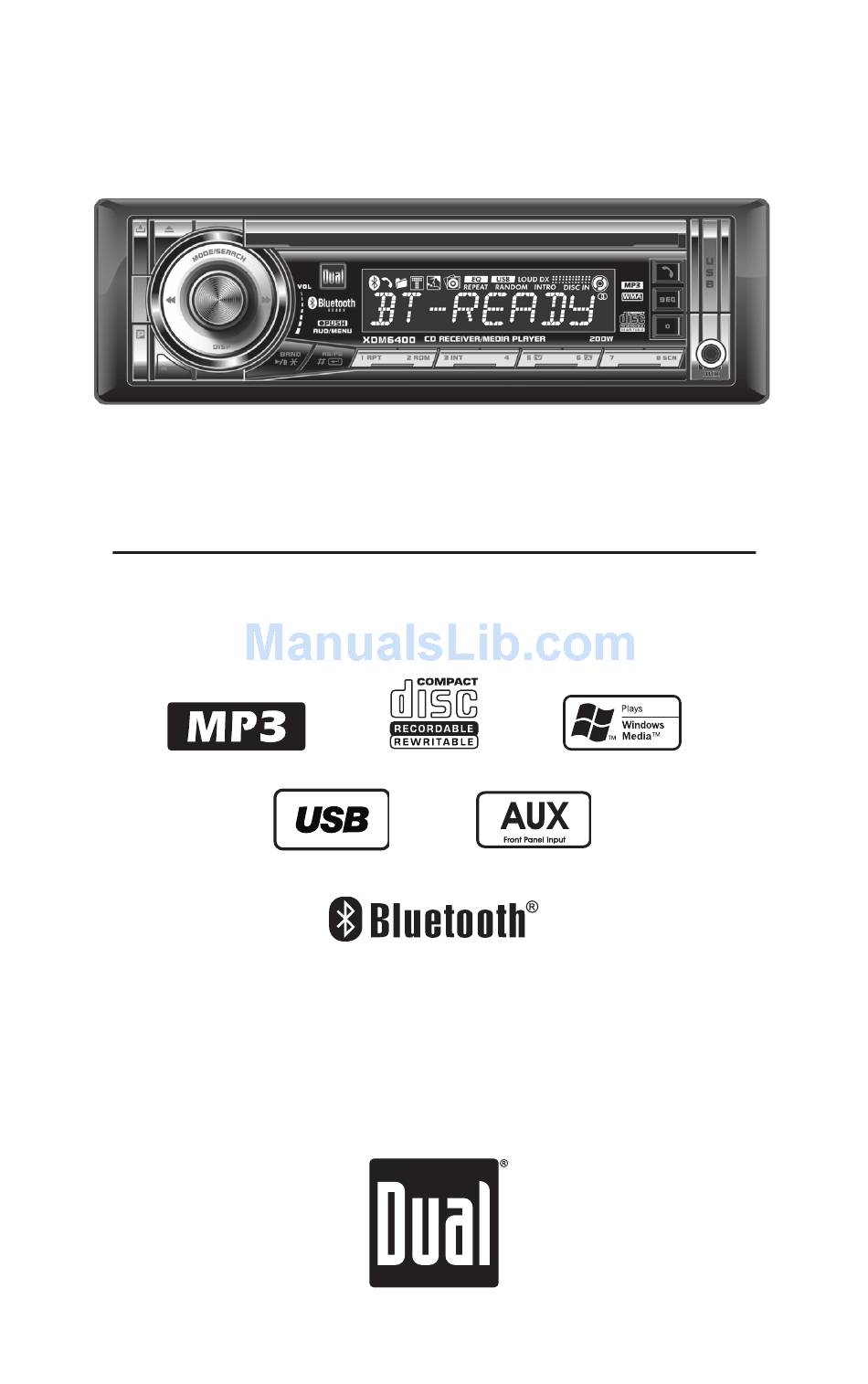

- Page 1 XDM6400 INSTALLATION/OWNER'S MANUAL AM/FM/CD/MP3/WMA/USB/3.5mm/Bluetooth Ready Receiver with Detachable Face ®...
-
Page 2: Preparation
XDM6400 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. -
Page 3: Wiring Diagram
BTM60 Connection (sold separately) FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The XDM6400 uses one 10 amp ATM fuse located beside the wiring connector. -
Page 4: Control Locations - Receiver
Key 7 Power The XDM6400 allows playback of your favorite MP and WMA files recorded on CD-R and CD-RW discs. Its powerful on-board DSP processor decodes the compressed audio while maintaining near-CD sound quality. An internal SRAM buffer provides ESP (Electronic... -
Page 5: General Operation
XDM6400 OPERATION General Operation Faceplate Removal Press RELEASE and pull away from the left side to remove. To re-install, insert right side of faceplate first then push left side to secure. Semi-Permanent Remove trim ring and install supplied #1 x 7/” Phillips Faceplate Installation head screw through left side of mounting frame into faceplate. -
Page 6: Setup Menu
XDM6400 OPERATION General Operation With the unit on, press and hold DISP until the clock begins to Set the Clock flash, then release. Press TUNE to adjust the hours and TUNE to adjust the minutes. Press DISP momentarily to save the selected time. The clock will display 1-hour AM/PM time in USA frequency 12/24-hour Clock... - Page 7 XDM6400 OPERATION General Operation Press rotary encoder momentarily to select between Audio Volume (default), Bass, Treble, Balance, & Fader. VOLUME BASS TREBLE BALANCE FADER Press rotary encoder until BAS appears then rotate encoder Bass left/right to adjust ( -6 minimum / +6 maximum). Press rotary encoder until TRE appears then rotate encoder Treble left/right to adjust ( -6 minimum / +6 maximum).
-
Page 8: Am/Fm Tuner Operation
XDM6400 OPERATION AM/FM Tuner Operation Seek Tuning Press TUNE or TUNE momentarily to seek the next strong station. Manual Tuning Press TUNE or TUNE for more than two seconds, then release. "MANUAL" will momentarily appear in the display. Press TUNE or TUNE momentarily to move radio frequency up or down one step at a time. Press and hold to advance quickly. -
Page 9: Cd Player Operation
XDM6400 OPERATION CD Player Operation Insert CD With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Eject CD Press EJECT to eject the CD. The unit will change to previous mode of operation (tuner, AUX, USB or Bluetooth). - Page 10 XDM6400 OPERATION CD Player Operation - MP3/WMA Files When an MP/WMA encoded disc is first inserted, Playing an MP3/WMA Disc “READING” will appear in the display. Depending on the number of files and folders, this may take several seconds. Press DISP to select between track number/elapsed time Displaying Information (default), clock, track name, directory name, title, artist and album.
- Page 11 XDM6400 OPERATION CD Player Operation - MP3/WMA Files Refer to the following button function table when selecting, searching or navigating MP/WMA files and folders: MP3/WMA Button Function Table Button Function SEARCH Direct Select, Search and Navigate Modes Enter/Confirm Preset #1 A, B, C, 1 Preset # D, E, F, ...
- Page 12 XDM6400 OPERATION CD Player Operation - MP3/WMA Files Alphanumeric File Press SEARCH for more than seconds, then release. or Folder Search Press SEARCH again, an " " will flash in the display. Step 1 Use the buttons in the table on page 1 ( character maximum input) or the rotary encoder to enter the desired alphanumeric search characters.
- Page 13 XDM6400 OPERATION CD Player Operation - MP3/WMA Files Navigating Note After navigating by direct select, alphanumeric search or file/folder navigate modes, the track number and elapsed time will be displayed by default. Press DISP momentarily to select clock, track name, directory name, title, artist and album. *Folder Access ...
- Page 14 XDM6400 OPERATION CD Player Operation - MP3/WMA Files Media Compatibility The following types of discs/files are compatible: • CD-ROM (ISO), CD-R, CD-RW • CD-DA • MP data • WMA data The following types of discs/files are not compatible: • WMA files that are protected by DRM (Digital Rights Management).
- Page 15 XDM6400 OPERATION CD Player Operation - MP3/WMA Files Additional MP3/WMA An internal buffer provides ESP (Electronic Skip Protection) to Information virtually eliminate skipping. When playing a disc recorded with regular audio files (CD-DA or .WAV) and MP/WMA files, the unit will play the MP/WMA files only. Only MP files with filename extension (.mp) can be played.
-
Page 16: Usb Mp3/Wma Files Operation
USB Operation - MP3/WMA Files (Optional) Play MP/WMA files from most mass storage devices by Connecting a USB Device connecting them to the XDM6400's USB port. To connect a (sold separately) USB device, lift the protective cover to expose the USB port. Line up the connectors, and insert the USB device into the port. - Page 17 XDM6400 OPERATION USB Operation - MP3/WMA Files (Optional) File Navigation Press SEARCH for more than three seconds, then release. "T*" will appear in the display. Use the rotary encoder to select the desired track number and press to confirm. Direct File Select Press SEARCH for more than three seconds, then release.
- Page 18 XDM6400 OPERATION USB Operation - MP3/WMA Files (Optional) Press INT momentarily to play the first 10 seconds of each Intro file on the entire USB device. Press INT again to cancel. Press INT for more than two seconds to play the first 10 Folder Intro seconds of each file in the current folder only. The icon will appear in the display.
- Page 19 XDM6400 OPERATION USB Operation - MP3/WMA Files (Optional) Playback Capacity • Maximum number of files: 48896 • Maximum number of folders: 17 plus the root directory • Maximum number of files in each folder and root: 8 • Maximum number of folder levels (sub folders): 8 (7 levels plus the root) Note: If the number of files/folders exceeds the maximum outlined above, the additional files/folders will be ignored.
-
Page 20: Bluetooth ® Operation (Optional)
Overview Connecting a Bluetooth device requires first connecting the Dual BTM60 module (sold separately). When connected to a Dual Bluetooth Ready head unit, the BTM60 supports the HFP (hands-free profile), ADP (advanced audio distribution profile) and AVRCP (audio video remote control profile). - Page 21 XDM6400 OPERATION Bluetooth Operation (Optional) ® Description Function Press once. An "_" will appear on the display. Input the desired phone number using the 0-9, *, # buttons on the Making a Phone Call head unit front panel. Press to begin dialing. A phone call may also be placed from your mobile device using the keypad, phone book or speed dial.
-
Page 22: Bluetooth ® Settings (Optional)
XDM6400 OPERATION Bluetooth Settings (Optional) ® Options Action Menu Function BT ON Enables the BTM60 Bluetooth Interface Module (sold separately). The Bluetooth icon will flash every 10 Bluetooth Mode seconds. BT OFF Disables Bluetooth support. ACNT ON Allows the BTM60 to automatically (re)connect to the most recently connected mobile device. -
Page 23: Limited One Year Warranty
A slight adjustment of any custom Dual Electronics Corp. warrants this product to controls may save you a service call. the original purchaser to be free from defects in material and workmanship for a period of one . -
Page 24: Troubleshooting - General
XDM6400 OPERATION Troubleshooting - General Problem Cause Action Yellow wire not connected or incorrect voltage Check connections for proper Unit will not turn on Red wire not connected or incorrect voltage voltage (11~16VDC) (no power) Black wire not connected Check connection to ground Fuse blown Replace fuse Speaker wires not connected Check connections at speakers Unit has power ... -
Page 25: Specifications
XDM6400 OPERATION Specifications CD Player Frequency response: 10Hz-20kHz Channel separation @ 1kHz: >65dB D/A converter: 1 Bit FM Tuner Tuning range: 87.5MHz-107.9MHz Usable sensitivity: 8.5dBf 50dB quieting sensitivity: 10dBf Stereo separation @ 1kHz: 40dB Frequency response: 30Hz-13kHz Tuning range: 530kHz-1710kHz AM Tuner Usable sensitivity: 22uV Frequency response: 30Hz-2.2kHz... - Page 26 XDM6400 OPERATION Notes...
- Page 27 XDM6400 OPERATION Notes...
- Page 28 Dual Electronics Corp. Toll Free: 1-866-8-5476 www.dualav.com ©007 Dual Electronics Corp. All rights reserved. Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and or other countries. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc.
