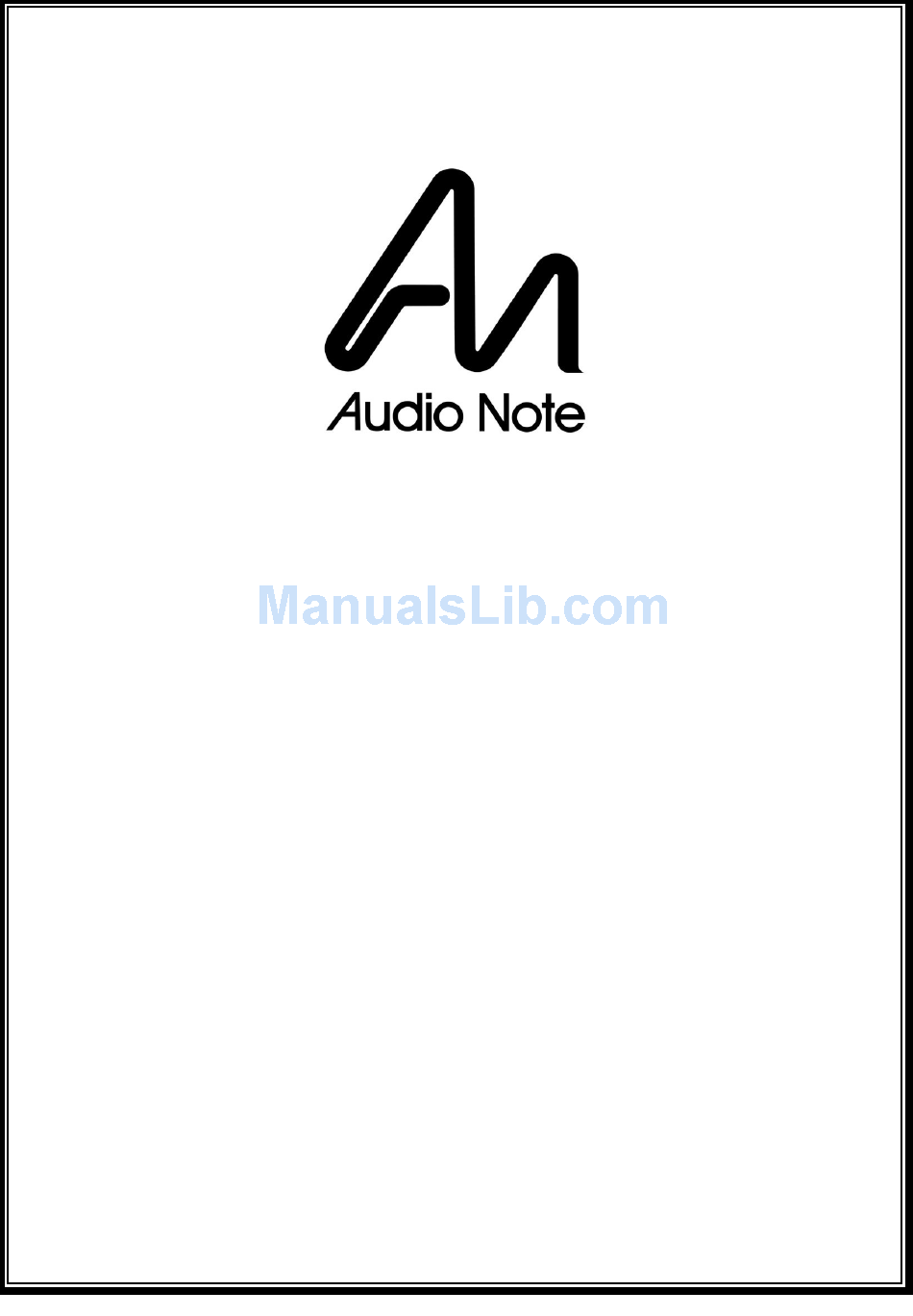

- Page 1 OTO Phono INTEGRATED AMPLIFIER OWNERʼS INFORMATION...
- Page 2 CONTENTS 1) IMPORTANT SAFETY INFORMATION 2) CE DECLARATION OF CONFORMITY DISPOSAL POWER REQUIREMENTS 3) INTRODUCTION 4) OVERVIEW UNPACKING AND INSTALLATION 5) CONNECTION 6) OPERATION 7) TECHNICAL SPECIFICATIONS 8) WARRANTY INFORMATION CONTACT INFORMATION...
- Page 3 ! IMPORTANT SAFETY INFORMATION ! RISK OF SHOCK OR ELECTROCUTION! INTERNAL OPERATING VOLTAGES ARE LETHAL! Do not remove top cover, unless specifically instructed to do so in the user manual. This unit contains fuses and other safety components in accordance with BS60065 requirements.
- Page 4 BS EN 60065 in accordance with the regulations 73/23/EEC, 89/336/EEC (from 1 January 1997) CE 94 Peter Qvortrup, Director Audio Note (UK) Limited 25 Montefiore Road Hove East Sussex BN3 1RD United Kingdom...
- Page 5 INTRODUCTION Thank you for purchasing this Audio Note (UK) product. With the correct care it should give you many years of pleasure and enjoyment. Please take the time to read all of the information in this manual before connecting your new component to an electrical supply or your system, to ensure both your safety and satisfaction.
- Page 6 OTO PHONO INTEGRATED Congratulations on your purchase of the Audio Note (UK) OTO Phono Integrated Amplifier. It is a Push Pull, Pure Class A valve design, offering an outstanding level of performance and value. It has been specifically engineered for sonic performance rather than technical...
- Page 7 CONNECTION Phono input The OTO Phono is equipped with a high quality, valve, Moving Magnet (MM) phonostage. Connect the cables from your tonearm to the ʻPhonoʼ socket inputs. If your Turn Table is equipped with a separate earth wire, connect this to the dedicated grounding / earth post, located next to the ʻPhonoʼ...
- Page 8 Valve Life The valves supplied with your amplifier should provide approximately 8000 hours of operation. They are specially selected by us, and should only be replaced with matched pairs. Please consult your Audio Note (UK) dealer should your valves need replacing.
- Page 9 TECHNICAL SPECIFICATIONS 100k Ohm Line Level INPUT IMPEDANCE 47k Ohm Phono Input 300mV Line Level INPUT SENSITIVITY Phono Input 12 watts RMS per channel into 4 or 8 Ohm MAXIMUM OUTPUT loads +/- 0.3dB CHANNEL BALANCE 3 x ECC82 VALVE COMPLIMENT 2 x ECC83 1 x 6DJ8 4 x EL84...
- Page 10 Audio Note (UK) warrants this product to be free from defects in materials and workmanship for two years from the original date of purchase from an appointed Audio Note (UK) dealer, and agrees to covers the cost of parts and associated labour required to correct such defects, subject to terms & conditions.
- Page 11 CONTACT INFORMATION If in the future your Audio Note (UK) product requires servicing, or if you require technical support or have any questions regarding this or any of our other products, please contact your local Audio Note (UK) dealer. Alternatively, please feel free to contact us directly: -...
