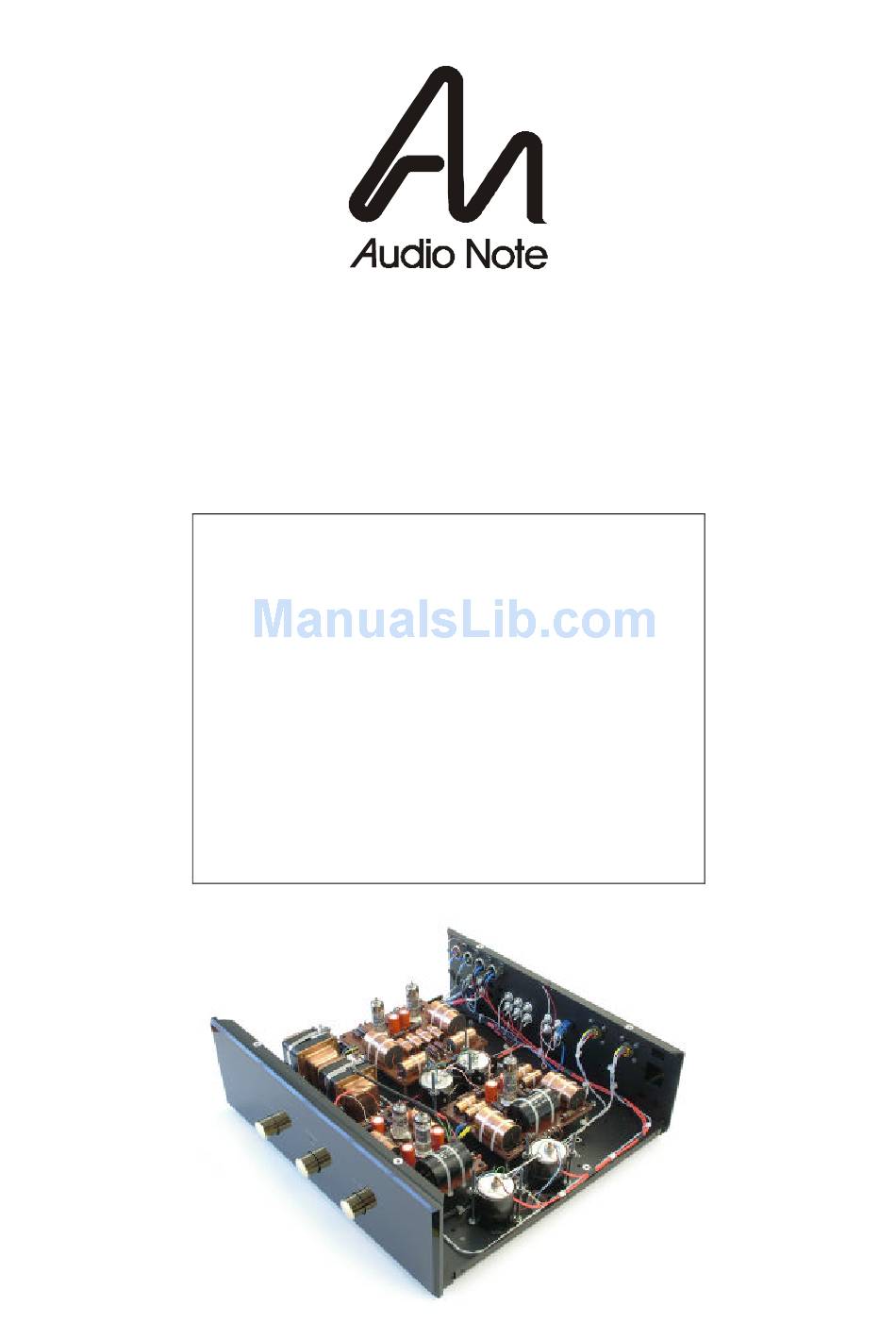

M9 Phono
Owner's Information
The M9 Phono is a Level 5 phono pre-amplifier,
developed for the best possible sonic performance rather
than technical specifications. To this end, the M9 Phono
incorporates thermionic valve technology to produce the
most accurate sound possible and has been brought to
maturity through a development process we call
comparison by contrast, which is currently unique to
Audio Note. The article from which this technique is
based, named 'Audio Hell', is available from Audio
Note by request.
Please read this manual carefully in order to obtain the
best possible performance from your pre-amplifier.
Audio Note wishes you many happy years of listening
pleasure.

Advertisement

loading

Related Manuals for Audio Note M9 Phono

Summary of Contents for Audio Note M9 Phono

  • Page 1 Audio Note. The article from which this technique is based, named ‘Audio Hell’, is available from Audio Note by request.

  • Page 2: Unpacking And Installation

    Class A valve operation and removing the need for a phase splitter, which introduces unnecessary crossover distortion. The Audio Note amplifier range does not make use of any kind of feedback. As a result, they were neither designed for vanishingly small harmonic or low intermodulation distortions, but instead for minimal non-harmonic and time base anomalies.

  • Page 3: Mains Power

    The phono input is suitable for connection to a turntable with a moving magnet (MM) type cartridge. Turntables with moving coil (MC) type cartridges will require a step- up transformer between the turntable and the pre-amplifier; Audio Note produce some of the best step-up transformers available.
  • Page 4 Using the M9 Phono Once all the connections are completed and checked, make sure all power amplifiers are off and flip the mains rocker switch located on the back panel of the PSU to the 'on' position. The M9 Phono is a vacuum tube design and therefore requires about 45 seconds warm-up time.

  • Page 5: Warranty And Servicing

    Warranty and Servicing Audio Note warrants that this product will be free from defects in materials and workmanship for one year from the original date of purchase from an appointed Audio Note dealer. The valves are warranted for three months.

  • Page 6: Specifications

    < 12mV, Phono unweighted Output Impedance < 10O Tube Compliment 1x ECC82, 1x 6463, 2x 6X5, 2x ECL82, 2x OB2, 2x E80F, 1x E80CC NOTE: Due to Audio Note’s ongoing research and development programme, specifications are due to change without notice.

  • Page 7: Safety Information

    Safety Information HEAT: By the nature of vacuum tubes, this product generates high levels of heat. Adequate ventilation must be provided. Do not restrict the airflow through any of the ventilation slots or place the amplifier on any surface that may restrict airflow.
