Connection Overview - Audio Note M10 Signature Owner's Information

RCA Inputs Four RCA / Single Ended line inputs are available for connection,
labeled 'SE1 'SE2', 'SE3' and 'SE4'; any standard 'line level' source
can be connected to these inputs.
All sockets are colour coded;
WHITE is for LEFT channel connection.
XLR Inputs In addition to the four RCA inputs, two pairs of XLR / Balanced inputs
are provided, for the connection of sources with the appropriate XLR /
Balanced outputs. These sockets are connected to a pair of extremely
high quality Audio Note (UK) Balanced input transformers, which offer
the best possible connection for correctly designed Balanced
equipment.
The sockets are marked 'R' for the right input and 'L' for the left input,
and the 'BAL1' and 'BAL2' positions on the input selector activates
them.
XLR INPUT 2 LEFT AND RIGHT
XLR INPUT 1 LEFT AND RIGHT
RCA INPUT 4 LEFT AND RIGHT
RCA INPUT 3 LEFT AND RIGHT
RCA INPUT 2 LEFT AND RIGHT
RCA INPUT 1 LEFT AND RIGHT

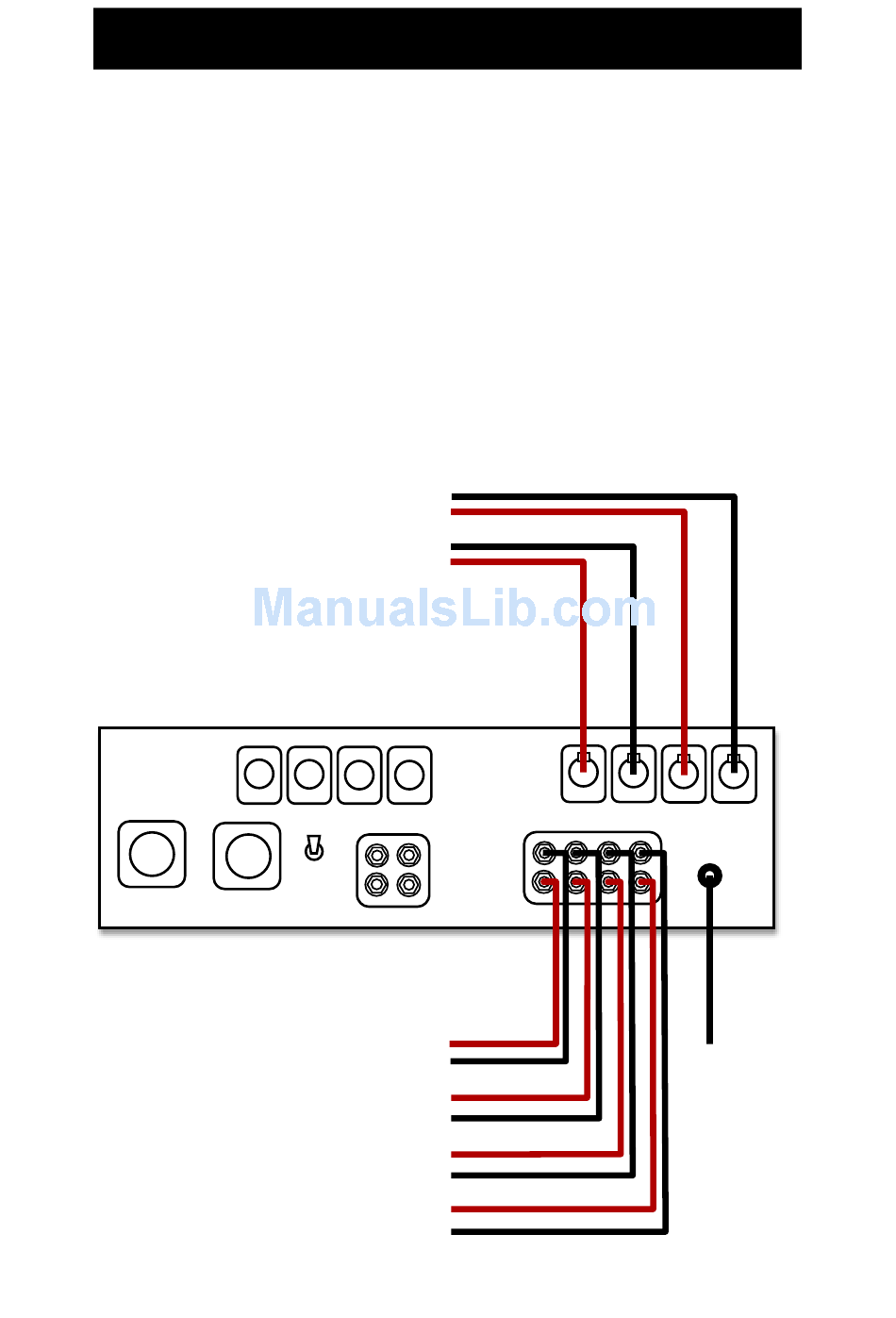

CONNECTION OVERVIEW

RED is for RIGHT channel connection,
R
L
L
R
R
L
EARTH
CONNECTION
