RCA Inputs
Five RCA / Single Ended line inputs are available for connection,
labeled 'SE1 'SE2', 'SE3' 'SE4' and 'SE5'; any standard 'line level'
source can be connected to these inputs.
All sockets are colour coded;
WHITE is for LEFT channel connection.
XLR Input
In addition to the five RCA inputs, an XLR / Balanced input is
provided, for the connection of sources with the appropriate XLR /
Balanced outputs. Each socket is connected to a pair of extremely
high quality Audio Note (UK) Balanced input transformers, which offer
the best possible connection for correctly designed Balanced
equipment.
The sockets are marked 'R' for the right input and 'L' for the left input,
and the 'BAL' position on the input selector activates them.
BAL / XLR INPUT LEFT AND RIGHT
RCA INPUT 5 LEFT AND RIGHT
RCA INPUT 4 LEFT AND RIGHT
RCA INPUT 3 LEFT AND RIGHT
RCA INPUT 2 LEFT AND RIGHT
RCA INPUT 1 LEFT AND RIGHT

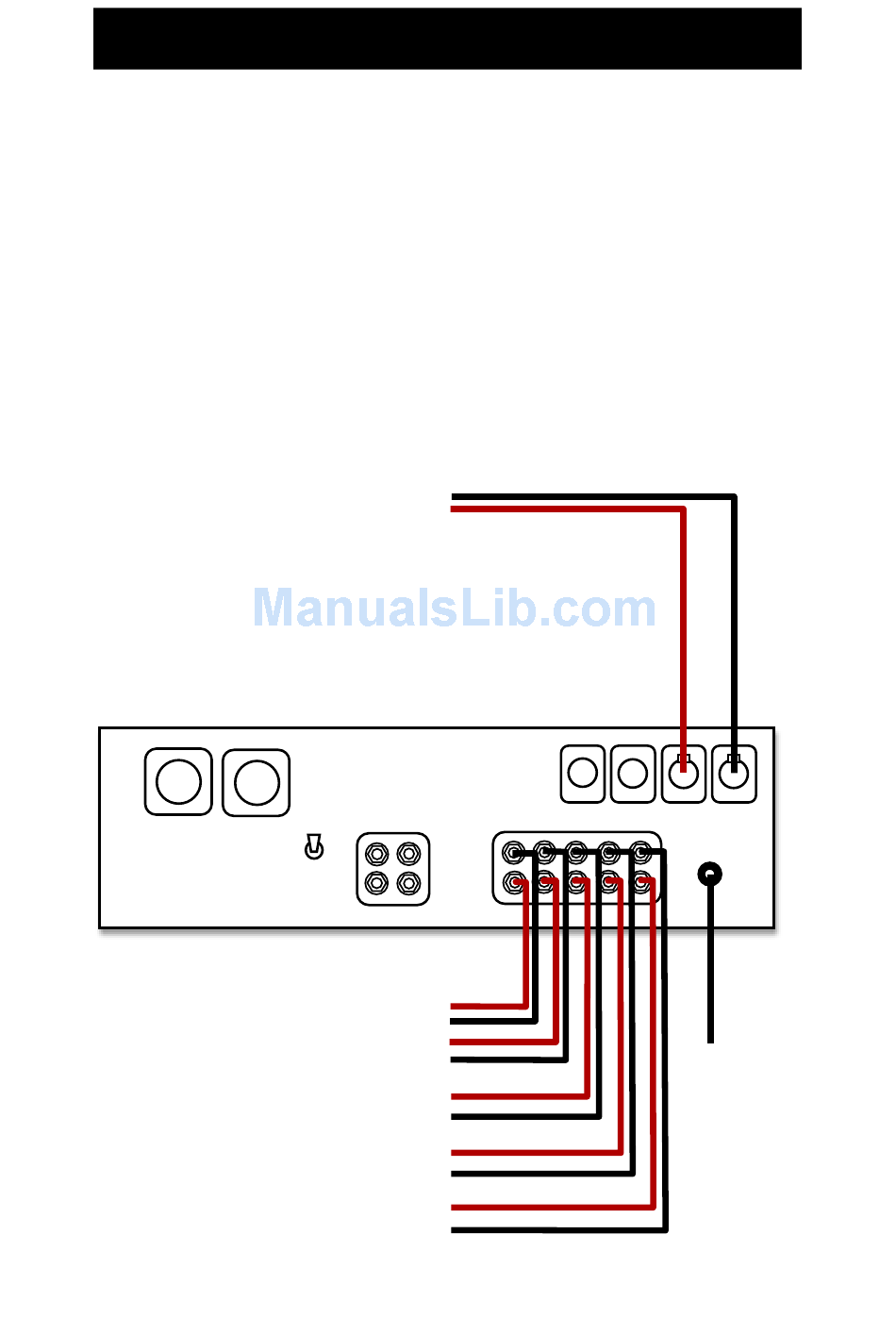

CONNECTION OVERVIEW
RED
is for RIGHT channel connection,
L
R
R
L
EARTH
CONNECTION
