CONNECTION OVERVIEW continued...

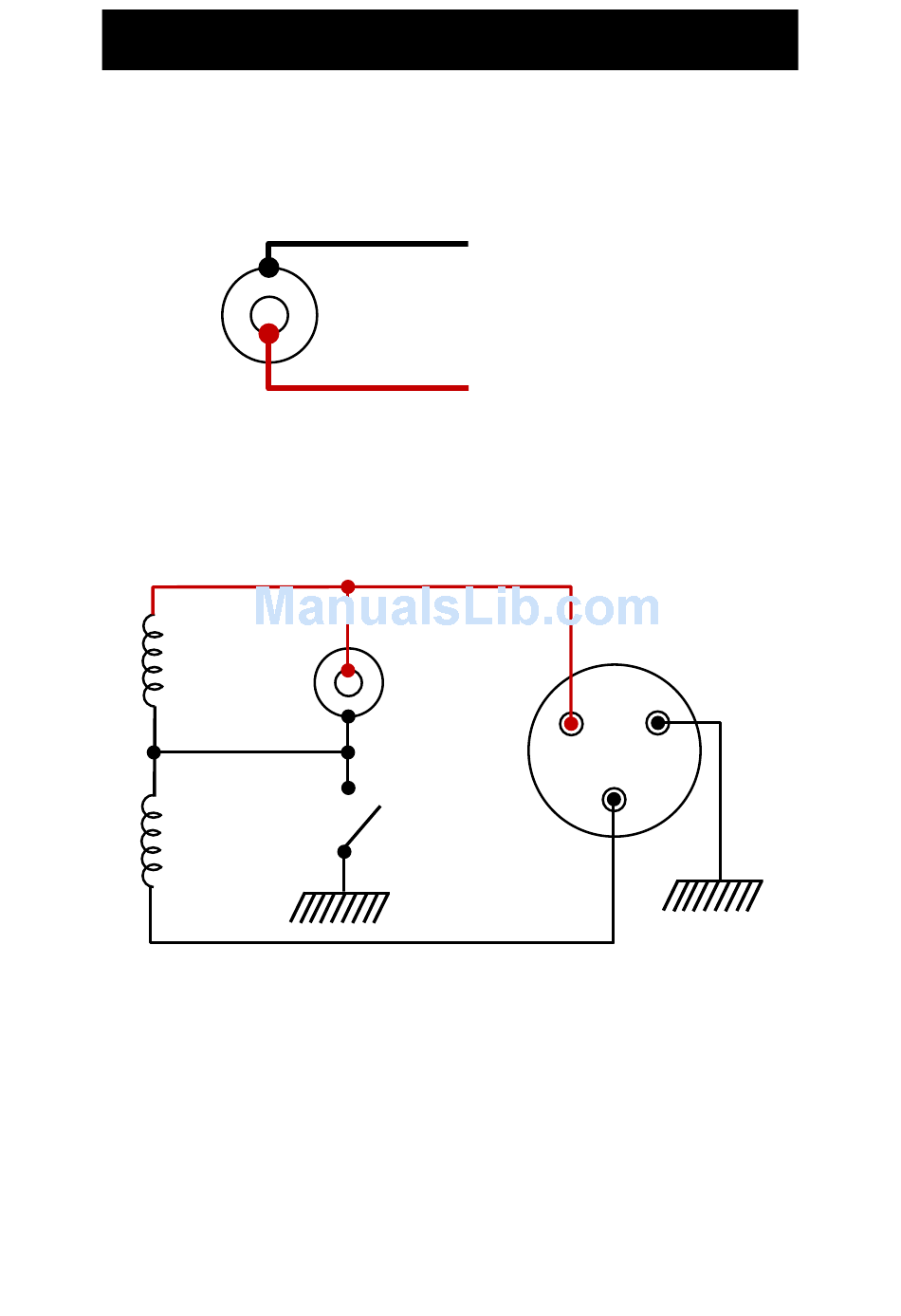

RCA
The two pairs of RCA / Single Ended outputs are provided for
connection to power amplifiers. They are identical, making them
suitable for bi-amping.
Balanced
The M10 Line preamplifier is equipped with custom designed and
manufactured output transformers, which feature an improved output
and grounding scheme to provide the best possible connection to the
power amplifier.
RCA
OUTPUT
SOCKET
BALANCED /
SINGLE ENDED
SWITCH
RCA SOCKET,
SHELL = NEGATIVE /
RETURN.
RCA SOCKET,
CENTRE = POSITIVE /
SEND.
2
3
XLR MALE
OUTPUT
1
