CONNECTION OVERVIEW continued...

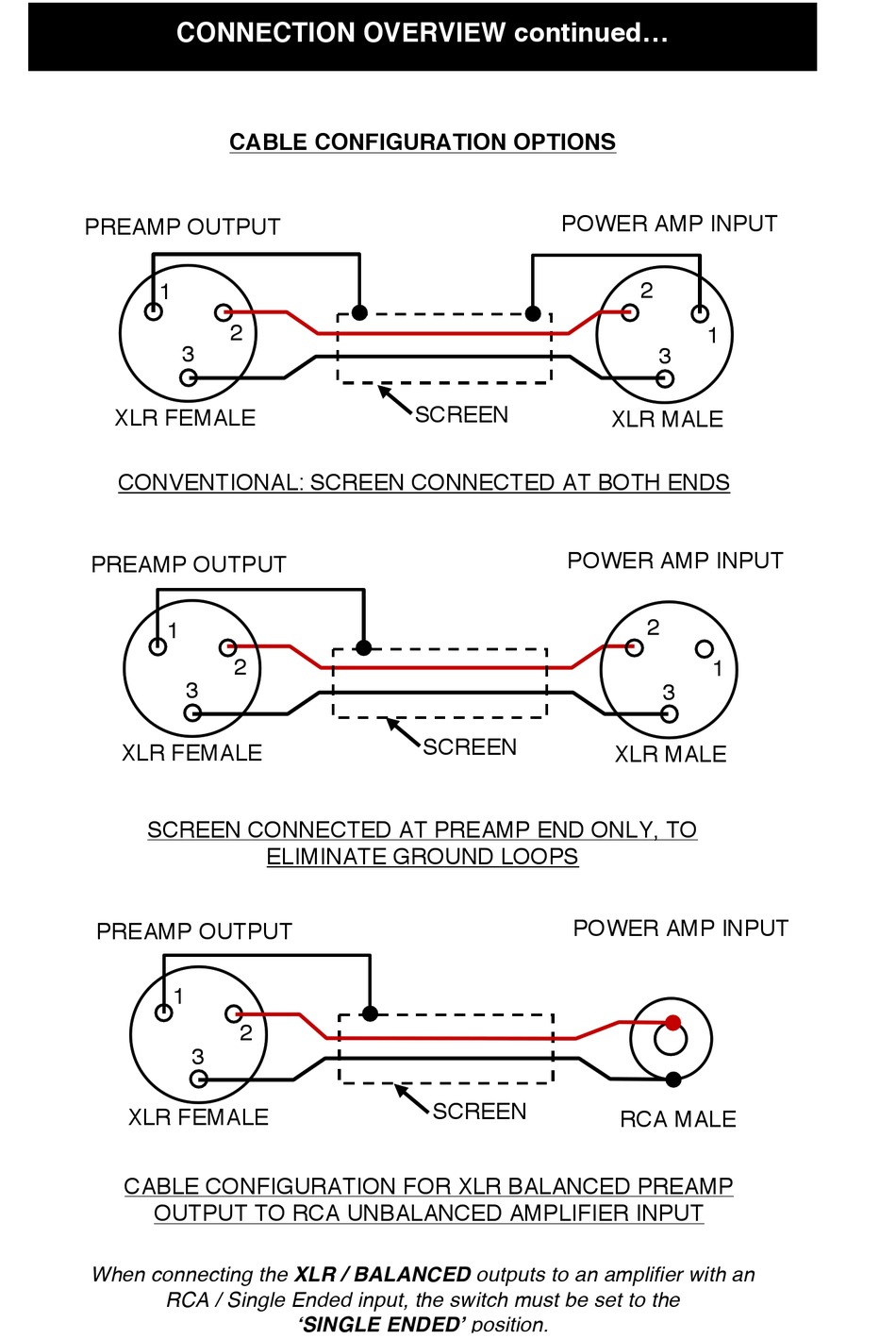

CABLE CONFIGURATION OPTIONS
POWER AMP INPUT
PREAMP OUTPUT
2
1
2
1
3
3
SCREEN
XLR FEMALE
XLR MALE
CONVENTIONAL: SCREEN CONNECTED AT BOTH ENDS
POWER AMP INPUT
PREAMP OUTPUT
2
1
2
1
3
3
SCREEN
XLR FEMALE
XLR MALE
SCREEN CONNECTED AT PREAMP END ONLY, TO
ELIMINATE GROUND LOOPS
POWER AMP INPUT
PREAMP OUTPUT
1
2
3
SCREEN
XLR FEMALE
RCA MALE
CABLE CONFIGURATION FOR XLR BALANCED PREAMP
OUTPUT TO RCA UNBALANCED AMPLIFIER INPUT
When connecting the XLR / BALANCED outputs to an amplifier with an
RCA / Single Ended input, the switch must be set to the
'SINGLE ENDED' position.
!
