CHAPTER 7.
R21LTF
TROUBLESHOOTING GUIDE
Never touch any part in the circuit with your hand or an uninsulated tool while the power supply is connected.
When troubleshooting the microwave oven, it is helpful to follow the Sequence of Operation in performing the checks. Many of the possible causes of
trouble will require that a specific test be performed. These tests are given a procedure letter which will be found in the "Test Procedure "section.
IMPORTANT
:
If the oven becomes inoperative because of a blown monitor fuse,
check the monitor switch, relay (RY3), primary interlock relay (RY2),
door sensing switch and secondary interlock switch before replacing
the monitor fuse. If monitor fuse is replaced, the monitor switch must
also be replaced. Use part FFS-BA033WRKZ as an assembly.
IMPORTANT
:
Whenever troubleshooting is performed with the power supply cord
disconnected. It may in, some cases, be necessary to connect the
power supply cord after the outer case has been removed, in this
event,
1) Disconnect the power supply cord, and then remove outer case.
2) Open the door and block it open.
3) Discharge high voltage capacitor.

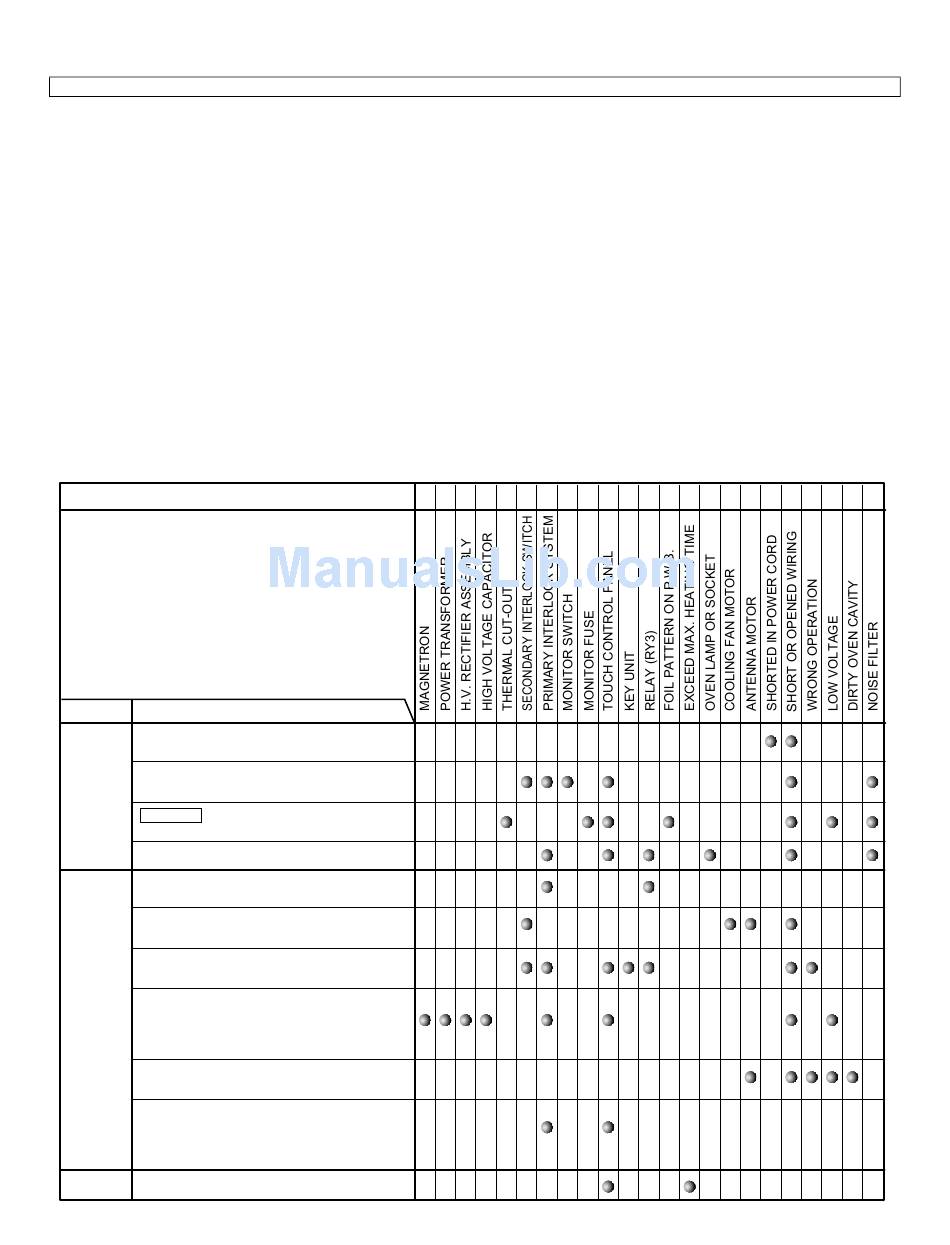

[1] TROUBLESHOOTING CHART

TEST PROCEDURE
POSSIBLE CASE
DEFECTIVE PARTS
PROBLEM
CONDITION
Home fuse or circuit breaker blows when
power cord is plugged into wall outlet.
Monitor fuse blows when power cord is
OFF
plugged into wall receptacle.
CONDITION
. does not appear in display when
power cord is first plugged into wall outlet.
Oven lamp does not light when door is opened.
Oven lamp does not go out when door is
closed.
Oven lamp lights but fan motor and
antenna motor do not operate.
Oven does not go into cook cycle when
START pad is touched
Oven seems to be operating but little or no
COOKING heat is produced in oven load. (Food
CONDITION
incompletely cooked or not cooked at all at
end of cook cycle.)
Oven goes into a cook cycle but extremely
uneven heating is produced in oven load (food).
Oven does not cook properly when
programmed for Cooking Power 5 mode.
(Operates properly on Cooking Power 10
(HIGH) mode.)
"EE9" Maximum time is exceeded.
ERROR MODE
A B C D E F
AND
Service Manual
4) Disconnect the leads to the primary of the power transformer.
5) Ensure that the leads remain isolated from other components and
oven chassis by using insulation tape.
6) After that procedure, reconnect the power supply cord.
When the testing is completed,
1) Disconnect the power supply cord, and then remove outer case.
2) Open the door and block it open.
3) Discharge high voltage capacitor.
4) Reconnect the leads to the primary of the power transformer.
5) Reinstall the outer case (cabinet).
6) Reconnect the power supply cord after the outer case is installed.
7) Run the oven and check all functions.
F G H J K L
