Summary of Contents for Sharkoon FireGlider

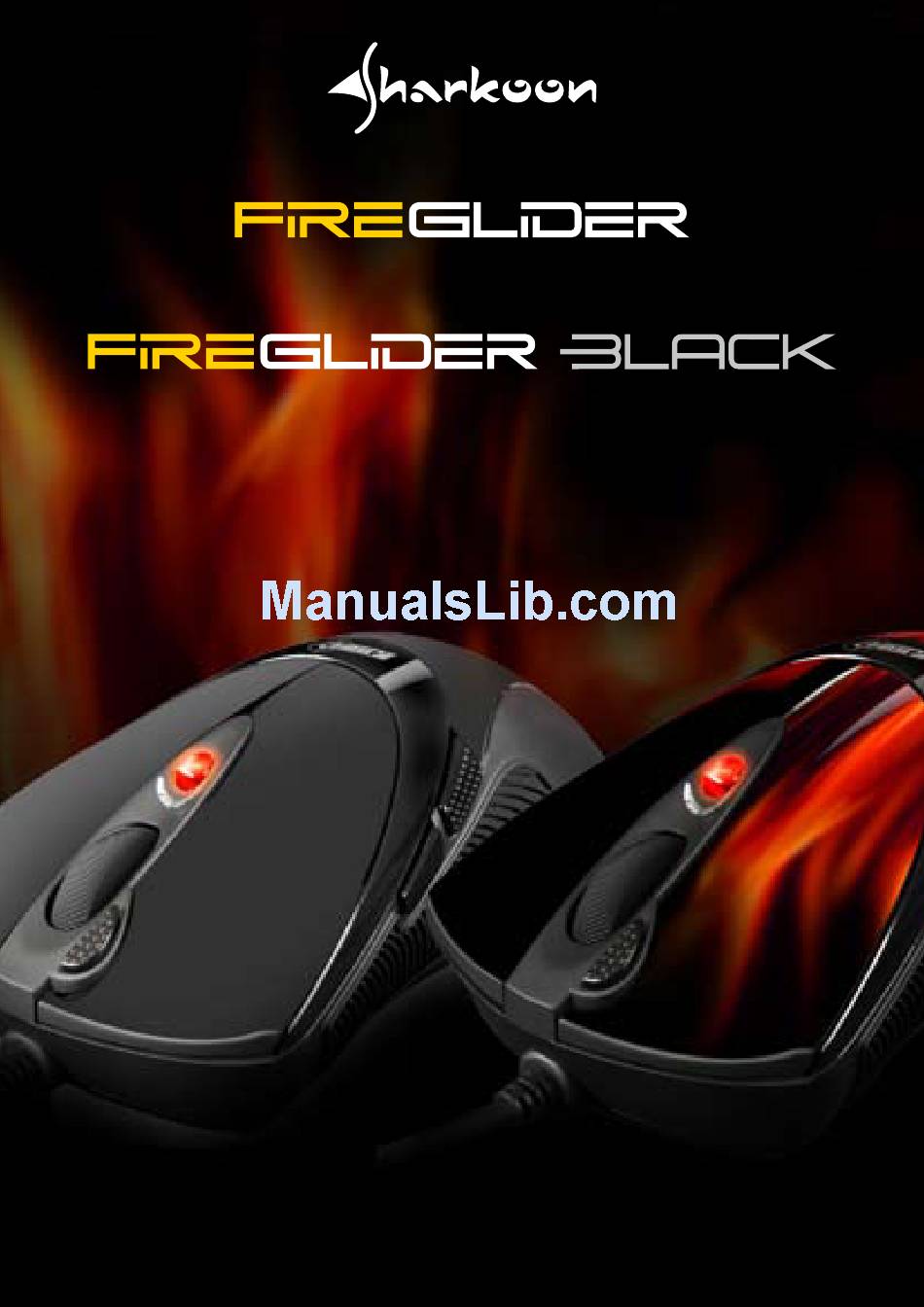

  • Page 1 Manual RUSH FIREGLIDER/FIREGLIDER BLACK...

  • Page 2: Table Of Contents

    Mouse gestures 7.3.4 Macro manager 7.3.4.1 Overview 7.3.4.2 The tabs “Loop” , “Key” , “If” and “Equ” 7.3.4.3 Command icons 7.3.4.4 The record function 7.3.4.5 Macro play back mode 7.3.4.6 Time control 7.3.4.7 Absolute/relative movements 7.3.5 Further functions RUSH FIREGLIDER/FIREGLIDER BLACK...

  • Page 3: Features

    100 – 400 – 600 – 800 – 1200 – 1600 – 2000 – 2500 – 3600 Max. acceleration: 20 G Mouse weight max.: 135 g Mouse weight min.: 118 g Laser sensor: Agilent ADNS-6010 Connector: USB (cable length: 1.8 m) Power input: 5V - 60 mA RUSH FIREGLIDER/FIREGLIDER BLACK...

  • Page 4: Package Content

    CD with software and manual (as PDF) Note: If you are missing any of the items listed above, please contact customer service via e-mail at support@sharkoon.com or call: + 49 (0) 6403 – 775 6100 Caution laser! Avoid direct eye contact with the laser beam! 4.
  • Page 5 – Button 6: freely programmable – Button 7: freely programmable – Grip area A – Weight tuning system (max. 19.5 g) – Mouse slides RUSH FIREGLIDER/FIREGLIDER BLACK...

  • Page 6: Connecting To A Pc

    3. Open the CD/DVD drive’s folder (e.g. D:). 4. Choose directory “MouseGeneral…” start “setup.exe” (fig. 1). 5. The InstallShield Wizard will be launched (fig. 1). fig. 1 Continue by clicking “Next” or press “Cancel” to abort the installation. RUSH FIREGLIDER/FIREGLIDER BLACK...
  • Page 7 6. Start the installation process by clicking “Install” (fig. 2). fig. 2 “Back” brings you to the previous window, “Cancel” stops the installation process. After the installation is successfully completed, the following window will be displayed (fig. 3). fig. 3 RUSH FIREGLIDER/FIREGLIDER BLACK...

  • Page 8: The Mouse Editor

    “Finish” . 7. The mouse editor 7.1 Launching the mouse editor 1. Start the application by double-clicking the symbol on the desktop or the respective icon in the task bar (fig. 4). fig. 4 RUSH FIREGLIDER/FIREGLIDER BLACK...

  • Page 9: The User Interface (Main Window)

    (see below 7.3.2) – Function description: use this text area to describe the respective button’s function G – By clicking this button transfer all adjustments made in the mouse editor to the mouse RUSH FIREGLIDER/FIREGLIDER BLACK...
  • Page 10 Read memory – reads the current profile from the internal mouse memory Exit – closes the application Open the list by clicking the ar- row. Select between Profile 1 and Profile 2. fig. 6 (profile menu) RUSH FIREGLIDER/FIREGLIDER BLACK...

  • Page 11: The Further Menus

    7.3 The further menus 7.3.1 DPI settings – Activate/deactivate the respective DPI setting – DPI setting for the X-axis – DPI setting for theY-axis – Respective color indicator RUSH FIREGLIDER/FIREGLIDER BLACK...

  • Page 12: Pulldown Menus

    7.3.2 Pulldown menus The pulldown menus will open up when the button is pressed. The pulldown menus are similar for all mouse buttons (fig. 7). fig. 7 – Button – Menu items – Flyout menus with further functions/options RUSH FIREGLIDER/FIREGLIDER BLACK...
  • Page 13 No setting: the button has no function. b) Keyboard: assign keyboard functions to the button (fig. 8). fig. 8 c) Mouse: clicking the arrow will bring up a flyout menu (fig. 9). Assign mouse functions to the button. fig. 9 RUSH FIREGLIDER/FIREGLIDER BLACK...
  • Page 14 (fig. 10). Assign office functions to the button. fig. 10 e) Key combination: clicking the arrow will bring up a flyout menu. Assign a key combination from the set “Text commands” (fig. 11) resp. “File Commands” (fig. 12) to the button. fig. 11 RUSH FIREGLIDER/FIREGLIDER BLACK...
  • Page 15 12 Multimedia: clicking the arrow will bring up a flyout menu (fig. 13). Assign multimedia functions to the button. fig. 13 RUSH FIREGLIDER/FIREGLIDER BLACK...
  • Page 16 Internet: clicking the arrow will bring up a flyout menu (fig 14). Assign a browser function to the button. fig. 14 h) System: clicking the arrow will bring up a flyout menu (fig 15). Assign a system function to the button. fig. 15 RUSH FIREGLIDER/FIREGLIDER BLACK...
  • Page 17 (fig 16). Assign a pre-set macro function to the button. fig 16 k) Macro Manager: launch the macro manager (see below 7.3.4). 3. By clicking the “ “ button all changes from the mouse editor will be transferred to the mouse. RUSH FIREGLIDER/FIREGLIDER BLACK...

  • Page 18: Mouse Gestures

    (fig. 17). The mouse gesture function may be assigned to any button (see above 7.3.2 i). Activate the gesture by executing the pre-defined movement while pressing the mouse gesture button. fig. 17 RUSH FIREGLIDER/FIREGLIDER BLACK...

  • Page 19: Macro Manager

    3. Enter instructions using the input area resp. the keyboard connected to the PC. Save your settings by clicking “ “ . Via the “ “ button in the main window your settings will be transferred to the mouse. RUSH FIREGLIDER/FIREGLIDER BLACK...

  • Page 20: Overview

    Insert jump instruction (see below 7.3.4.7) – Define delay time (see below 7.3.4.8) – Define absolute and relative mouse cursor movements (see below 7.3.4.9) – Define a sequence of mouse button strokes – Code area – Define a sequence of key strokes RUSH FIREGLIDER/FIREGLIDER BLACK...
  • Page 21 Pressing the “Plug in” button will copy the defined section into the script. b) Insert jump instruction This function enables to define jump instructions which will be copied to the script using the “Plug in” button afterwards. RUSH FIREGLIDER/FIREGLIDER BLACK...
  • Page 22 2. Key: define the effect of pressing/releasing a button and copy this condition into the script using the “Plug in” button. 3. If: define different conditions and insert them into the script by clicking the “Plug in” button. RUSH FIREGLIDER/FIREGLIDER BLACK...

  • Page 23: The Record Function

    “ button you can easily create a macro by taping the complete keyboard and mouse actions. The single instructions will simultaneously be displayed in the code area. Using the “ “ button will save the created instruction code. RUSH FIREGLIDER/FIREGLIDER BLACK...

  • Page 24: Macro Play Back Mode

    Tick the check boxes to define if the time delay shall be carried out after pressing the button or after releasing it. The combo boxes allow you to set time unit and time delay. “Plug in” copies your settings to the code area. RUSH FIREGLIDER/FIREGLIDER BLACK...

  • Page 25: Absolute/Relative Movements

    Relative coordinates are defined using the respective input forms. With “Plug in” you copy the settings to the code area. 7.3.5 Further functions More functions and configurations may be accessed by right- clicking the icon “ “ in the task bar. RUSH FIREGLIDER/FIREGLIDER BLACK...
  • Page 26 2. Mouse-Control Panel: opens the user interface of the mouse software. 3. Tilt Wheel Setting (fig. 19): define the scroll rate. “OK” accepts your settings, “Cancel” discards them. fig. 19 RUSH FIREGLIDER/FIREGLIDER BLACK...
  • Page 27 4. Button ResponseTime: (fig. 20): adjust the response time for the buttons. fig. 20 5. Function/Key Reminder (fig 21): decide if the functions of every single mouse button shall be displayed on the screen. fig. 21 RUSH FIREGLIDER/FIREGLIDER BLACK...
  • Page 28 6. Report Rate Setting (fig. 22): fig. 22 Open Mouse Editor 8. Exit: closes the context menu. RUSH FIREGLIDER/FIREGLIDER BLACK...
  • Page 29 All named products and descriptions are trademarks and/or re- gistered trademarks of the respective manufacturers and are ac- cepted as protected. As a continuing policy of product improvement at SHARKOON, the design and specifications are subject to change without prior notice. National product specifications may vary.
