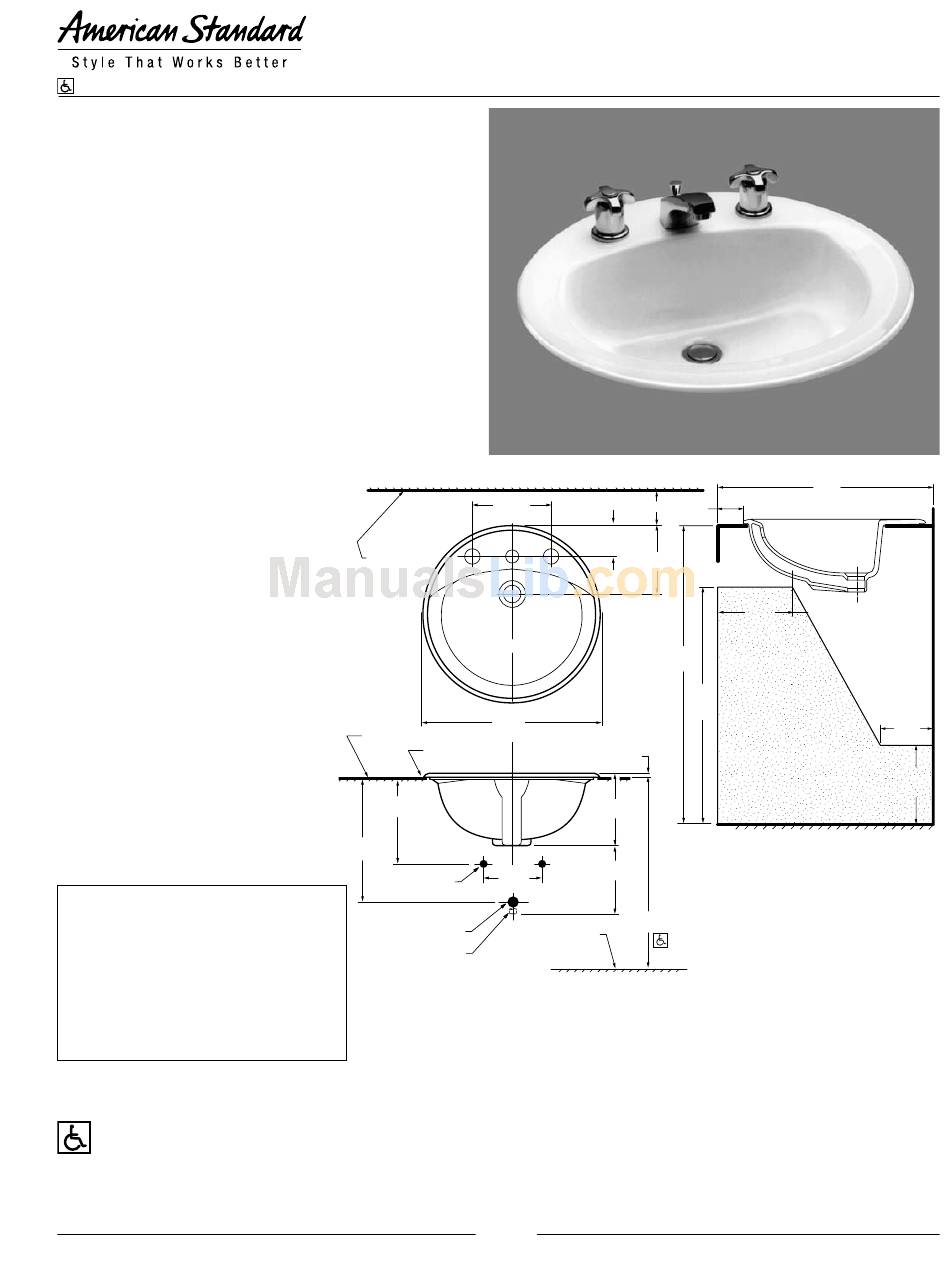

American Standard Rondalyn Counterop Sink 0490.011 Specifications

BARRIER FREE

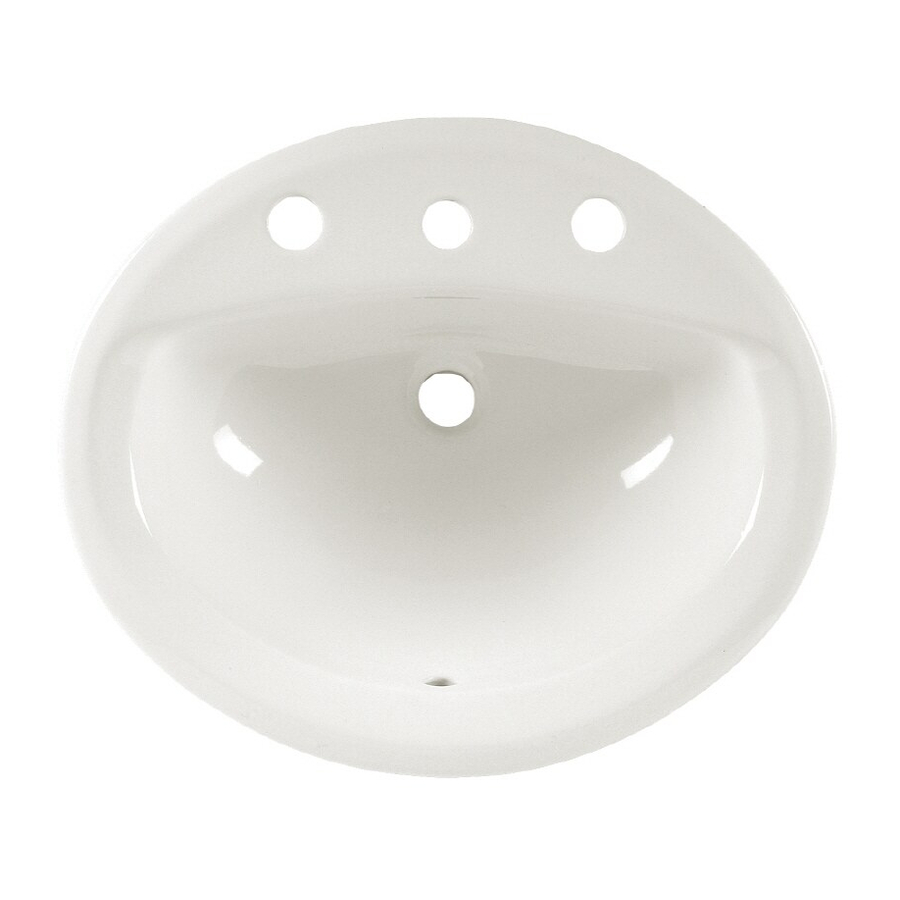

RONDALYN™ COUNTERTOP SINK
• Made from vitreous china
• Self-rimming with cutout template supplied
• Front overflow
• Faucet ledge
Shown with 4801.862 Amarilis/Heritage faucet
with Triune cross handles (not included)
❏ 0490.011 Faucet holes on 8" (203mm) centers
(illustrated)
❏
0491.019 Faucet holes on 4" (102mm) centers
❏
0491.027 Faucet holes on 4" (102mm) centers
• Extra right-hand hole
❏ 0491.035 Faucet holes on 4" (102mm) centers
• Extra left-hand hole
❏ 0490.156 Center hole only
Nominal Dimensions:
486mm (19-1/8") Round
Bowl sizes:
381mm (15") wide
308mm (12-1/8") front to back
146mm (5-3/4") deep
Compliance Certifications -
Meets or Exceeds the
Following Specifications:
• ASME A112.19.2M for
Vitreous China Fixtures
To Be Specified:
❏ Color: ❏ White ❏ Bone
❏ Linen ❏ Silver
❏ Fawn Beige
❏ Faucet*:
❏ Faucet Finish:
❏ Supplies:
❏ 1-1/4" Trap:
* See faucet section for additional models available
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 ACCESSIBLE AND USABLE
BUILDINGS AND FACILITIES - CHECK LOCAL CODES.
Install lavatory 864mm (34") from finished floor.
Lavatory installed 51mm (2") minimum from front edge
of countertop provides 686mm (27") knee clearance area.
© 2008 AS America Inc.
FINISHED
WALL
OR
SPLASH BACK
COUNTERTOP (BY OTHERS)
SEALING
COMPOUND
*
273mm
(10-3/4)
*
318mm
(12-1/2)
SUPPLIES
AS REQ'D.
1-1/4 O.D.
WASTE
1-1/4 O.D.
TAILPIECE
❏ Black
203mm
OPTIONAL
(8)
83mm
(3-1/4)
184mm
(7-1/4)
C/L
486mm
(19-1/8)
11mm
(7/16)
187mm
(7-3/8)
178mm
(7)
203mm
(8)
787mm (31)
851mm (33-1/2)
FINISHED
FLOOR
SEE REVERSE FOR ADDITIONAL ROUGHING-IN
DIMENSIONS
NOTES:
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND "P" TRAP ARE
*
SUGGESTED.
FOR COUNTERTOP CUTOUT AND INSTALLATION INSTRUCTIONS USE
TEMPLATE SUPPLIED WITH SINK.
FITTINGS NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED
SEPARATELY.
SEALING COMPOUND SUPPLIED BY OTHERS.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the range
of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility is
assumed for use of superseded or voided pages.
J45
RONDALYN™
COUNTERTOP SINK
VITREOUS CHINA
610mm
(24)
102mm
(4)
203mm
(8)
MIN.
851mm
(33-1/2)
686mm
(27)
MIN.
BARRIER FREE
CLEARANCE
Revised 2/08
DRAWING FOR
DIMENSIONAL
PURPOSES ONLY.
IT IS NOT AN EXACT
REPRESENTATION.
152mm
(6)
MAX.
229mm
(9)
MIN.
