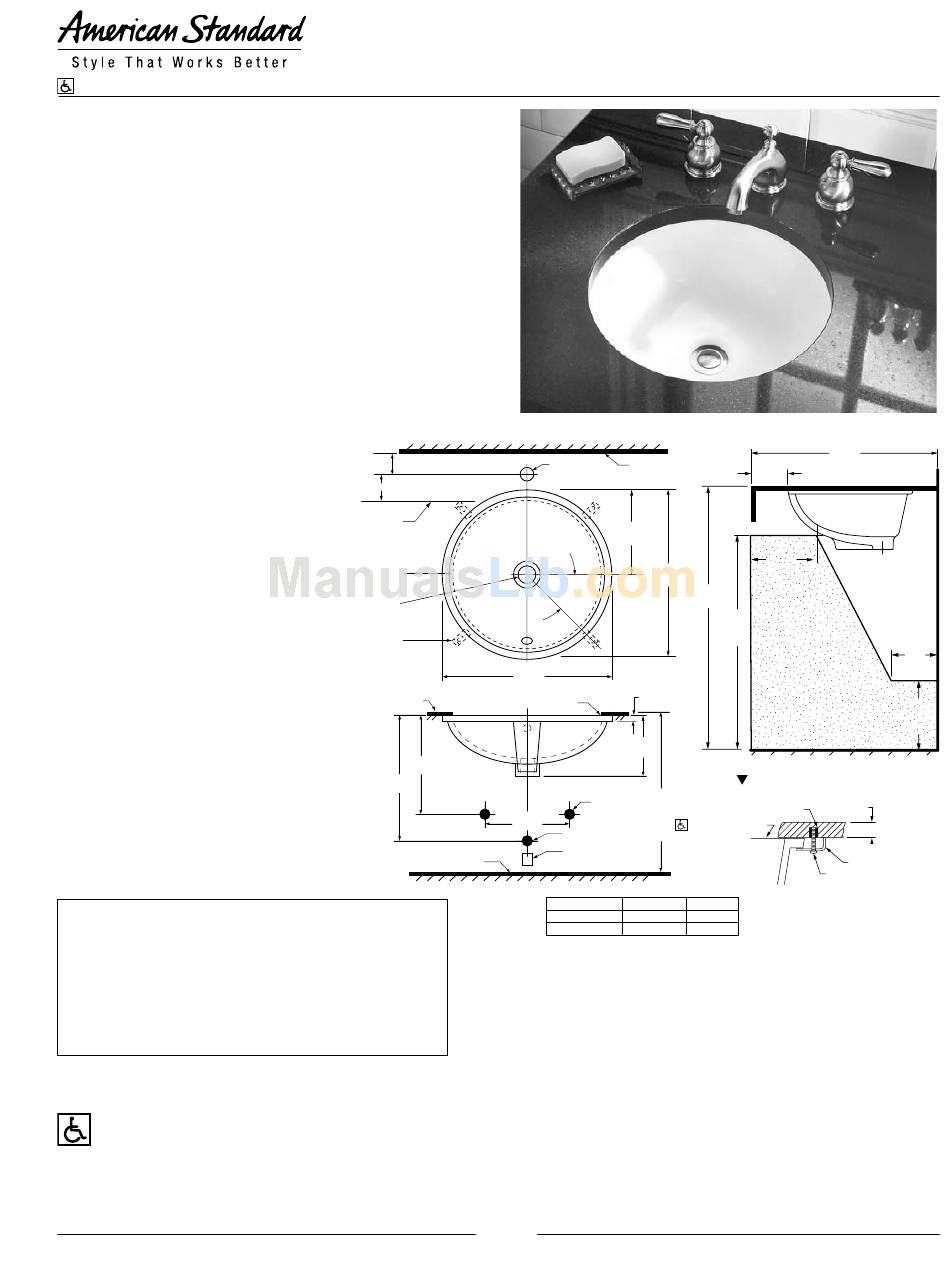

American Standard Orbit Undercounter Sink 0630.000 Specification Sheet

BARRIER FREE
ORBIT™ UNDERCOUNTER SINK
• Round undermount sink
• Made from vitreous china
• Front overflow
• Unglazed rim for undercounter mounting
• Supplied with mounting kit (047194-0070A)
and template
❏ 0630.000 Sink less faucet deck
Nominal Dimensions:
394mm dia. (15-1/2") Round
Bowl sizes:
324mm (12-3/4") wide
111mm (4-3/8") deep
Compliance Certifications -
Meets or Exceeds the
Following Specifications:
• ASME A112.19.2M for
Vitreous China Fixtures
• CAN/CSA B45 series
To Be Specified:
❏ Color: ❏ White ❏ Bone ❏ Linen
❏ Silver ❏ Fawn Beige ❏ Black
❏ Faucet*:
❏ Faucet Finish:
❏ Supplies:
❏ 1-1/4" Trap:
* See faucet section for additional models available
MEETS THE AMERICANS WITH DISABILITIES ACT
GUIDELINES AND ANSI A117.1 ACCESSIBLE AND
USABLE BUILDINGS AND FACILITIES -
CHECK LOCAL CODES.
Countertop 864mm (34") from finished floor. Lavatory
installed 51mm (2") MIN. from front edge of countertop.
Countertop thickness to be 25mm (1") maximum.
© 2008 AS America Inc.
2" (51mm)
MINIMUM
2-1/2" (64mm)
EDGE OF
COUNTERTOP
CUTOUT
CUTOUT
AREA
1-3/4" DIA.
STD. DRAIN
OUTLET
MTG CLIP
(4 PLACES)
15-1/2"
(394mm)
COUNTERTOP
(BY OTHERS)
*
10-3/4"
(273mm)
*
12-7/8"
(327mm)
8"
(203mm)
FINISHED FLOOR
NOTES:
* DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND "P" TRAP ARE
SUGGESTED.
▼ UNDERCOUNTER MOUNTING KIT SUPPLIED WITH SINK.
FITTINGS NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED
SEPARATELY.
USE ENCLOSED TEMPLATE FOR COUNTERTOP CUTOUT.
SEALING COMPOUND SUPPLIED BY OTHERS.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the range
of tolerances established by ANSI Standard A112.19.2. These measurements
are subject to change or cancellation. No responsibility is assumed for use of
superseded or voided pages.
J51
UNDERCOUNTER SINK
FINISHED WALL
1-1/4" DIA. C.H.
OR SPLASHBACK
(TYPICAL)
7-5/8"
(194mm)
15-1/2"
(394mm)
864mm
o
45
(34)
5/8"
SEALING
(16mm)
COMPOUND
6"
(152mm)
31"
SUPPLIES
(787mm)
AS REQ'D
SUGGESTED
34"
1-1/4" O.D. WASTE
(864mm)
1-1/4" O.D. TAILPIECE
FITTING A B
CENTER-SET 27mm(1-1/16) 102mm(4)
SPREAD 32mm(1-1/4) 203mm(8)
ORBIT™
VITREOUS CHINA
610mm
(24)
76mm
(3)
203mm
(8) DRAWING FOR
DIMENSIONAL
MIN.
PURPOSES ONLY.
IT IS NOT AN EXACT
REPRESENTATION.
686mm
(27)
MIN.
BARRIER FREE
CLEARANCE
DETAIL OF MOUNTING CLIP
(KIT No.47194.0070A)
19mm
BRASS
(3/4) MIN.
INSERT
LAVA
CLIP
MACH.
SCREW
REFER TO INSTRUCTIONS
PROVIDED WITH KIT FOR
ADDITIONAL INFORMATION
Revised 2/08
152mm
(6)
MAX.
229mm
(9)
MIN.
