Rockford Fosgate Punch PBR300X2 Installation & Operation Manual
Boosted rail 2 channel amplifier
Hide thumbs
Also See for Punch PBR300X2:
- Installation & operation manual (52 pages) ,
- Quick setup (2 pages)
Related Manuals for Rockford Fosgate Punch PBR300X2
Summary of Contents for Rockford Fosgate Punch PBR300X2

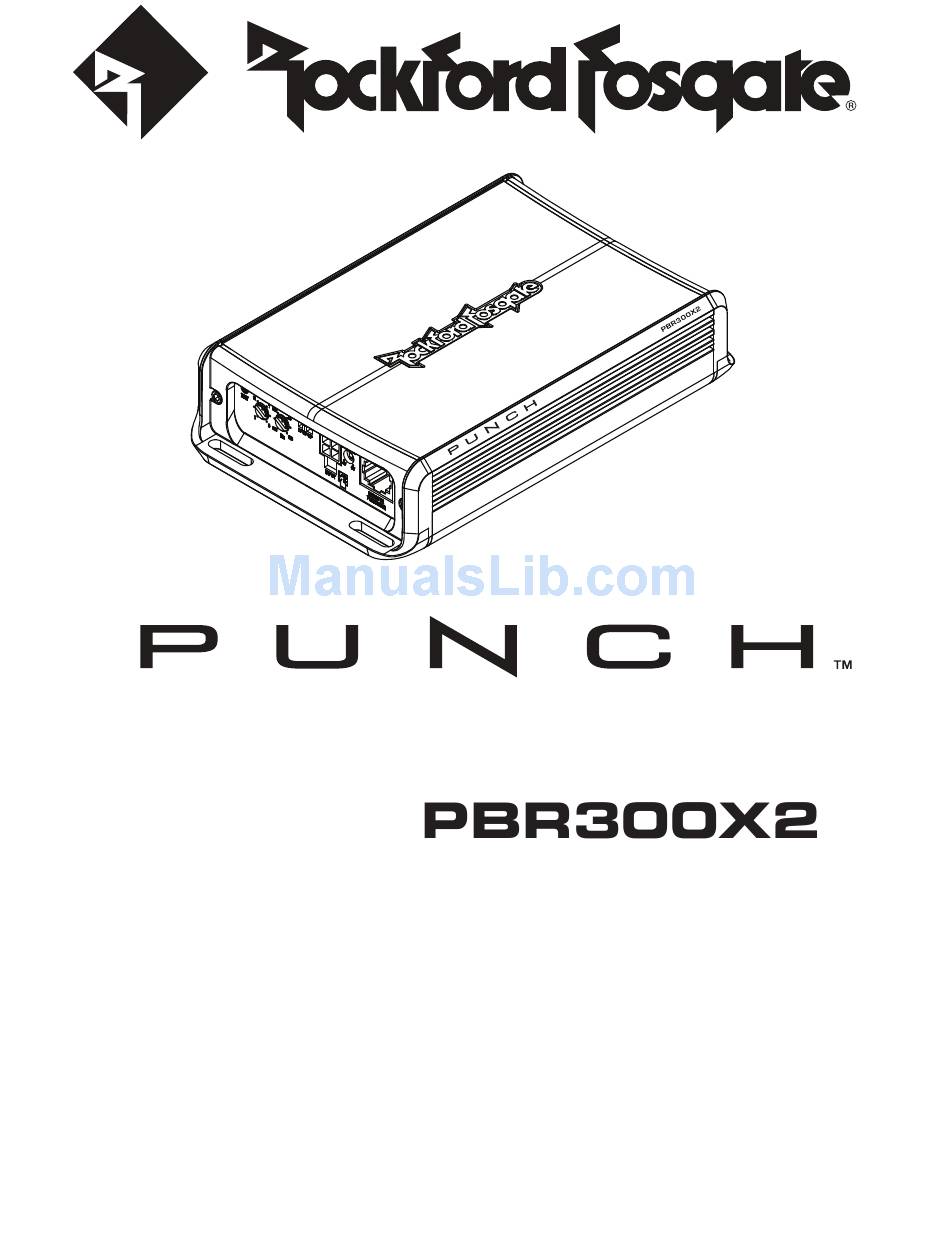

- Page 1 OOSTED HANNEL MPLIFIER Installation & Operation Installation et fonctionnement Instalación y funcionamiento Einbau und Betrieb Installazione e funzionamento...
-
Page 2: Table Of Contents
If, after reading your manual, you still have questions regarding this product, we recommend that you see your Rockford Fosgate dealer. If you need further assistance, you can call us direct at 1-800-669-9899. Be sure to have your serial number, model number and date of purchase available when you call. -
Page 3: Safety Instructions
Other information can be located by using the Table of Contents.We, at Rockford Fosgate, have worked very hard to make sure all the information in this manual is current. But, as we are constantly finding new ways to improve our product, this information is subject to change without notice. -
Page 4: Design Features
L+ R+ L - R - – This LED illuminates when the unit is in boost mode. – This LED illuminates Blue when the unit is turned on and Red if a short circuit/low impedance is detected at the speaker connections or the amplifier’s internal components become too hot engaging the protection.The amplifier will shut down to cool if this occurs. -
Page 5: Installation
The following is a list of tools needed for installation: Fuse-holder and fuse. Wire cutters Assorted connectors (See specifications for fuse rating) #1 Standard screwdriver Adequate Length—Power Wire Volt/Ohm Meter Battery post wrench Adequate Length—Remote Turn- Wire strippers on Wire Hand held drill w/assorted bits Wire crimpers Adequate Length—Ground Wire... -
Page 6: Battery And Charging
: If you do not feel comfortable with wiring your new unit, please see your local Authorized Rockford Fosgate Dealer for installation. : Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury. -
Page 7: Power Connection
Securely mount the amplifier to the vehicle or amp rack. Be careful not to mount the amplifier on cardboard or plastic panels. Doing so may enable the screws to pull out from the panel due to road vibration or sudden vehicle stops. Connect from source signal by plugging the RCA cables into the RCA/Speaker Harness input jacks, then insert the four pin Molex connector into the mating four pin INPUT connector at the amplifier. -
Page 8: Operation
Previous (prior to 2007) Punch Bass and Para-Punch remotes will not work with these amplifiers. :Use the instructions that came with the remote for a variety of mountings that fit your preference. Using the screws supplied, install the mounting clip. Slip the remote onto the mounting clip until it snaps into place. -
Page 9: Troubleshooting
If you are having problems after installation follow the Troubleshooting procedures below. Check in-line fuse on battery positive cable. Replace if necessary. Verify that Ground connection is connected to clean metal on the vehicle’s chassis. Repair/replace if necessary. 3. Verify there is 9 to 16 Volts present at the positive battery and remote turn-on cable.Verify quality connections for both cables at amplifier, stereo, and battery/fuseholder. -
Page 10: Specifications
Load Stereo 100 Watts x 2 Load Stereo 150 Watts x 2 Load Mono 300 Watts x 1 Dimensions: Height 1.53" (3.90cm) Width 4.25" (10.8cm) Length 6.75" (17.2cm) External Battery Fuse Rating “A” Weighted Signal to Noise Ratio ≥80 dB Referenced to 1 Watt into 4 ohms “A”... -
Page 11: Limited Warranty Information
No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product. Contact the Authorized Rockford Fosgate Dealer you purchased this product from. - Page 12 Rockford Corporation 600 South Rockford Drive Tempe, Arizona 85281 U.S.A. In U.S.A., (480) 967-3565 - Customer Service 1-800-669-9899 1230-56926-04 Printed in Thailand...
- Page 14 Audio Amplifier Installation kit with this Amplifier! We want you to get the performance and reliability that made Rockford Fosgate Amplifiers Famous. Using poor-quality under-spec wiring is a guaranteed way to get less than you paid for from your system.
- Page 15 NOTE: L+ R+ L - R -...
