TDK Mojo User Manual

TDK Mojo User Manual

Headphone mp3/fm player
Hide thumbs Also See for Mojo:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual
HEADPHONE MP3/FM PLAYER
NO WIRES, NO TANGLES
USER'S GUIDE
v1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mojo and is the answer not in the manual?

Questions and answers

Related Manuals for TDK Mojo

Summary of Contents for TDK Mojo

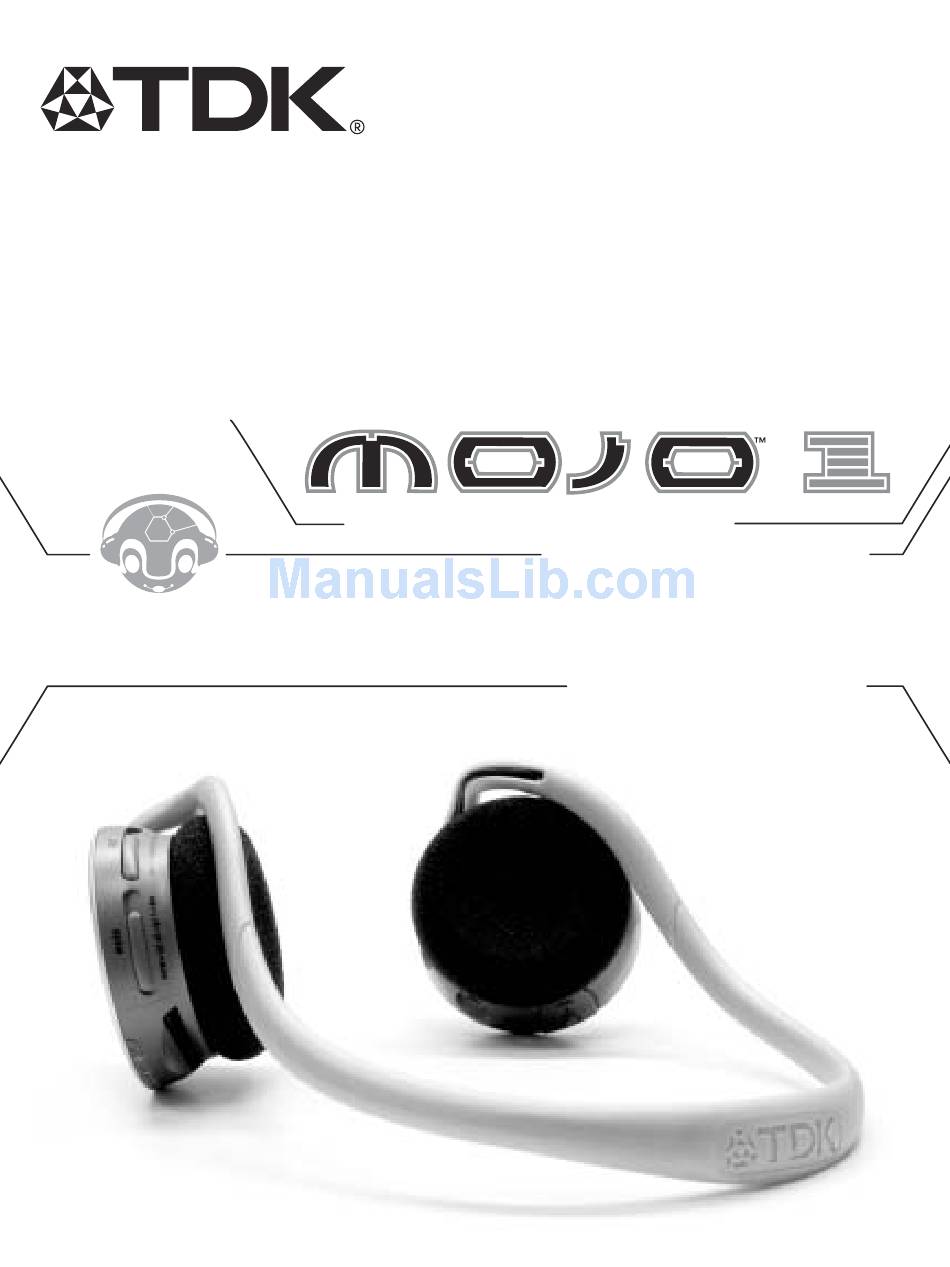

  • Page 1 HEADPHONE MP3/FM PLAYER NO WIRES, NO TANGLES USER'S GUIDE...

  • Page 2: Table Of Contents

    2 This device must accept any interference received, including interference that may cause undesired operation. UNPACKAGING MOJO 1 ............. .

  • Page 3: Note On Help Materials

    Follow the steps below to set up MOJO 1. The included MoodLogic software can be used to transfer audio tracks from your com- puter to MOJO 1. The included MOJO 1 PC Software can be used to configure MOJO 1’s FM radio presets and upgrade the unit’s In addition to this printed User’s Guide, the following sources of help and information are available:...

  • Page 4: Using Moodlogic To Transfer Music

    • Connect the small end of the USB cable (included) to MOJO 1’s USB port. • With your PC and MOJO 1 powered ON, connect the other end of the USB cable to a USB port on your PC. (To power ON MOJO 1, hold down its PLAY/PAUSE [ ] button for a few seconds.)
  • Page 5 View your computer’s MoodLogic music library by clicking MY MUSIC in the VIEW window. View the musical contents of your connected MOJO 1 player and any tracks that are in the TRANSFER LIST by clicking MP3 PLAYER in the VIEW window. If you have created any custom mixes (MoodLogic’s version of playlists), they will also be selectable from the VIEW window.
  • Page 6 4. Navigate to the desired PC-based track(s). In the ARTIST box, you can click any artist name to view only tracks by that artist in the TRACK LIST window. • If MOJO 1 has a memory card (not included) inserted, the “Select Storage to Transfer To” window will open. Select INTERNAL or EXTERNAL and click OK.
  • Page 7 MOJO 1 view • The TRANSFER LIST (the top pane) and the MOJO 1 view (bottom pane) will open. The MOJO 1 view displays the tracks that • The titles of selected tracks will appear highlighted in the TRACK LIST window.
  • Page 8 NOTE : While MOJO 1 will appear under My Computer as a USB mass storage device, copyright laws prevent using the Windows interface to transfer audio files to MOJO 1. You can use the included MoodLogic software to transfer audio files to MOJO 1. It is not possible to copy audio files from MOJO 1 to a PC.

  • Page 9: Using Mojo 1

    Double-click a track or a mix to play it. • Your audio playback software (not included) should open and play the track(s). NOTE : Disconnect the USB cable before attempting to use MOJO 1. When the USB cable is connected, playback is not possible.

  • Page 10: Player Controls

    • In FM mode, press to advance to the next preset radio station. • In FM mode, hold down until the unit begins to scan forward for radio stations. MOJO 1 will play each station for In this example, DSP is set to NORM.
  • Page 11 † Turns off after 2 minutes 11. USB • Used for transferring tracks into MOJO 1 from a PC. Connect the small end of the included USB cable to MOJO 1. Connect the other end to your PC’s USB port.
  • Page 12 MOJO 1’s internal memory to enable playback from internal memory. NOTE : MOJO 1 will appear as two separate drives. Each will be listed as a REMOVABLE DISK. One REMOVABLE DISK is MOJO 1’s To play from a memory expansion card (MMC or SD) that’s inserted into MOJO 1: internal memory, the other is MOJO 1’s memory card slot.

  • Page 13: Moodlogic Advanced Guide

    MOODLOGIC ADVANCED GUIDE The version of MoodLogic supplied with MOJO 1 automatically “activates” 100 of your tracks (requires Internet connection.) Automatically activating tracks corrects your tracks’ file names and enables advanced MoodLogic features. If you purchase the full version of MoodLogic (available from www.moodlogic.com), up to 10,000 tracks will be activated. At any time, you can manually “profile”...
  • Page 14 3. Select an artist whose tracks you want to profile, and click PREPARE ARTIST FOR PROFILING. To correct a track profile: • MoodLogic will scan the tracks by that artist and will list the tracks that can be profiled. 1. Run MoodLogic. 4.
  • Page 15 3. Select the song, genre, or artist that you want to base your Instant Mix on. To delete a track from a Mix: 4. Click MIX. 1. Run MoodLogic. • The INSTANT MIX view will be displayed. 2. Click the mix from which you wish to delete a track. •...

  • Page 16: Configuring Fm Radio Presets & Upgrading Firmware

    & UPGRADING FIRMWARE To view tracks that are stored in MOJO 1’s memory: The included MOJO 1 PC Software is used to program MOJO 1’s FM radio presets. It can also be used to erase MOJO 1’s memory 1. Run MoodLogic.
  • Page 17 3. Run the MOJO 1 PC Software. NOTE : MOJO 1 has 20 programmable radio station presets that can be programmed with this software. An additional 5 can be 4.. Click the MEMORY button, located in the lower left hand side of the MOJO 1 PC Software screen.

  • Page 18: Using A Memory Expansion Card

    • Verify that the PC’s USB drivers are properly installed. If MOJO 1 freezes: • Remove MOJO 1’s battery, leave the unit idle for 10 minutes, reinsert the battery and hold down ON/PLAY/PAUSE for a few seconds to power ON MOJO 1. Normal operation should be possible.

  • Page 19: Mojo 1 Specifications

    Up to 10 hrs Store the player with care FEATURES Avoid keeping the MOJO 1 and the flash memory card (not included) on or near high heat source(s) or in places with high FM tuner humidity or a strong magnetic field.
  • Page 20 (d) to disseminate any software viruses or any other Do not use MOJO 1 when lightning is occurring. computer code, files or programs that may interrupt, destroy or limit the functionality of any computer software or hardware or Do not listen to headphones at loud volumes as permanent hearing damage may result.

  • Page 21: Technical Support

    "Hardware" or "Product") will be free from defects in material and workmanship for a period of one (1) year from date of purchase. If TDK receives notice of any such defects during the warranty period, TDK will, at its option, either repair or For on-line support or to contact Technical Support, please visit: http://www.tdksupport.com or call 1.800.835.8326.

  • Page 22: Technical Support

    If you experience a problem while installing or operating your MOJO 1 MP3 player, please refer first to the relevant sections of this manual regarding setup and installation. If you are not able to resolve the problem, please refer next to the section on Troubleshooting.
