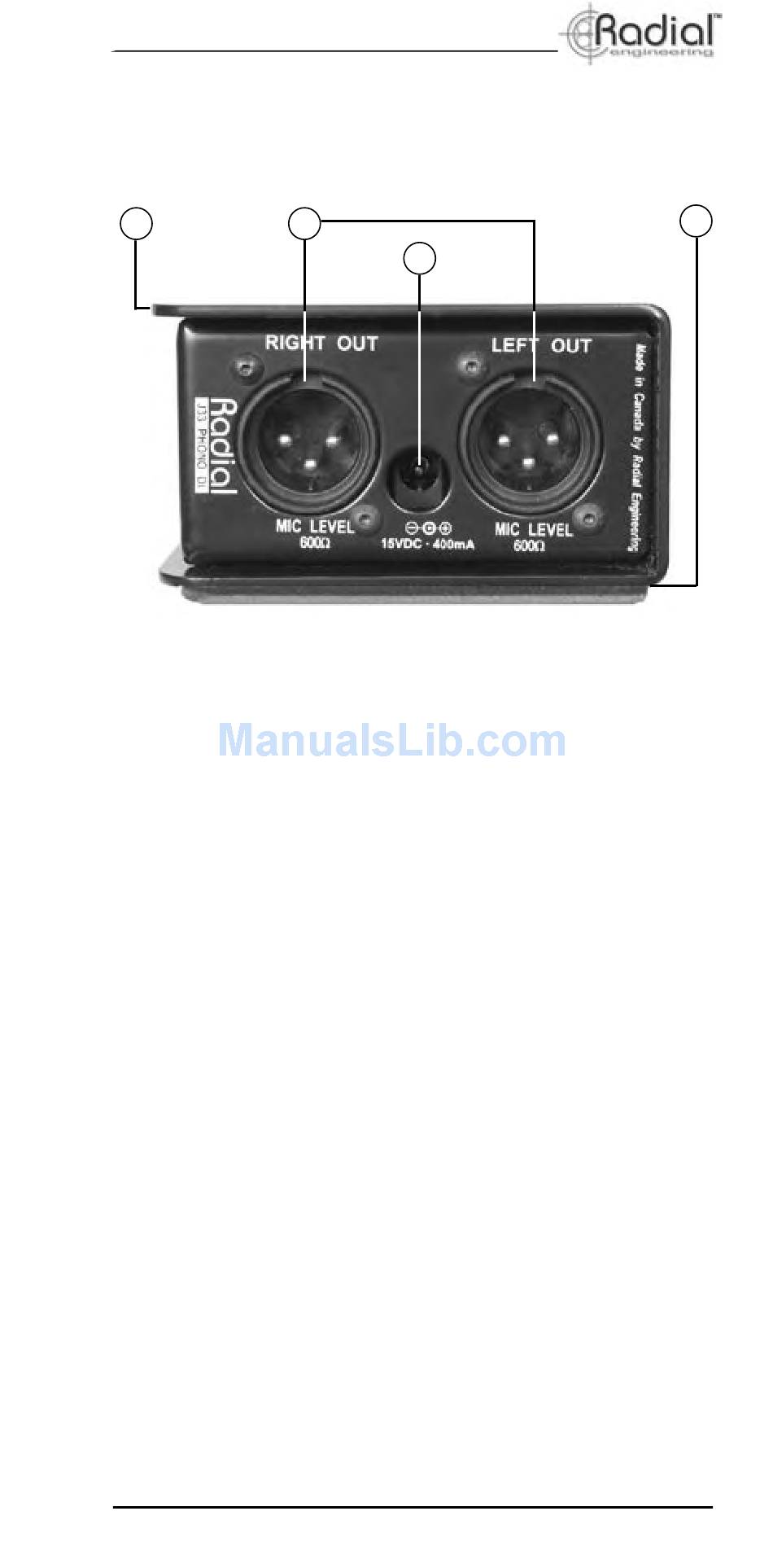

OUTPUT PANEL FEATURES
8
8. Bookend design
14 gauge steel outer shell creates protective zone around
connectors and switches and wraps around a welded case
with I-beam construction for maximum durability. Finished in
tough baked enamel.
9. Left and right XLR outputs
Balanced low impedance (600Ω) microphone level outputs.
Connects to mic input on mixing console.
10. 15VDC power supply connection
The 15VDC power supply is connected here for powering
the J33. There is no power switch and leaving the J33 on
will not harm it. This jack is not used if the J33 is powered
with phantom power from a mixing console. When switch-
ing from 48V phantom power to the external DC supply, or
back, please wait 15 seconds to allow the RIAA amplifier to
charge and stabilize.
11. Full-bottom no-slip pad
This provides electrical and mechanical isolation plus
plenty of "stay-put" friction to keep the J33 in one place.
