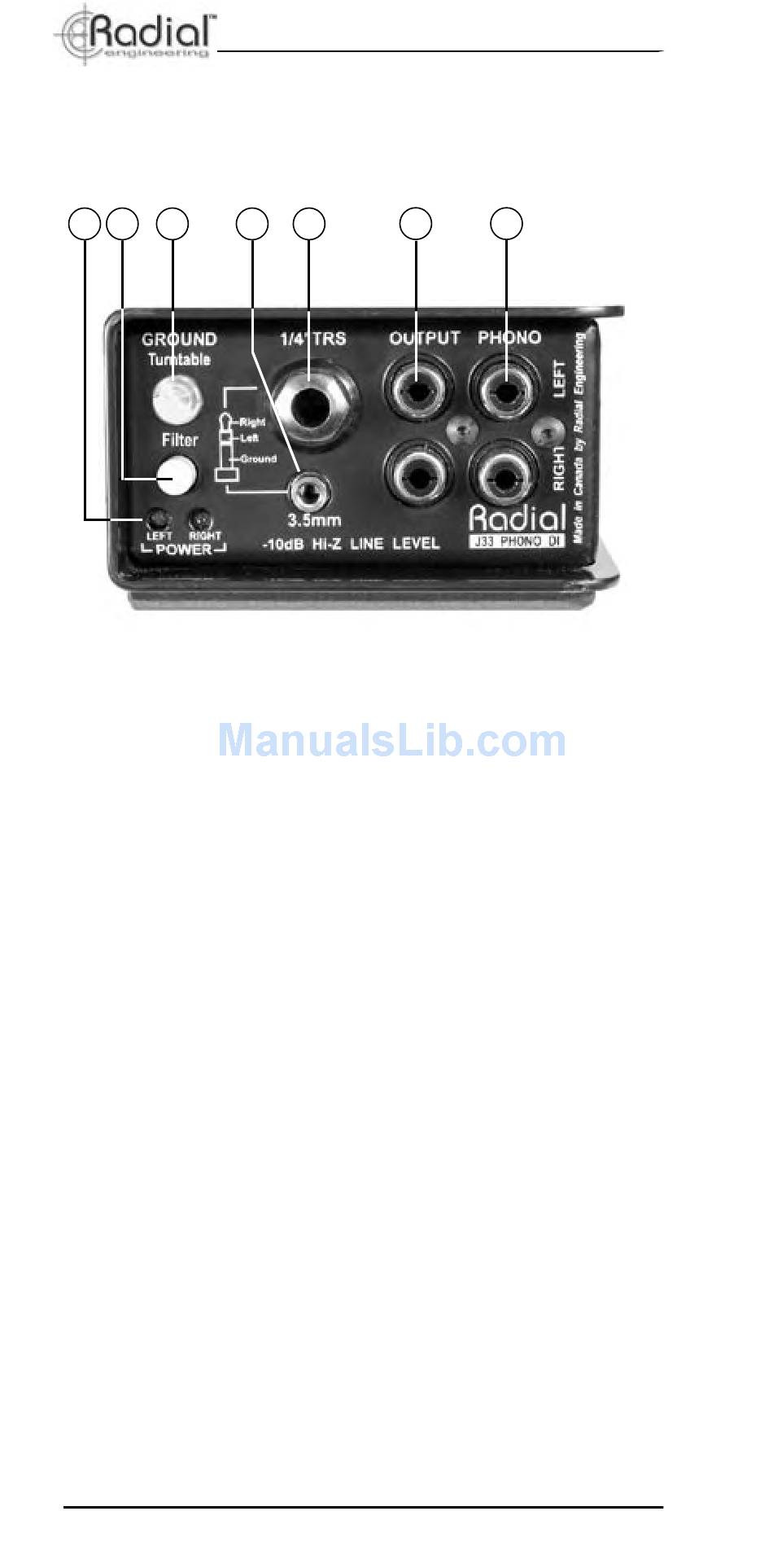

INPUT PANEL FEATURES
1 2 3
1. LED power indicator
For left and right channels. Illuminates when the 15VDC
power supply is connected or when 48V phantom power is
applied from a mixing console.
2. Rumble filter
Applies a high pass filter (bass roll-off) when pushed in.
3. Gound lug
Attatches to the turntable ground wire.
4. 3.5mm stereo output jacks
-10dB (consumer level) stereo output for direct connection to
computer sound cards, laptops or any device with a 3.5mm
input. This connector is also known as 1/8" TRS
5. 1/4" stereo output jack
-10dB (consumer level) stereo output for direct connection to
a local mixer, recorder or any device with a 1/4" TRS input.
6. RCA stereo output jacks
-10dB (consumer level) stereo outputs for direct connection
to a hi-fi receiver AUX or CD input or any device with an
RCA input.
7. RCA phono (turntable) input jacks
RIAA equalized stereo input for turntable signals. Use in con-
junction with the gound lug.
