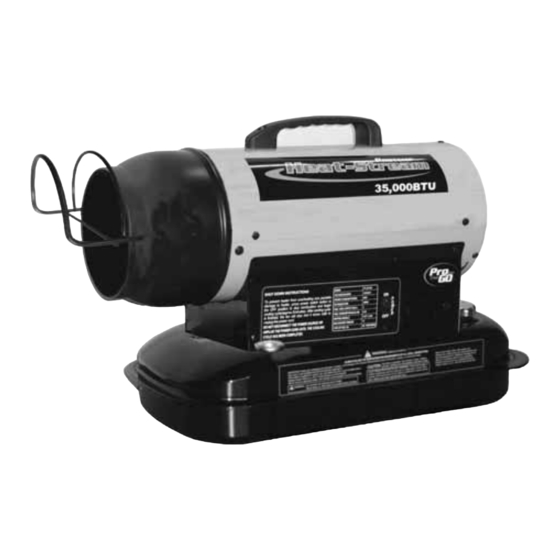

Owner's Manual and
Ultra-Portable
Operating Instructions
Kerosene Heaters
Model #s: PT-35-HS, PT-55-SS
CONSUMER: Retain this manual for future reference.
IMPORTANT: Read and understand all of the directions in this manual before assembling,
starting, or servicing the heater. Improper use of this heater can cause serious injury. Keep this
manual for future reference.
GENERAL HAZARD WARNING:
Be sure to comply with the instructions and warnings provided with this heater, or death,
serious bodily injury and property loss, damage from the hazards of fire, explosion, burn,
asphyxiation, and carbon monoxide poisoning can result.
Only persons who can follow and understand these instructions should use or service this
heater. If you need heater information such as an instruction manual, labels, etcetera, contact
the manufacturer.
Pinnacle Products International, Inc. 668 Stony Hill Road #302 Yardley, PA 19067 USA
Phone: 215-891-8460 Fax: 215-891-8461 Web: www.pinnacleint.com Email: info@pinnacleint.com
Advertisement
Table of Contents
Related Manuals for Pinnacle Protemp PT-35-HS
Summary of Contents for Pinnacle Protemp PT-35-HS
- Page 1 Only persons who can follow and understand these instructions should use or service this heater. If you need heater information such as an instruction manual, labels, etcetera, contact the manufacturer. Pinnacle Products International, Inc. 668 Stony Hill Road #302 Yardley, PA 19067 USA Phone: 215-891-8460 Fax: 215-891-8461 Web: www.pinnacleint.com Email: info@pinnacleint.com...
-
Page 2: Table Of Contents
This is an unvented portable heater. It uses air (oxygen) from the area in which it is used. Adequate combustion and ventilation air must be provided. Refer to VENTILATION Page 7. Page 2 Pinnacle Products International, Inc. Ultra-Portable Kerosene Owners Manual... -
Page 3: Features
NEVER LEAVE HEATER Ultra-Portable UNATTENDED WHILE BURN- ING, OR WHILE CONNECTED Kerosene Heaters TO A POWER SOURCE. Features Figure 1. Figure 2. Page 3 Pinnacle Products International, Inc. Ultra-Portable Kerosene Owners Manual... -
Page 4: Specifications
21.3” x 12” x 21” Weight (Lbs) Specifications subject to change without notice Figure 4. Product Dimensions Model No. Length Width Height PT-35-HS 22.7” 11.1” 16” PT-55-SS 21.3” 12” 21” Page 4 Pinnacle Products International, Inc. Ultra-Portable Kerosene Owners Manual... -
Page 5: Safety Information
Dust is combustible. Do not use heater in areas of high dust concentration. Minimum clearance from Combustibles: Sides Front 3 ft. 2 ft. 6 ft. 3 ft. 2 ft. 6 ft. Figure 5. Power Switch (both models) Page 5 Pinnacle Products International, Inc. Ultra-Portable Kerosene Owners Manual... -
Page 6: Unpacking
Remove the heater and all of the packaging materials from the shipping carton. NOTE: Save the box and packaging materials for future storage. Figure 6. Wiring Diagram for model PT-35-HS Figure 7. Wiring Diagram for model PT-55-SS Page 6 Pinnacle Products International, Inc. Ultra-Portable Kerosene Owners Manual... -
Page 7: Fuels
(55,000 BTU/hr) heater will require: - a two-car garage door open 2 inches, or - a single car garage open 3 inches, or - two thirty two inch wide windows open 4 inches. Page 7 Pinnacle Products International, Inc. Ultra Portable Kerosene Owners Manual... -
Page 8: Maintenance
After removing the Spark Plug, clean the terminals with a wire brush. Re-gap the terminals to 0.140” (3.5mm). Figure 9. Filter Maintenance Figure 12. Spark Plug Maintenance Page 8 Pinnacle Products International, Inc. Ultra-Portable Kerosene Owners Manual... -
Page 9: Storage
Be sure that the storage area is free of dust and corrosive vapors. Repack the heater in the original shipping material. Keep the Owner’s Manual in an easily accessible place. Figure 13. Photocell position Page 9 Pinnacle Products International, Inc. Ultra Portable Kerosene Owners Manual... -
Page 10: Exploded Part Breakdown
NEVER LEAVE HEATER Ultra-Portable UNATTENDED WHILE BURN- ING, OR WHILE CONNECTED Kerosene Heaters TO A POWER SOURCE. Exploded Drawing Part Breakdown Figure 16. Exploded View: PT-35-HS Figure 17. Exploded View: PT-55-SS Page 10 Pinnacle Products International, Inc. Ultra-Portable Kerosene Owners Manual... -
Page 11: Replacement Parts
75-038-0100 Ignitor assy 75-025-0100 75-025-0200 PCB Assy 75-025-0150 75-025-0250 Sub-PCB Assy 75-013-0110 Power Switch 75-012-0100 75-012-0100 Back Cover 75-013-0100 Chamber / Insulator 75-035-0150 75-035-0570 Cone 75-011-0400 Fan Guard 75-011-0500 Page 11 Pinnacle Products International, Inc. Ultra Portable Kerosene Owners Manual... -
Page 12: Troubleshooting Guide
Test power supply. 3. Check/replace Fuse. 3. Fuse Blown. 4. Inspect all electrical connections. 4. Improper electrical connection (See Wiring Diagrams, Page 6). between Temperature Limit Sensor and Circuit Board. Page 12 Pinnacle Products International, Inc. Ultra-Portable Kerosene Owners Manual... - Page 13 Always be sure to specify model number and serial All transportation costs for the return of the damaged number when making any claim with Pinnacle product or parts will be the responsibility of the pur- Products International, Inc. For your convenience chaser.
