User Manual
BEDIENUNGSANLEITUNG
USER'S MANUAL
MODE D'EMPLOI
MANUAL DEL USUARIO

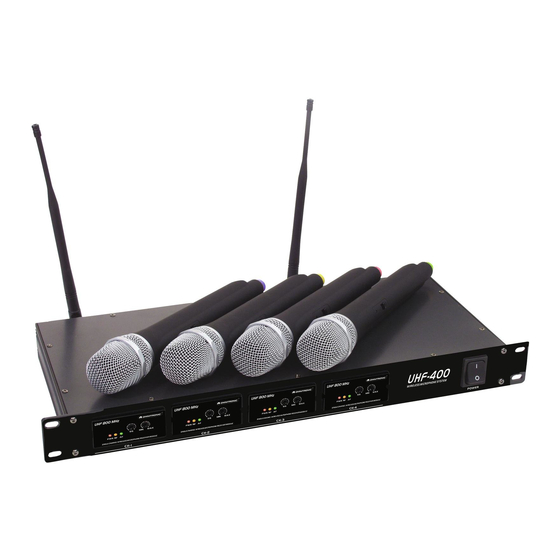

UHF-400
Wireless Microphone Set
©
Für weiteren Gebrauch aufbewahren!
Copyright
Keep this manual for future needs!
Nachdruck verboten!
Gardez ce mode d’emploi pour des
Reproduction prohibited!
utilisations ultérieures!
Réproduction interdit!
Guarde este manual para posteriores usos.
Prohibida toda reproducción.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Omnitronic UHF-400
Summary of Contents for Omnitronic UHF-400
-
Page 1: Manual Del Usuario
BEDIENUNGSANLEITUNG USER'S MANUAL MODE D'EMPLOI MANUAL DEL USUARIO UHF-400 Wireless Microphone Set © Für weiteren Gebrauch aufbewahren! Copyright Keep this manual for future needs! Nachdruck verboten! Gardez ce mode d’emploi pour des Reproduction prohibited! utilisations ultérieures! Réproduction interdit! Guarde este manual para posteriores usos. - Page 2 You can find the latest update of this user manual in the Internet under: Vous pouvez trouvez la dernière version de ce mode d'emploi dans l'Internet sous: Vd. puede encontrar la versión más reciente de este manual en el Internet bajo: www.omnitronic.com...
-
Page 3: Operating Instructions
- download the latest version of the user manual from the Internet 1. INTRODUCTION Thank you for having chosen an OMNITRONIC UHF-400. If you follow the instructions given in this manual, we can assure you that you will enjoy this device for many years. -
Page 4: Safety Instructions
2. SAFETY INSTRUCTIONS This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. Important: Damages caused by the disregard of this user manual are not subject to warranty. - Page 5 Do not shake the device. Avoid brute force when operating the device. When choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture or dust. There should not be any cables lying around. You endanger your own and the safety of others! Do not operate the device in extremely hot (more than 30°...
- Page 6 (3) Power LED (4) RF LED (5) AF LED (6) Squelch control (7) Volume control 13/33 00024203.DOC, Version 1.3...
- Page 7 Rear panel: (8) Antenna connector B (9) Power supply socket (10) Audio output socket (11) Channel 1-4 output sockets (12) Antenna connector A (13) Microphone grille (14) Battery LED (15) ON/OFF switch (16) Battery cover (17) Antenna CONNECTIONS Connect the wireless receiver via the Audio Out-socket and a standard microphone lead with a microphone input socket of your mixer.
- Page 8 With the ON/OFF switch, you can switch the device on and off. When switching the device on, the red LED shortly lights up. In this case, the power supply is sufficient. When the batteries are getting weaker, the red LED is permanently illuminated. In this case, the batteries have to be replaced.
-
Page 9: Problem Cart
6. PROBLEM CART PROBLEM: REMEDY: No power. Check the connection cable of the power unit and any extension-cables. No sound; receiver RF- Make sure POWER switches on transmitter and receiver are on. LED does not flash. Check transmitter Power-LED to ensure that battery is providing power. Replace battery if necessary. -
Page 10: Technical Specifications
8-10 hours Dimensions: 50 x 260 mm Weight: 400 g Accessory: OMNITRONIC UHF-400 BP Transmitter 796 MHz No. 13055480 OMNITRONIC UHF-400 BP Transmitter 804 MHz No. 13055485 OMNITRONIC UHF-400 BP Transmitter 805 MHz No. 13055490 OMNITRONIC UHF-400 BP Transmitter 808 MHz No.
