Summary of Contents for NewAir AI-120S

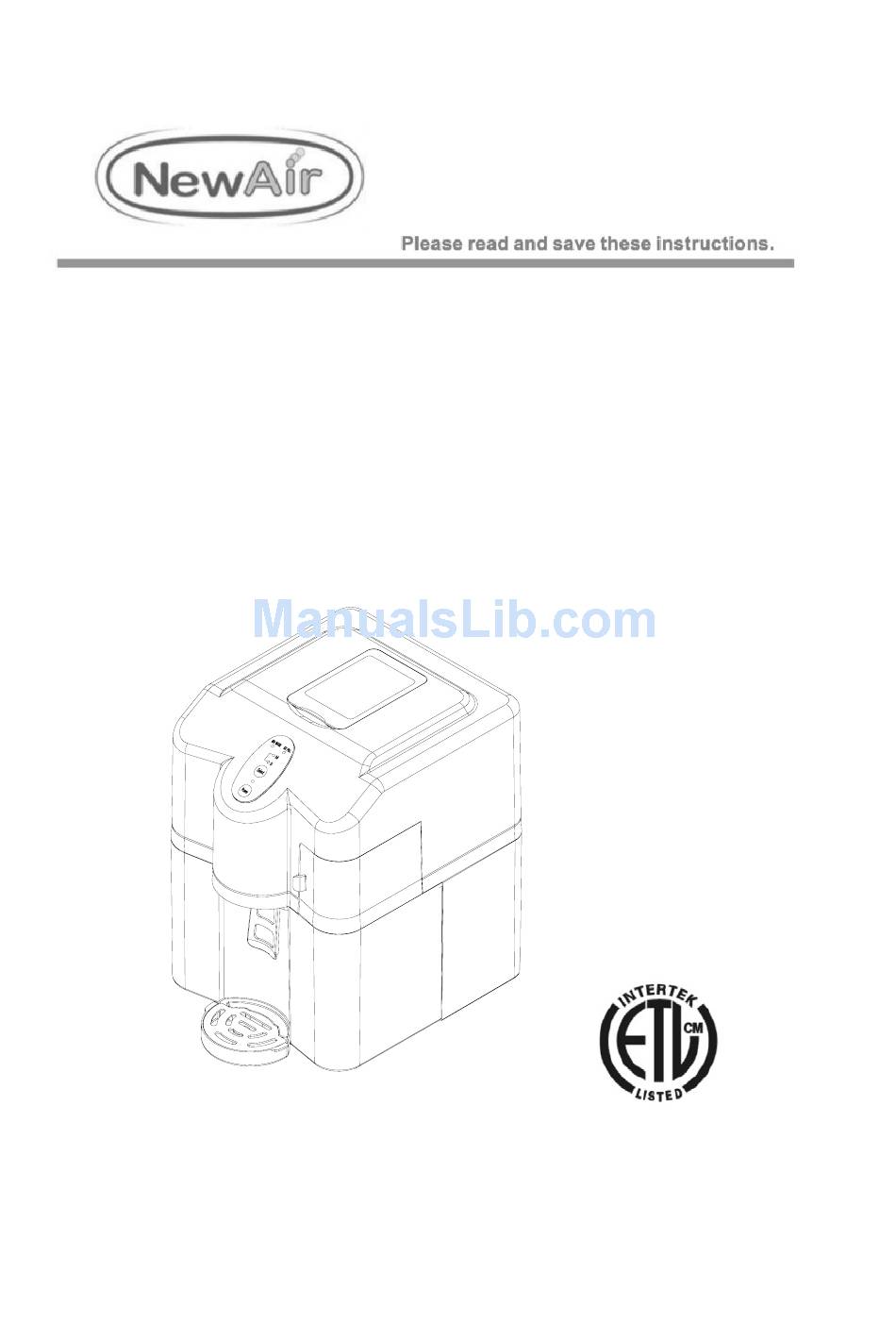

- Page 1 NewAir AI-120S Portable Ice Maker & Ice Dispenser Owner’s Manual ...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION 1: IMPORTANT SAFETY INSTRUCTIONS 1.1 General Safety Instructions…………………………………………………………………………………..……………. 1 1.2 Additional Safety Tips……………………………………………………………………………………………...………..2 SECTION 2: GETTING TO KNOW YOUR PORTABLE ICE MAKER 2.1 List of Main Parts…………………………………………………………………………………………………………..…... 3 2.2 The Control Panel……………………………………………………………………………………………………..……..… 4 SECTION 3: PREPARING YOUR ICE MAKER FOR USE 3.1 Unpacking Your Ice Maker……………………………………………………………………………………………….. -
Page 3: Section 1: Important Safety Instructions
SECTION 1: IMPORTANT SAFETY INSTRUCTIONS 1.1 General Safety Instructions Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Please carefully read and obey all safety messages. This is the safety alert symbol: This safety alert symbol and the words “DANGER” or “WARNING” will precede all safety messages. Failure to comply with safety instructions could result in personal injury and/or property damage. ... -
Page 4: Additional Safety Tips
1.2 Additional Safety Tips As with any electrical appliance, basic safety precautions must be followed in order to reduce the risk of fire, electrical shock and/or injury to persons or property. Please read all instructions before using this appliance and observe the following safety tips: • Do not operate this appliance if it has a damaged cord. • Only connect the ice maker to a properly polarized outlet. No other appliance should be plugged into the same outlet. Also make sure the plug is fully inserted into the receptacle. • Do not place hands or objects on or near the ice maker’s evaporator when it is in operation. • Do not cover the power cord or run it under carpeting or heat insulators. Keep the cord away from high traffic areas and never submerge it in water. • Always turn off and unplug the ice maker from the power supply before cleaning or servicing. • Close supervision is necessary if the ice maker is used near children. • If the ice maker has been previously stored or used in cool temperatures, allow the unit to warm up to your room’s temperature for a few hours before plugging it in. • Do not clean your ice maker with flammable fluids. The fumes can create a fire hazard or cause an explosion. ... -
Page 5: Section 2: Getting To Know Your Portable Ice Maker
SECTION 2: GETTING TO KNOW YOUR PORTABLE ICE MAKER 2.1 List of Main Parts 1. Water drip tray 2. Water drip tray cover (also used to support the ice container) 3. Water drainage cap 4. Water drainage port 5. Ice dispensing lever 6. -
Page 6: The Control Panel
2.2 The Control Panel A ADD WATER (Tank Empty) Indicator B ICE FULL Indicator C Cube Size Indicator (Large / Small) D Cube Size Selector Button E POWER ON Indicator F POWER ON / OFF Button ... -
Page 7: Section 3: Preparing Your Ice Maker For Use
SECTION 3: PREPARING YOUR ICE MAKER FOR USE 3.1: Unpacking Your Ice Maker 1. Remove the ice maker’s exterior and interior packaging, and remove any tape from the unit. Do not discard the unit’s box. Keep it for future storage purposes. 2. Check to make sure the components shown in the list of main parts are included (see Section 2.1). 3. Clean the interior with lukewarm water and a soft cloth. 4. Find a location for your ice maker that is positioned away from direct sunlight and other heat sources such as stoves, furnaces and radiators. 3.2 Electrical Hazards This appliance requires a standard 115 volt, 60 Hz electrical outlet. Consult a certified electrician for any questions regarding power and/or grounding issues. Please Note: Improper use of the grounded plug can result in electric shock. Do not use this ice maker if the power cord is damaged. ... -
Page 8: Section 4: Using Your Ice Maker
SECTION 4: USING YOUR ICE MAKER 4.1 How to Start the Unit 1. Open the water reservoir access door and pour clean drinking water into the water reservoir. Keep the water level below the “MAX” water level mark. Fill water here Maximum Water Level... -
Page 9: Draining Your Ice Maker
4.3 Draining Your Ice Maker 1. Empty the water reservoir before cleaning the unit’s interior. To do this, first disassemble the water drip tray and unplug the water drainage cap. The water will flow out from the unit completely. Disassemble the water drip tray Unplug the drain cap 2. Change the water in the water reservoir every 24 hours. If the unit will not be in use for an extended period of time, drain all of the water left in the water reservoir. SECTION 5: OPERATING YOUR ICE MAKER 5.1 Operating Your Ice Maker 1. Clean the ice maker’s interior (water reservoir, ice shaft, etc.) with lukewarm water and a soft cloth. 2. Position your ice maker away from direct sunlight and other heat sources such as stoves, furnaces and radiators. Place the ice maker on a flat, level surface and make sure there is at least 6 inches of space in between the back and sides of the ice maker and the wall. 3. Allow the refrigerant inside the ice maker’s cooling system to settle for approximately one hour before plugging your ice maker in for the first time. 4. Make sure the ice maker’s plug is fully accessible. ... -
Page 10: Cleaning And Maintaining Your Ice Maker
DANGER Improper use of the grounded plug can result in electric shock. If the power cord is damaged, please contact customer service. 1. This unit’s plug should be properly grounded for your safety. The power cord is equipped with a three‐prong plug which is compatible with standard three prong wall outlets to minimize the risk of electric shock. 2. This appliance requires a standard 115volt, 60Hz electrical outlet with a three‐prong ground. 3. Plug the ice maker into a dedicated, grounded wall outlet. Do not, under any circumstances, remove the third (grounded) prong from the power cord. Direct any questions concerning power and/or grounding to a certified electrician. 5.2 Cleaning and Maintaining Your Ice Maker It strongly recommended that you clean your ice maker before use. To properly clean your ice maker, follow these instructions: 1. Unplug the unit from the power supply. 2. Place a small container or receptacle under the drainage port and clean the interior with diluted detergent, warm water and a soft cloth. First pour the warm water with diluted detergent into the internal water reservoir and then into the space below the clear viewing window. 3. Use this water and detergent solution to clean the rest of the ice maker’s interior and drain out the water by unplugging the drain cap located on the bottom of the unit. Dry the interior with a soft cloth. 4. Use warm water and diluted detergent to clean the exterior of the ice maker. Dry the exterior with a soft cloth. 5. If the ice maker will not be in use for an extended period of time, open the drain cap and drain out all of the water from the water reservoir. ... -
Page 11: Section 6: Troubleshooting
SECTION 6: TROUBLESHOOTING Problem: Possible Cause(s): Solution(s): Turn off the ice maker, fill it The “ADD WATER” indicator There is not enough water in the water and press the “POWER” light is on. water reservoir. button again to restart the unit. There is too much ice in the The “ICE FULL” indicator is on. Remove ice from the ice basket. machine. Turn off the ice maker and restart it once the ice melts. The ice cycle is taking too long. Select small size ice cubes for the next cycle. The ice cubes stick together. Change the water in the inner The water temperature in the tank. For best results, use water inner tank is too cold. that is between 45°F-90°F. The clear viewing window is Close the clear viewing window. open. There are ice cubes inside the machine, but the ice maker Release the ice dispensing lever won’t dispense ice cubes. The moving ice shaft is blocked. for 3 seconds, and then try pushing it again. Move the ice maker to an area Either the ambient temperature with an ambient temperature or the water temperature in the ... -
Page 12: Section 7: Detailed Parts Diagram
SECTION 7: DETAILED PARTS DIAGRAM Parts List Parts Diagram... -
Page 13: Section 8: Electrical Diagram
SECTION 8: ELECTRICAL DIAGRAM Motor For ELECTRICAL DIAGRAM Start Relay Ice shovel ICE-MAKER with automatic ice-cube dispenser WATER ICE COMPRESSOR Solenoid LED3L Valve Overload LED2S Protector POWER POWER VALVE MOTOR COMP SUPPLY AC-N F3.15A ON/OFF Relay Relay Relay OPERATION PCB AC-L DC Water Pump MAIN CONTROL PCB PUMP Relay...
