AUDIO CONNECTIONS

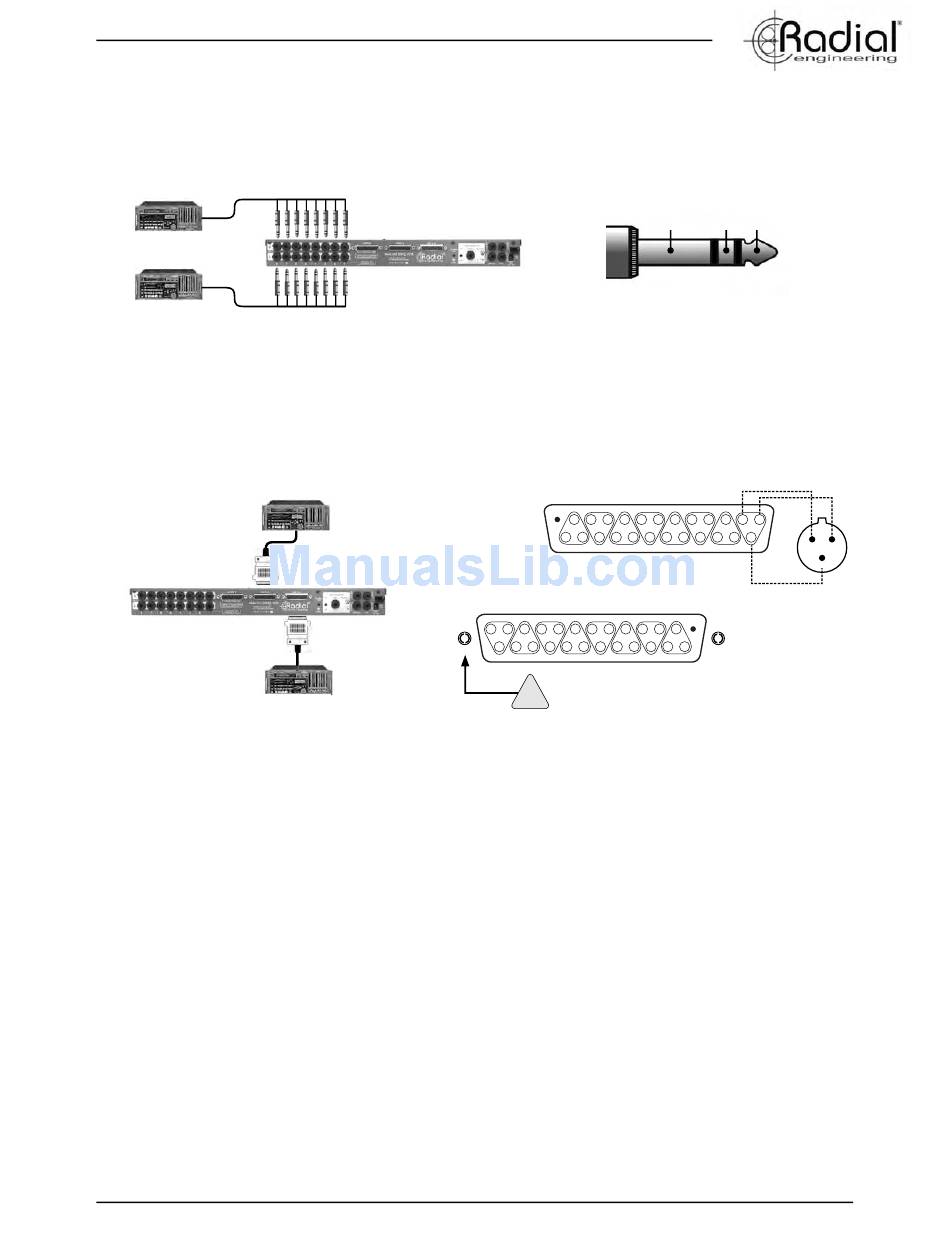

The SW8 is designed to receive line-level signals from two multi-track playback systems. Connection from each multi-track machine is
made with either eight ¼" phone jacks or DB25 D-SUB connectors. Input signals may be +4dB / -10dB, balanced or unbalanced.
¼" Phone Jacks
Playback B
(Backup)
Playback A
DB25 D-SUB Pin Out
The DB25 connectors use the TASCAM pin-out confi guration for eight channel analog audio. See the pin-out chart for reference. This
pin-out chart also appears on the rear panel. NOTE: The lock-down screws used on the D-Sub connectors use "American standard"
(SAE) threads. D-Sub connectors equipped with metric threads should not be used.
Playback B
Playback A
Radial Cable Reference
Radial manufactures a range of D-SUB cables that will interface the SW8 with a wide variety of equipment. Available with Radial
Torsion or Mogami EZ-ID multi-pair snake cables in your choice of end termination and length.
RADIAL 8-CHANNEL D-SUB CABLE
D-Sub ~ 8 x XLR - Male
Order #
R461 0808 03
R461 0816 03
R461 0824 03
D-Sub ~ 8 x XLR - Female
R461 0808 00
R461 0816 00
R461 0824 00
D-Sub ~ 8 x ¼" TRS
R461 0808 01
R461 0816 01
R461 0824 01
D-Sub ~ D-Sub
R461 0808 02
R461 0816 02
R461 0824 02
Radial Engineering Ltd.
(Backup)
L
8'
16'
24'
8'
16'
24'
8'
16'
24'
8'
16'
24'
Ground
Female DB-25 Pin-out (Panel View)
13
- -
+ +
G G
2 4
1 3
- -
+ +
G G G
Male DB-25 Pin-out (Cable View)
+ - + - + - +
G G G G
8 6 4 2
7 5 3
- - - -
+ + + +
G G G
American standard SAE
!
lock-down screws.
MOGAMI 8-CHANNEL D-SUB CABLE
D-Sub ~ 8 x Male XLR
Order #
R451 0808 03
R451 0816 03
R451 0824 03
D-Sub ~ 8 x Female XLR
R451 0808 00
R451 0816 00
R451 0824 00
D-Sub ~ 8 x ¼" TRS
R451 0808 01
R451 0816 01
R451 0824 01
D-Sub ~ D-Sub
R451 0808 02
R451 0816 02
R451 0824 02
-
+
- -
+ +
G G
6 8 8
5 7
- -
+ +
G
1 2
3
13
-
1
G
L
8'
16'
24'
8'
16'
24'
8'
16'
24'
8'
16'
24'
