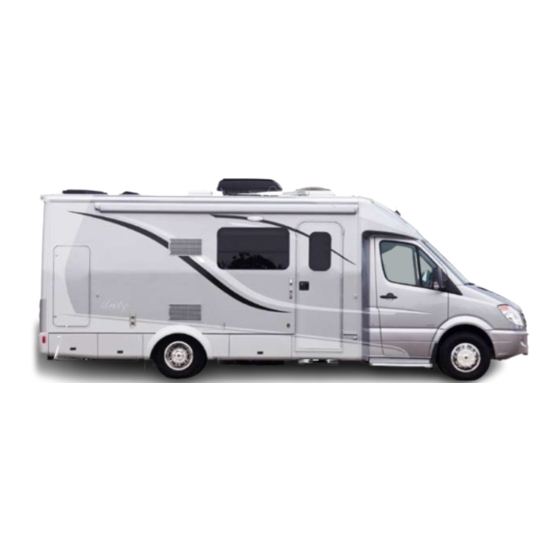

unITY MOTOrHOMe
OWner's Manual

Advertisement

Table of Contents
loading

Related Manuals for Leisure Unity

Summary of Contents for Leisure Unity

  • Page 1 MOTOrHOMe OWner's Manual...
  • Page 2 Triple E Recreational Vehicles and Leisure Travel Vans are brands and trademarks of Triple E Canada Ltd. 301 Roblin Blvd., Box 1230 Winkler, MB Canada R6W 4C4 Telephone: 204-325-4361 Fax: 204-325-5241 US Address: P.O. Box 68 Walhalla, ND 58282 www.tripleerv.com • info@tripleerv.com • www.leisurevans.com • general@leisurevans.com Product improvement is a continuing process at Triple E Recreational Vehicles.

  • Page 3: Table Of Contents

    Contents Unity Motorhome Table of Contents Introduction Severe Weather Information Owner’s Manual Emergencies While Driving Hazard Warning Lights Motorhome Information Kit Flat Tire Options and Equipment When the Vehicle is Disabled Vehicle Certification Labels Overheating Reference Number Codes: Parking Service Assistance...
  • Page 4 Unity Motorhome Contents Black Water - Waste Holding Tank Murphy Bed Murphy Bed Manual Lift Procedure Dumping Holding Tanks Seating / Sleeping Black Water Waste Tank Rinse Macerator Electrical System Operation Do’s and Don‘ts - Holding Tanks Electrical Supply Using On-Site Sewer Hook-Ups...

  • Page 5: Introduction

    This manual was prepared to aid the operator in the operation and care of the motorhome. There are many options to Leisure Travel Vans, so ensure that you are familiar with your motorhome’s systems and equipment. All operators and occupants of the motorhome should read, understand and follow the instructions in this manual, the vehicle chassis manual &...

  • Page 6: Motorhome Information Kit

    Unity Motorhome Introduction Motorhome Information Kit The information kit includes information on the following components, equipment and appliances listed below. Refrigerator Smoke Detector Stabilizers Stove top Thermostat Rearview Monitor Furnace CO Detector Inverter Electrical Panel Propane Detector Entertainment System Toilet...

  • Page 7: Vehicle Certification Labels

    Introduction Unity Motorhome Vehicle Certification Labels The vehicle certification labels contain vehicle identification and other important reference information. Never remove or destroy these labels. The labels are located on the driver & passenger door frames. See location details on the following page.
  • Page 8 Unity Motorhome Introduction Located in the back of owners manual and on passenger door frame (US models only) Located in wardrobe closet (all models) Located on drivers door frame (Canada models only) Located on passenger door frame (US models only)
  • Page 9 Introduction Unity Motorhome Slide Out Room Air Conditioner Roadside View Diesel Fill 120 V Shore Power Connection Water Heater Utility Center Rear Camera Diesel Exhaust Fluid Tank (DEF) Located under hood - passenger side Front View Rear View Curbside View...

  • Page 10: Service Assistance

    Reporting Safety Defects If you believe that your Motorhome has a safety defect of any kind that could cause injury, or death, contact Leisure Travel Vans immediately. Also, contact the National Highway Traffic Safety Administration (NHTSA) in the US, or Transport Canada to report your concern.
  • Page 11 Introduction Unity Motorhome 1-10...

  • Page 12: Safety

    Unity Motorhome Safety Safety Safety, comfort and ease of operation are key considerations during the design and manufacture of all Triple E Motorhomes. It is the responsibility of the owner or operator to read, understand, and follow all instructions in this manual, the chassis manual and any appliance/equipment system manuals located in the information kit and from safety signs on the Motorhome.

  • Page 13: Alarms

    Safety Unity Motorhome Alarms All models are equipped with an LP gas and combined carbon monoxide/smoke alarm as standard safety equipment. Caution Recurring alarm(s) indicate the slow accumulation of LP gas, carbon monoxide, smoke, or low battery levels. Have an authorized service center check the system and identify the source.

  • Page 14: Combination Carbon Monoxide/Smoke Alarm

    Open doors, vents and windows to air out vehicle and silence the alarm. Correct and eliminate smoke source. Warning Leisure Travel Vans strongly recommends that Carbon Monoxide gas is an odorless and colorless gas the alarm be tested prior to each motorhome use. that is lethal to people.

  • Page 15: Fire Prevention

    Safety Unity Motorhome Fire Prevention Fires can be started in a variety of ways including but not limited to careless smoking, malfunction of appliances or equipment, flammable material on hot surfaces, etc. Fires are best prevented rather than put out. Prevent but anticipate what to do if they occur.

  • Page 16: Emergency Escape

    Unity Motorhome Safety Function Fire extinguishers are designed to put out a fire in its initial stages. Once a fire is out of control and you cannot get within 10 feet (3 m), it is too big to fight with your extinguisher.

  • Page 17: Vehicle Operation

    Keep a record of all key code numbers and keep them in a safe place - not in your Motorhome. Key codes on the Unity/Sprinter models can only be obtained through your local authorized Sprinter dealer. Vehicle Loading and Weights...

  • Page 18: Towing

    Unity Motorhome Vehicle Operation Caution Total vehicle load should NOT exceed the respective maximum GVWR/GAWR/GCWR of the chassis. Towing Towing a trailer can affect the handling, durability, performance and economy of your Motorhome. The factory installed certified class 3 towing hitch is rated for: A.

  • Page 19: Pre-Trip Inspection

    Vehicle Operation Unity Motorhome Pre-Trip Inspection Ensure the Motorhome and all of its components, devices, systems and subsystems are serviced and ready for travel. Inspect wheel lugs for tightness. Examine tires for road damage and wear. Ensure that all tires are inflated to proper pressure.

  • Page 20: Emergency Equipment Checklist

    Unity Motorhome Vehicle Operation Emergency Equipment Checklist Use this list as a guide to identify the minimum amount of emergency or safety equipment. Take extra provisions as appropriate for your travel or personal needs. First Aid Kit Emergency Flares Toolbox and Tools...

  • Page 21: Seat / Shoulder Belts

    Vehicle Operation Unity Motorhome Seat / Shoulder Belts Every occupant must be seated in an approved seat with the belt fastened whenever the Motorhome is in motion. Accident statistics prove the importance of using seatbelts. Vehicle occupants not seated in an approved seat and restrained with a seatbelt are likely to suffer more injuries of a more serious nature than those properly restrained.

  • Page 22: Driver / Passenger Seat Controls

    Unity Motorhome Vehicle Operation Warning Placing a child or child restraint system in a rear-facing or side-facing seat is not safe under any circumstances. Placing a child or child restraint system in a rear-facing or side- facing seat is not safe under any circumstances.

  • Page 23: Travelling

    Vehicle Operation Unity Motorhome Lumbar Support Turn the knob (1) clockwise or counter-clockwise to suit your comfort needs. Back Rest Adjustment Turn the knob (2) clockwise or counter-clockwise to finely adjust the tilt of the back rest. Back Rest Tilt Pull the lever (3) up and hold to release the position lock.

  • Page 24: Driving Safety Tips

    Unity Motorhome Vehicle Operation High Wind Handling High winds, or strong gusting winds may lead to unpredictable handling and control of the Motorhome. When high winds, or strong gusting are encountered: ● Slow way down so that you can maintain control of your Motorhome.

  • Page 25: Travel Tips

    Vehicle Operation Unity Motorhome Maintain proper charge in the fire extinguisher. LP Gas and smoke detectors should not be obstructed and should be in working order at all times. Keep a well stocked first aid kit handy. Check tires often while travelling. Make it a habit to check tire pressures before each trip, and each time you refuel.

  • Page 26: Emergencies While Driving

    Unity Motorhome Vehicle Operation Be alert! Thunderstorms and heavy rains can occur suddenly and unexpectedly. Listen frequently to weather reports for the area in which you are camping or travelling so that you will not be caught unaware a sudden change in the weather.

  • Page 27: When The Vehicle Is Disabled

    Vehicle Operation Unity Motorhome Never allow any portion of anyone’s body or extremities to be under the Motorhome at any time during jacking or while jacked. Before resuming travel with a new or repaired tire, ensure the lug nuts are tightened in the proper sequence and to the specified torque as set out in the chassis manual.

  • Page 28: Parking

    Unity Motorhome Vehicle Operation Parking Parking The Motorhome can be stopped and parked much like an automobile. However always remember that the unit is longer, wider and higher than a typical automobile and more room and clearance must be provided.

  • Page 29: Stabilizers

    Vehicle Operation Unity Motorhome Prolonged Occupancy Your Motorhomes is designed for recreational and short term occupancy. In case of extended occupancy there are a few things to keep in mind regarding humidity and condensation. Excessive moisture released inside the Motorhome can cause water stains and mildew on the upholstery, the wall materials and the woodwork.

  • Page 30: Refuelling Of Vehicle Chassis

    Unity Motorhome Vehicle Operation Refuelling of Vehicle Chassis Warning Make sure all LP gas tanks and appliances are shut off before refuelling. Do not smoke when refuelling. Keep flames, sparks and smoking material away from fuel or flammable fumes. Caution Modern fuel systems may cause pressure to build up in the fuel tank during hot weather.

  • Page 31: Door Locks

    Vehicle Operation Unity Motorhome Door Locks Separate keys are required for the chassis and motorhome door locks. The coach entrance door is equipped with two interior locks. Lock (1) secures the exterior & interior door handles, lock (2) is a door dead lock.

  • Page 32: Step Cover

    Unity Motorhome Vehicle Operation Step Cover When the coach door is closed a hinged plate (1) can be lowered, by releasing the latch (2). This plate covers the steps, providing a safe and level floor area (select models only). Slide Out Room...
  • Page 33 Vehicle Operation Unity Motorhome there are no obstructions on the floor or leaning against the walls. Close all cabinet doors. Check the exterior of the unit to ensure all baggage doors are closed and all obstructions are removed. Make sure...

  • Page 34: Slide Out Room Emergency Operation

    Unity Motorhome Vehicle Operation Slide Out Room Emergency Operation In the event that the slide out room fails to operate electrically, the slide out room may be manually extended and retracted. NOTICE The slide out electrical function is protected by fuse located on the power converter panel.

  • Page 35: Awning

    Vehicle Operation Unity Motorhome Awning Extending the Awning Depress and hold the awning switch (1), Located on passenger side seat base, in the “OUT” (extend) position until the awning has extended far enough to reach the lead rail (2). Unlock the right support leg (3) by lifting the latch (4).
  • Page 36 Unity Motorhome Vehicle Operation Rotate the support leg (1) 90 degrees and swivel the support leg down. Lift the retaining pin (2) on the coach awning support bracket and insert the support foot plate (3). Allow the retaining pin (2) to drop down to lock the foot plate in place.

  • Page 37: Appliance And Equipment Operation

    Appliance & Equipment Operation Unity Motorhome Appliance and Equipment Operation Appliance and equipment may vary according to the particular model of Motorhome, specifications and floorplan. Consult the information kit for operation and maintenance details for the specific appliances and equipment fitted to your Motorhome.

  • Page 38: Stove Top

    Unity Motorhome Appliance & Equipment Operation Stove Top The stove top operates on LP gas. It must be lit manually using the integrated igniter. Make sure that the LP gas valve switch (1) located in the rear utility center is turned “ON.”...

  • Page 39: Lp Gas Furnace

    Appliance & Equipment Operation Unity Motorhome LP Gas Furnace Operation The LP gas furnace is controlled by the single zone thermostat (1) located in the coach living area. Warning Before operating the thermostat, carefully read and follow the operating instruction in the LP gas furnace manual located in the information kit.

  • Page 40: Roof Air Conditioner With Heat Pump Cooling

    Unity Motorhome Appliance & Equipment Operation Roof Air Conditioner with Heat Pump Cooling The roof air conditioner (1) is controlled by the same coach thermostat which controls heating (see previous page for details). When the thermostat is switched to the “cool” position and the temperature is set below the current room temperature, the air conditioner will automatically turn on.

  • Page 41: Coach Power Roof Vent

    Appliance & Equipment Operation Unity Motorhome Coach Power Roof Vent The coach power roof vent is utilized to provide a controlled air flow throughout the coach cabin. Use the vent fan in conjunction with an open window to provide a flow of fresh air.

  • Page 42: Shower Cubicle Roof Vent

    Unity Motorhome Appliance & Equipment Operation Shower Cubicle Roof Vent The shower cubicle roof vent is utilized to provide air flow and venting when the shower is being used. Operation Controls Vent Hood Height Control The rotary knob (1) Controls the height position of the vent hood.
  • Page 43 Appliance & Equipment Operation Unity Motorhome The TV is stored in the following locations. Island and Twin Bed Floorplans The TV is stored in the coach dividing wall (1) and is accessed by pressing the pop-out latch button (2) and pulling out the TV cabinet draw.

  • Page 44: Tv Utility Panel

    Unity Motorhome Appliance & Equipment Operation TV Utility Panel The TV utility panel, located in the coach living area, is equipped with a TV antenna booster switch (1), an AV input connector (2) and a 12 volt DC power supply outlet (3).

  • Page 45: Radio Switch

    Appliance & Equipment Operation Unity Motorhome Radio Switch Depress the top of the dash radio switch (1) to provide power to the entertainment system. NOTICE Turn “OFF” the radio switch whenever possible. If the radio button is left “ON” the chassis battery will drain even if the entertainment system is turned off.

  • Page 46: Murphy Bed

    Unity Motorhome Appliance & Equipment Operation Murphy Bed Lowering the Bed Lower stabilizer jacks (if so equipped). Visually inspect the outside surroundings, making sure there is ample room for the slide out to extend. Extend the slide out room as detailed in “Vehicle Operation.”...
  • Page 47 Appliance & Equipment Operation Unity Motorhome U-Lounge Floorplan Remove the table top and table leg by pressing the release button (1) on the base plate. (The leg is stored in the front wardrobe closet) Place the table between the seats so it rests on the supports.(2)

  • Page 48: Murphy Bed Manual Lift Procedure

    Unity Motorhome Appliance & Equipment Operation Murphy Bed Manual Lift Procedure If the Murphy bed electric raise and lower function fails to operate the bed can be raised and lowered manually following the procedure below. Extend the slide out room and prepare the interior for lowering the bed.

  • Page 49: Seating / Sleeping

    Appliance & Equipment Operation Unity Motorhome Seating / Sleeping (Varies according to Floorplan) Removable Table Assembly Locate the table legs (long) and table top, stored in the bedroom cabinet / bed base. Engage the legs into the floor plates (1) and install the table top onto the legs.
  • Page 50 Unity Motorhome Appliance & Equipment Operation Twin Bed Conversion Fold out the cushion support (1). Insert the two cushions (2), stored below the bed cabinet. 1-49...

  • Page 51: Electrical System Operation

    Electrical System Operation Unity Motorhome Electrical System Operation Electrical Supply This Motorhome is equipped to operate with two electrical systems operating on separate voltages. An internal 12 volt DC system (coach batteries) and an external 120 volt AC system (shore power.) The 12 volt DC System draws its power from either the engine’s battery and charging system while driving or from the...

  • Page 52: System Monitor

    Unity Motorhome Electrical System Operation System Monitor The system monitor panel, located in the locker above the coach entrance doorway, monitors the following systems: Water Heater Switch (1) This switch controls the power to the water heater. Press the top of the switch to turn the water heater “ON” and bottom to switch “OFF.”...

  • Page 53: Volt Ac System

    Electrical System Operation Unity Motorhome 120 Volt AC System When connected to 120 volt AC (shore power) such as that provided by most campgrounds or when running your 120 volt generator, the converter charges the coach batteries which provides 12 volt power. All equipment normally powered by the battery 12 volt DC power is then powered through the converter, preventing drain on the coach battery.

  • Page 54: Ground Fault Circuit Interrupter (Gfci)

    Unity Motorhome Electrical System Operation Ground Fault Circuit Interrupter (GFCI) Various outlets in the Motorhome, particularly those near sinks and water supplies, are connected to a GFCI which is a very sensitive circuit breaker that will protect you from electrical shock if a ground fault develops. If and when this breaker trips, unplug all appliances on that circuit and press the reset button (1) on the outlet.

  • Page 55: Auxiliary Diesel Generator (Optional)

    Electrical System Operation Unity Motorhome NOTICE The generator starter draws current from the coach batteries so the ignition does not have to be on. The LP gas generator control panel (1) is located on the overhead cabinet above the entrance door.

  • Page 56: Generator Safety

    Unity Motorhome Electrical System Operation Generator Safety Electrical Warning Extreme care and caution should be exercised when handling the generator and its components. Carelessness can be dangerous and even fatal. Never touch any electrical leads, equipment or appliances when your hands are wet or when you are standing on wet ground or in water.

  • Page 57: 12 Volt Dc System

    Electrical System Operation Unity Motorhome 12 Volt DC system The 12 volt DC power voltage system in your Motorhome consists of two separate but connected battery systems: Chassis battery - located under drivers side cab floor (not shown). Coach batteries - (1) located below a lift-up panel in the coach doorway.
  • Page 58 Unity Motorhome Electrical System Operation Disconnect the battery cables during long periods of storage. Hook up a battery charger at least once a month during long periods of storage, or connect the 120 volt AC shore line to a suitable power source. When using shore power to charge the coach batteries, the battery disconnect switch must be on.

  • Page 59: Inverter

    Electrical System Operation Unity Motorhome Inverter Your Motorhome is equipped with an inverter (1). The inverter, located in a coach cabinet (location varies according to coach floorplan) takes 12 volt DC power from the coach batteries and inverts it to 120 volt AC power.

  • Page 60: Lighting Maintenance

    Unity Motorhome Electrical System Operation Lighting Maintenance The following procedures detail replacement of the coach interior and exterior light bulb/light fittings. Caution Disconnect the chassis and coach batteries before carrying out maintenance on the lighting system. Exterior Lighting Upper Running Lights (1) - NOTE: This is a sealed LED unit and must be replaced as complete unit.
  • Page 61 Electrical System Operation Unity Motorhome Interior Lighting Cabin lights Lights (1) - NOTE: This is a sealed LED unit and must be replaced as complete unit. Unclip the lens cover (2), remove the two screws (3) and pull the light fitting out of the bodywork to gain access to the fitting connectors.

  • Page 62: Water / Plumbing System

    Unity Motorhome Water / Plumbing System Water / Plumbing System Electrical Supply Your Motorhome is designed with fresh water, grey water and black water systems, and associated plumbing to handle all of the water and waste requirements. Review this section carefully to understand each system and how they function together.

  • Page 63: Fresh Water Tank Filling

    Water / Plumbing System Unity Motorhome Disconnecting Turn “OFF” the city water supply. Relieve water pressure in the line by opening a faucet in the Motorhome. Disconnect the hose from the city water connection (1). Replace the protective plug back over the city water connection.

  • Page 64: Water Pump Switch

    Unity Motorhome Water / Plumbing System Water Pump Switch When the water pump switch (1) is in the “ON” position, the water pump will automatically activate when any faucet, shower, or toilet is being used. It is recommended that the pump switch be turned off whenever leaving the Motorhome for any period of time or while driving.

  • Page 65: Water Pump Initial Startup

    Water / Plumbing System Unity Motorhome Water Pump Initial Startup Make sure all drain valves are closed. Turn the water pump switch (1) “OFF.” Fill the water tank. Open the faucets, both hot and cold. Turn the water pump switch (1) “ON.”...

  • Page 66: Disinfection Of Water Tank

    Unity Motorhome Water / Plumbing System Disinfection of Water Tank It is recommended that fresh water systems be periodically disinfected. Disinfection is required When the system is new and has not been used or vehicle has been in storage for a long period of time.

  • Page 67: Black Water Waste Tank Rinse

    Water / Plumbing System Unity Motorhome compartment (1) (island & twin bed floorplans) or below the slide out (2) (corner & Murphy bed floorplans). NOTE: The slide out must be extended to gain access to the sewer hose. Pull out the black tank (3) and grey water tank (4) dump valve handles in turn.

  • Page 68: Macerator

    Unity Motorhome Water / Plumbing System Macerator Your Motorhome may be equipped with a macerator (1). The macerator breaks down the black water holding tank solid. To operate the macerator: Extend the macerator waste hose (2) stored in the driver’s side rear exterior compartment and connect to a sewer hook-up.

  • Page 69: Water Heater

    Water / Plumbing System Unity Motorhome Water Heater Operation The water heater is designed to operate using LP gas or 120 volt AC power. The water heater is accessible from both the outside and the inside of the coach. To operate on 120 volt AC power Remove the water heater exterior cover (1) by releasing the latch (2).

  • Page 70: Water Heater Bypass Valve

    Unity Motorhome Water / Plumbing System Caution Do not touch the water heater canister or the burner exhaust vent. These components are extremely hot and contact can cause serious burns. The water heater is also equipped with a temperature cut-off device in case the water temperature exceeds the preset limit.

  • Page 71: Water Heater Bypass Valve

    Water / Plumbing System Unity Motorhome Water Heater Bypass Valve The water heater valve (2) controls the water heater plumbing circuit setting for normal or winterize operation. Turning the valve to point to “NORMAL FLOW” diverts the flow of water into the water heater, while turning the valve to point to “WINTERIZE”...

  • Page 72: Water Fixtures

    Unity Motorhome Water / Plumbing System Water Fixtures Fresh Water Toilet The toilet in your Motorhome is very much like the one in your home except that it uses a much smaller amount of water for flushing. Your Motorhome is equipped with either of the following toilet options.
  • Page 73 Water / Plumbing System Unity Motorhome Normal Flush - Press and release button (6) to flush solids and toilet paper. Empty Bowl - Press both buttons (5 & 6) simultaneously and release to empty bowl and leave it dry for travel.

  • Page 74: Liquid Propane Gas System

    Warning These instructions are provided as a general guideline only. To ensure proper service and safety, always take your Motorhome to an authorized Leisure Travel Vans Dealer service center. LP Valve Gas Control (Utility Center) The switch (1) opens and closes the LP gas valve. If there is no 12 volt DC power available in the Motorhome, the LP gas valve will automatically close.

  • Page 75: Selecting Fuel Types

    Liquid Propane Gas System Unity Motorhome Selecting Fuel Types Butane burns at a much higher temperature than propane but will not change from a liquid to a gas at temperatures below 32 °F - 0 °C. Propane, on the other hand, burns at a lower temperature and will continue to convert from a liquid to a gas at temperatures as low as -40 °F or -40 °C.

  • Page 76: Air In The Lp Gas Tank

    Unity Motorhome Liquid Propane Gas System Danger Do not smoke when refuelling. Keep flames, sparks and smoking material away from fuel or flammable fumes. Warning ● Never overfill the LP gas tank. Make sure your Motorhome is level when filling the tank.

  • Page 77: Lp Gas Leaks

    Liquid Propane Gas System Unity Motorhome NOTICE Travelling with LP Gas In some jurisdictions it is illegal to transport LP gas on certain roads or through tunnels. Check state or provincial regulations to make sure your trip will not be halted or impeded unexpectedly as a result.

  • Page 78: Avoiding Asphyxiation

    Unity Motorhome Liquid Propane Gas System Danger IF YOU SMELL PROPANE Extinguish any OPEN flame, PILOT lights and all smoking material. DO NOT TOUCH Electrical switches. Shut off the PROPANE Supply at the tank valve(s) or propane supply connections. Open doors and other ventilating openings.

  • Page 79: Motorhome Maintenance

    Carefully inspect all caulking around windows, doors, and vents as well as all other joints. Re-caulk if necessary using the correct caulking material from your Leisure Travel Vans dealer. If you notice that water failing to bead on the surface of your Motorhome it is probably time to polish and wax it. This will not only improve the appearance of your Motorhome, but will protect the painted surfaces from oxidation and corrosion and make it easier to wash.

  • Page 80: Interior Care

    Unity Motorhome Motorhome Maintenance Interior Care Accumulations of dirt and dust not only detract from the appearance of the interior of your Motorhome but will shorten the life of the carpets and fabrics. Weekly cleaning and vacuuming is recommended. Carpets See manufacturer’s carpet care guide on how to clean soil, dirt and stains from the carpet.
  • Page 81 Motorhome Maintenance Unity Motorhome Refrigerator The cabinet interior should be cleaned regularly. Remove shelves and wash the lining with lukewarm water to which a mild soap may be added. Dry thoroughly, especially around door frame and door gasket. Warm water only should be used to wash the cooling evaporator, ice trays, and shelves.

  • Page 82: Storage And Winterization

    Unity Motorhome Storage & Winterization Storage and Winterization All systems, components and appliances should be inspected and repaired prior to storage. Storage Checklist Fill the Motorhome fuel tank to reduce excessive build up of moisture in the fuel tank. Check coolant level and add antifreeze if required, to protect to the lowest expected temperature during storage.
  • Page 83 DO NOT FLUSH NON-MACERATOR TOILETS AT THIS TIME. For Unity U24TB and U24CB only - With the compressed air line removed, deplete all air pressure from the water system by opening a faucet. Then depress the toilet flush lever while an assistant applies compressed air into the blow out plug.
  • Page 84 Unity Motorhome Storage & Winterization Winterization with Plumbing Non-toxic Antifreeze Make sure the water tank heater LP gas switch (1) is switched “OFF.” (not required with optional on demand water heater) Turn the hot water tank by-pass valve (2) to “BY- PASS.”...

  • Page 85: De-Winterizing The Water Systems

    Storage & Winterization Unity Motorhome De-Winterizing the Water Systems NOTE: Flush entire water system before filling the hot water tank. Refill the water tank with fresh city water. Turn the bypass valve, located in the utility center to the “NORMAL FLOW” position.

  • Page 86: Maintenance And Service

    Unity Motorhome Maintenance & Service Maintenance and Service TV Antenna The elevating mechanism of the TV antenna must be periodically lubricated by removing the plastic plug (1). Refer to the antenna manual in the information kit for details. LP Gas Tank Valve...
  • Page 87 Maintenance & Service Unity Motorhome Electric Steps The electric steps mechanism (1) requires periodic lubrication. Refer to the steps manual in the information kit for details. Murphy Bed Murphy mechanism requires annual lubrication. NOTE: The following lubrication points are located behind the bed head cover.

  • Page 88: New Vehicle Limited Warranty

    Unity Motorhome Warranty Policy NEW VEHICLE LIMITED WARRANTY TRIPLE E CANADA LTD. (Revised Feb. 2013) This New Vehicle Limited Warranty is the sole and only warranty applicable to your new Motorhome. This Warranty is issued by Triple E Canada Ltd., only, which is the manufacturer of your Motorhome. Triple E Canada Ltd., uses a variety of trade and/or division names in marketing or advertising its motorhomes.
  • Page 89 Warranty Policy Unity Motorhome Although the Warranty is extended only to the first retail purchaser of the Motorhome, the Warranty is transferable to the second owner of the Motorhome upon written request to Triple E RV received within thirty (30) days after sale and transfer of title to the Motorhome from its first retail purchaser to its second owner, accompanied by satisfactory proof of sale and transfer.
  • Page 90 Unity Motorhome Warranty Policy Your Warranty may be lost, restricted or limited if your Motorhome is not properly maintained in accordance with regularly-scheduled maintenance recommendations of both Triple E RV and any manufacturers of Components, and/or the chassis of your Motorhome. Your Warranty does not cover loss, defects or failures resulting from exposure to extreme conditions, including extremely cold weather.
  • Page 91 Warranty Policy Unity Motorhome 8. Questions about Warranty Services. You may contact the Triple E RV Warranty Department at its toll free number (1-877-992-9906) if you have a question about this Warranty or need assistance in locating an authorized service center or dealer or if you are dissatisfied with Warranty repairs.
  • Page 92 Unity Motorhome Notes Notes 1-91...
  • Page 93 Notes Unity Motorhome Notes 1-92...
  • Page 94 Unity Motorhome Notes Notes 1-93...
