INSTALLATION
INSTRUCTIONS
PARTS LIST

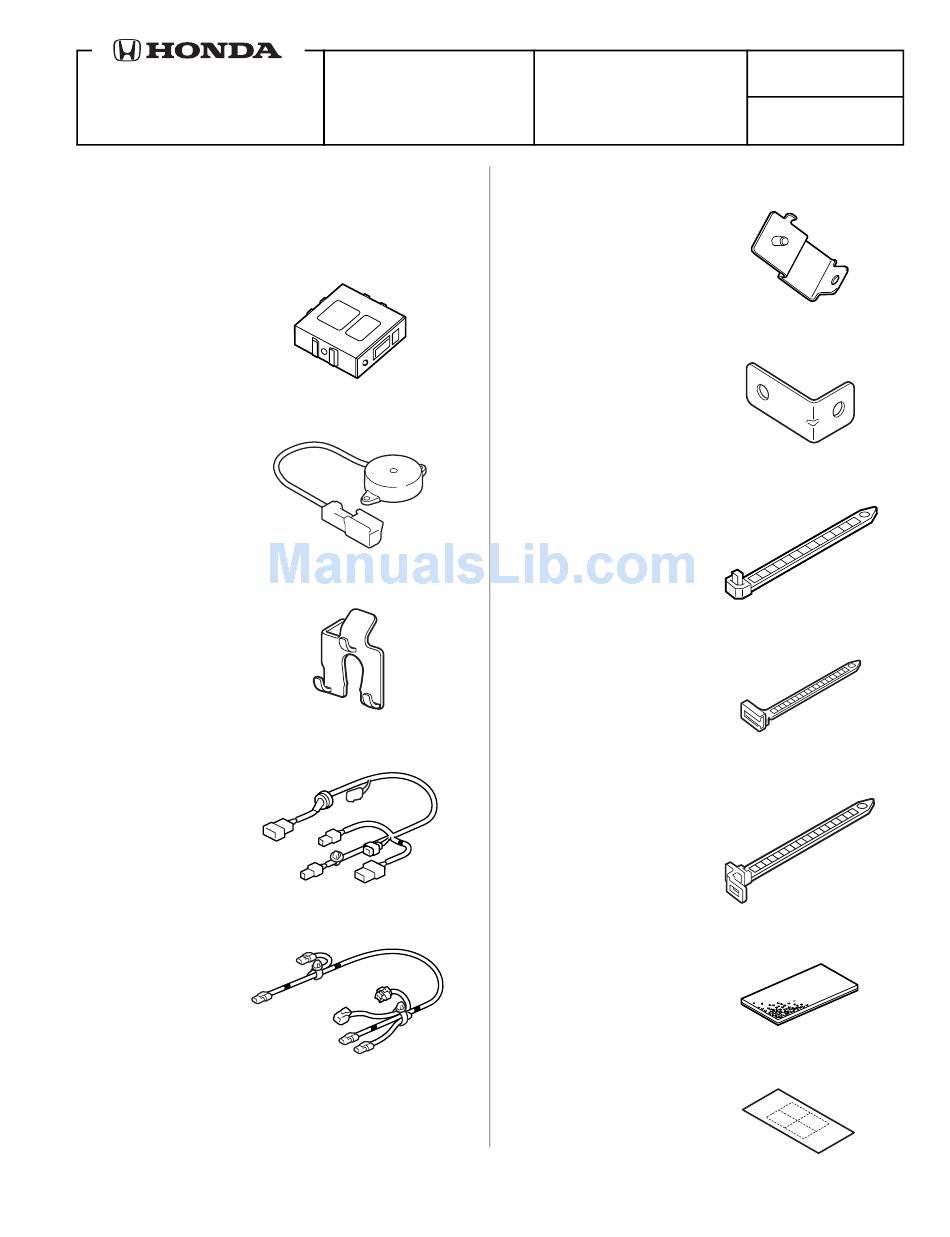

Back-up Sensor Attachment Kit
P/N 08V67-TE0-100A
Control unit
Beeper
4
Sensor clips
Back-up sensor harness
Back-up sensor subharness
© 2007 American Honda Motor Co., Inc. – All Rights Reserved.
Accessory
BACK-UP SENSOR
Control unit bracket (L4)
Control unit bracket (V6)
13 Wire ties
Wire tie with clip
2
Wire ties with holder
2
Urethane tapes
Fuse label
AII 37561-38377 (0711)
Application
AII 37561-38377
2008 ACCORD
2-DOOR
08V67-TE0-1000-91
Publications No.
Issue Date
NOV 2007
1 of 15
Advertisement
Related Manuals for Honda 08V67-TE0-100A
Summary of Contents for Honda 08V67-TE0-100A
- Page 1 INSTALLATION INSTRUCTIONS PARTS LIST Back-up Sensor Attachment Kit P/N 08V67-TE0-100A Control unit Beeper Sensor clips Back-up sensor harness Back-up sensor subharness © 2007 American Honda Motor Co., Inc. – All Rights Reserved. Accessory Application 2008 ACCORD BACK-UP SENSOR 2-DOOR Control unit bracket (L4)
-
Page 2: Tools And Supplies Required
Flange bolt, 6 x 12 mm Flange nut Harness tapes Accessory User’s Information Manual Back-up Sensor Kit P/N 08V67-TE0-100K Center sensors (Blue) Corner sensors 2 of 15 TOOLS AND SUPPLIES REQUIRED Phillips screwdriver Flat-tip screwdriver Ratchet 8 mm and 10 mm Socket Pushpin Drill 3 mm Drill bit... - Page 3 Disconnect the negative cable from the battery. Remove the two covers from the rear bumper and remove the rear bumper (two bolts, six self-tapping screws, two clips, and unplug one connector). NOTE: Have an assistant help you remove the rear bumper.
- Page 4 Using the trim tool, remove the rear shelf access panel, then release the front rear speaker retaining tab. LEFT REAR SPEAKER COVER Remove the left rear speaker cover (nine retaining tabs). 9 RETAINING TABS LEFT REAR SPEAKER COVER 4 of 15 10.
- Page 5 L4 Model 12. Install the control unit to the vehicle panel: • Partially thread the 6 mm flange nut onto the control unit bracket stud. Insert the control unit bracket stud into the hole in the vehicle panel. Tighten the 6 mm flange nut to secure the bracket to the vehicle panel.
- Page 6 13. Attach the 2A fuse label to the fuse case on the back-up sensor harness. FUSE CASE 2A FUSE LABEL 6 of 15 14. Disconnect the back-up light 2-pin connector from the left taillight, and plug it into the back-up sensor harness 2-pin connector.
- Page 7 15. At the left taillight, secure the back-up sensor harness to the vehicle harness with one wire tie. BACK-UP WIRE TIE SENSOR HARNESS 16. Plug the back-up sensor harness 14-pin connector into the control unit, and route the harness forward along the vehicle harness.
- Page 8 17. Secure the back-up sensor harness to the vehicle harness with two additional wire ties at the locations shown. L4 Model 2 WIRE TIES VEHICLE HARNESS VEHICLE BACK-UP HARNESS SENSOR HARNESS BACK-UP SENSOR HARNESS 8 of 15 V6 MODEL WIRE TIE 742401CE 18.
- Page 9 19. Using scissors cut one urethane tape in half, and then cut one of the halves again. Wrap the cut pieces around the beeper harness shown. 20. Install the connector clip to the beeper 2-pin connector. BEEPER 2-PIN CONNECTOR BEEPER 2-PIN CONNECTOR CONNECTOR CLIP...
- Page 10 WIRE TIES WIRE BACK-UP SENSOR HARNESS TRUNK ROOM 10 of 15 28. Install one wire tie with clip to the holder with the fuse case, and attach the wire tie to the vehicle harness. VEHICLE HARNESS WIRE TIE WITH CLIP FUSE CASE 29.
- Page 11 32. Install one wire tie with holder to the back-up sensor harness 16-pin connector, and attach the wire tie to the vehicle harness. WIRE TIE WITH HOLDER VEHICLE HARNESS 33. Mark the inside of the rear bumper: • Locate the three marks on the inside of the bumper at the center and left side.
- Page 12 34. While wearing eye protection drill the rear bumper: NOTE: Center sensors are 26 mm holes, side sensors are 24 mm holes. • From the outside of the bumper, drill all eight pierced marks using a 3 mm drill bit. •...
- Page 13 36. Install two center sensors into the 26 mm holes in the rear bumper using the sensor clips. Note the direction and location for each sensor. REAR BUMPER Outside Inside 2 HOLES, 26 mm SENSOR CLIP 2 CENTER SENSORS (Blue) 37.
- Page 14 41. Using isopropyl alcohol on a shop towel, clean the area where the harness tapes will attach. 4 GREEN TAPES 4 HARNESS TAPES 42. At each green tape location, attach the back-up sensor subharness to the rear bumper with four harness tapes.
- Page 15 44. Check that all wire harnesses are routed properly and that all connectors are plugged in. 45. Reinstall all removed parts. 46. Reconnect the negative cable to the battery. 47. Enter the anti-theft codes for the radio and navigation systems (if equipped), then enter the customer’s radio presets.
