Page 1: User Manual

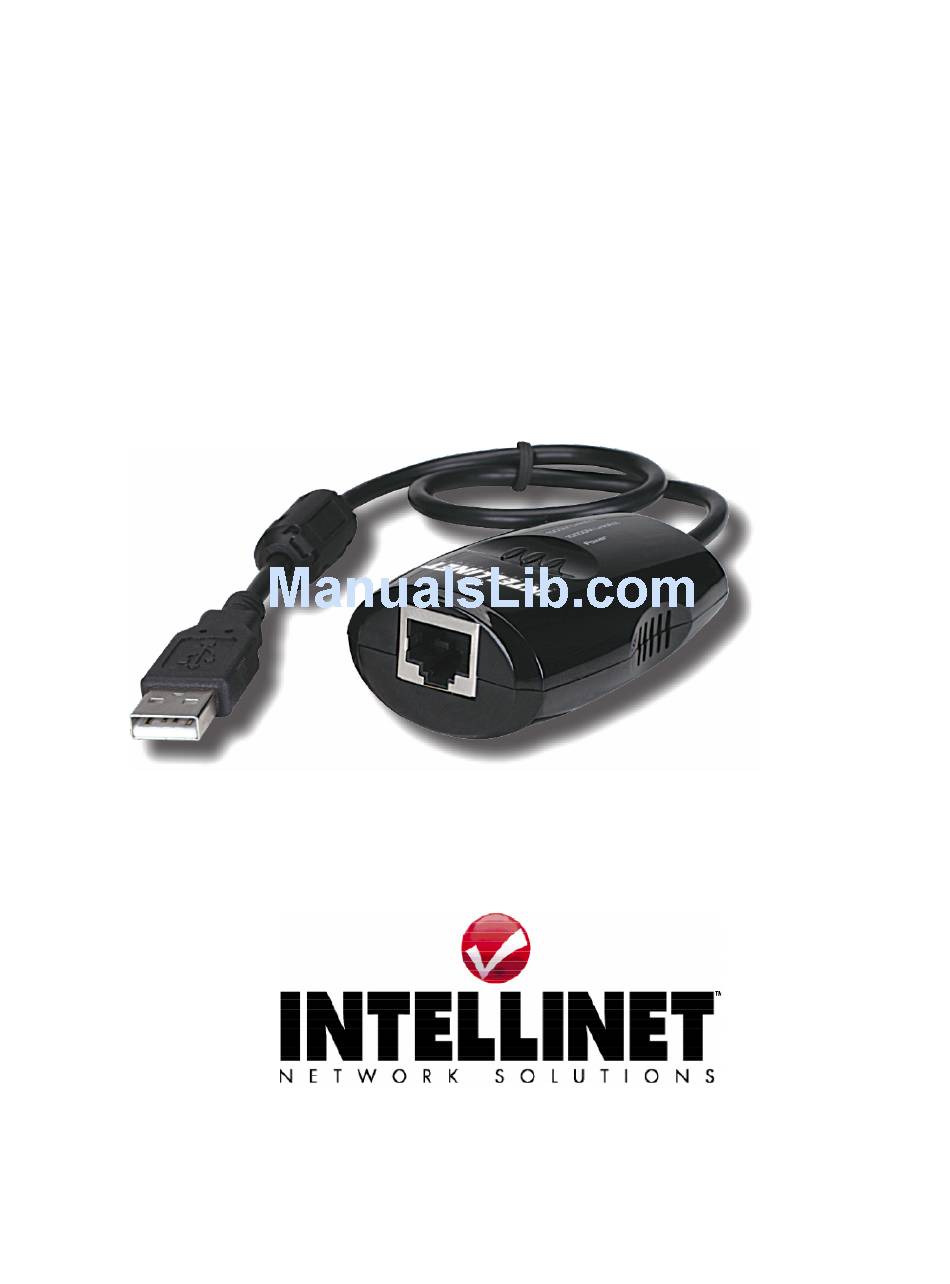

HI-SPEED USB 2.0 GIGABIT ETHERNET ADAPTER USER MANUAL MODEL 505932 INT-505932-UM-0511-04... - Page 2 FCC Certifications This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
-
Page 3: Unpacking Information
1. Unpacking Information Thank you for purchasing the USB to Gigabit Ethernet adapter. Before you start, please verify that your package contains the following items: 1. One USB to Gigabit Ethernet Adapter. 2. One driver & manual CD 2. Overview 2.1 Introduction This USB to Gigabit Ethernet adapter is a cost-effective solution that converts a USB port into a 10/100/1000 Base-T Ethernet port. -
Page 4: Key Features
2.2 Key Features Complies with IEEE 802.3 10BASE-T standard Complies with IEEE 802.3u 100BASE-TX standard Complies with IEEE 802.3ab 1000BASE-T standard Compliant with USB 1.1 and 2.0 standards Complies with IEEE 802.3x Flow Control Supports full/half duplex operation ... -
Page 5: System Requirements
3. Installing the USB to Gigabit Ethernet Adapter 3.1 System Requirements Pentium 166 MMX or above processor-based PC Available USB port Microsoft Windows 7/2003/XP/Vista or Linux or Mac CD-ROM Drive 3.2 Hardware Installation Before installation, check if there is an available active USB port. To check this, go to My Computer >... -
Page 6: Software Installation
3.2.1 Connect the Adapter to your PC 1. Plug the USB adapter into your PC. 2. Windows will detect the new hardware automatically and prompt you for the driver. For driver installation, refer to the chapter “Software Installation.” 3.3 Software Installation After attaching the USB to Gigabit Ethernet adapter to your PC or laptop, the auto-detection for new hardware will be activated automatically. - Page 7 2. Insert the provided driver CD. Select “Include this location in the search,” then click “Browse.”...
- Page 8 3. Choose the location of your CD-ROM. Locate the setup.exe file in the folder “D:505932_USB_ Gigabit_Ethernet_Adapter\WinXP,” where “D” is the designation of your CD drive. Click “Next” to proceed. 4. A caution window may pop up. Click ”Continue Anyway.” There won’t be any effect on the performance of the adapter.
- Page 9 5. Click “Finish” to complete the installation and activate the adapter.
-
Page 10: Windows Vista Setup
3.3.2 Windows Vista setup 1. When the Found New Hardware box appears, close this window. 2. Go to Start Control Panel Hardware and Sound Device Manager. 3. Double-click the “AX178” icon. - Page 11 4. Click the “Reinstall Driver” button. 5. Select “Browse my computer for driver software.”...
- Page 12 6. Click the “Browse” button and select Computer your CD-ROM drive “D:505932_USB_ Gigabit_Ethernet_Adapter\Vista,” where “D” is the designation of your CD drive. Click “OK” to proceed. 7. Click “Next” to begin the installation. 8. Wait a few moments while it installs the driver. 9.
-
Page 13: Windows 7 Setup
3.3.3 Windows 7 Setup 1. Locate the setup.exe file on the included setup CD in the folder “D:505932_USB_ Gigabit_Ethernet_Adapter\Win7,” where “D” is the designation of your CD drive. Double-click the setup icon to begin the installation, then follow the on-screen instructions. - Page 14 2. After the installation is complete, click the “Finish” button.
- Page 15 3.3.4 MAC OS Setup 1. Insert the CD driver into the CD-ROM drive. Go to Computer > CD ROM > “505932_ USB_ Gigabit_Ethernet_Adapter” > Mac. 2. Double-click and run the installation package. 3. When the Welcome screen displays, click “Continue.” 4.
- Page 16 5. Click “Go Back” to change the install location or click “Install” and continue.
- Page 17 6. If prompted, enter your User Name and Password and click “OK.” 7. Click “Continue Installation.”...
- Page 18 8. Wait a few moments for the installation. After the driver is successfully installed, click “Restart” and the computer will reboot automatically.
-
Page 19: Product Specifications
4. Product Specifications IEEE802.3, 10BASE-T IEEE802.3u, 100BASE-TX Standards IEEE802.3ab, 1000BASE-T IEEE802.3x Flow control USB 1.1/ 2.0 1*10/100/1000 Mbps RJ-45 port Interface 1*USB type A male connector Cable Connections UTP Category 3,4,5,5e Network Data Rate 1000Mbps, 100Mbps, 10Mbps Jumbo Frame 9k bytes 1* 1000M Link/ACT LED indications 1* 10/100M Link/ACT...
