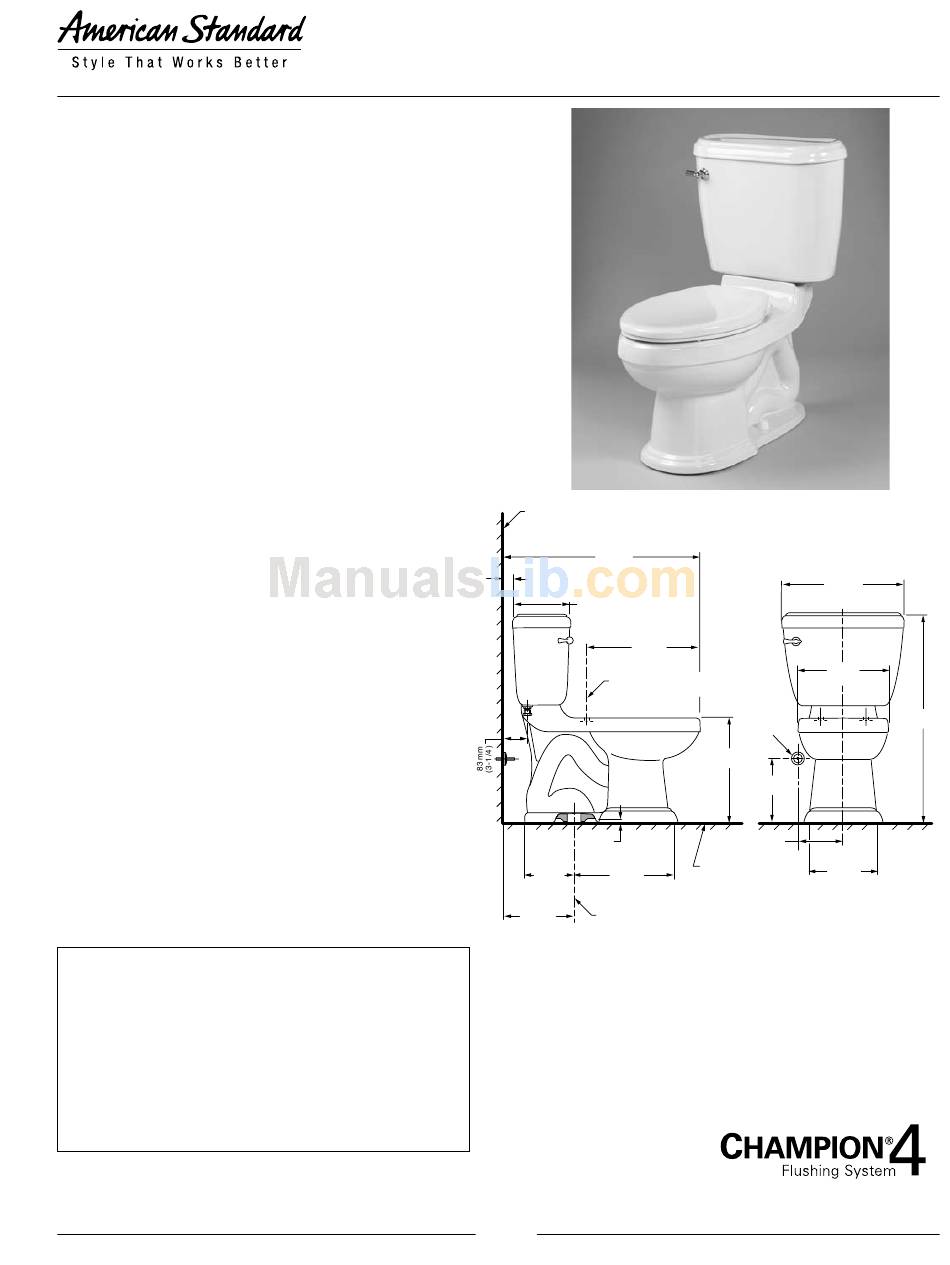

OAKMONT CHAMPION
❑
2625.014
• Vitreous china
• EverClean
surface inhibits the growth of
®
stain- and odor-causing bacteria, mold,
and mildew on the surface
• Low-consumption (6.0 Lpf/1.6 gpf)
• Features Champion® 4 Flushing System
performance platform
• 4" non-adjustable, piston action Accelerator™
flush valve
• Elongated siphon action jetted bowl
• 2-3/8" fully-glazed trapway
• Speed Connect
tank/bowl coupling system
®
• Chrome-plated trip lever
• Sweeping pier on bowl
• 100% factory flush tested
• 2 bolt caps
• 10 year warranty
❑
3153.016 Elongated Bowl
❑
4272.014 Tank
Nominal Dimensions:
772 x 492 x 844mm
(30-3/8" x 19-3/8" x 33-1/4")
Fixture only, seat and supply by others
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• ASME A112.19.2M for Vitreous China Fixtures-
includes Flush Performance, Ball Pass Diameter,
Trap Seal Depth and all Dimensions
• Los Angeles Department of Water and Power
Supplementary Purchase Specification for
Non-Adjustability - July, 2003 revision
To Be Specified:
❏ Color:
❏ White ❏ Bone ❏ Silver ❏ Linen ❏ Black
❏ Seat: (please specify color)
❏ Champion
Slow Close Elongated #5325.010
®
❏ Rise & Shine Elongated #5324.019
❏ EverClean
®
Elongated Seat with Slow Close
Snap-Off Hinges #5321.110
❏ Supply with stop:
© 2008 AS America Inc.
4 ELONGATED TOILET
®
OAKMONT CHAMPION
ELONGATED TOILET
FINISHED WALL
772mm
(30-3/8)
32mm ± 6mm
(1-1/4 ± 1/4)
216mm
(8-1/2)
470mm
(18-1/2)
C/L OF SEAT POST HOLES
140mm (5-1/2 CENTERS)
16mm
(5/8)
273mm
381mm
(10-3/4)
(15)
C/L OF OUTLET
305mm
(12)
NOTES:
THIS TOILET IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION OF
305MM (12") FROM FINISHED WALL TO C/L OF OUTLET.
SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED
SEPARATELY.
DIMENSION SHOWN FOR LOCATION OF SUPPLY IS SUGGESTED.
*
IMPORTANT: Dimensions of fixtures are nominal and may vary within the
range of tolerances established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility
is assumed for use of superseded or voided pages.
K19
VITREOUS CHINA
492mm
(19-3/8)
356mm
(14)
SUPPLY
AS
REQ'D
387mm
(15-1/4)
*
254mm
(10)
152mm
(6)
FINISHED
FLOOR
286mm
(11-1/4)
Revised 2/08
4
®
844mm
(33-1/4)
