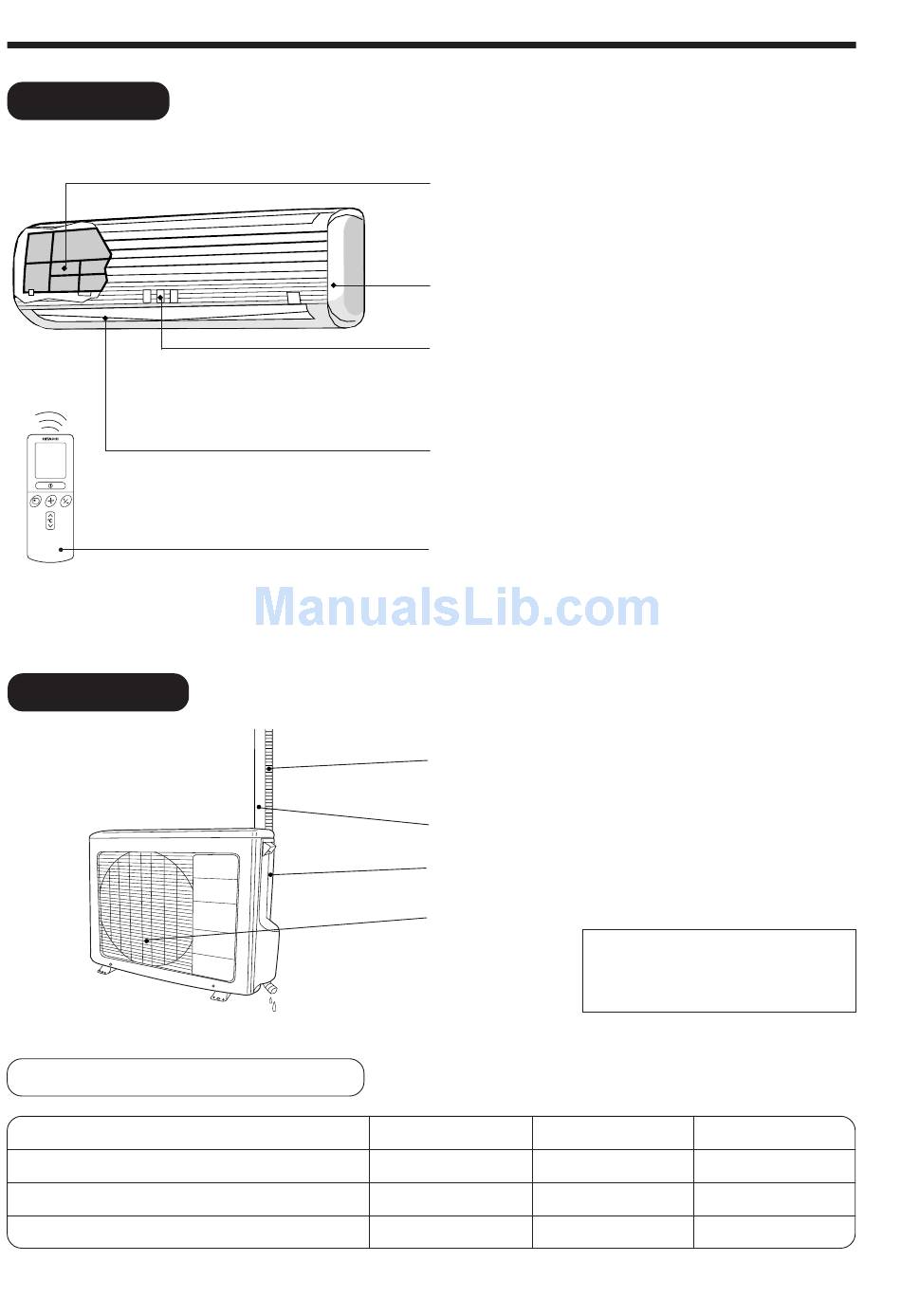

NAMES AND FUNCTIONS OF EACH PART

INDOOR UNIT
OUTDOOR UNIT
MODEL NAME AND DIMENSIONS
MODEL
RAS-51CA3/RAS-63CA3
RAC-63CA3
RAC-51CA3
Air filter
To prevent dust from coming into the indoor unit.
(Refer page 20)
Front panel
Indoor unit indicators
Light indicator showing the operating condition.
(Refer page 5)
Horizontal deflector
(Air Outlet)
(Refer page 11)
Remote controller
Send out operation signal to the indoor unit. So as to
operate the whole unit.
(Refer page 6)
Drain pipe
Condensed water drain to outside.
Connecting cord and insulation pipe for piping
Air inlet (Back and Left side)
Air outlet
WIDTH (mm) HEIGHT (mm)
1030
850
750
– 4 –
G
Vertical deflector
In relation to outdoor unit
• Even if operation stops, fan is running
for 10 to 60 seconds to reduce heat
of electric components.
DEPTH (mm)
295
650
570
183
298
280
